Colder Products

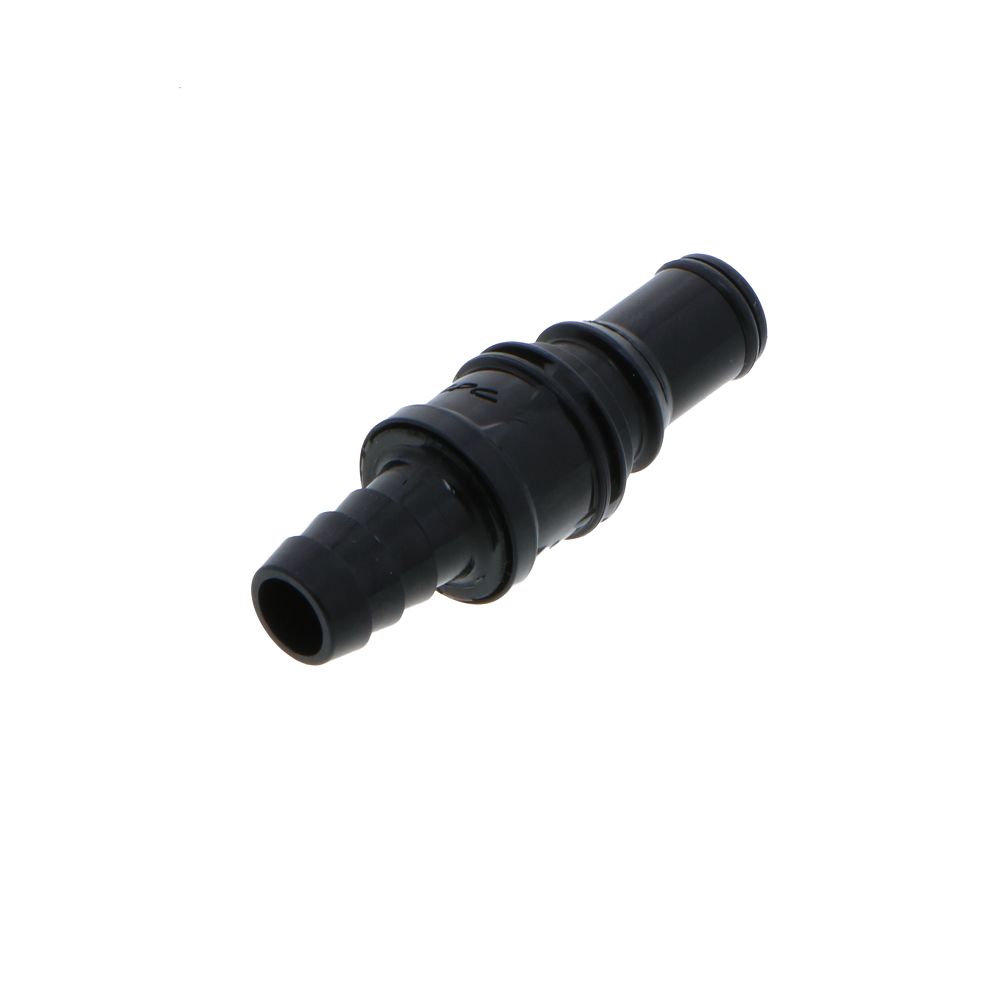

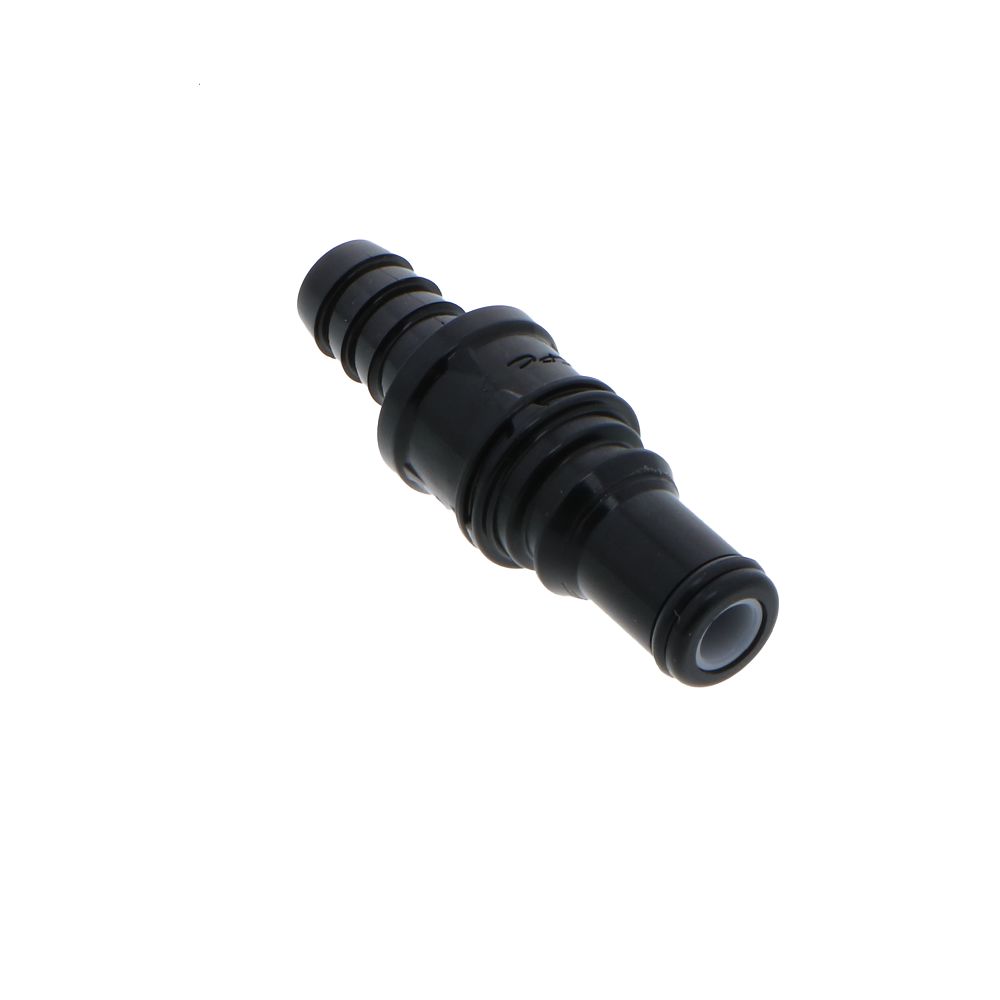

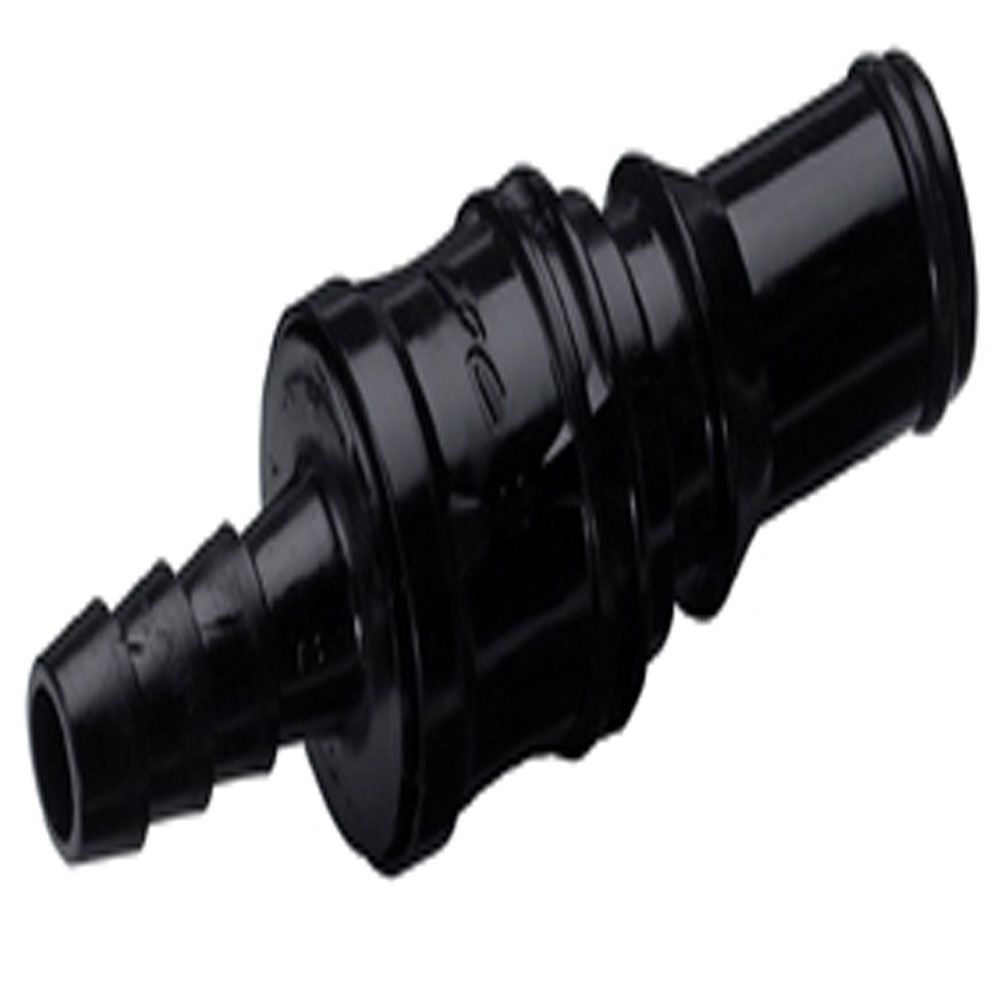

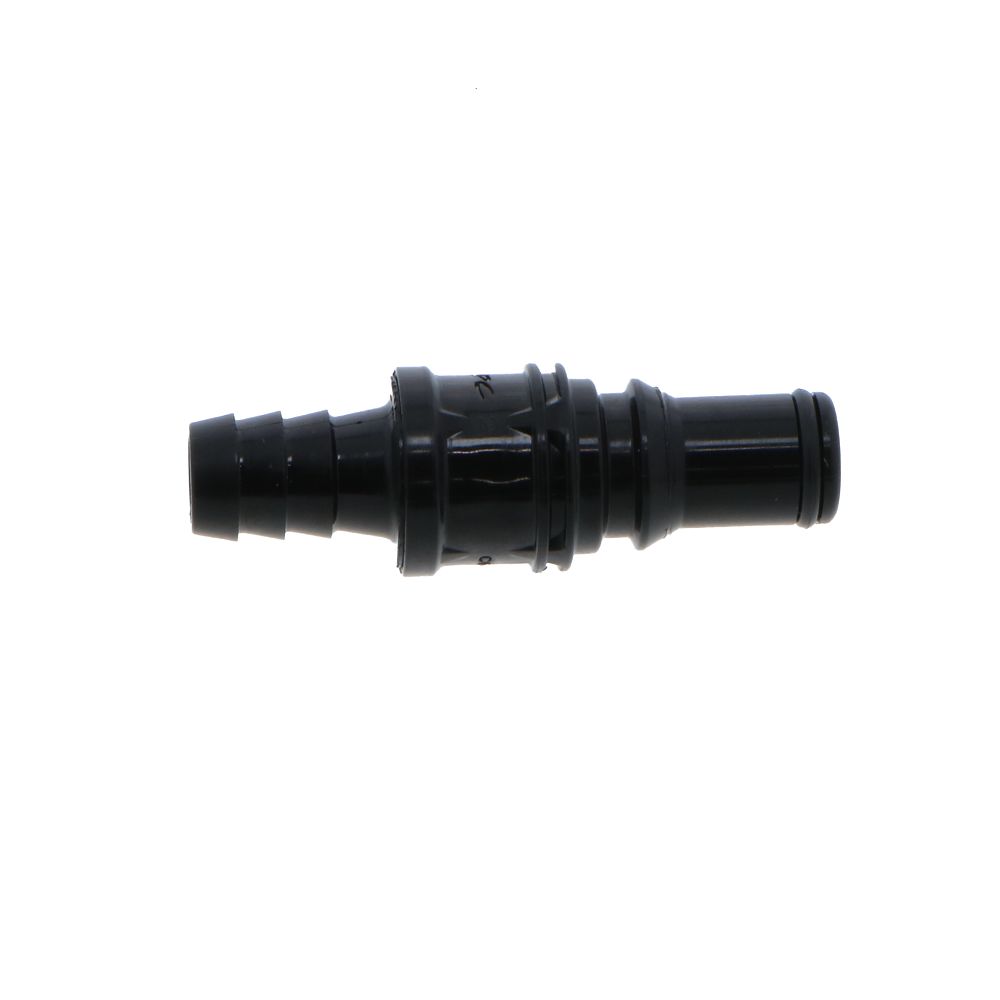

BACD22006MBLK Valved In-Line Hose Barb Coupling Insert Molded Black 3/8 ID Barb

Part Number: BACD22006MBLK

In Stock

out of stock

In Stock

$9.08

CPC’s BreakAway® Series couplings provide safe and easy fluid transfer with protection from costly product loss and equipment damage. These high quality, leak-free connectors are designed to disconnect when pull force is applied without depressing a latching mechanism, allowing users to make a clean, fast and easy break at critical moments.

Specifications:
  • Material: Acetal
  • Material Finish: Molded Black
  • Color: Black
  • Valve Option: Valved
  • Mounting Option: Free Floating
  • Pressure Range: Vacuum to 20 psi, 1.4 bar
  • Temperature Range: 0°F to 150°F




Weight & Dimensions

Height (inches)

2.25

Length (inches)

2.25

Weight (lbs)

0.0625

Width (inches)

0.38

Details

Application

Water

Barb Size

3/8" ID

Body Material

Acetal Copolymer

Max Pressure (Psi)

20

Max Temp (°F)

150

Min Pressure (Psi)

0

Min Temp (°F)

0

Mounting Options

Free Floating

Seal Material

Buna-N

Series

Breakaway

Spring

316 Stainless Steel

Valve Type

Valved

Color / Finish

Black

Type

Coupling Insert


BACD22006MBLK




CPC’s BreakAway® Series couplings provide safe and easy fluid transfer with protection from costly product loss and equipment damage. These high quality, leak-free connectors are designed to disconnect when pull force is applied without depressing a latching mechanism, allowing users to make a clean, fast and easy break at critical moments.

Specifications:
  • Material: Acetal
  • Material Finish: Molded Black
  • Color: Black
  • Valve Option: Valved
  • Mounting Option: Free Floating
  • Pressure Range: Vacuum to 20 psi, 1.4 bar
  • Temperature Range: 0°F to 150°F



Weight & Dimensions

Height (inches)

2.25

Length (inches)

2.25

Weight (lbs)

0.0625

Width (inches)

0.38

Details

Application

Water

Barb Size

3/8" ID

Body Material

Acetal Copolymer

Max Pressure (Psi)

20

Max Temp (°F)

150

Min Pressure (Psi)

0

Min Temp (°F)

0

Mounting Options

Free Floating

Seal Material

Buna-N

Series

Breakaway

Spring

316 Stainless Steel

Valve Type

Valved

Color / Finish

Black

Type

Coupling Insert

Documentation
BACD22006MBLK
Reviews
