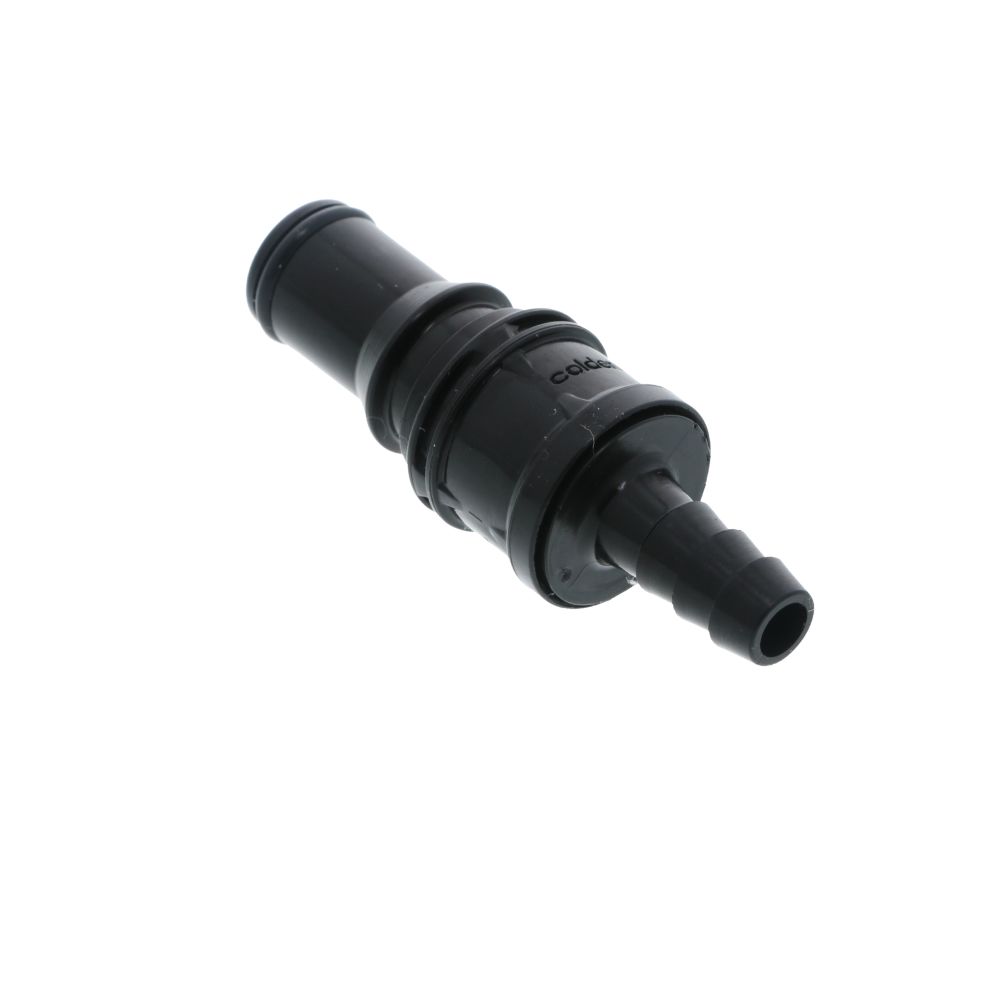

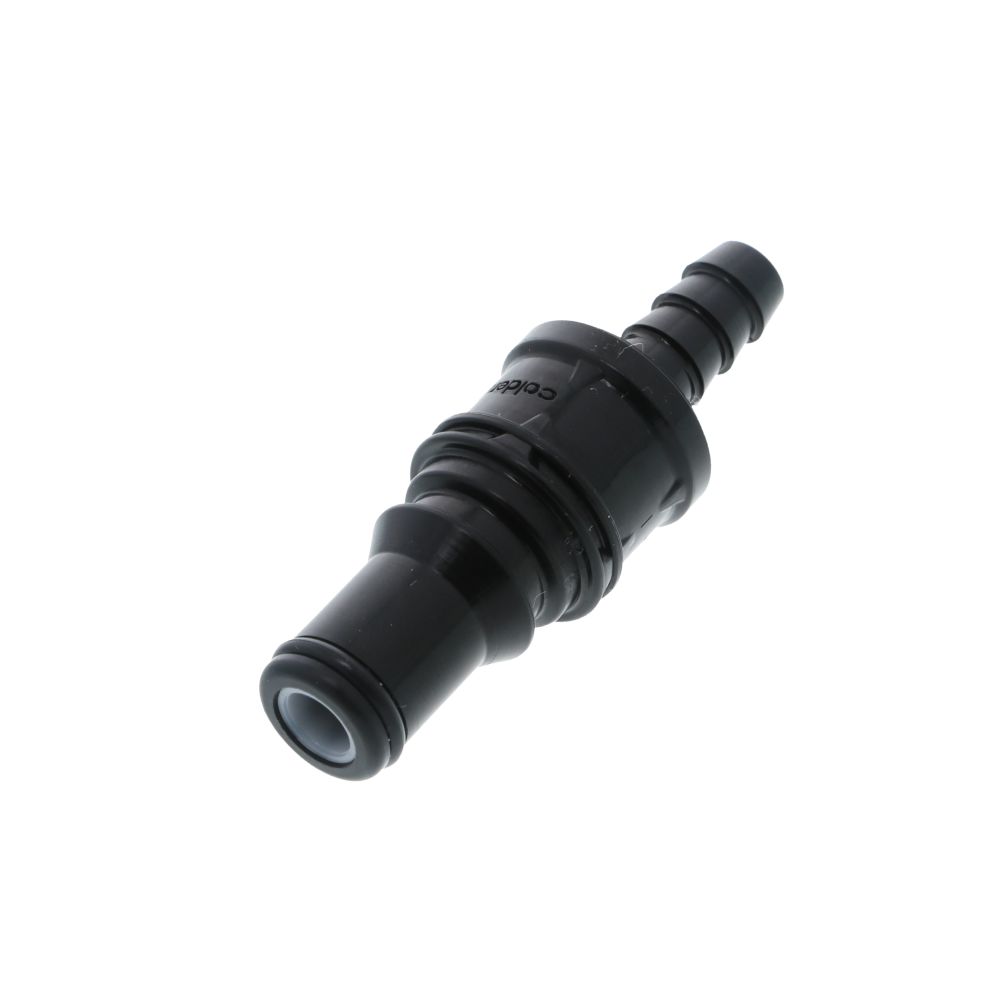

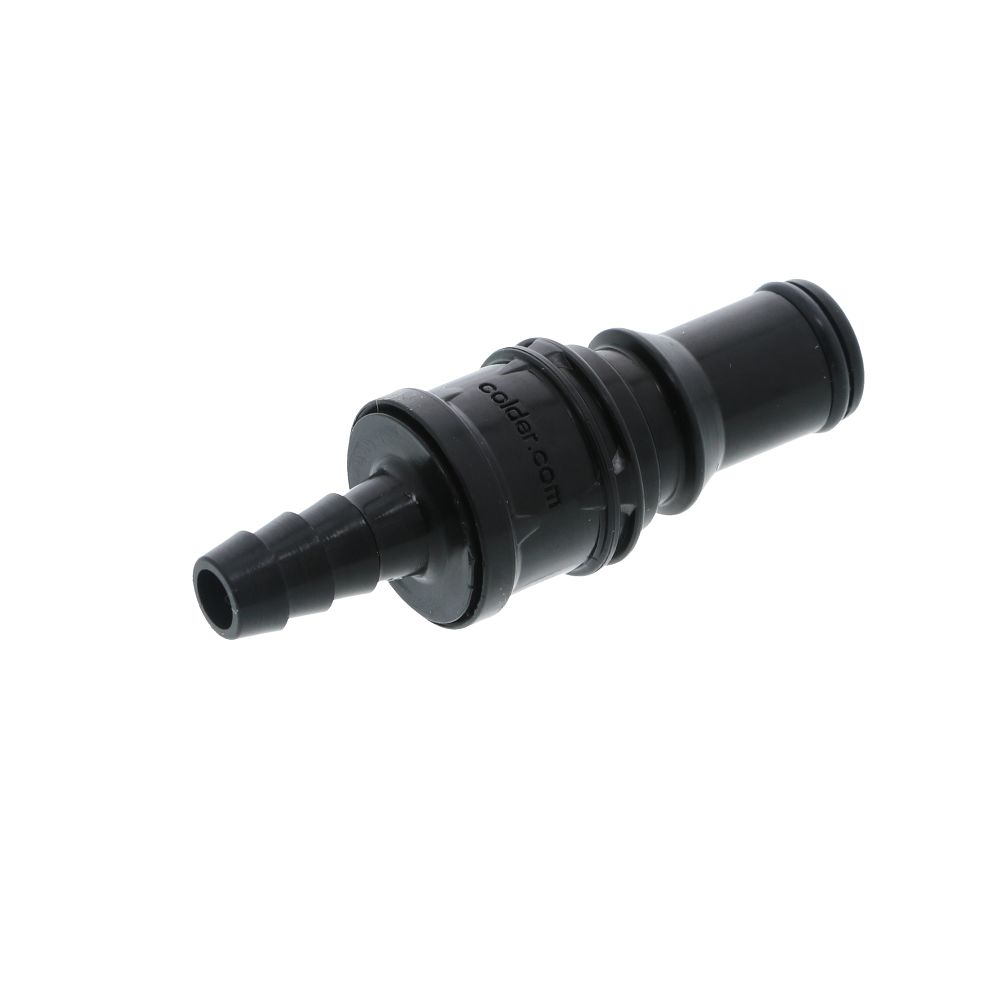

BACD22004MBLK Valved In-Line Hose Barb Coupling Insert Molded Black 1/4 ID Barb

CPC’s BreakAway® Series couplings provide safe and easy fluid transfer with protection from costly product loss and equipment damage. These high quality, leak-free connectors are designed to disconnect when pull force is applied without depressing a latching mechanism, allowing users to make a clean, fast and easy break at critical moments.

Specifications:

Material: Acetal
Material Finish: Molded Black
Color: Black
Valve Option: Valved
Mounting Option: Free Floating
Pressure Range: Vacuum to 20 psi, 1.4 bar
Temperature Range: 0°F to 150°F

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water
Barb Size	1/4" ID
Body Material	Acetal Copolymer
Max Pressure (Psi)	20
Max Temp (°F)	150
Min Pressure (Psi)	0
Min Temp (°F)	0
Mounting Options	Free Floating
Nsf Version	No
Seal Material	Buna-N
Series	Breakaway
Shape	Straight
Spring	316 Stainless Steel
Valve Type	Valved
Color / Finish	Black
Type	Coupling Insert

Product Details
Application	Water
Barb Size	1/4" ID
Body Material	Acetal Copolymer
Max Pressure (Psi)	20
Max Temp (°F)	150
Min Pressure (Psi)	0
Min Temp (°F)	0
Mounting Options	Free Floating
Nsf Version	No
Seal Material	Buna-N
Series	Breakaway
Shape	Straight
Spring	316 Stainless Steel
Valve Type	Valved
Color / Finish	Black
Type	Coupling Insert

Product Details
Application	Water
Barb Size	1/4" ID
Body Material	Acetal Copolymer
Max Pressure (Psi)	20
Max Temp (°F)	150
Min Pressure (Psi)	0
Min Temp (°F)	0
Mounting Options	Free Floating
Nsf Version	No
Seal Material	Buna-N
Series	Breakaway
Shape	Straight
Spring	316 Stainless Steel
Valve Type	Valved
Color / Finish	Black
Type	Coupling Insert

BACD22004MBLK Valved In-Line Hose Barb Coupling Insert Molded Black 1/4 ID Barb Manual
