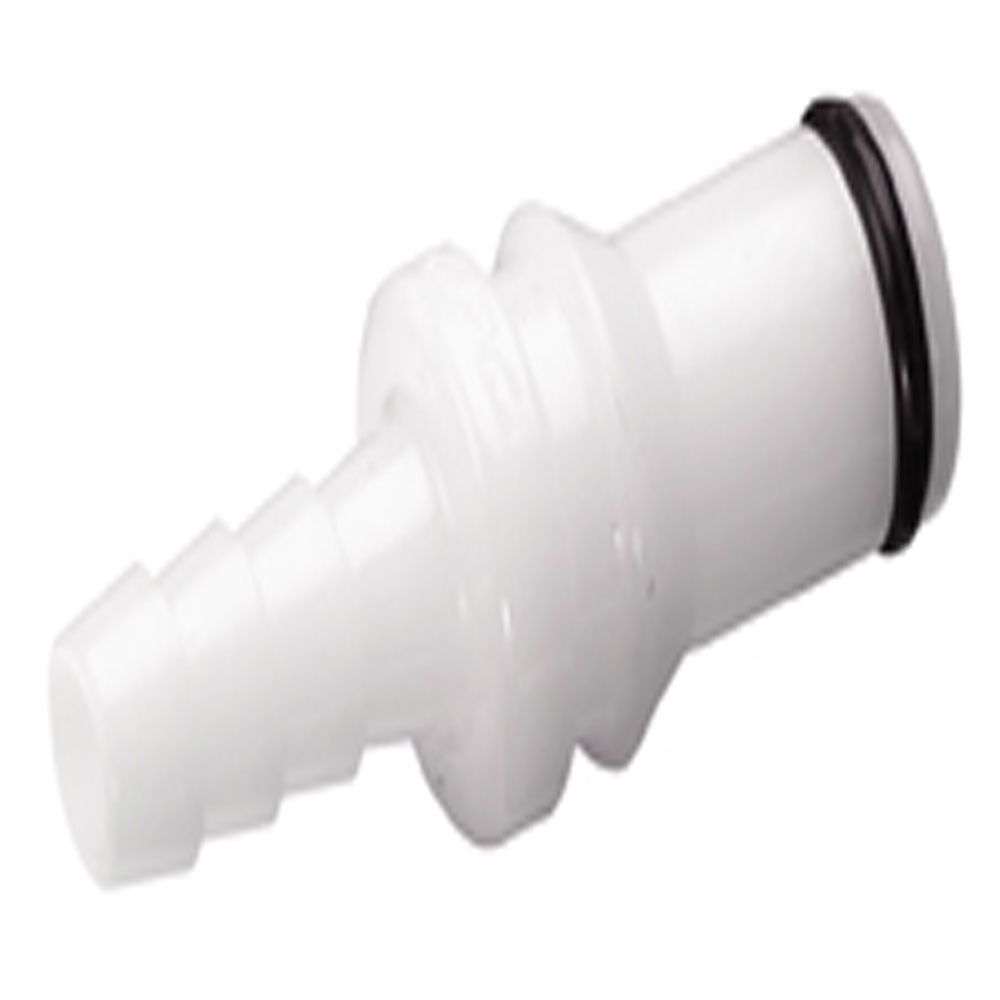

BAC22004 Non-Valved In-Line Hose Barb BreakAway Coupling Insert - 1/4 ID Barb

CPC’s BreakAway® Series couplings provide safe and easy fluid transfer with protection from costly product loss and equipment damage. These high quality, leak-free connectors are designed to disconnect when pull force is applied without depressing a latching mechanism, allowing users to make a clean, fast and easy break at critical moments.

Specifications:

Material: Acetal
Material Finish: Molded White
Color: White
Valve Option: Non-Valved
Mounting Option: Free Floating
Pressure Range: Vacuum to 20 psi, 1.4 bar
Temperature Range: 0°F to 150°F

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water
Barb Size	1/4" ID
Body Material	Acetal Copolymer
Max Pressure (Psi)	20
Max Temp (°F)	150
Min Pressure (Psi)	0
Min Temp (°F)	0
Mounting Options	Free Floating
Nsf Version	No
Seal Material	Buna-N
Series	Breakaway
Shape	Straight
Spring	316 Stainless Steel
Valve Type	Non-Valved
Color / Finish	White
Type	Coupling Insert
