B/C Valve Company

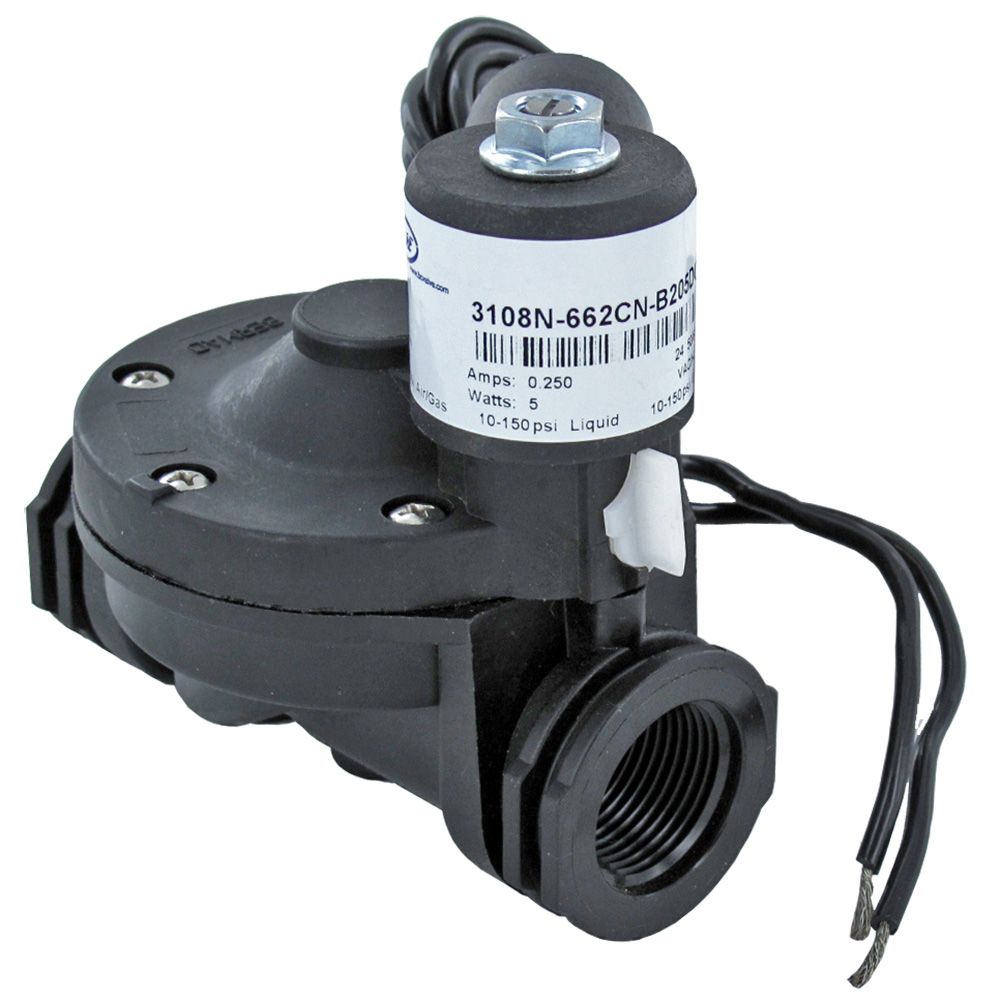

B/C Valve 3/4 FPT Solenoid Valve N.C. 24VAC - Glass Filled Nylon

Part Number: 3108N-662CN-B205DC

Alt. Part Number: 953A-1249, 953A-308, 05EZ009A1-1EHA

In Stock

out of stock

In Stock

This item is discontinued. We recommend the CFA C9 Series Solenoid Valve Normally Closed 3/4" FPT 24VAC as a substitute.


B/C Valve 3108N-662CN-B205DC solenoid valves are uniquely suited for use in consumer applications where high reliability and low cost are needed. The valve is constructed of glass filled nylon and the seals are nitrile (Buna-N).

Specifications:
  • Ports: 3/4" FPT
  • Body: Glass Filled Nylon
  • Seals: Buna-N
  • Internal Components: Stainless Steel
  • Max Operating Temperature: 180°F
  • Max Operating Pressure Differential: 180 psi (12.4 bar)




Weight & Dimensions

Weight (lbs)

1.5

Details

Max Temp (°F)

150

Max Pressure (Psi)

150

Min Pressure (Psi)

10

Diameter

1"

Frequency

50/60 Hz

Voltage

24V AC

Wetted Materials

Glass Filled Nylon

Port Size

3/4" FPT"


B/C





B/C Valve 3108N-662CN-B205DC solenoid valves are uniquely suited for use in consumer applications where high reliability and low cost are needed. The valve is constructed of glass filled nylon and the seals are nitrile (Buna-N).

Specifications:
  • Ports: 3/4" FPT
  • Body: Glass Filled Nylon
  • Seals: Buna-N
  • Internal Components: Stainless Steel
  • Max Operating Temperature: 180°F
  • Max Operating Pressure Differential: 180 psi (12.4 bar)



NOTE: This item is discontinued. We recommend the CFA C9 Series Solenoid Valve Normally Closed 3/4" FPT 24VAC as a substitute.

Weight & Dimensions

Weight (lbs)

1.5

Details

Max Temp (°F)

150

Max Pressure (Psi)

150

Min Pressure (Psi)

10

Diameter

1"

Frequency

50/60 Hz

Voltage

24V AC

Wetted Materials

Glass Filled Nylon

Port Size

3/4" FPT"
