B/C Valve Company

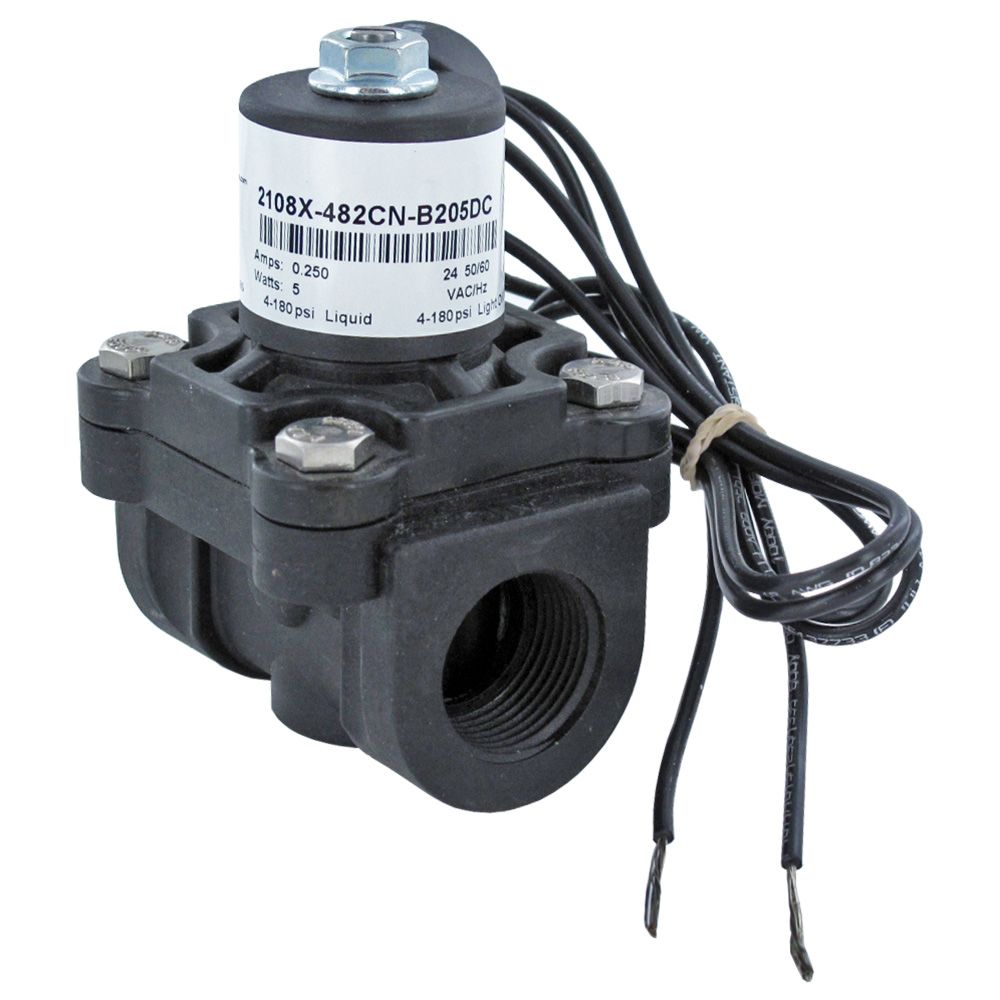

B/C Valve 3/4 FPT Solenoid Valve N.C. 24VAC

Part Number: 2108X-482CN-B205DC

Alt. Part Number: 992A-308, C9-212N5252-G0-MF-24VAC

In Stock

out of stock

In Stock

This item is discontinued. We recommend the CFA C9 Series Solenoid Valve Normally Open with Flow Control 3/4" FPT 120 VAC...


B/C Valve 2108X-482CN-B205DC solenoid valves are uniquely suited for use in consumer applications where high reliability and low cost are needed.

Features:
  • High Reliability At A Low Cost. With a max operating temperature of 180°F and a max operating pressure differential of 180 psi, this valve is highly reliable at a reasonable price.
  • Certified Lead Free. The valve is constructed of Noryl GTX-830 which meets California AB1953 and Vermont S152 standards for no lead content.

Specifications:
  • Ports: 3/4" FPT
  • Body: Noryl GTX-830
  • Seals: Buna-N
  • Internal Components: Stainless Steel
  • Max Operating Temperature: 180°F
  • Max Operating Pressure Differential: 180 psi (12.4 bar)




Weight & Dimensions

Weight (lbs)

1.5

Details

Frequency

50/60 Hz

Max Pressure (Psi)

180

Max Temp (°F)

180

Min Pressure (Psi)

4

Power

5 W

Wetted Materials

Noryl GTX-830

Diameter

3/4"

Port Size

3/4" FPT"

Voltage

24V AC


B/C





B/C Valve 2108X-482CN-B205DC solenoid valves are uniquely suited for use in consumer applications where high reliability and low cost are needed.

Features:
  • High Reliability At A Low Cost. With a max operating temperature of 180°F and a max operating pressure differential of 180 psi, this valve is highly reliable at a reasonable price.
  • Certified Lead Free. The valve is constructed of Noryl GTX-830 which meets California AB1953 and Vermont S152 standards for no lead content.

Specifications:
  • Ports: 3/4" FPT
  • Body: Noryl GTX-830
  • Seals: Buna-N
  • Internal Components: Stainless Steel
  • Max Operating Temperature: 180°F
  • Max Operating Pressure Differential: 180 psi (12.4 bar)



NOTE: This item is discontinued. We recommend the CFA C9 Series Solenoid Valve Normally Open with Flow Control 3/4" FPT 120 VAC as a substitute.

Weight & Dimensions

Weight (lbs)

1.5

Details

Frequency

50/60 Hz

Max Pressure (Psi)

180

Max Temp (°F)

180

Min Pressure (Psi)

4

Power

5 W

Wetted Materials

Noryl GTX-830

Diameter

3/4"

Port Size

3/4" FPT"

Voltage

24V AC

Documentation
B/C
Reviews
