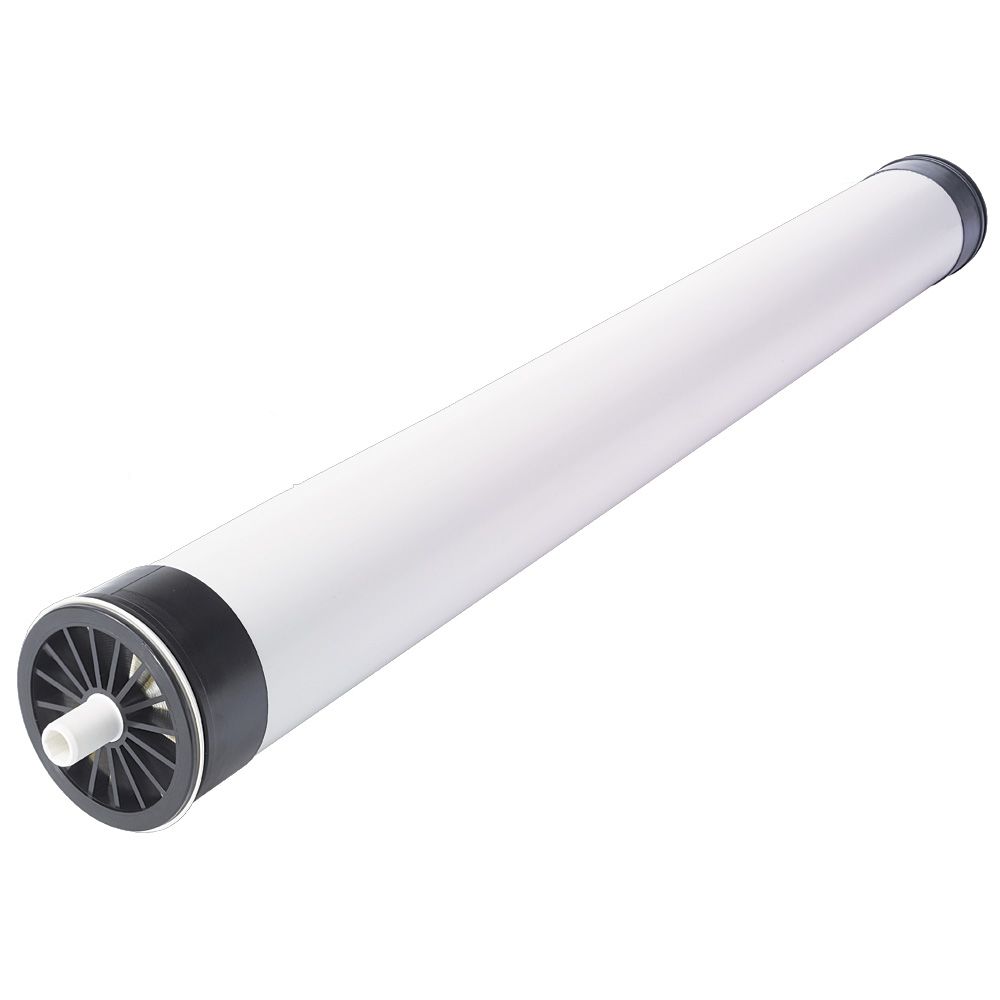

AXEON NF4-4040 2000 GPD Nanofiltration Membrane Element

AXEON NF4-4040 Series Nanofiltration Membranes operate at pressures as low as 70 psi and reject 80-90% of dissolved solids. AXEON NF4-4040 elements are available in all standard commercial sizes, feature a protective ABS shell and are 100% vacuum integrity tested.The polyamide thin-film used in the AXEON NF4 Series membranes is manufactured by a major US membrane film manufacturer.

Specifications:

Permeate Flow Rate: 2000 gallons per day
Membrane Type: Polyamide Thin-Film
Applied Pressure: 70 psi
Dimensions: 4" x 40"
Minimum Concentrate Flow Rate: 5:1
Chlorine Tolerance: 0 ppm
Maximum Operating Temperature: 113° F
Applications: Nanofiltration
MgSO4 Reduction: 98%
Formerly known as RO UltraTec NF4-4040

Compatible with:

Desal Membranes	DURASLICK NF 4040
Filmtec Membranes	NF90-4040, 149983

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Nanofiltration
Average Nacl Rejection	80-90%
Chlorine Tolerance	0 ppm
Cleaning Ph Range	1-13
Direction	Outside - In
Feed Water Temperature	77°F
Inlet Pressure	70 PSI
Inner/Outer Wraps	ABS
Material Of Construction	Polyamide Thin-Film
Max Feed Silt Density Index	5 Silt Density Index
Max Feed Water Turbidity	1 Nephelometric Turbidity Units
Max Pressure Drop	10 PSI Differential
Max Pressure (Psi)	600psi
Max Temp (°F)	113°F
Membrane Type	Spiral Wound
Minimum Salt Rejection Cl- (%)	0.96
Permeate Flow Rate	2000 gpd / (7.6 m³/d)
Permeate Tube Diameter	3/4"
Ph Range	2-11
Recovery Rate	0.15
Diameter	3.95"
Shipping Dimensions
Shipping Length	41.5 in.
Shipping Width	4.5 in.
Shipping Height	4.5 in.
Product Weight & Dimensions
Product Length	40 in.
Product Weight (lbs)	7.2

AXEON NF4-4040 2000 GPD Nanofiltration Membrane Element Manual
