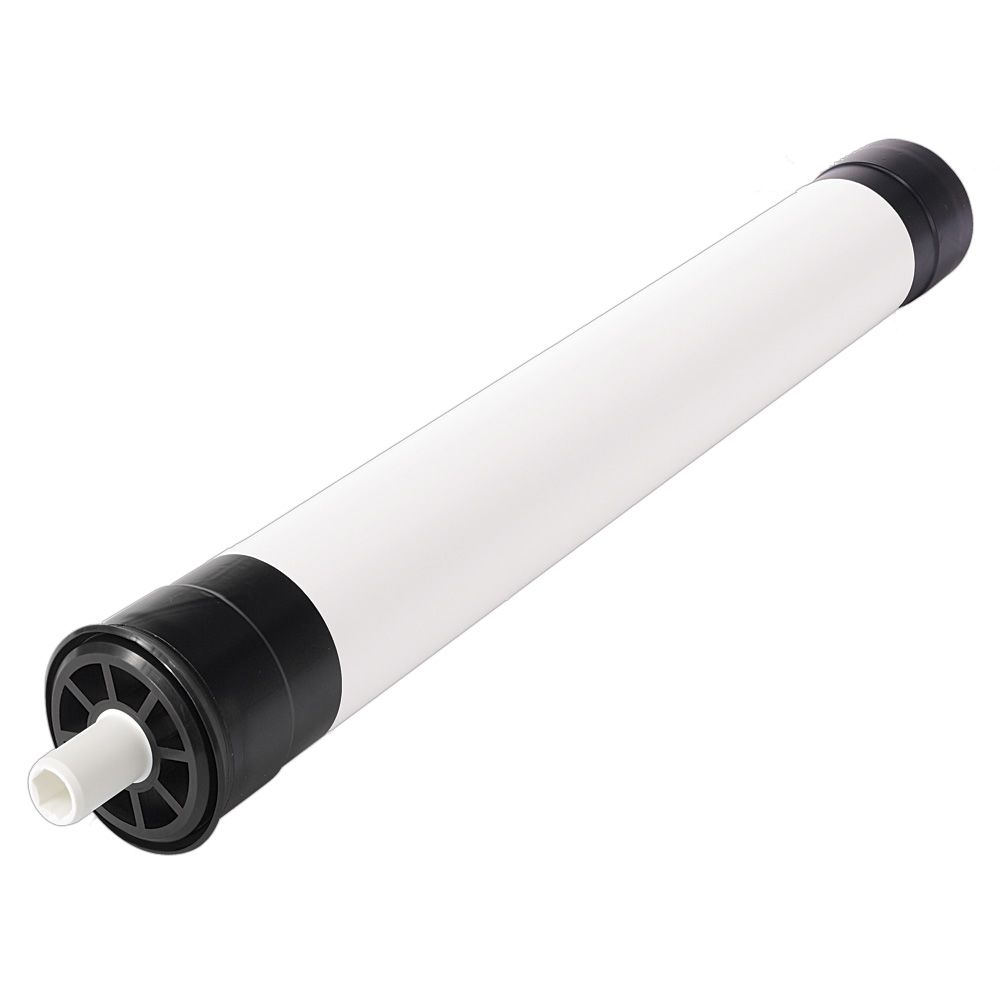

AXEON HF6-2521 400 GPD RO Membrane Element

The AXEON HF6-2521 Reverse Osmosis Membranes are one of the industries most reliable and highest performing reverse osmosis elements. The HF6-2521 RO membrane elements are available in all standard commercial sizes, feature a protective ABS shell, and are 100% vacuum integrity tested. The AXEON HF6 Series membranes are ideal for reducing salt, boron, and other impurities in water.

Specifications:

Permeate Flow Rate: 400 gallons per day
Membrane Type: Polyamide Thin-Film
Applied Pressure: 100 psi
Dimensions: 2.5" x 21"
Chlorine Tolerance: 0 ppm
Maximum Operating Temperature: 113° F
Applications: Extra Low Energy, Brackish Water
High Boron Reduction

AXEON RO membranes are dry packed

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Brackish Water
Average Nacl Rejection	0.994
Chlorine Tolerance	0 ppm
Cleaning Ph Range	1-13
Feed Water Temperature	77°F
Inlet Pressure	150 PSI
Inner/Outer Wraps	Tape
Material Of Construction	Polyamide Thin-Film
Max Feed Silt Density Index	5 Silt Density Index
Max Flow Rate	6 gpm
Max Pressure Drop	13 PSI Differential
Max Pressure (Psi)	600psi
Max Temp (°F)	113°F
Minimum Salt Rejection Cl- (%)	0.99
Permeate Flow Rate	400 gpd / (1.51 m³/d)
Permeate Tube Diameter	3/4"
Ph Range	2-11
Recovery Rate	0.15
Diameter	2.4"
Shipping Dimensions
Shipping Length	21 in.
Product Weight & Dimensions
Product Length	21 in.
Product Weight (lbs)	4

AXEON HF6-2521 400 GPD RO Membrane Element Manual
