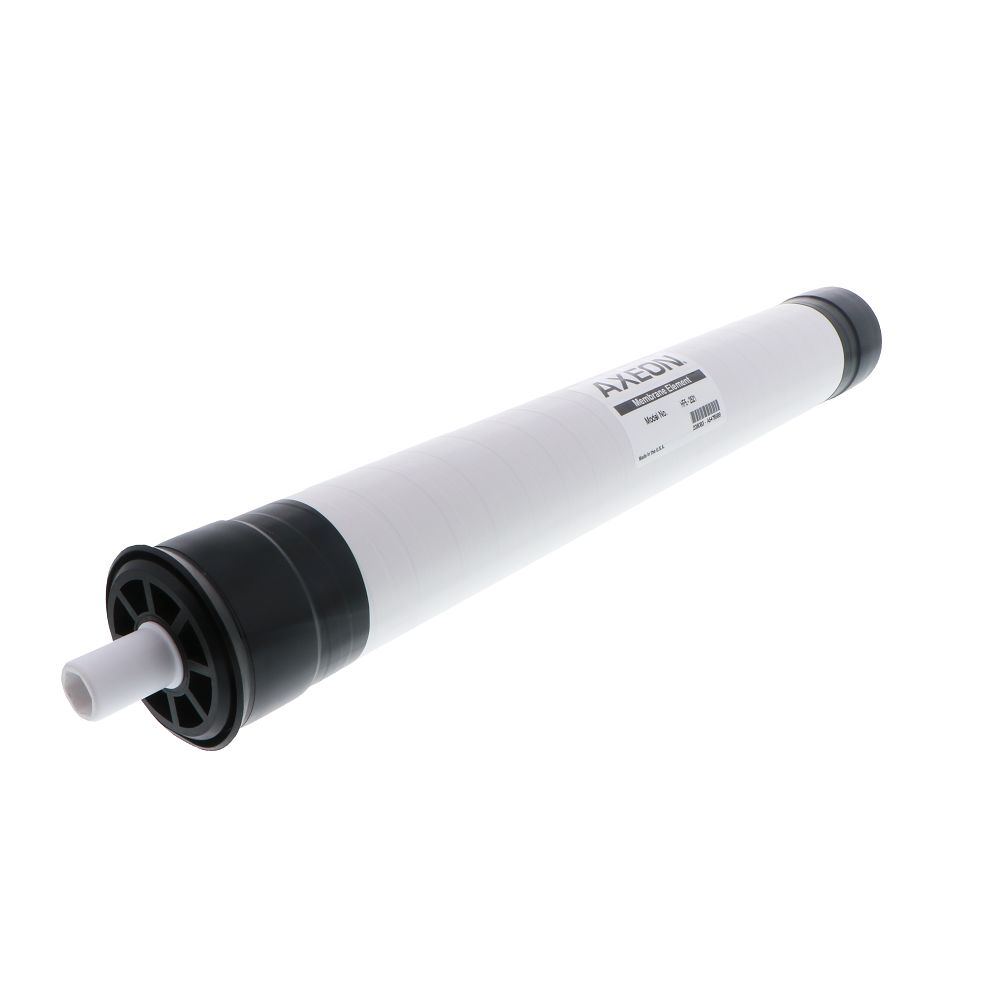

AXEON HF5-2521 400 GPD RO Membrane Element

The AXEON HF5-2521 Reverse Osmosis Membranes are one of the industries most reliable and highest performing reverse osmosis elements. The HF5 RO membrane elements are available in all standard commercial sizes, feature a protective tape wound exterior, and are 100% vacuum integrity tested.The polyamide thin-film used in the AXEON HF5 Series membranes is manufactured by a major US membrane film manufacturer.

Specifications:

Permeate Flow Rate: 400 gallons per day
Membrane Type: Polyamide Thin-Film
Applied Pressure: 80 psi
Dimensions: 2.5" x 21"
Minimum Concentrate Flow Rate: 5:1
Chlorine Tolerance: 0 ppm
Maximum Operating Temperature: 113° F
Applications: Extra Low Energy, Brackish Water

AXEON RO membranes are dry packed

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Brackish Water
Average Nacl Rejection	0.985
Chlorine Tolerance	0 ppm
Cleaning Ph Range	1-13
Direction	Outside - In
Feed Water Temperature	77°F
Inlet Pressure	80 PSI
Material Of Construction	Polyamide Thin-Film
Max Feed Silt Density Index	5 Silt Density Index
Max Feed Water Turbidity	<1 Nephelometric Turbidity Units
Max Pressure Drop	13 PSI Differential
Max Pressure (Psi)	400psi
Max Temp (°F)	113°F
Membrane Type	Spiral Wound
Minimum Salt Rejection Cl- (%)	0.96
Permeate Flow Rate	400 gpd / (1.15 m³/d)
Permeate Tube Diameter	3/4"
Ph Range	2 - 11
Recovery Rate	0.15
Change Frequency	12-36 Months
Diameter	2.40"
Origin	U.S.A.
Shipping Dimensions
Shipping Length	21 in.
Shipping Width	3 in.
Shipping Height	2.75 in.
Product Weight & Dimensions
Product Height	2.75 in.
Product Length	21 in.
Product Width	3 in.
Product Weight (lbs)	1.053125

AXEON HF5-2521 400 GPD RO Membrane Element Manual
