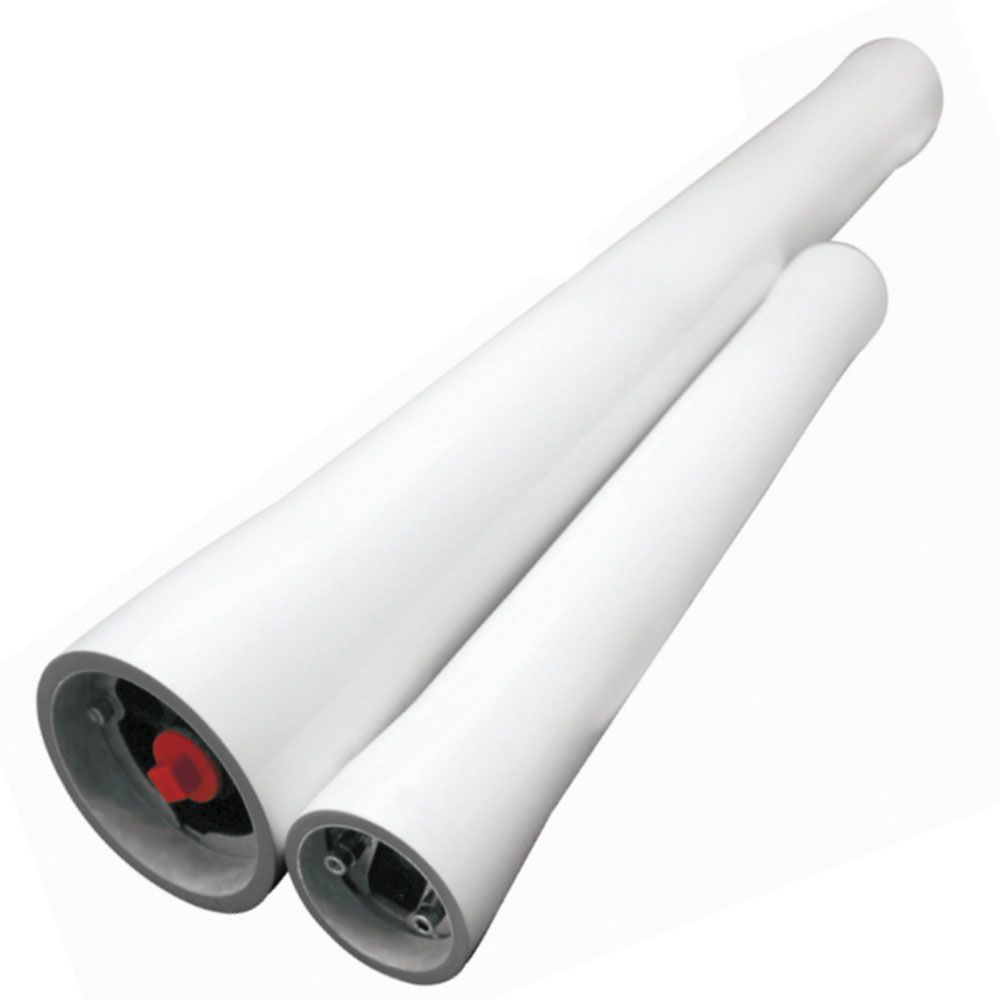

AXEON 208420 4" x 80" Fiberglass Membrane Housing
Part Number: 208420
Alt. Part Number: FRP–4080–300E, MHPVC-4080-1234
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Features:
- Fiberglass Construction
- End Entry Connections
- Single Piece ABS End Plugs
- True–Lock™ Integrated Locking System
- High Resistance to Chemicals, such as High Levels of Chlorides and Climate Conditions
- Easy Removable End Plug for Ease of Installation and Maintenance
- Accommodates All Standard Sized Membrane Elements
- Adapters, Interconnectors and Mounting Clamps Available
- Maximum Operating Pressure: 300 psi
- Operating Temperature Range: 35°F - 150°F
Product Details | |
---|---|
Closure Type | Locking Ring |
Housing Material | Fiberglass |
Max Pressure (Psi) | 300 |
Max Temp (°F) | 150 |
Membrane Size | 4040 |
Min Temp (°F) | 35 |
O-Rings | EPDM |
Diameter | 4" |
End Cap Type | GTX |
Port Size | 3/4" 1/2" |
Shipping Dimensions | |
Shipping Length | 90 in. |
Shipping Width | 5 in. |
Shipping Height | 5 in. |
Product Weight & Dimensions | |
Product Length | 80" |
Product Weight (lbs) | 11 |
Features:
- Fiberglass Construction
- End Entry Connections
- Single Piece ABS End Plugs
- True–Lock™ Integrated Locking System
- High Resistance to Chemicals, such as High Levels of Chlorides and Climate Conditions
- Easy Removable End Plug for Ease of Installation and Maintenance
- Accommodates All Standard Sized Membrane Elements
- Adapters, Interconnectors and Mounting Clamps Available
- Maximum Operating Pressure: 300 psi
- Operating Temperature Range: 35°F - 150°F
Product Details | |
---|---|
Closure Type | Locking Ring |
Housing Material | Fiberglass |
Max Pressure (Psi) | 300 |
Max Temp (°F) | 150 |
Membrane Size | 4040 |
Min Temp (°F) | 35 |
O-Rings | EPDM |
Diameter | 4" |
End Cap Type | GTX |
Port Size | 3/4" 1/2" |
Shipping Dimensions | |
Shipping Length | 90 in. |
Shipping Width | 5 in. |
Shipping Height | 5 in. |
Product Weight & Dimensions | |
Product Length | 80" |
Product Weight (lbs) | 11 |
