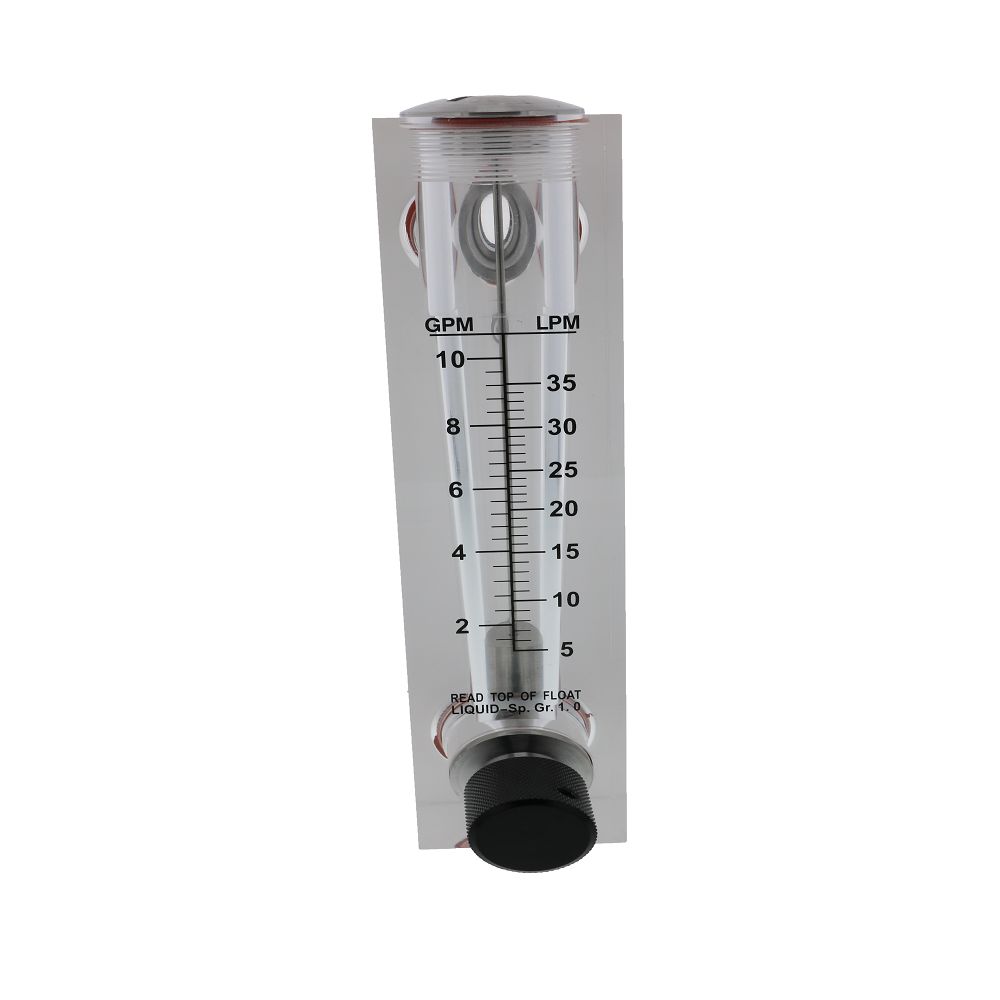

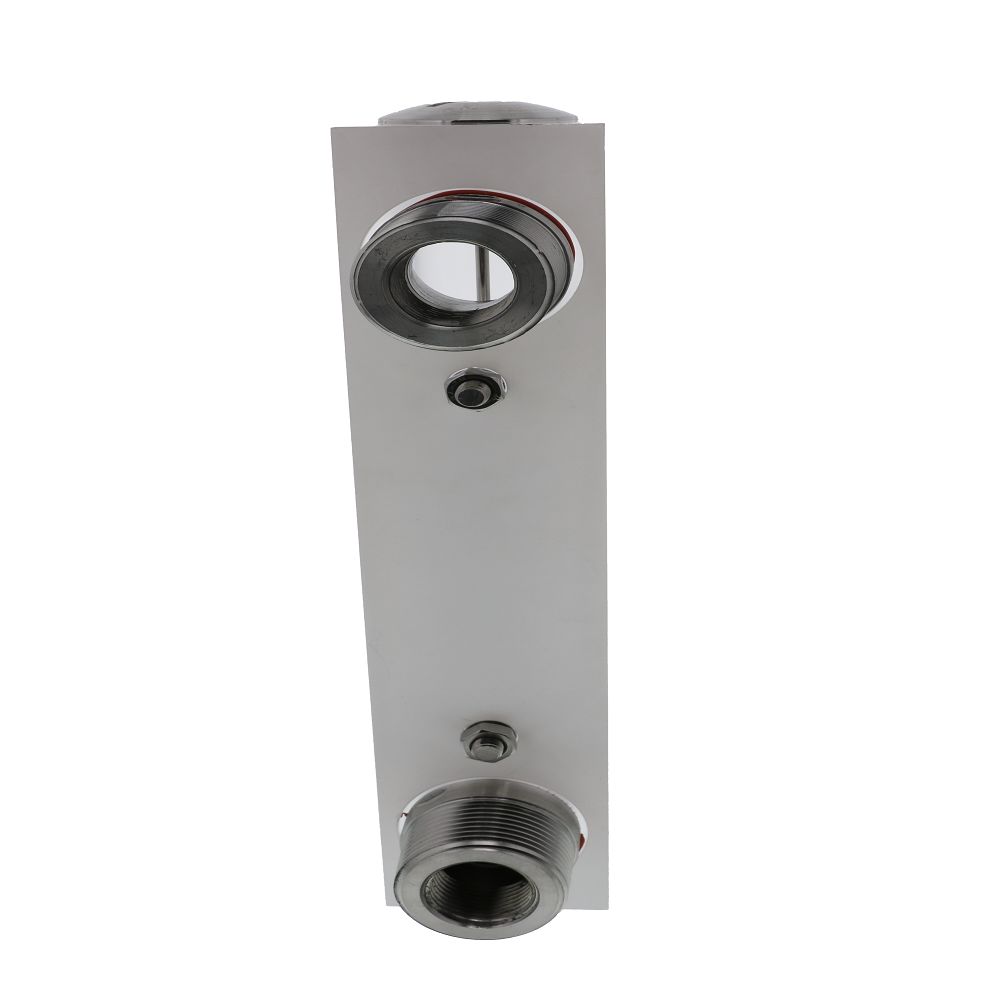

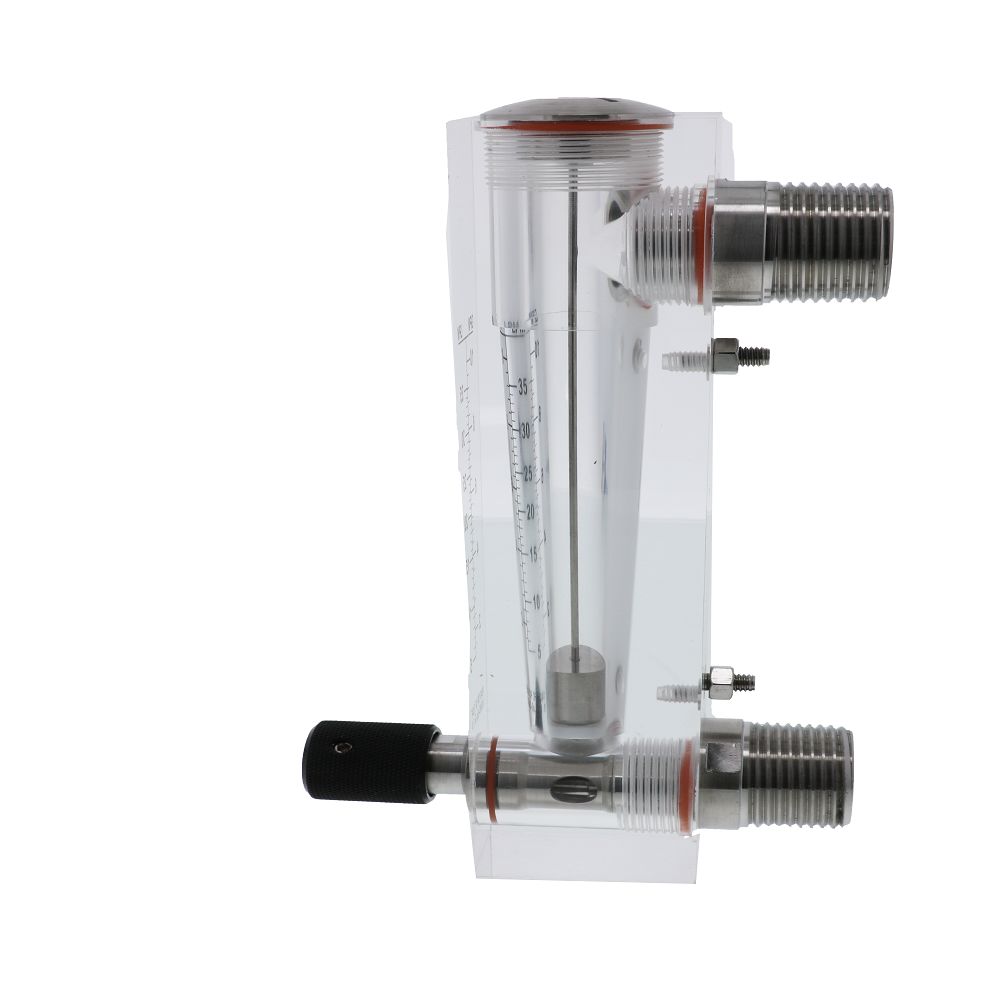

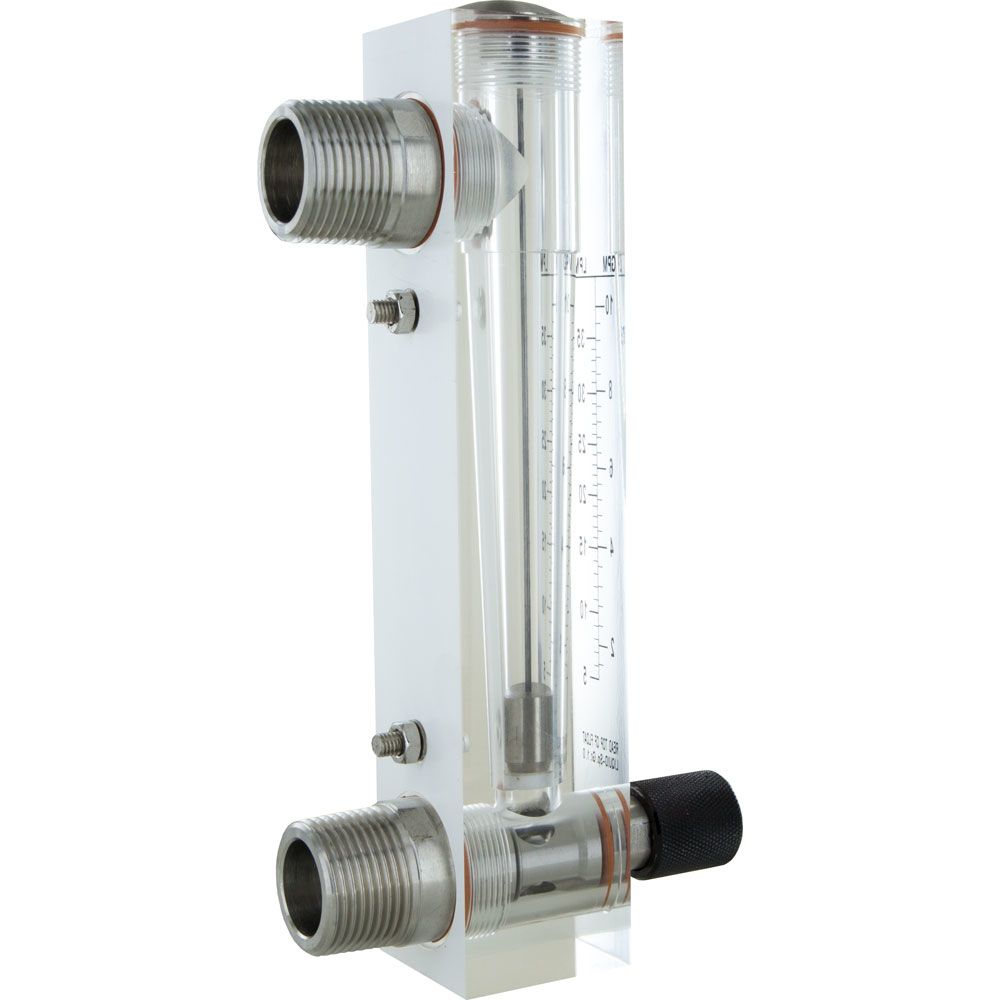

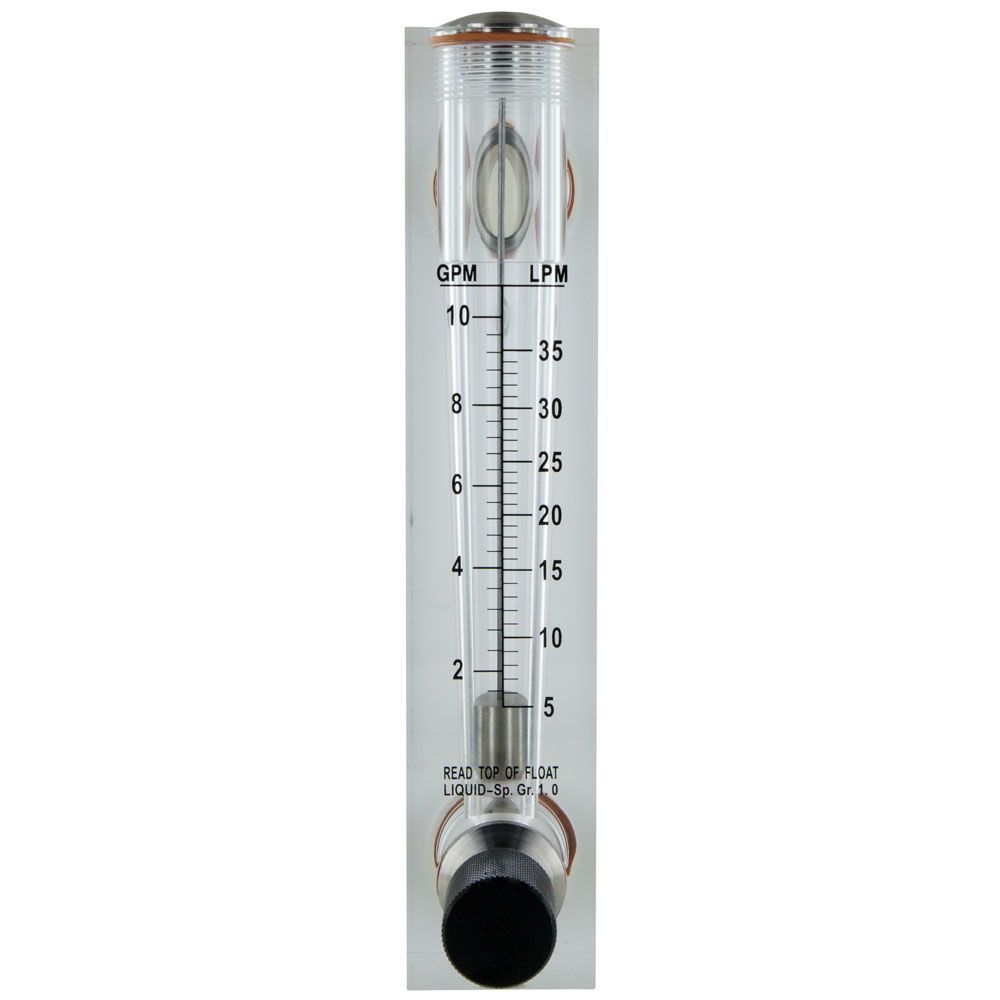

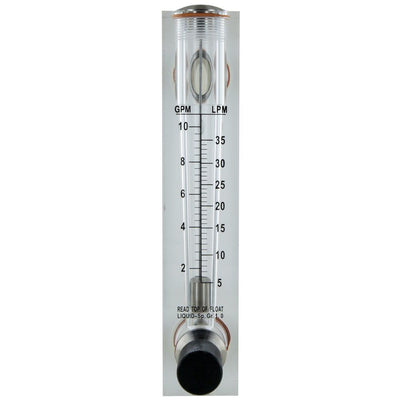

Axeon 205105 Acrylic RO Flowmeter is a highly durable acrylic body meter that features schedule 80 PVC connections and a 316 stainless steel guide & float. The flow meter has an easy to read scale labelled onto the acrylic body.
Specifications:
Specifications:
- Solid one piece injection molded acrylic body
- Stainless steel float and internals
- Calibrations in GPM and LPM
- Individually packaged
- 100% tested
- Silastic® O-rings
- Polypropylene connections
- Maximum pressure: 150PSI
- Temperature rating: 120°F
- Accuracy ±5%
Weight & Dimensions
Weight (lbs) | 1.2 |
Details
Body Material | Acrylic |
Float | 316 Stainless Steel |
Flow Rate | 1-10 GPM |
Guide | 316 Stainless Steel |
Mounting Options | Panel Mount |
O-Rings | Silicone |
Axeon 205105 Acrylic RO Flowmeter is a highly durable acrylic body meter that features schedule 80 PVC connections and a 316 stainless steel guide & float. The flow meter has an easy to read scale labelled onto the acrylic body.
Specifications:
- Solid one piece injection molded acrylic body
- Stainless steel float and internals
- Calibrations in GPM and LPM
- Individually packaged
- 100% tested
- Silastic® O-rings
- Polypropylene connections
- Maximum pressure: 150PSI
- Temperature rating: 120°F
- Accuracy ±5%
Weight & Dimensions
Weight (lbs) | 1.2 |
Details
Body Material | Acrylic |
Float | 316 Stainless Steel |
Flow Rate | 1-10 GPM |
Guide | 316 Stainless Steel |
Mounting Options | Panel Mount |
O-Rings | Silicone |
