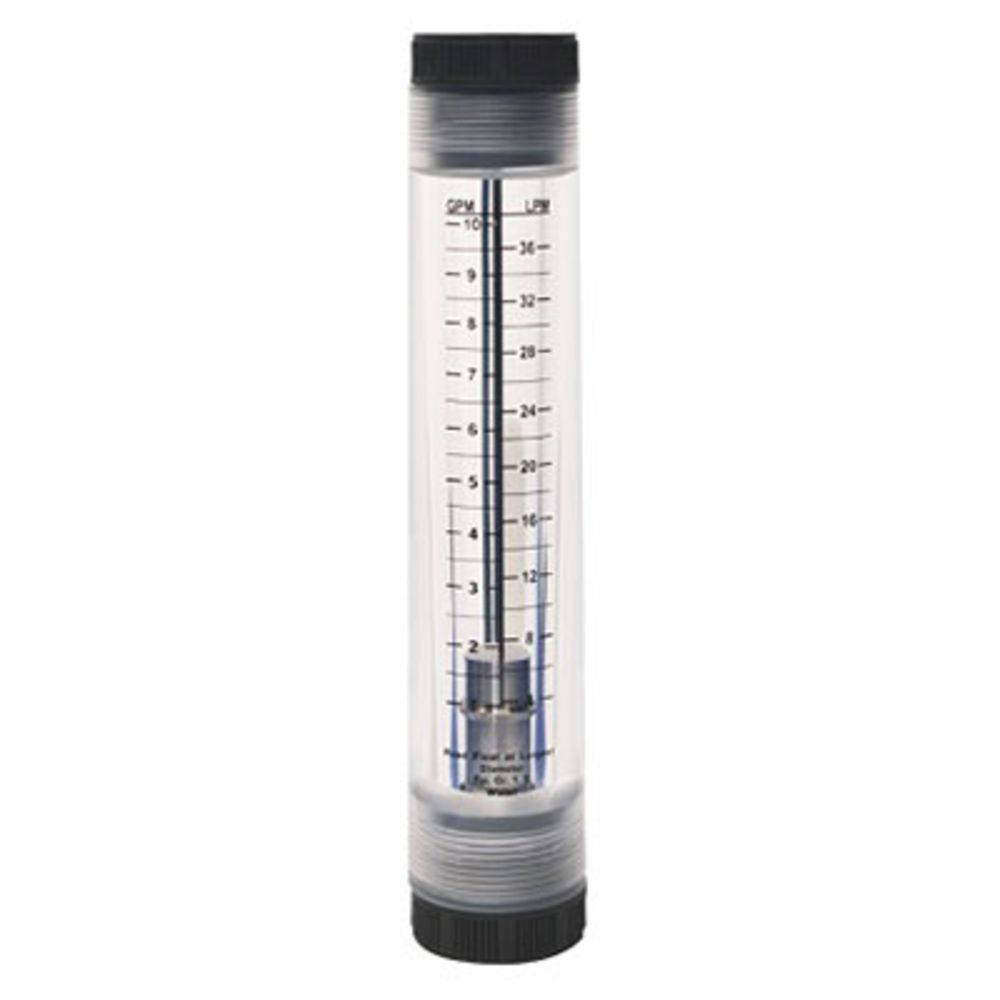

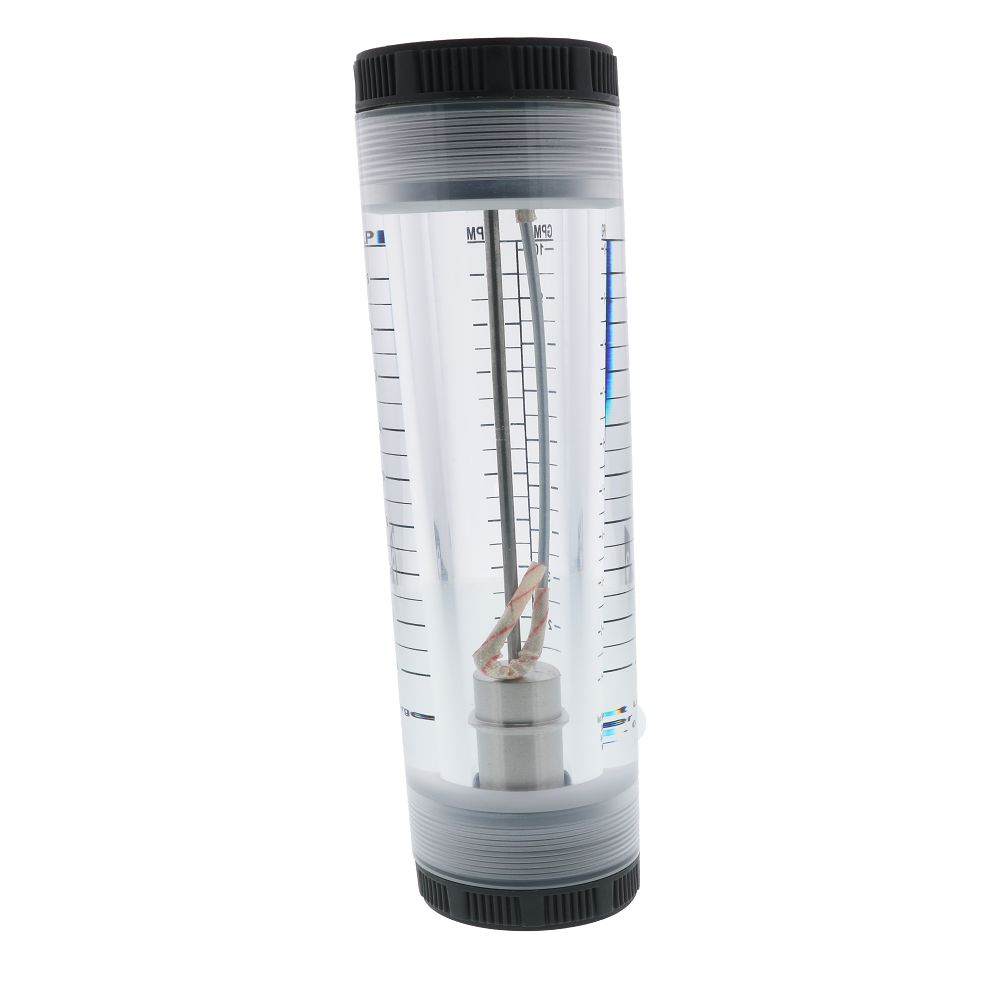

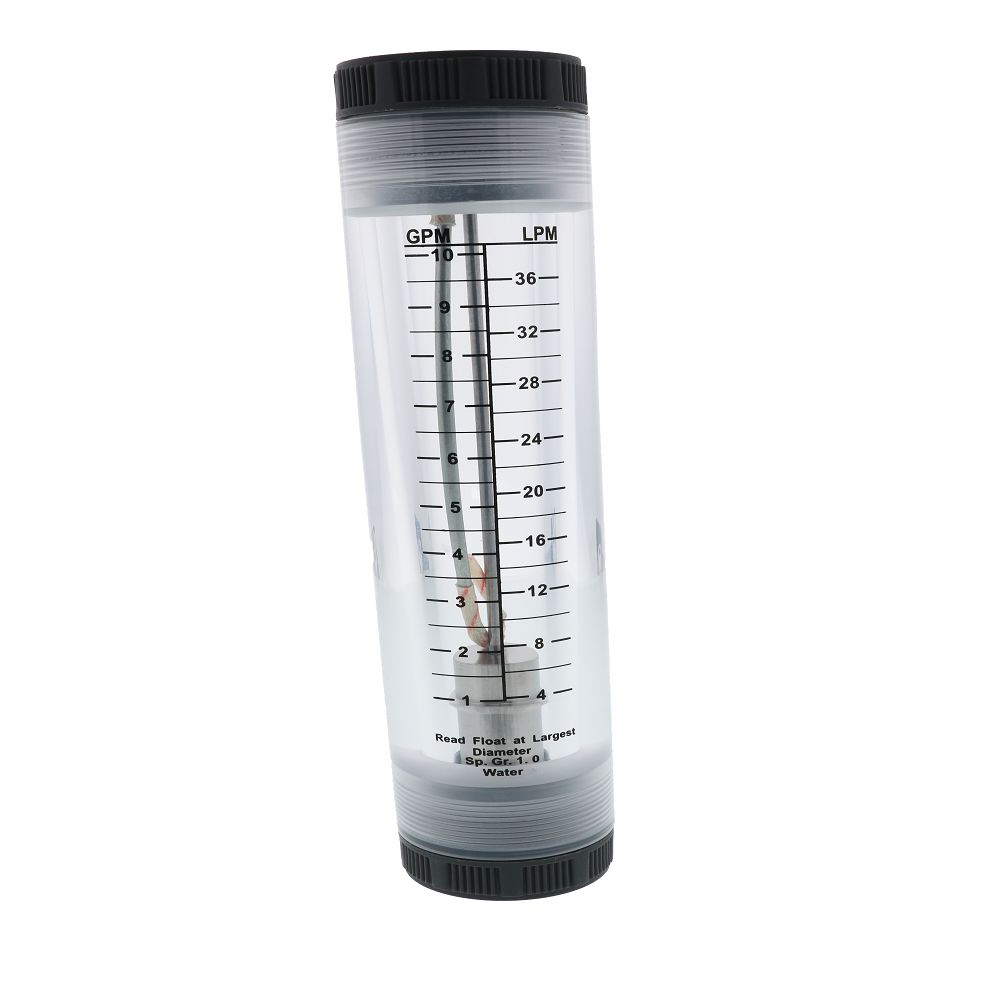

Axeon 204246 Inline Flow Meter 1-10 GPM, 1" FPT

Part Number: 204246

In Stock

out of stock

In Stock

$37.99

The Axeon 204246 is an inline flow meter. This meter features an easy to read scale, stainless steel float, and 100% tested for accuracy. The 204246 is very durable because the main body is constructed from Acrylic, the o-rings are silicone, and the female connectors are polypropylene. The meters connections are 1" FPT and the meter reads from 1 to 10 GPM.

Features:
  • Acrylic Body
  • Individually Packaged
  • 100% Tested for Accuracy
  • Calibrations in GPM and LPM
  • Solid One Piece Injection Molded
  • Permanent Screen Printed Scales
  • Stainless Steel Float and Internals
Specifications:
  • Body: Acrylic
  • O–Rings: Silicone
  • Connections: Polypropylene
  • Guide: 316L Stainless Steel
  • Float: 316L Stainless Steel
  • Maximum Pressure: 150 psi
  • Temperature Rating: 120°F
  • Accuracy: ± 4%


Details

Float

316 Stainless Steel

Body Material

Acrylic

Flow Rate

1 - 10 Gallons Per Minute

Max Operating Pressure

150 PSI

O Rings

Silicone

Operating Temperature Range

Max 120 Degrees Fahrenheit

Accuracy

+/- 4% Percent

Guide

316 Stainless Steel

Port Size

1" FNPT


Axeon




The Axeon 204246 is an inline flow meter. This meter features an easy to read scale, stainless steel float, and 100% tested for accuracy. The 204246 is very durable because the main body is constructed from Acrylic, the o-rings are silicone, and the female connectors are polypropylene. The meters connections are 1" FPT and the meter reads from 1 to 10 GPM.

Features:
  • Acrylic Body
  • Individually Packaged
  • 100% Tested for Accuracy
  • Calibrations in GPM and LPM
  • Solid One Piece Injection Molded
  • Permanent Screen Printed Scales
  • Stainless Steel Float and Internals
Specifications:
  • Body: Acrylic
  • O–Rings: Silicone
  • Connections: Polypropylene
  • Guide: 316L Stainless Steel
  • Float: 316L Stainless Steel
  • Maximum Pressure: 150 psi
  • Temperature Rating: 120°F
  • Accuracy: ± 4%

Details

Float

316 Stainless Steel

Body Material

Acrylic

Flow Rate

1 - 10 Gallons Per Minute

Max Operating Pressure

150 PSI

O Rings

Silicone

Operating Temperature Range

Max 120 Degrees Fahrenheit

Accuracy

+/- 4% Percent

Guide

316 Stainless Steel

Port Size

1" FNPT
