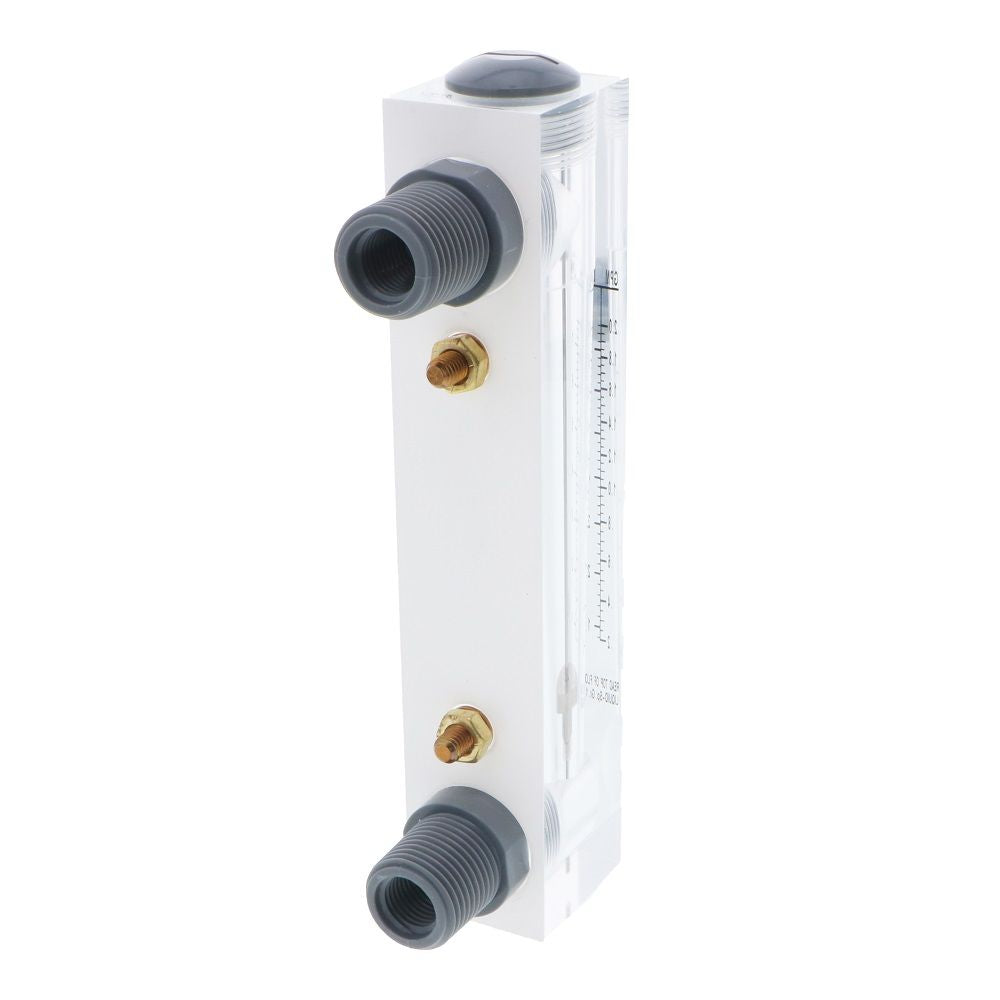

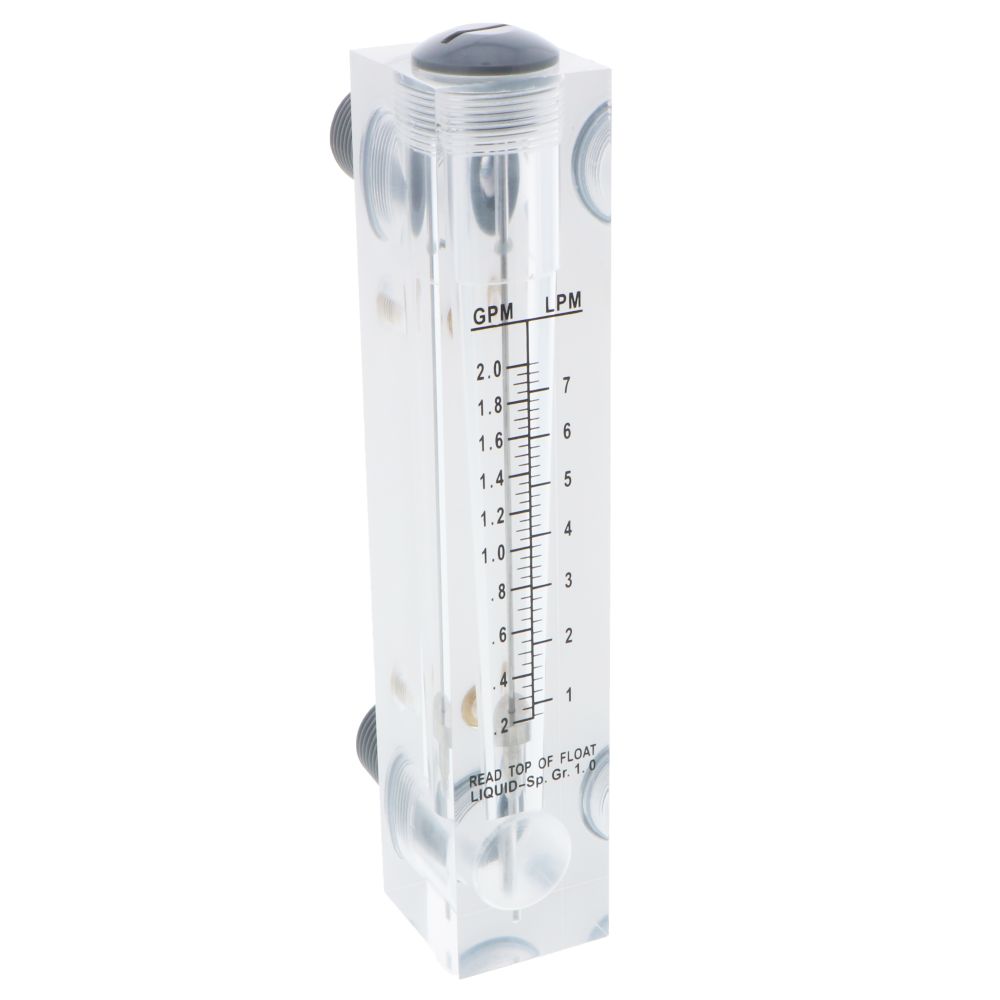

Axeon 200897 Acrylic RO Flowmeter is a highly durable acrylic body meter that features schedule 80 PVC connections and a 316 stainless steel guide & float. The flow meter has an easy to read scale labelled onto the acrylic body.
Features:
Features:
- Solid one piece injection molded acrylic body
- Stainless steel float and internals
- Calibrations in GPM and LPM
- Individually packaged
- 100% tested
- Silastic® O-rings
- Polypropylene connections
- Maximum pressure 150PSI
- Temperature rating 120°F
- Accuracy ±5%
Weight & Dimensions
Box Quantity | 1 |
Weight (lbs) | 1.2 |
Details
Accuracy | ±5% |
Body Material | Acrylic |
Float | 316 Stainless Steel |
Guide | 316 Stainless Steel |
Max Temp (°F) | 120 |
Mounting Options | Panel Mount |
Flow Rate | 0.2-2.0 GPM |
Port Size | 1/2" MNPT |
Axeon 200897 Acrylic RO Flowmeter is a highly durable acrylic body meter that features schedule 80 PVC connections and a 316 stainless steel guide & float. The flow meter has an easy to read scale labelled onto the acrylic body.
Features:
- Solid one piece injection molded acrylic body
- Stainless steel float and internals
- Calibrations in GPM and LPM
- Individually packaged
- 100% tested
- Silastic® O-rings
- Polypropylene connections
- Maximum pressure 150PSI
- Temperature rating 120°F
- Accuracy ±5%
Weight & Dimensions
Box Quantity | 1 |
Weight (lbs) | 1.2 |
Details
Accuracy | ±5% |
Body Material | Acrylic |
Float | 316 Stainless Steel |
Guide | 316 Stainless Steel |
Max Temp (°F) | 120 |
Mounting Options | Panel Mount |
Flow Rate | 0.2-2.0 GPM |
Port Size | 1/2" MNPT |
