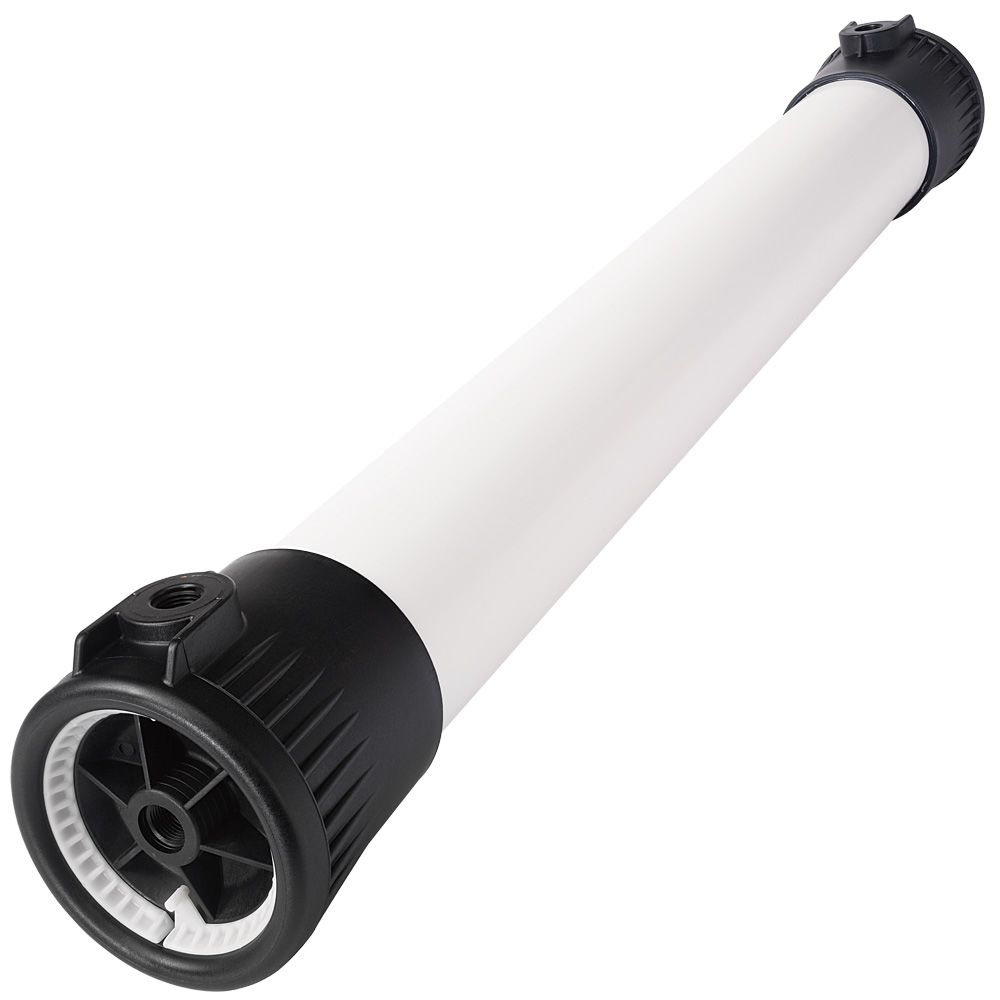

AXEON 200541 4 x 80 PVC Membrane Housing 1/2" x 1" Ports

Part Number: MHPVC-4080-1210

Alt. Part Number: 200541

In Stock

out of stock

In Stock

This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.


The AXEON/Champ 200541 Commercial Membrane Pressure Vessel has been the global standard for commercial water treatment for more than a decade. The patented toolless entry end caps and side port design, provide unsurpassed efficiency of installation and maintenance. Available with a variety of parts and accessories to get your up and running.

Features:
  • Accommodates (2) Standard 4" x 40" Sized Membranes
  • 1" Side Port
  • 1/2" End Port
  • Double O-Ring Permeate Seals
  • Removable End Plug for Ease of Installation and Maintenance
  • Quadra Port (4 open ports) Vessels Allow for Ease of Plumbing
  • Individually Inspected and Sanitized
  • NSF Approved PVC Material with Side Port Connections
  • NSF Approved GTX Material and EPR O-Rings
  • Made in the USA

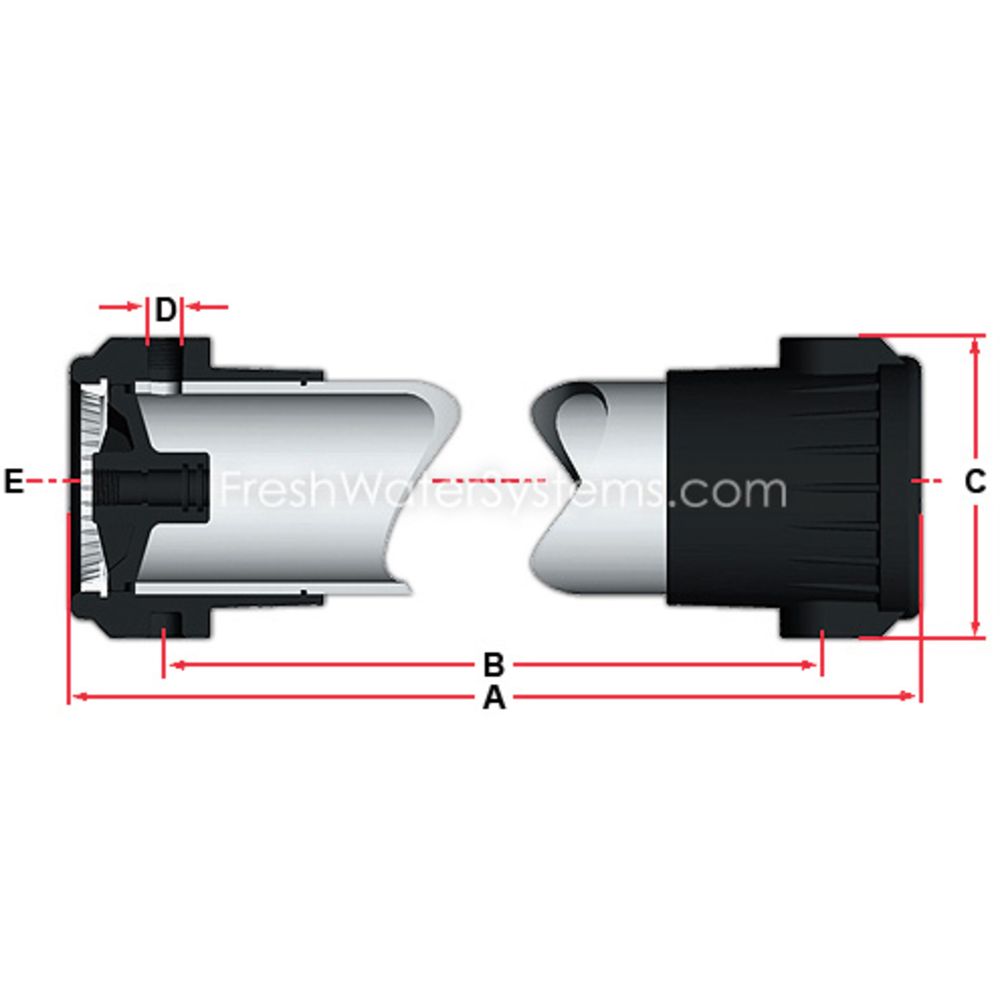

Specifications:



A B C D E
85" (2159) 80" (2032) 6" (152.4) 1" FNPT 1/2" FNPT


Weight & Dimensions

Weight (lbs)

11

Approx Length (Inches)

45 (1143)"

Details

Max Temp (°F)

110

Max Pressure (Psi)

225

Min Temp (°F)

35

Closure Type

Snap Ring

Diameter

6"

End Cap Type

GTX

Housing Material

PVC

O-Rings

Ethylene Propylene

Membrane Size

(2) 4" x 40"

Port Size

1", 1/2"


AXEON





The AXEON/Champ 200541 Commercial Membrane Pressure Vessel has been the global standard for commercial water treatment for more than a decade. The patented toolless entry end caps and side port design, provide unsurpassed efficiency of installation and maintenance. Available with a variety of parts and accessories to get your up and running.

Features:
  • Accommodates (2) Standard 4" x 40" Sized Membranes
  • 1" Side Port
  • 1/2" End Port
  • Double O-Ring Permeate Seals
  • Removable End Plug for Ease of Installation and Maintenance
  • Quadra Port (4 open ports) Vessels Allow for Ease of Plumbing
  • Individually Inspected and Sanitized
  • NSF Approved PVC Material with Side Port Connections
  • NSF Approved GTX Material and EPR O-Rings
  • Made in the USA
Specifications:



A B C D E
85" (2159) 80" (2032) 6" (152.4) 1" FNPT 1/2" FNPT

NOTE: This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.

Weight & Dimensions

Weight (lbs)

11

Approx Length (Inches)

45 (1143)"

Details

Max Temp (°F)

110

Max Pressure (Psi)

225

Min Temp (°F)

35

Closure Type

Snap Ring

Diameter

6"

End Cap Type

GTX

Housing Material

PVC

O-Rings

Ethylene Propylene

Membrane Size

(2) 4" x 40"

Port Size

1", 1/2"
