Home / Filter Housings & Components / Membrane Housings / AXEON 200533 4 x 40 Extended PVC Membrane Housing 1/2" Ports

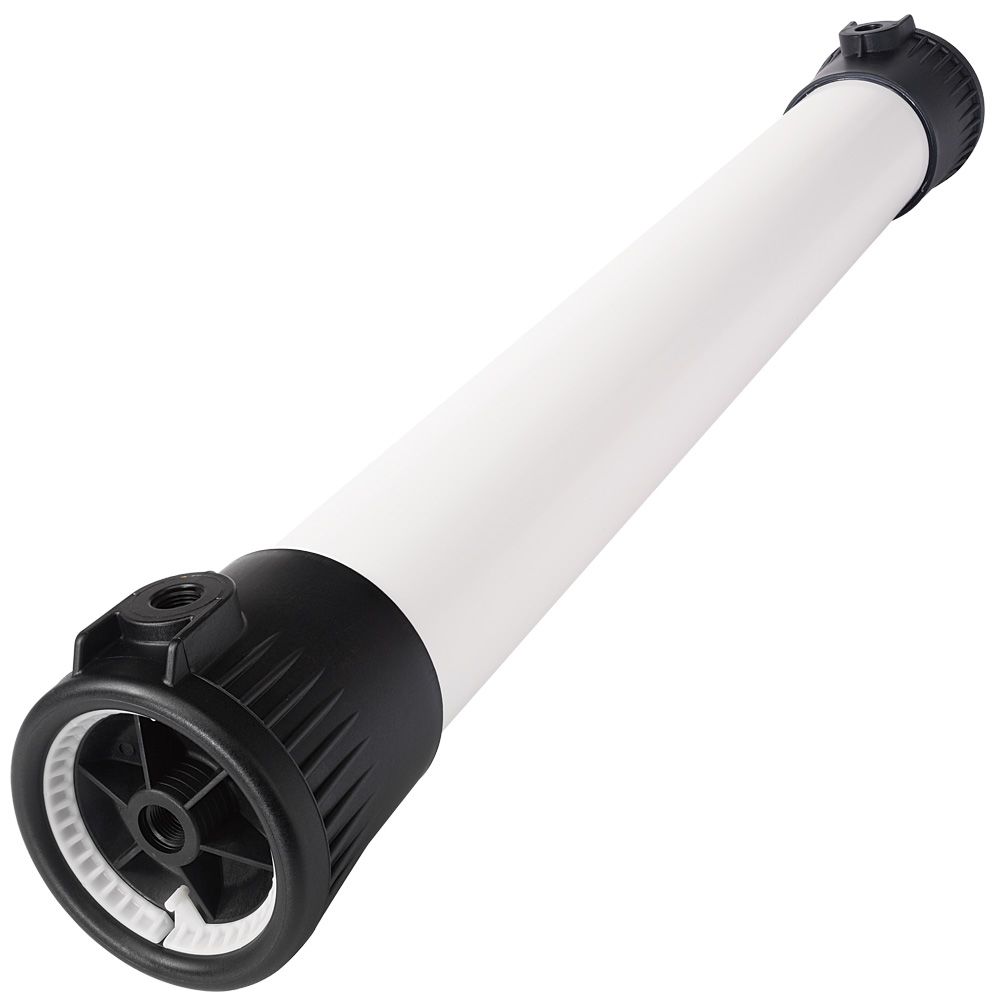

AXEON 200533 4 x 40 Extended PVC Membrane Housing 1/2" Ports

Part Number: MHPVC-4040-12A
Alt. Part Number: 200533
Your price:
The AXEON/Champ 200533 Commercial Membrane Pressure Vessel has been the global standard for commercial water treatment for more than a decade. The patented toolless entry end caps and side port design, provide unsurpassed efficiency of installation and maintenance. Available with a variety of parts and accessories to get your up and running.

The AXEON/Champ 200533 "Extended" Model features an extended housing which accommodates flush-cut male or female membranes utilizing adapters inside the housing to facilitate special applications.

  • Extended Housing Accommodates Adapters for Male or Female Membranes
  • Fits flush-cut 4" x 40" Sized Membranes
  • 1/2" Side Port
  • 1/2" End Port
  • Double O-Ring Permeate Seals
  • Removable End Plug for Ease of Installation and Maintenance
  • Quadra Port (4 open ports) Vessels Allow for Ease of Plumbing
  • Individually Inspected and Sanitized
  • NSF Approved PVC Material with Side Port Connections
  • NSF Approved GTX Material and EPR O-Rings
  • Made in the USA

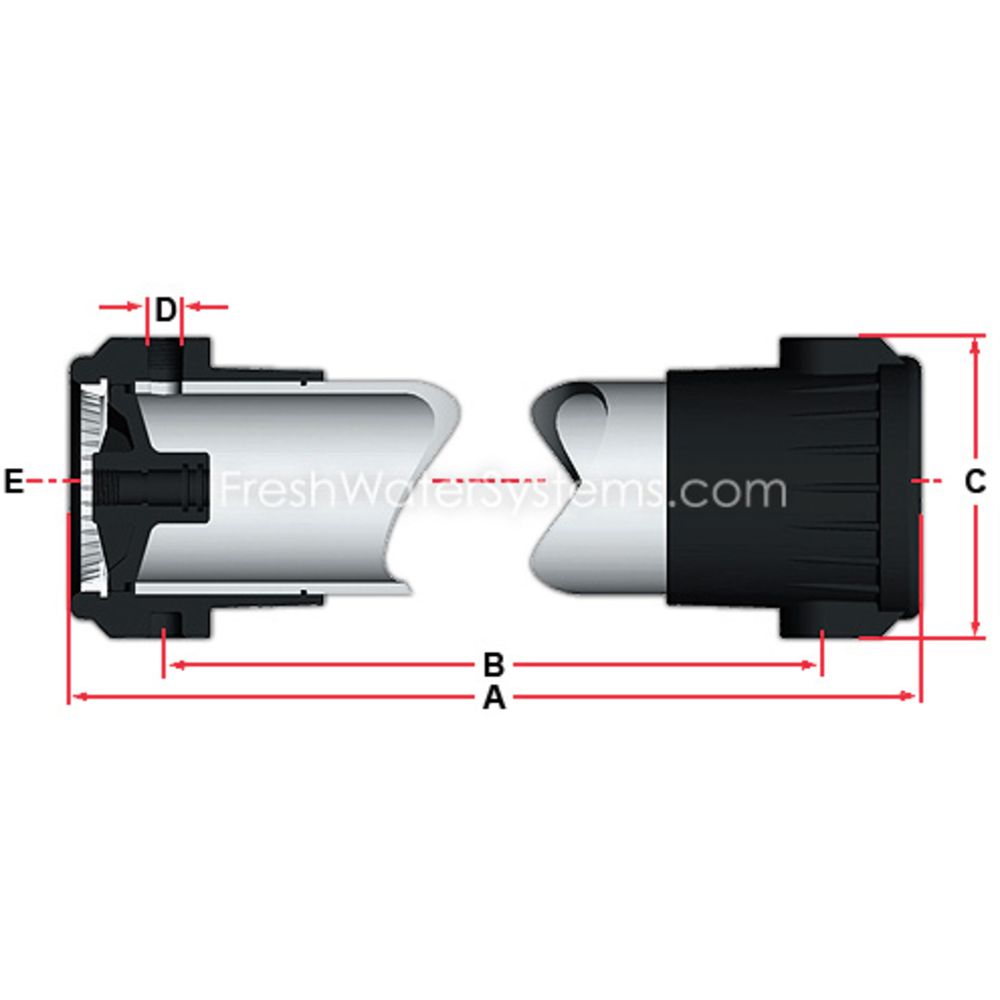

45" (1143) 40" (1016) 6" (152.4) 1" FNPT 1/2" FNPT
