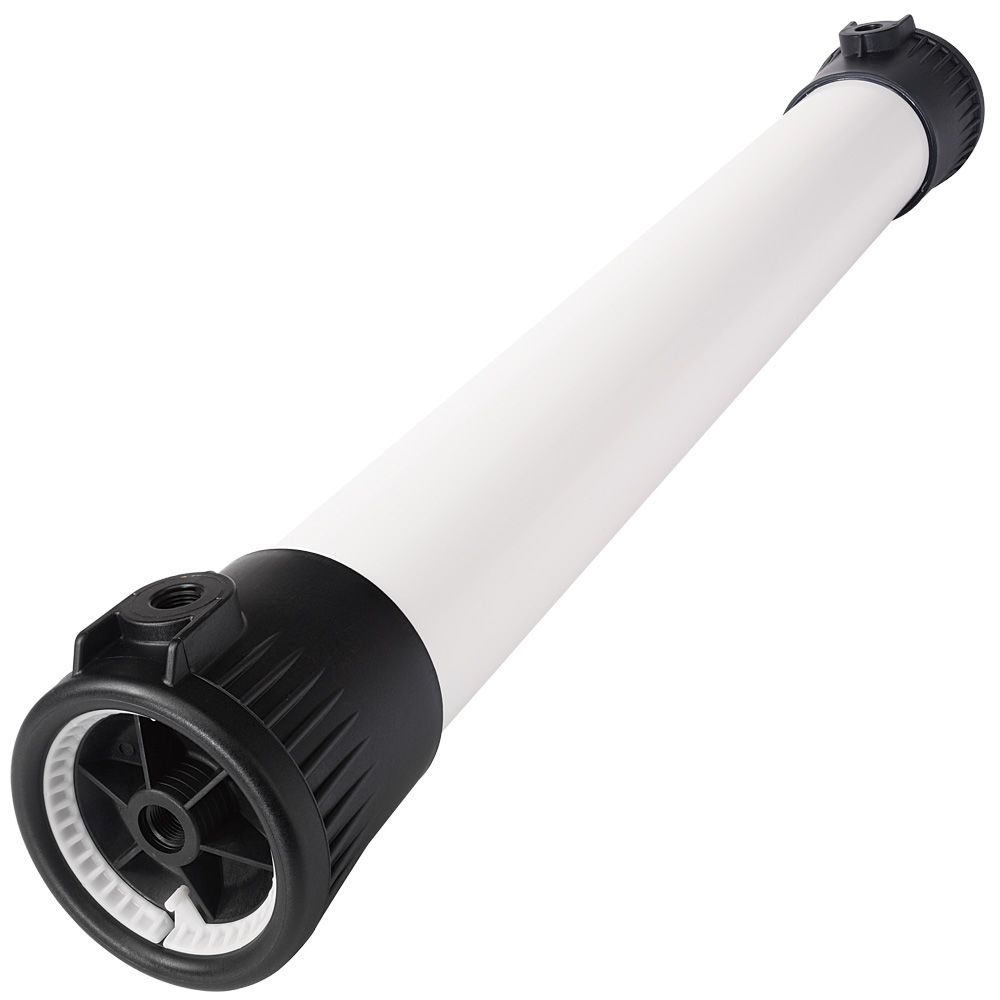

AXEON 200530 4 x 40 Quadraport PVC Membrane Housing 1/2" Ports
Part Number: MHPVC-4040-12Q-KIT
Alt. Part Number: 200530
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
The AXEON/Champ 200530 "QuadraPort" Model features four open side ports to accommodate a wide range of customizable applications.
Features:
- Four Open Side Ports for Custom Applications
- Fits All Standard 4" x 40" Sized Membranes
- 1/2" Side Port
- 1/2" End Port
- Double O-Ring Permeate Seals
- Removable End Plug for Ease of Installation and Maintenance
- Quadra Port (4 open ports) Vessels Allow for Ease of Plumbing
- Individually Inspected and Sanitized
- NSF Approved PVC Material with Side Port Connections
- NSF Approved GTX Material and EPR O-Rings
- Made in the USA
![]() | ||||

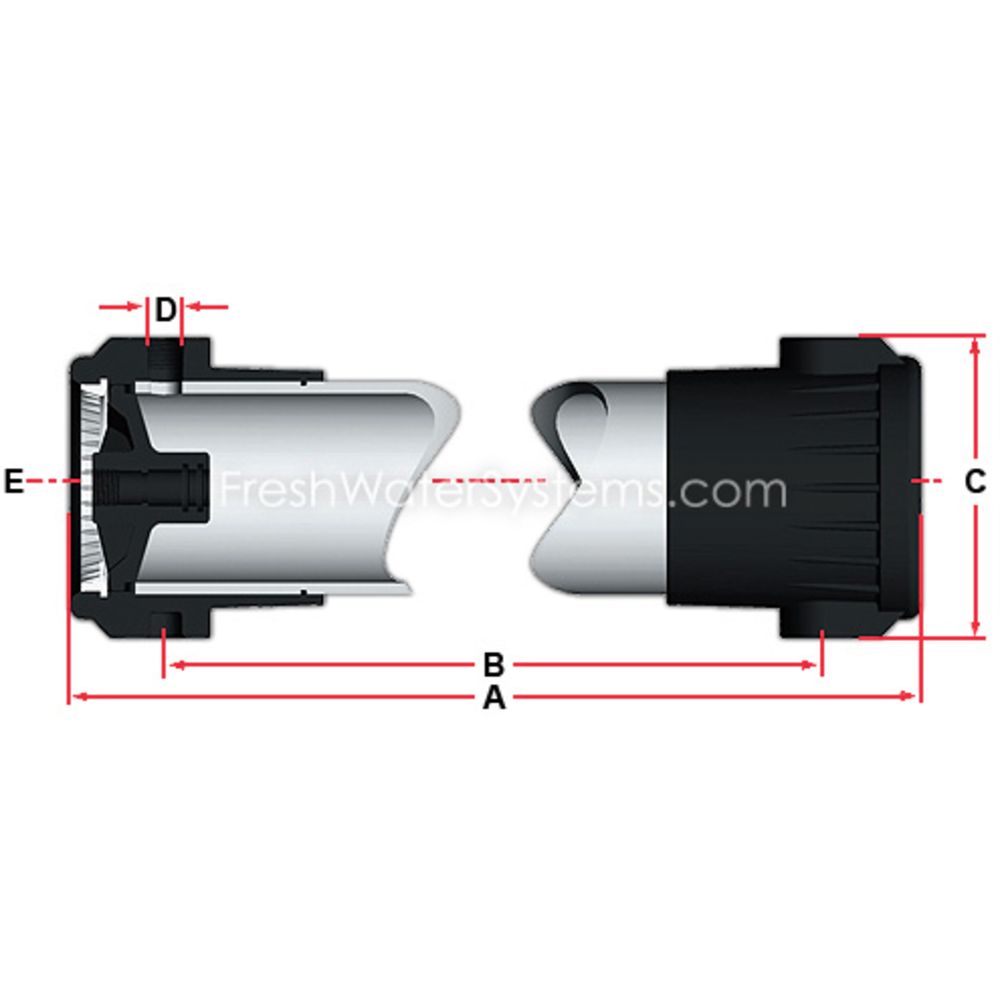

A | B | C | D | E |
45" (1143) | 40" (1016) | 6" (152.4) | 1" FNPT | 1/2" FNPT |
Product Details | |
---|---|
Closure Type | Snap Ring |
Housing Material | PVC |
Max Pressure (Psi) | 225 |
Max Temp (°F) | 110 |
Membrane Size | 4" x 40" |
Min Temp (°F) | 35 |
O-Rings | Ethylene Propylene |
Diameter | 6" |
End Cap Type | GTX |
Port Size | 1/2" |
Product Weight & Dimensions | |
Product Length | 40 (1016)" |
Product Weight (lbs) | 11 |
The AXEON/Champ 200530 "QuadraPort" Model features four open side ports to accommodate a wide range of customizable applications.
Features:
- Four Open Side Ports for Custom Applications
- Fits All Standard 4" x 40" Sized Membranes
- 1/2" Side Port
- 1/2" End Port
- Double O-Ring Permeate Seals
- Removable End Plug for Ease of Installation and Maintenance
- Quadra Port (4 open ports) Vessels Allow for Ease of Plumbing
- Individually Inspected and Sanitized
- NSF Approved PVC Material with Side Port Connections
- NSF Approved GTX Material and EPR O-Rings
- Made in the USA
![]() | ||||
A | B | C | D | E |
45" (1143) | 40" (1016) | 6" (152.4) | 1" FNPT | 1/2" FNPT |
Product Details | |
---|---|
Closure Type | Snap Ring |
Housing Material | PVC |
Max Pressure (Psi) | 225 |
Max Temp (°F) | 110 |
Membrane Size | 4" x 40" |
Min Temp (°F) | 35 |
O-Rings | Ethylene Propylene |
Diameter | 6" |
End Cap Type | GTX |
Port Size | 1/2" |
Product Weight & Dimensions | |
Product Length | 40 (1016)" |
Product Weight (lbs) | 11 |
