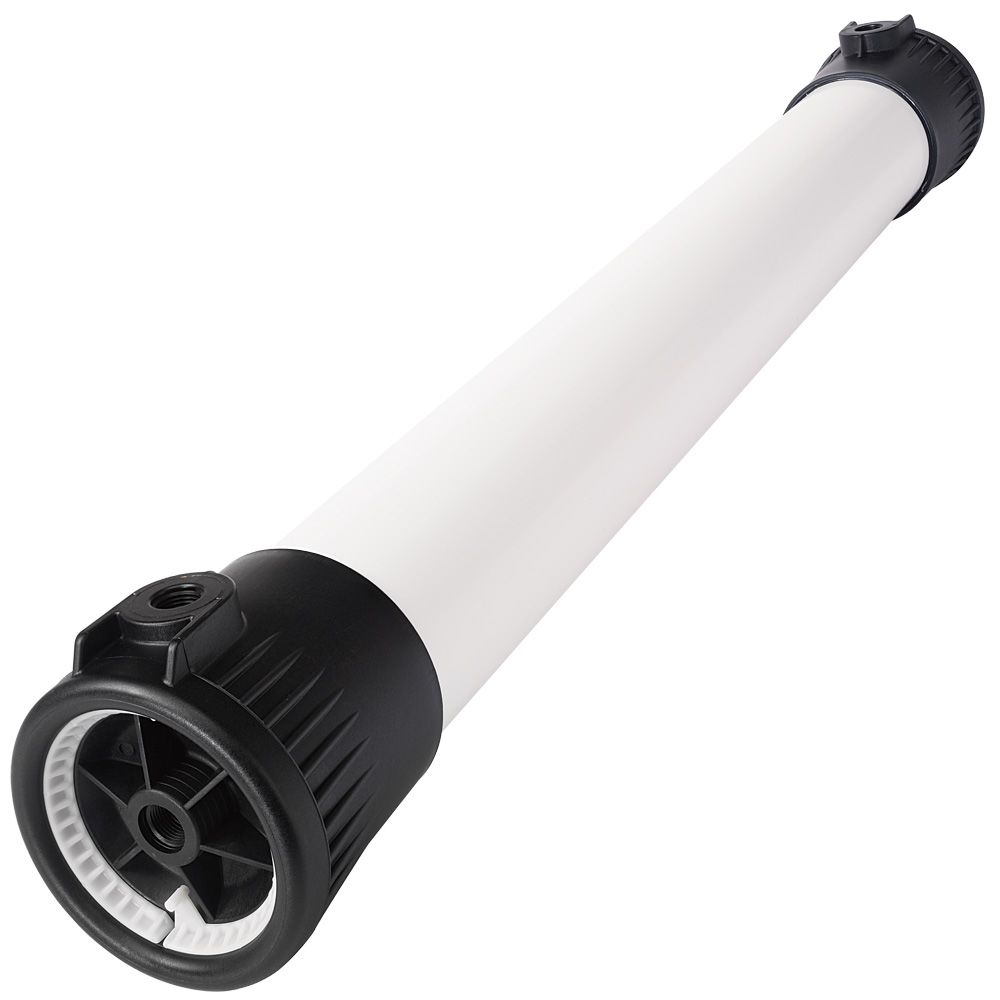

AXEON 200529 4 x 40 PVC Membrane Housing 1/2" x 1" Ports

Part Number: MHPVC-4040-1210

Alt. Part Number: 200529

In Stock

out of stock

In Stock

This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.

The AXEON/Champ 200529 Commercial Membrane Pressure Vessel has been the global standard for commercial water treatment for more than a decade. The patented toolless entry end caps and side port design, provide unsurpassed efficiency of installation and maintenance. Available with a variety of parts and accessories to get your up and running.

Features:
  • Fits All Standard 4" x 40" Sized Membranes
  • 1" Side Port
  • 1/2" End Port
  • Double O-Ring Permeate Seals
  • Removable End Plug for Ease of Installation and Maintenance
  • Quadra Port (4 open ports) Vessels Allow for Ease of Plumbing
  • Individually Inspected and Sanitized
  • NSF Approved PVC Material with Side Port Connections
  • NSF Approved GTX Material and EPR O-Rings
  • Made in the USA

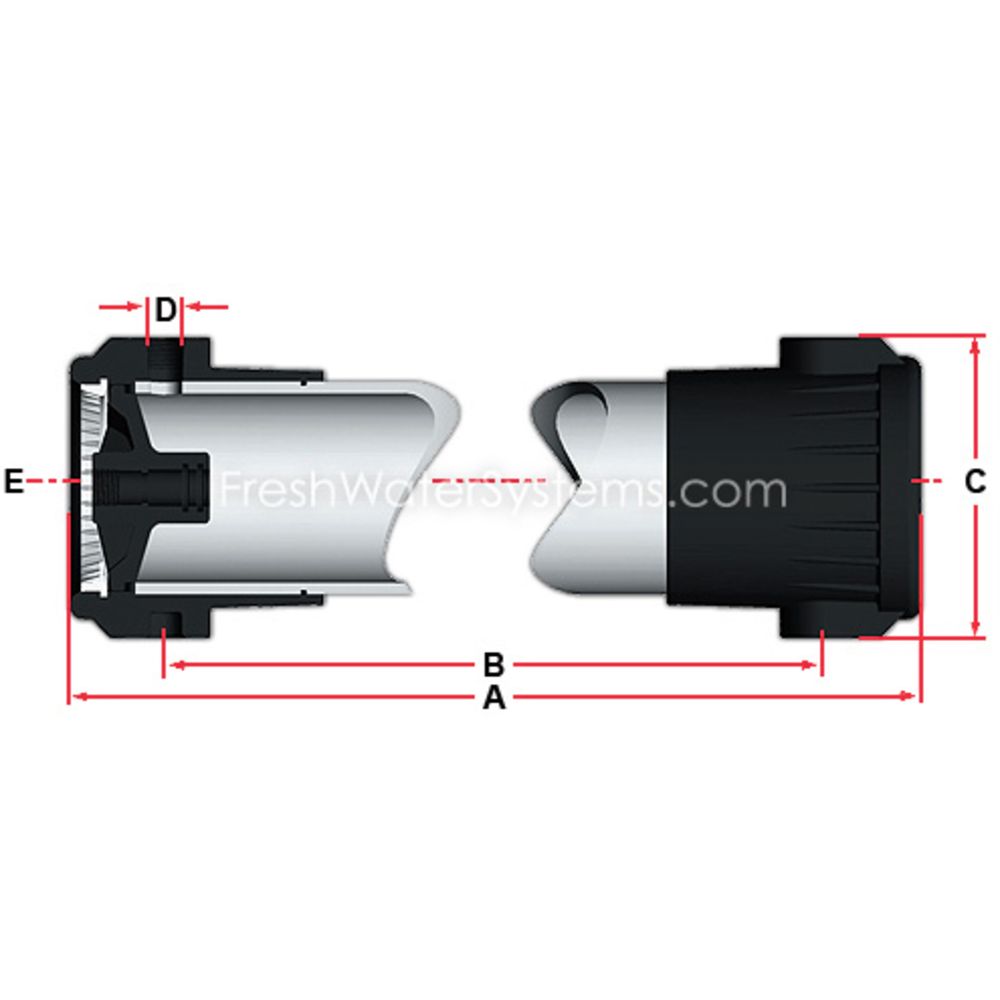

A B C D E
45" (1143) 40" (1016) 6" (152.4) 1" FNPT 1/2" FNPT


Weight & Dimensions

Approx Length (Inches)

45 (1143)"

Weight (lbs)

11

Details

Closure Type

Snap Ring

Housing Material

PVC

Max Pressure (Psi)

225

Max Temp (°F)

110

Membrane Size

4" x 40"

Min Temp (°F)

35

O-Rings

Ethylene Propylene

Diameter

6"

End Cap Type

GTX

Port Size

1", 1/2"


AXEON




The AXEON/Champ 200529 Commercial Membrane Pressure Vessel has been the global standard for commercial water treatment for more than a decade. The patented toolless entry end caps and side port design, provide unsurpassed efficiency of installation and maintenance. Available with a variety of parts and accessories to get your up and running.

Features:
  • Fits All Standard 4" x 40" Sized Membranes
  • 1" Side Port
  • 1/2" End Port
  • Double O-Ring Permeate Seals
  • Removable End Plug for Ease of Installation and Maintenance
  • Quadra Port (4 open ports) Vessels Allow for Ease of Plumbing
  • Individually Inspected and Sanitized
  • NSF Approved PVC Material with Side Port Connections
  • NSF Approved GTX Material and EPR O-Rings
  • Made in the USA


A B C D E
45" (1143) 40" (1016) 6" (152.4) 1" FNPT 1/2" FNPT

NOTE: This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.

Weight & Dimensions

Approx Length (Inches)

45 (1143)"

Weight (lbs)

11

Details

Closure Type

Snap Ring

Housing Material

PVC

Max Pressure (Psi)

225

Max Temp (°F)

110

Membrane Size

4" x 40"

Min Temp (°F)

35

O-Rings

Ethylene Propylene

Diameter

6"

End Cap Type

GTX

Port Size

1", 1/2"
