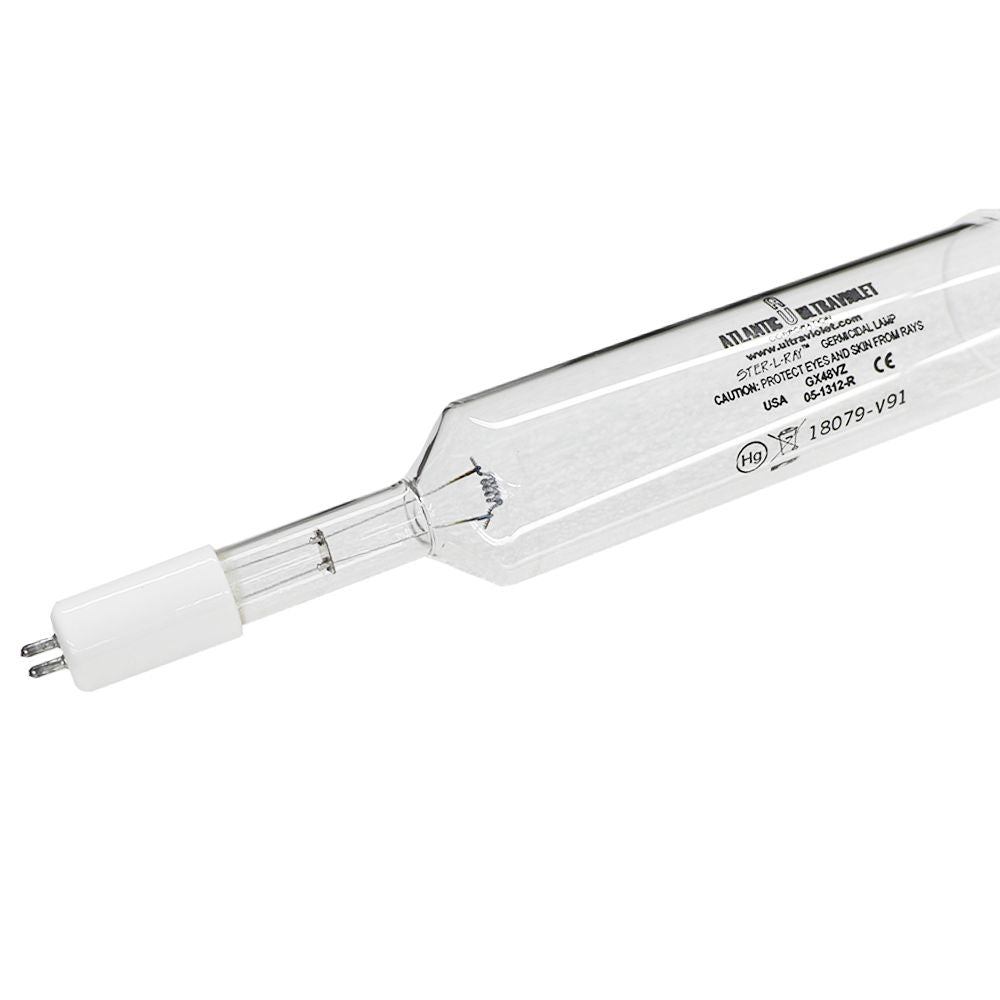

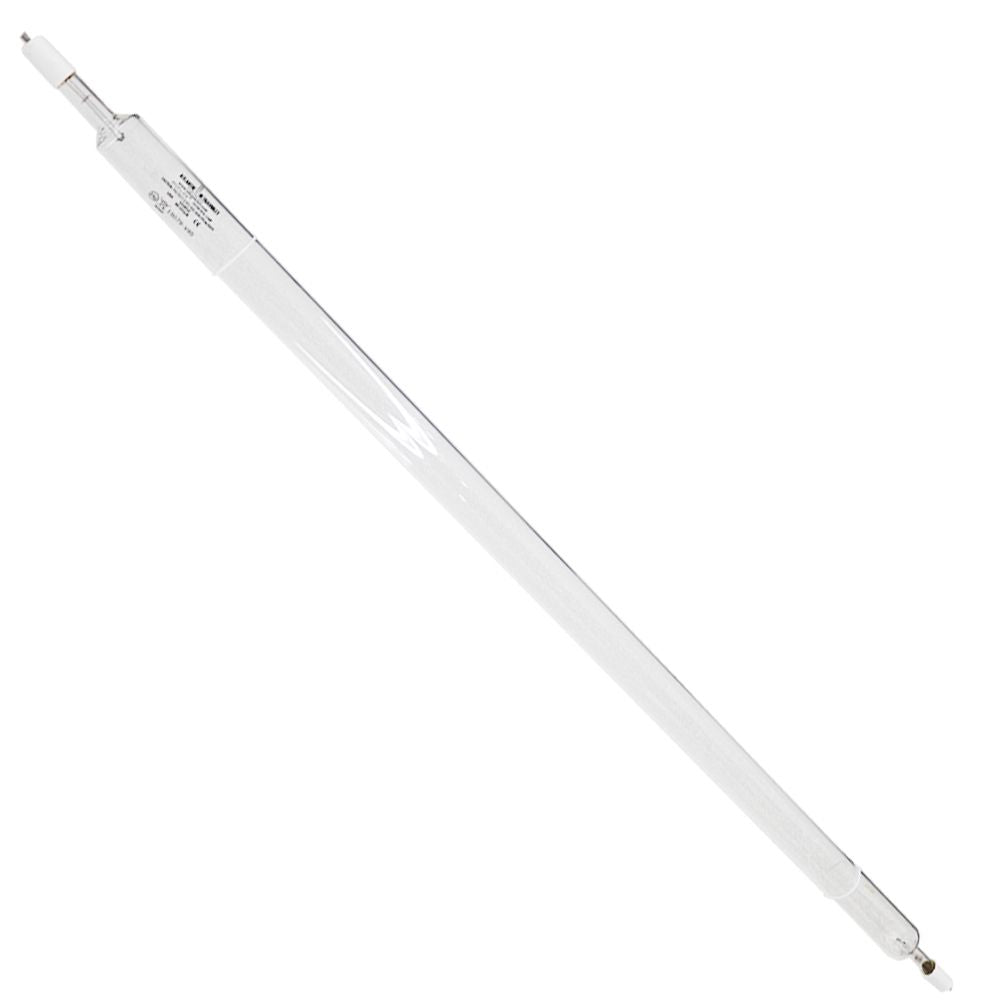

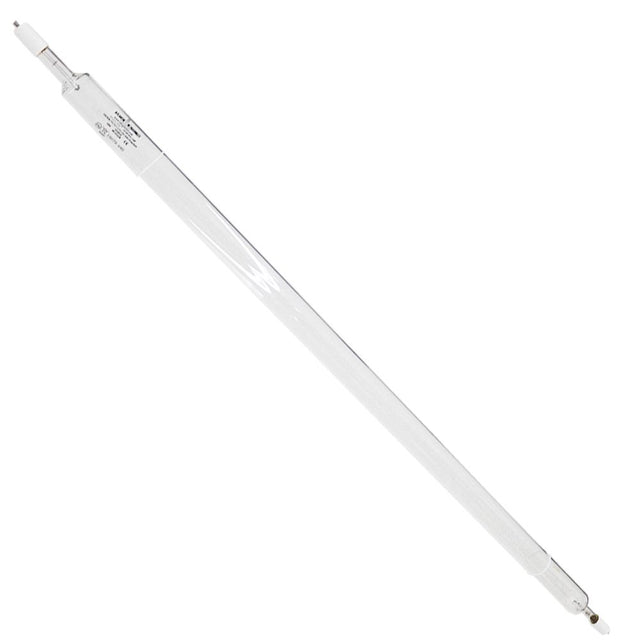

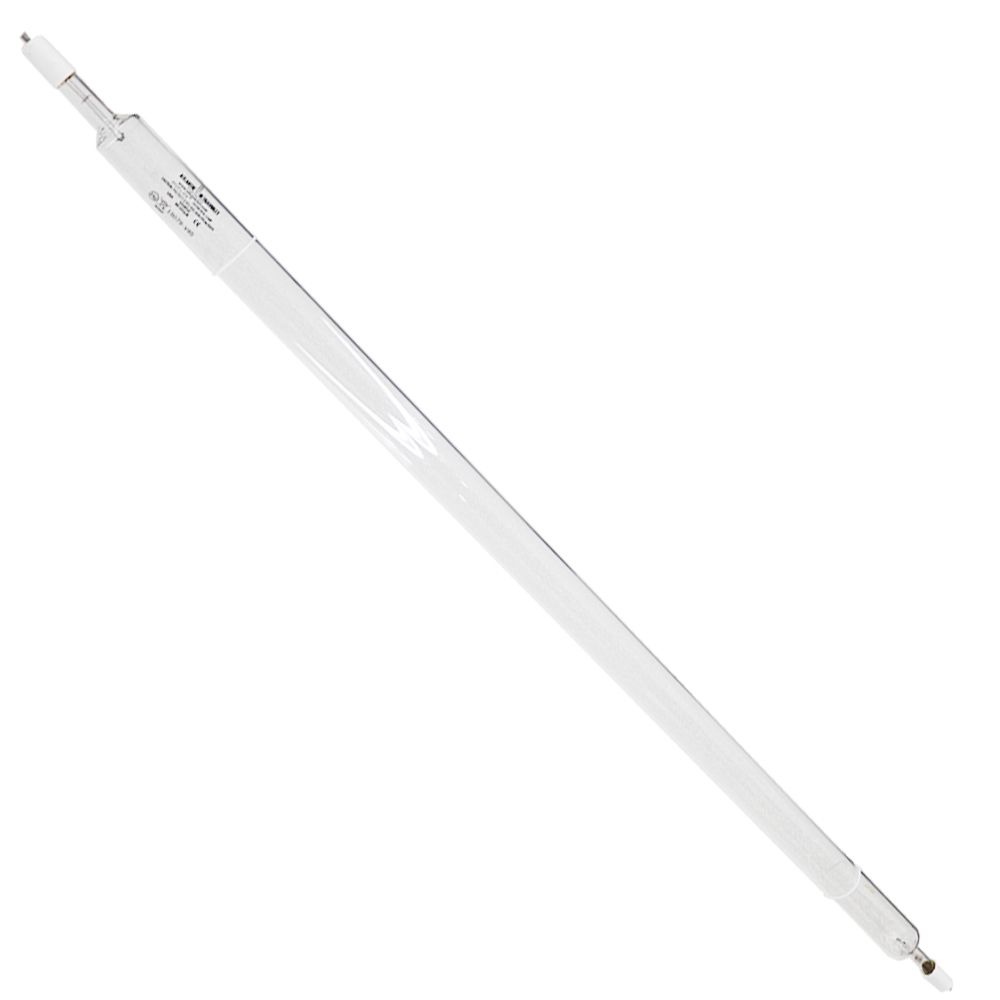

Atlantic UV Ozone Producing Lamp for S2400C and larger
Part Number: 05-1312
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Features:
- Origin: Made in USA
- Warranty: One year manufacturer warranty
(1) Wattage is lamp watts only and does not include ballast loss (approximate).
(2) Maximum rated output at 254 nanometers.
(3) Patented by Atlantic Ultraviolet Corporation
Lamp No. | Model No. | Nominal Lamp Length | Power [Watts] (1) |
UV Output [Watts] (2) | Rated Effective Life [Hrs.] |
05-1400 |
S14A
MP13
|
8-15/16" (227mm) |
10 | 2.3 | 10,000 |
05-1098 |
S17A
MP16
|
11-7/8" (302mm) |
14 | 3.7 | 10,000 |
05-1097 |
S23A
MP22
|
17-3/4" (451mm) |
20 | 6.4 | 10,000 |
05-1343 |
S37C
MP36
|
33-7/8" (860mm) |
39 | 13.8 | 10,000 |
05-1334 |
S50C
MP49
|
45-7/8" (1165mm) |
50 | 19.3 | 10,000 |
05-1311 (3) | S2400C | 46-1/4" (1175mm) |
110 | 42 | 10,000 |
Product Details | |
---|---|
Application | Germicidal (254nm), Preheat |
Capacity | 9,000 Hours |
Pin Configuration | 2 Pin |
Power | 110 W |
Change Frequency | 9,000 Hours |
Origin | USA |
Warranty & Certifications | |
Warranty | 1 Year |
Shipping Dimensions | |
Shipping Length | 47 in. |
Shipping Width | 2.5 in. |
Shipping Height | 2.5 in. |
Product Weight & Dimensions | |
Product Height | 2.5 in. |
Product Length | 47 in. |
Product Width | 2.5 in. |
Product Weight (lbs) | 1 |
