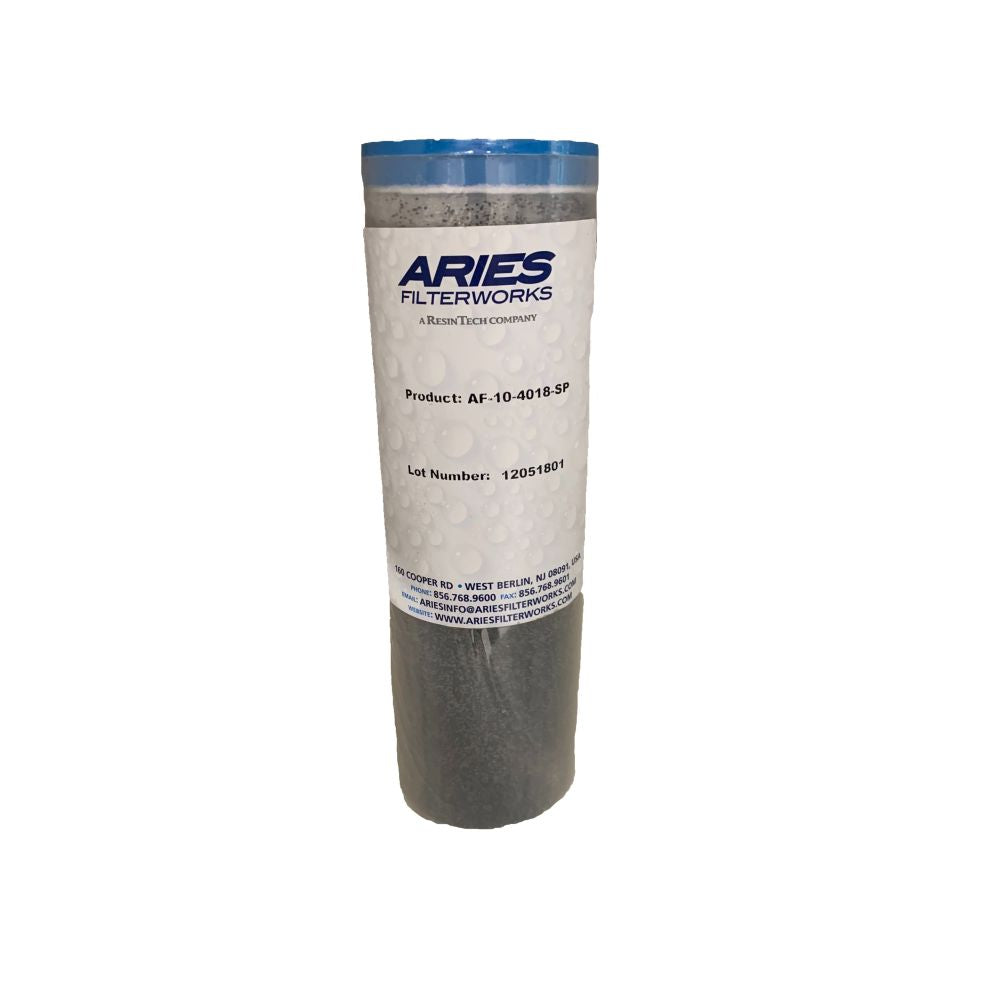

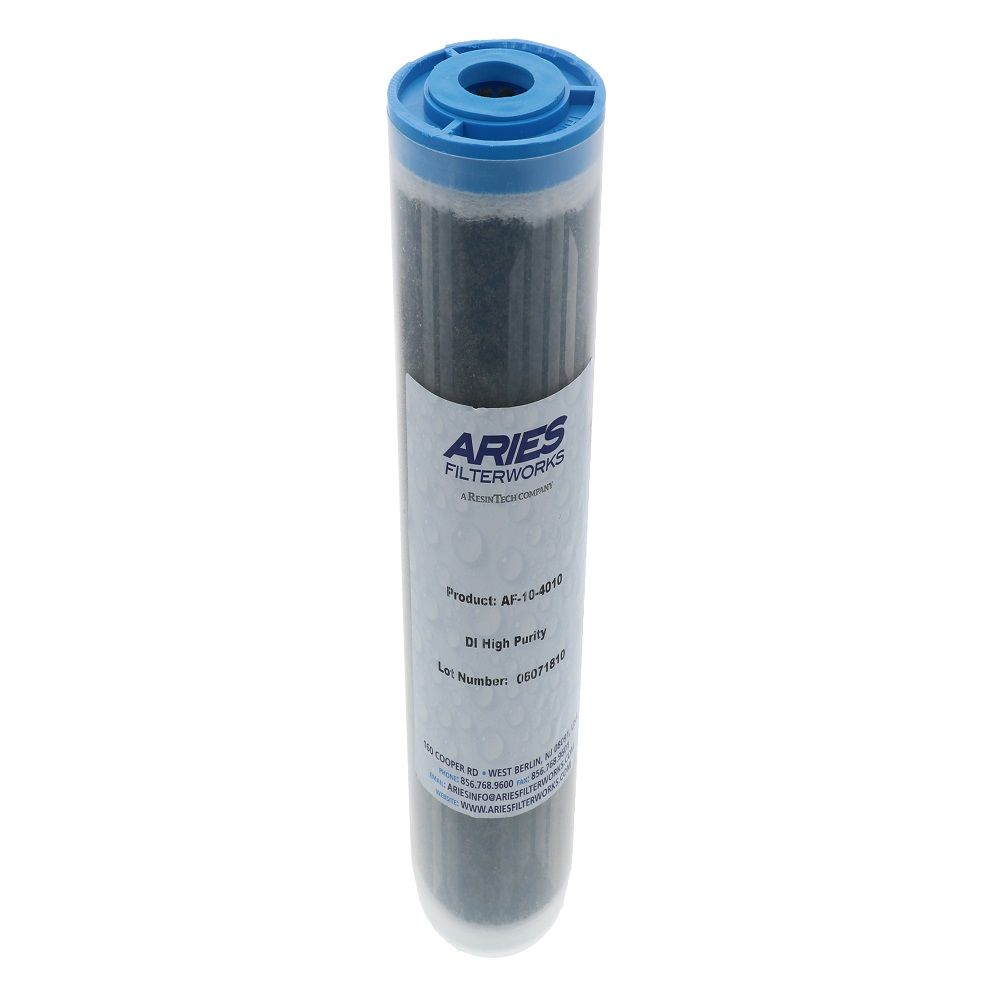

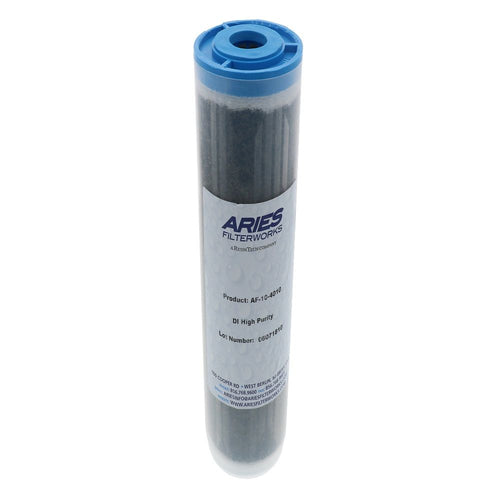

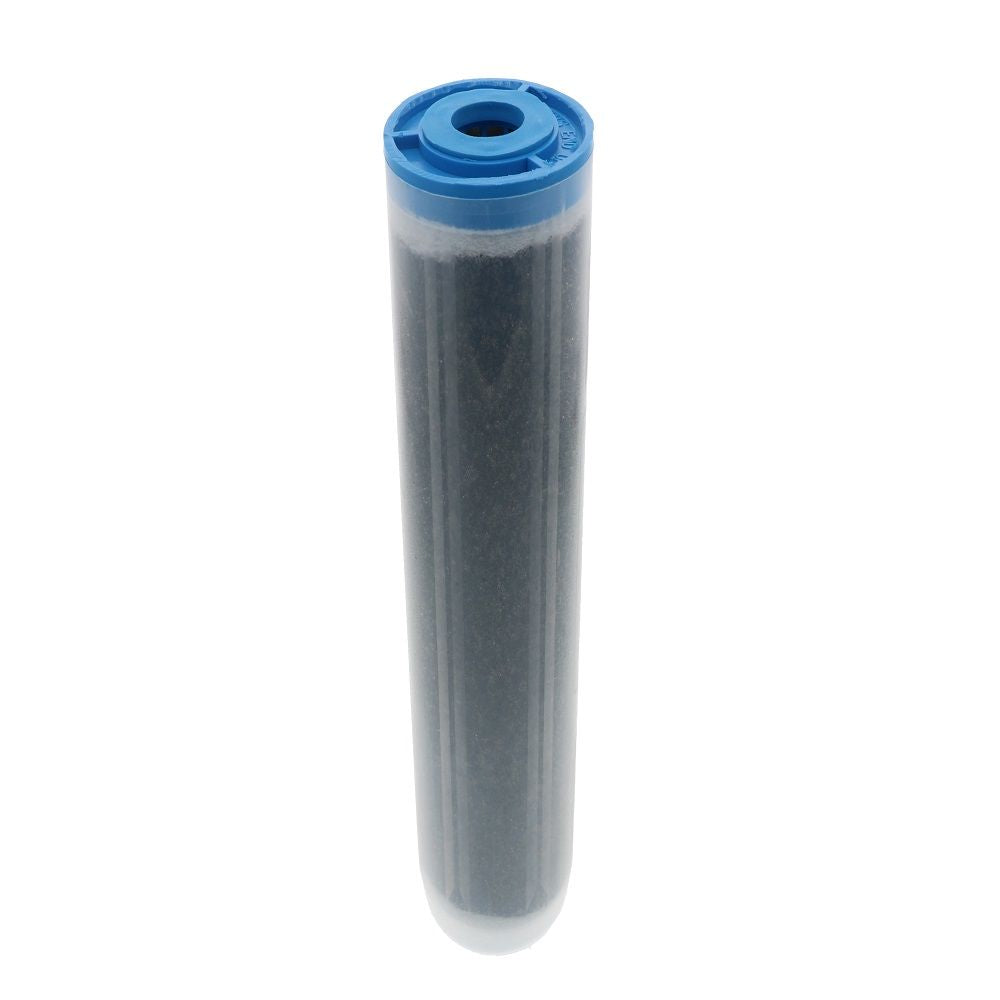

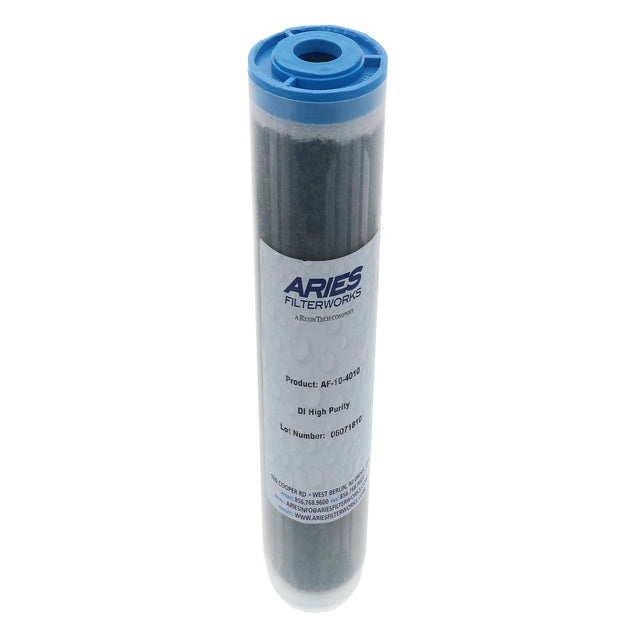

Aries 10" x 2-5/8" SC Grade Mixed Bed Deionization Cartridge

Part Number: DI-2

Alt. Part Number: AF-10-4010, PCF1-10MB, 155273-43, AF-10-4018-SP

In Stock

out of stock

In Stock

$32.93

The 10" Mixed Bed Deionizing Cartridges have been developed to meet the requirements for deionized water in many industries. DI Cartridges are manufactured using a resin that has been subjected to additional steps to minimize the total organic carbon (TOC) level. These cartridges are a convenient and cost effective solution for many applications where low levels of total organic carbon (TOC) and total dissolved solids (TDS) are required.

Specifications:
  • Media: Semi-conductor grade mixed bed DI resin
  • Dimensions: 10" length x 2-5/8" diameter
  • Temperature Rating: 40°F - 100°F
  • Max Flow Rate: 0.3 gpm
Applications:
  • Boiler make-up water
  • Circuit board printing
  • Cosmetics
  • Humidification systems
  • Jet water sprayers
  • Lasers
  • Medical/laboratory use
  • Pharmaceutical use
  • Power generating equipment
  • Recirculating/cooling towers
  • Steam and humidification
  • Steam processors
NOTE: Also known as Aries AF-10-4010, Pentek PCF1-10MB 155273-43.


Compatible with:
PentekPCF1-10MB, 155273-43
Pure-TelR1108

Weight & Dimensions

Approx Length (Inches)

9-3/4"

Case Quantity

24

Weight (lbs)

1.65

Details

Capacity

450 Grains

Gaskets

EPDM

Max Pressure (Psi)

125

Max Temp (°F)

100

Micron Rating (Nominal)

25 µm

Min Pressure (Psi)

20

Min Temp (°F)

40

Typical Effluent (Resistivity)

>18 Mega Ohm

Cap Material

Polypropylene

Cartridge Style

Drop-in

Change Frequency

450 Grains

Contaminants Reduced

Deionization (DI)

Diameter

2-5/8"

Flow Rate

Max 0.3 GPM

Media Type

Mixed Bed DI Resin

Micron Rating

25 µm

Origin

USA

Product Length

10"


Aries




The 10" Mixed Bed Deionizing Cartridges have been developed to meet the requirements for deionized water in many industries. DI Cartridges are manufactured using a resin that has been subjected to additional steps to minimize the total organic carbon (TOC) level. These cartridges are a convenient and cost effective solution for many applications where low levels of total organic carbon (TOC) and total dissolved solids (TDS) are required.

Specifications:
  • Media: Semi-conductor grade mixed bed DI resin
  • Dimensions: 10" length x 2-5/8" diameter
  • Temperature Rating: 40°F - 100°F
  • Max Flow Rate: 0.3 gpm
Applications:
  • Boiler make-up water
  • Circuit board printing
  • Cosmetics
  • Humidification systems
  • Jet water sprayers
  • Lasers
  • Medical/laboratory use
  • Pharmaceutical use
  • Power generating equipment
  • Recirculating/cooling towers
  • Steam and humidification
  • Steam processors
NOTE: Also known as Aries AF-10-4010, Pentek PCF1-10MB 155273-43.


Compatible with:
PentekPCF1-10MB, 155273-43
Pure-TelR1108

Weight & Dimensions

Approx Length (Inches)

9-3/4"

Case Quantity

24

Weight (lbs)

1.65

Details

Capacity

450 Grains

Gaskets

EPDM

Max Pressure (Psi)

125

Max Temp (°F)

100

Micron Rating (Nominal)

25 µm

Min Pressure (Psi)

20

Min Temp (°F)

40

Typical Effluent (Resistivity)

>18 Mega Ohm

Cap Material

Polypropylene

Cartridge Style

Drop-in

Change Frequency

450 Grains

Contaminants Reduced

Deionization (DI)

Diameter

2-5/8"

Flow Rate

Max 0.3 GPM

Media Type

Mixed Bed DI Resin

Micron Rating

25 µm

Origin

USA

Product Length

10"
