Aquatec

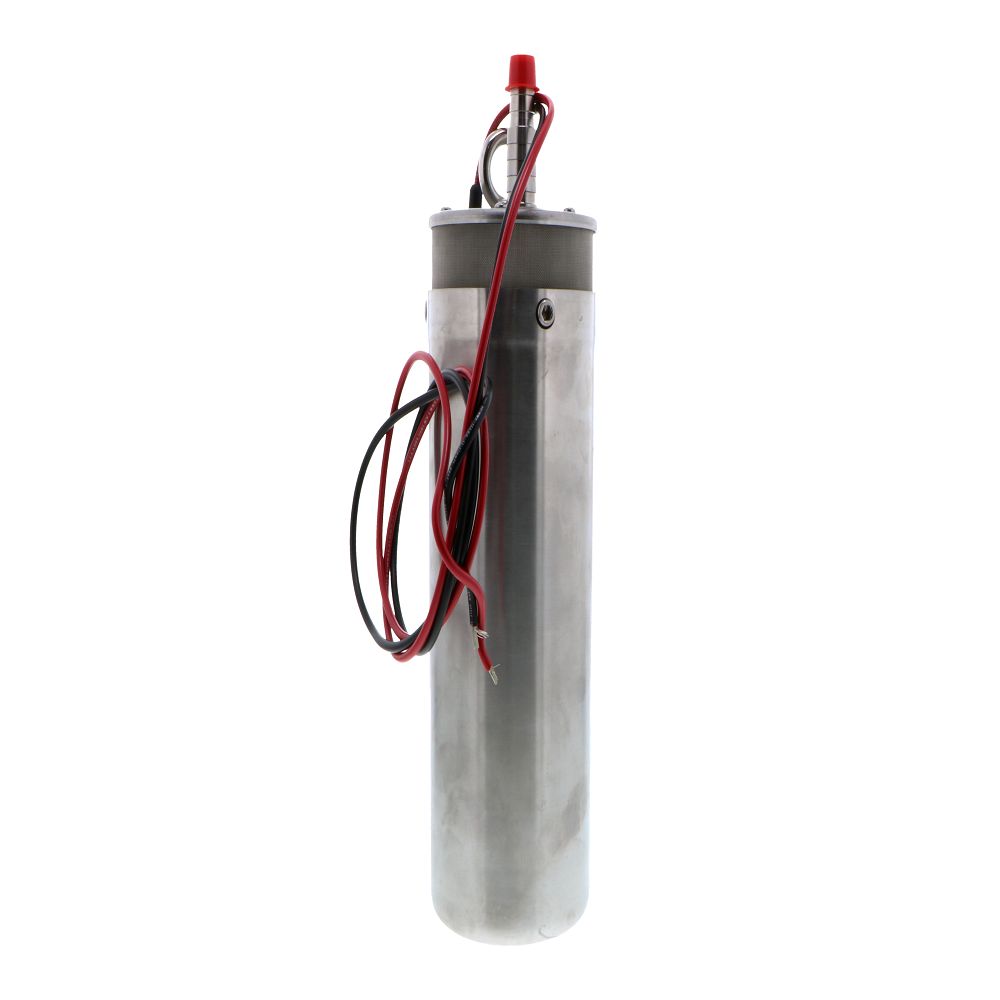

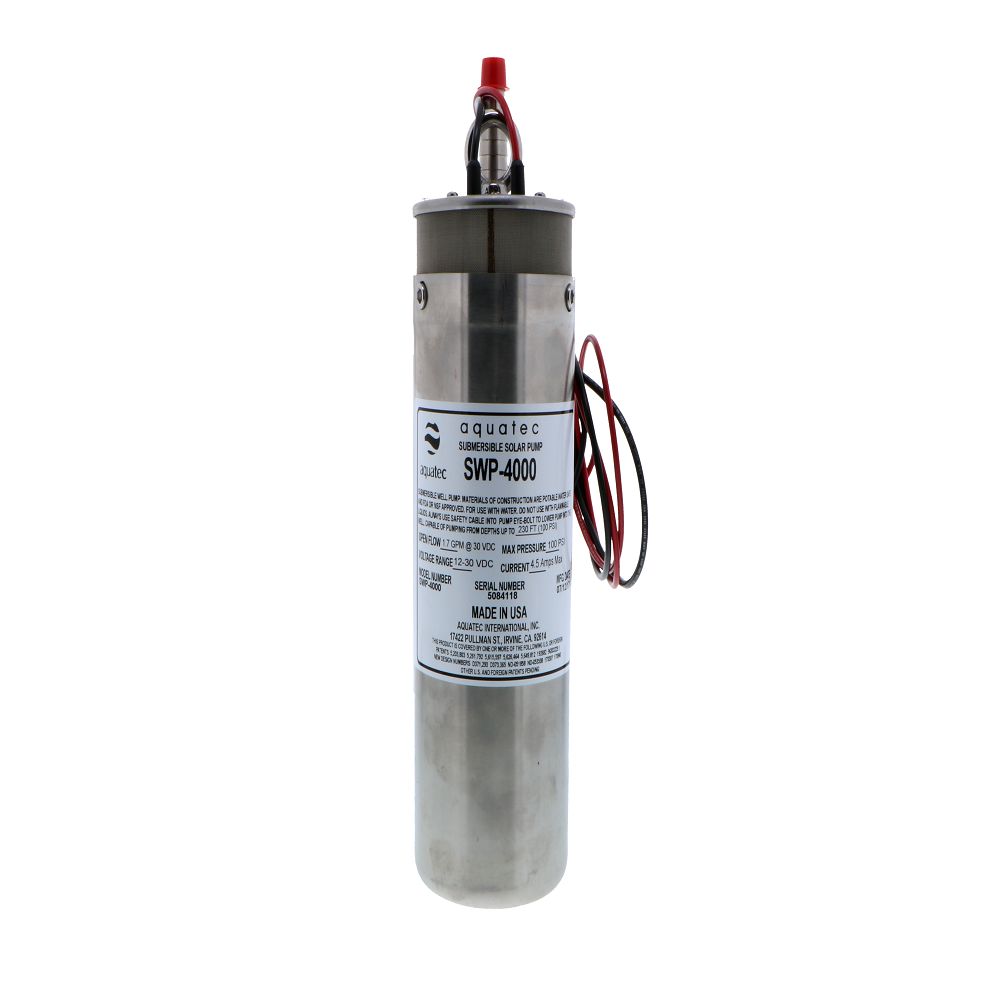

Aquatec SWP-4000 Submersible Solar Diaphragm Pump 1.7 gpm, 12-30 VDC

Part Number: SWP-4000

In Stock

out of stock

In Stock

$649.99

Aquatec SWP-4000 Pump is a submersible solar pump that can deliver up to 1.7 GPM @ 30 VDC. Comparable pumps are far more expensive for the same quality and output. This off-grid well pump is ideal for many applications such as homes, irrigation, livestock, and ponds. No special tools are required to install this pump.

This submersible pump can draw from depths up to 230 feet, but only requires a well casing of 4". The Aquatec SWP-4000 is made in America and is FDA and NSF approved for use with potable water. This pump operates from any 12-30 volt DC power source, including modern 60-72 cell PV modules, or 12-24 volt battery banks.    Specifications:
  • 1-year warranty
  • Recyclable packaging
  • Fits well casings 4" or larger
  • Pumps from depths of up to 230 feet
  • Runs DC-direct straight from a solar panel
  • Operates on a range of 12-30 DC voltages
  • Field-serviceable with Aquatec repair kits
  • Oversized eyelet for easy installation of safety line
  • Protected from moisture intrusion by double O-ring seals
  • Built‐in 50 mesh stainless steel screen to prevent debris intrusion
  • Outlet Options: ½" hose barb or ⅝" hose barb and ½" drop pipe (0.622" ID)
  • Anti‐wicking cable entrance protects the motor from an incorrectly installed splice
  • Factory-installed motor leads eliminate failure from improperly field-installed leads
  • Rugged stainless steel shell construction for optimal durability and corrosion resistance
  • Constructed with materials that are FDA-approved for potable water (rated to NSF 018 for drinking water)
Note: For the best performance our Fresh Water Systems Experts suggest a solar panel of 180W or larger.


Weight & Dimensions

Approx Height (Inches)

6 Inches

Approx Length (Inches)

16.5 Inches

Approx Width (Inches)

7 Inches

Details

Amps

Max 4.5 Amps Amps

Diaphragm Materials

3 Chamber

Flow Rate

1.7 GPM @ 30 VDC

Housing Material

Stainless Steel

Max Operating Pressure

100 PSI

Voltage

24VDC

Watts

110W

Max Head Pressure

230 Feet, 230 ft

Warranty & Certifications

Certifications

FDA & NSF for Potable Water

Warranty

1 Year Manufacturer Warranty


Aquatec




Aquatec SWP-4000 Pump is a submersible solar pump that can deliver up to 1.7 GPM @ 30 VDC. Comparable pumps are far more expensive for the same quality and output. This off-grid well pump is ideal for many applications such as homes, irrigation, livestock, and ponds. No special tools are required to install this pump.

This submersible pump can draw from depths up to 230 feet, but only requires a well casing of 4". The Aquatec SWP-4000 is made in America and is FDA and NSF approved for use with potable water. This pump operates from any 12-30 volt DC power source, including modern 60-72 cell PV modules, or 12-24 volt battery banks.    Specifications:
  • 1-year warranty
  • Recyclable packaging
  • Fits well casings 4" or larger
  • Pumps from depths of up to 230 feet
  • Runs DC-direct straight from a solar panel
  • Operates on a range of 12-30 DC voltages
  • Field-serviceable with Aquatec repair kits
  • Oversized eyelet for easy installation of safety line
  • Protected from moisture intrusion by double O-ring seals
  • Built‐in 50 mesh stainless steel screen to prevent debris intrusion
  • Outlet Options: ½" hose barb or ⅝" hose barb and ½" drop pipe (0.622" ID)
  • Anti‐wicking cable entrance protects the motor from an incorrectly installed splice
  • Factory-installed motor leads eliminate failure from improperly field-installed leads
  • Rugged stainless steel shell construction for optimal durability and corrosion resistance
  • Constructed with materials that are FDA-approved for potable water (rated to NSF 018 for drinking water)
Note: For the best performance our Fresh Water Systems Experts suggest a solar panel of 180W or larger.

Weight & Dimensions

Approx Height (Inches)

6 Inches

Approx Length (Inches)

16.5 Inches

Approx Width (Inches)

7 Inches

Details

Amps

Max 4.5 Amps Amps

Diaphragm Materials

3 Chamber

Flow Rate

1.7 GPM @ 30 VDC

Housing Material

Stainless Steel

Max Operating Pressure

100 PSI

Voltage

24VDC

Watts

110W

Max Head Pressure

230 Feet, 230 ft

Warranty & Certifications

Certifications

FDA & NSF for Potable Water

Warranty

1 Year Manufacturer Warranty
