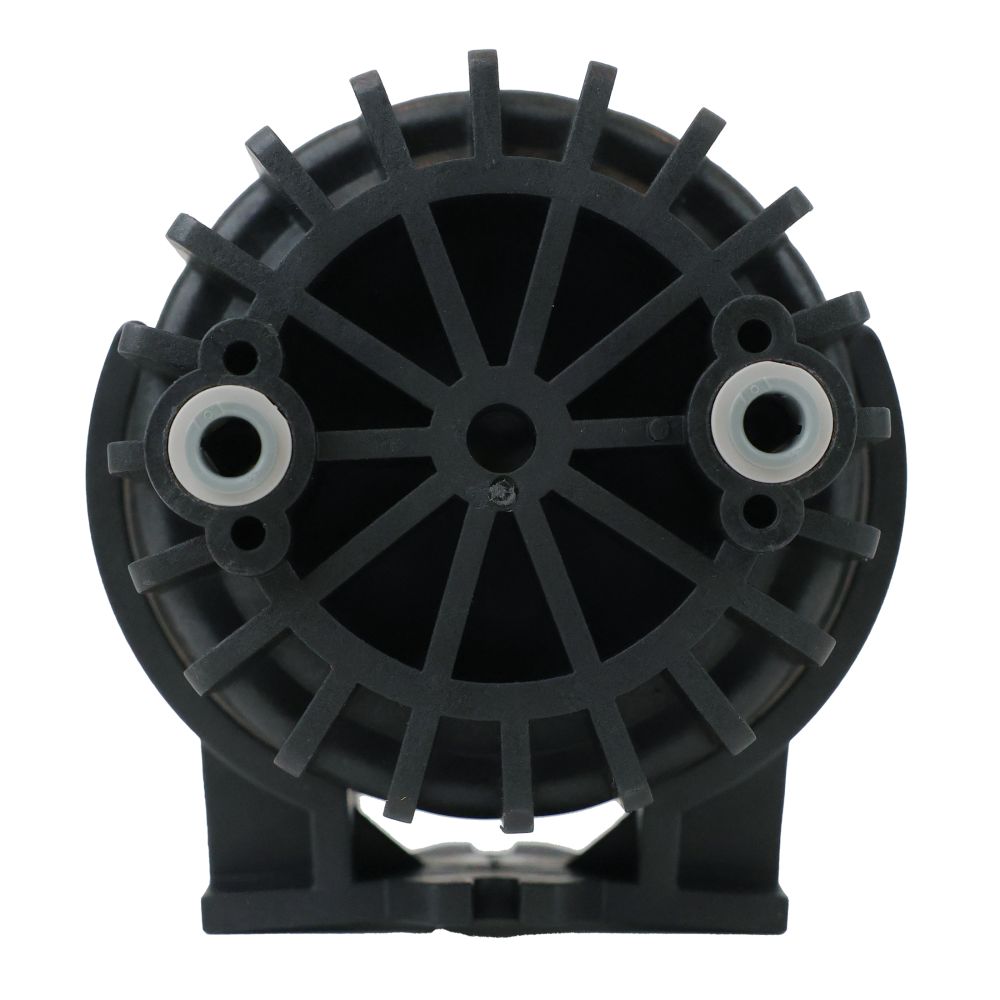

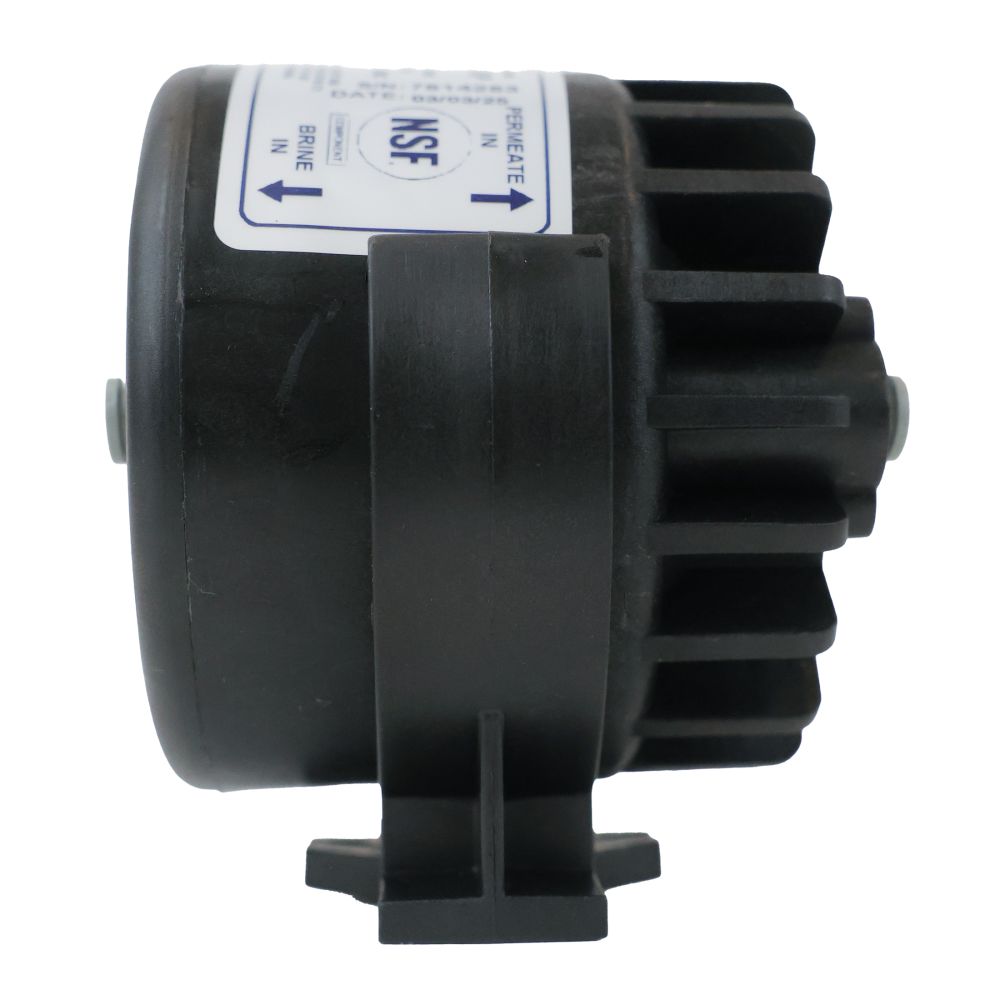

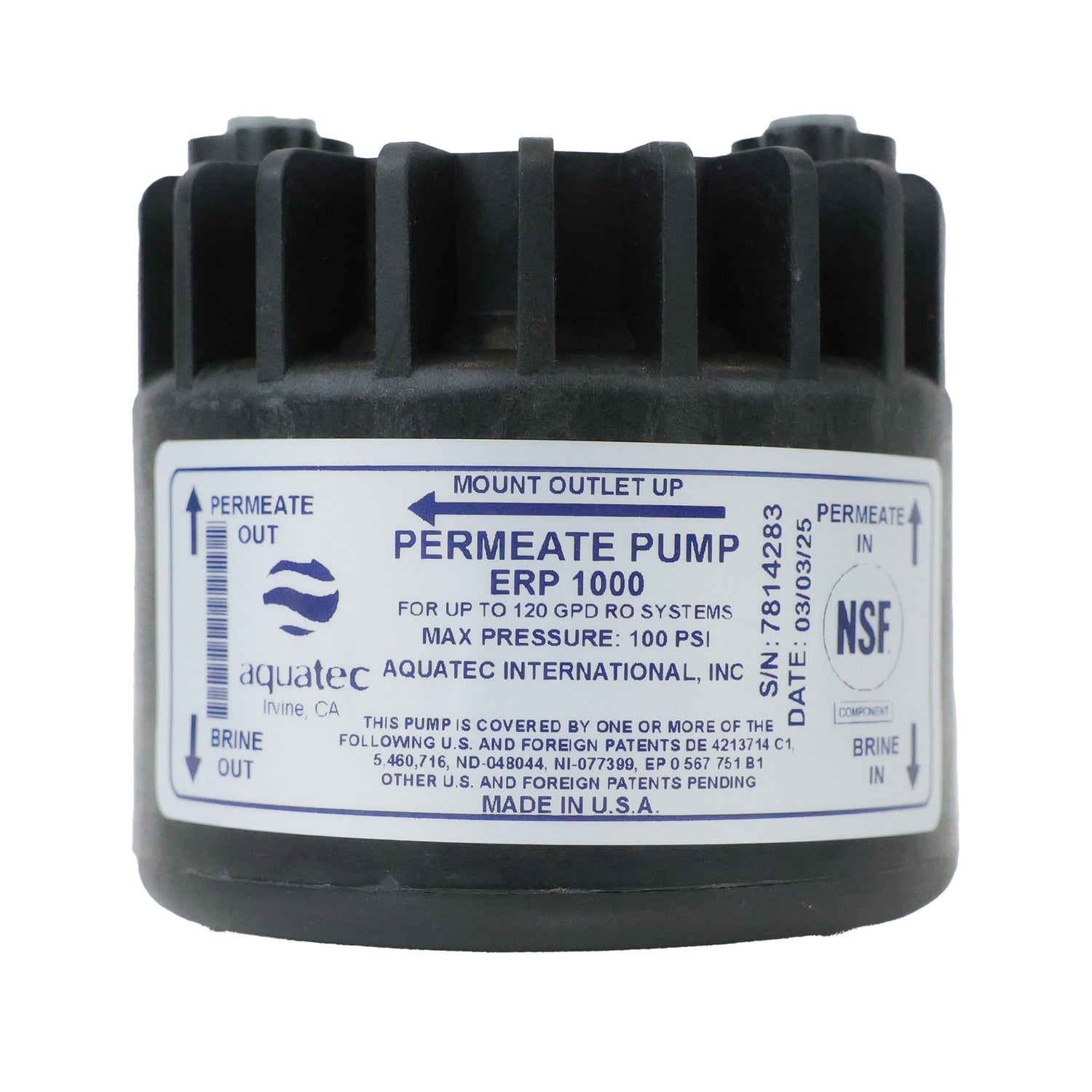

Aquatec ERP-1000 Permeate Pump for up to 120 GPD

Powered by hydraulic energy from brine water usually lost to the drain (i.e. no electricity required), the Aquatec Permeate Pump pushes more purified water into the storage tank, reducing membrane back pressure, therefore maximizing available feed pressure. This pump dramatically improves the membranes production, reducing waste-water by 80% or more. Basically, if an R.O. system requires 10 gallons of tap water to produce 1 gallon of pure water (10:1), the Permeate Pump should reduce this ratio below 3:1.

Additional Specifications:

No electricity required, powered only by hydraulic energy normally lost to drain
Improves water quality by insuring membrane efficiency
Improves membrane life, prevents “TDS creep"
Decreases product tank “fill time" by up to 65%
Reduces drain waste-water by up to 80%
Increases product tank pressure (up to 95% of feed pressure)
For all membranes rated 10 - 120 GPD
Effective for inlet water pressures as low as 30 PSI
Compact size for easy installation

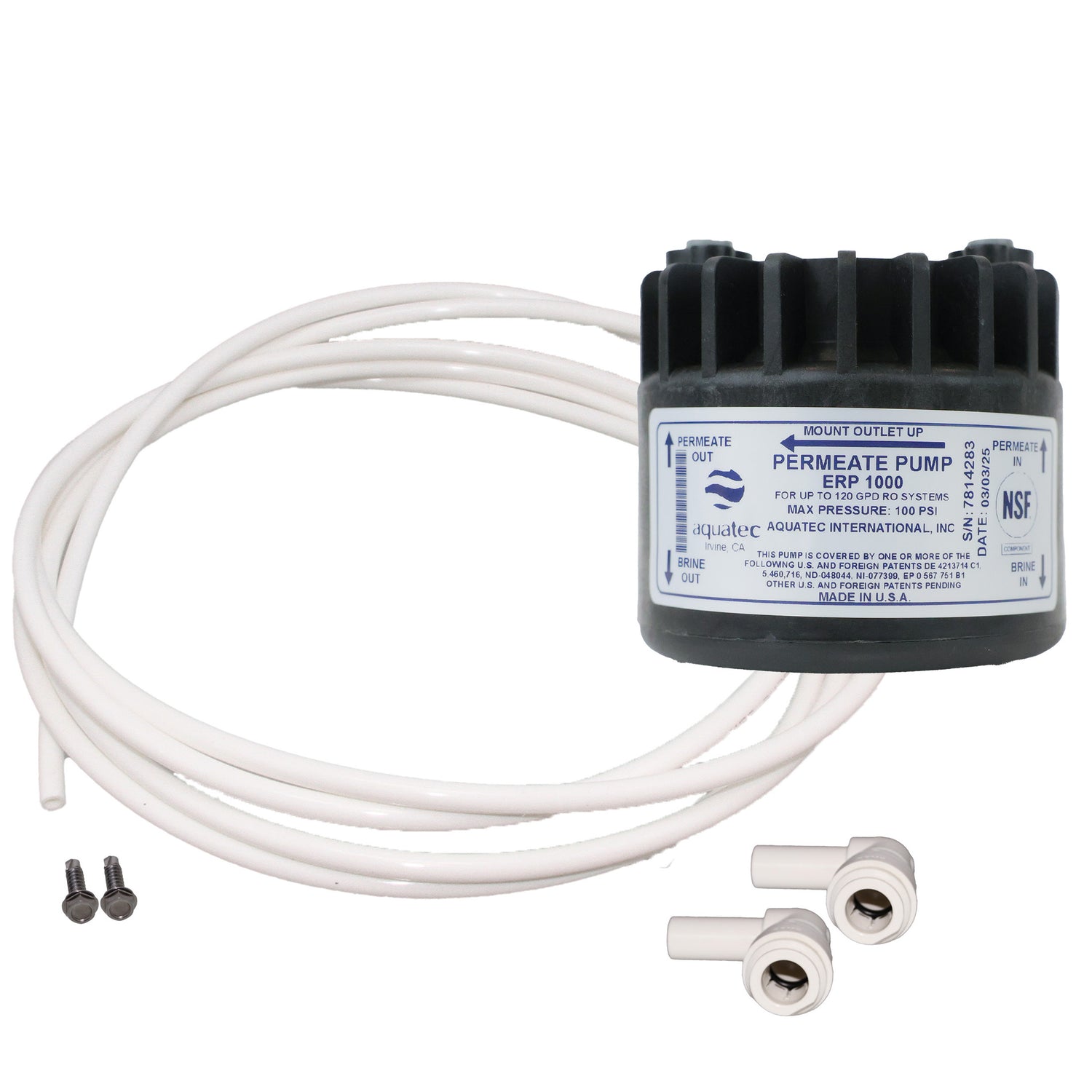

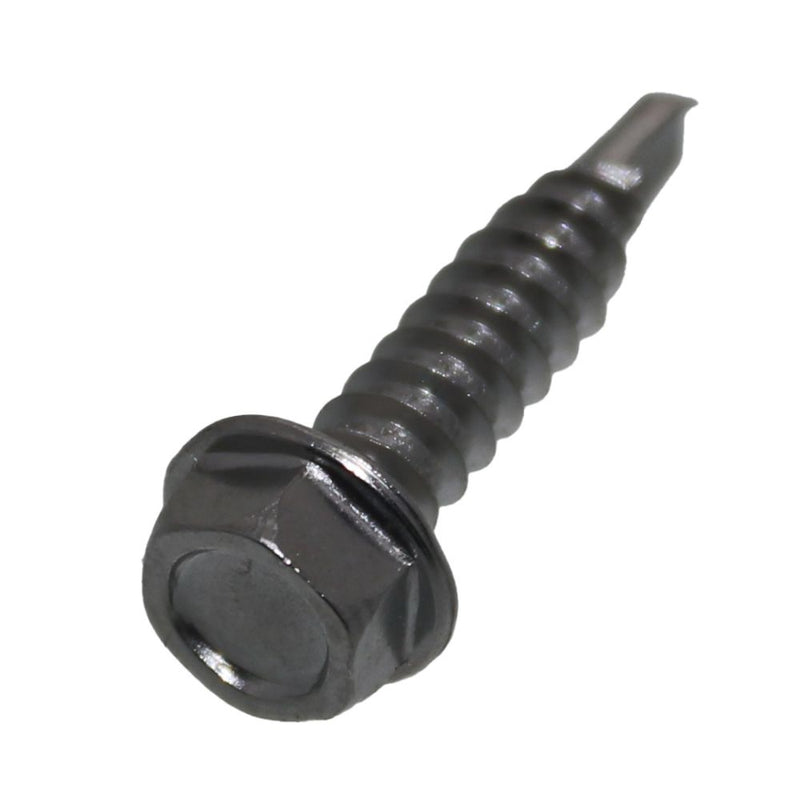

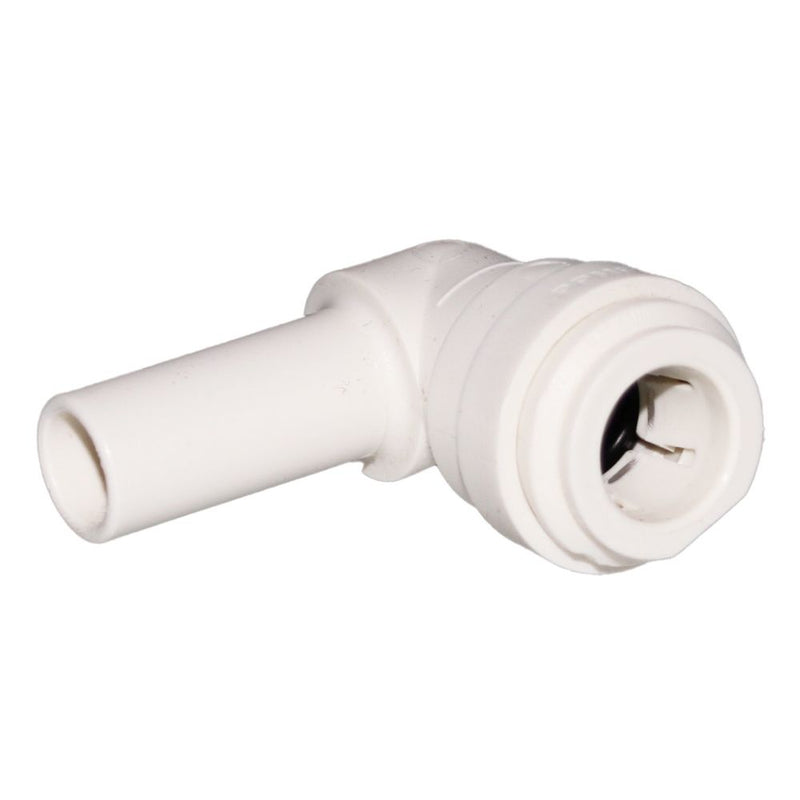

OPTIONAL install kit includes (2) 1/4" stem elbows, (2) self-tapping mounting screws and 4' of 1/4" OD LLDPE tubing

Features:

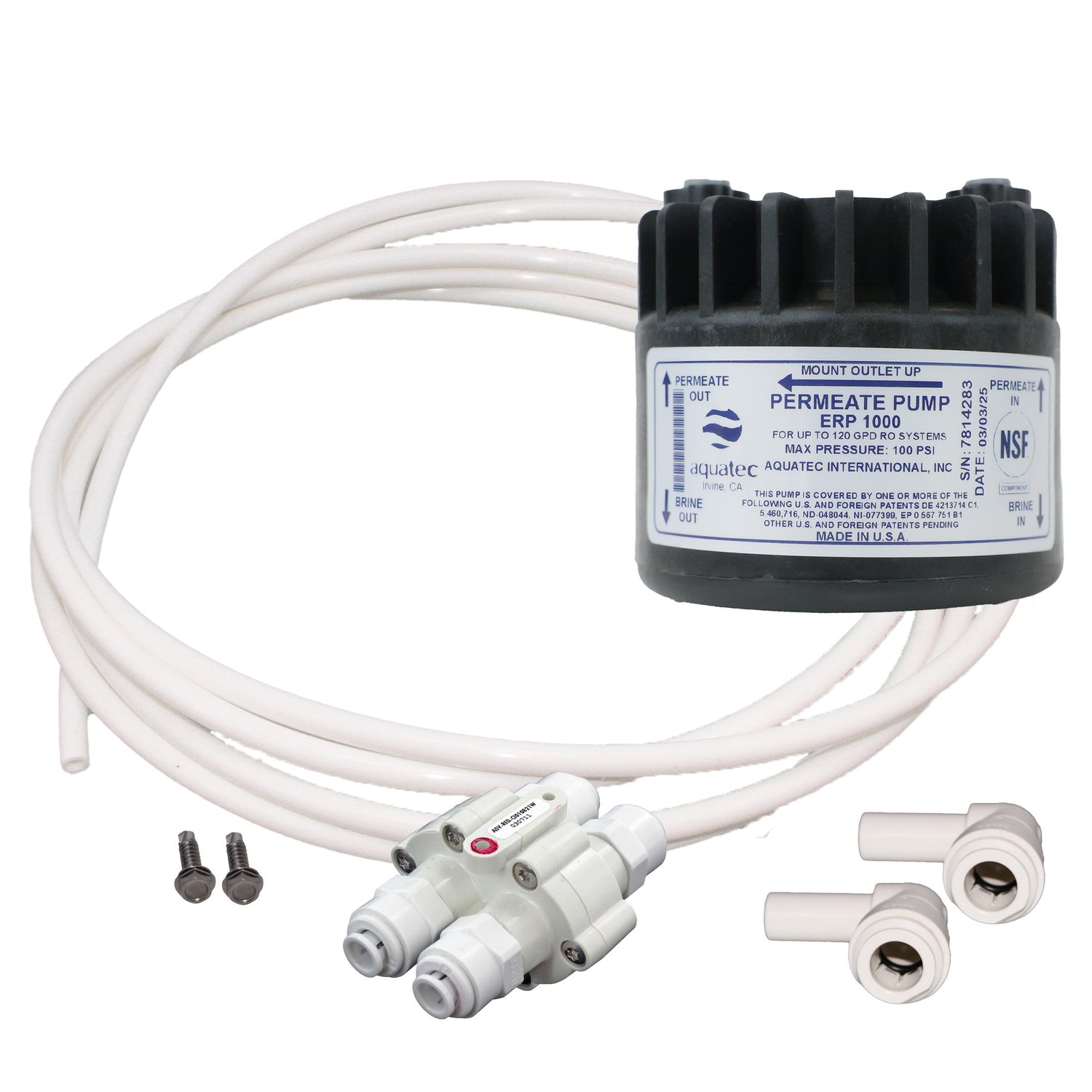

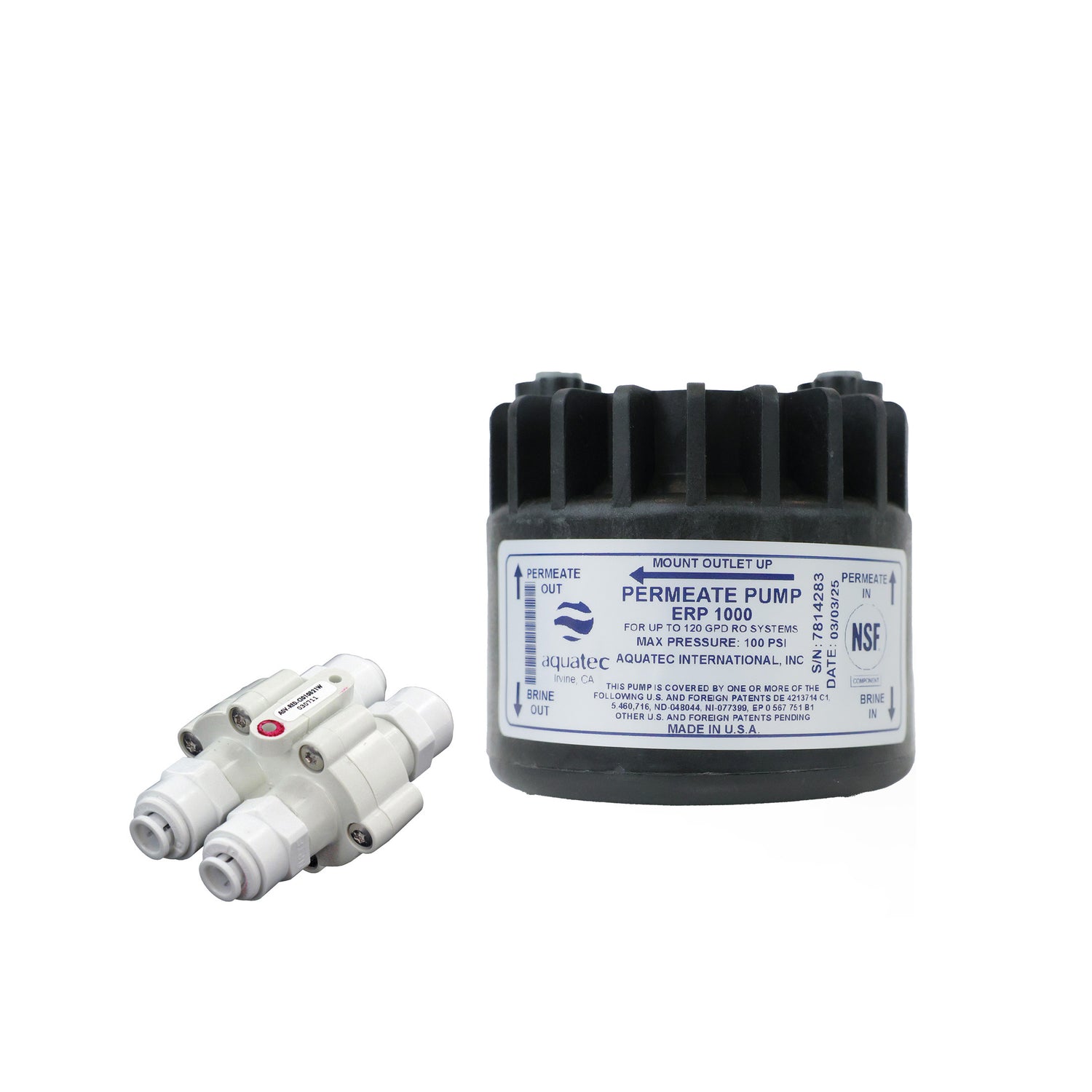

Permeate Pumps can also bring storage tanks up to line pressure, then shut the system down when the tank reaches capacity, removing the need for a hydraulic shut-off valve. Permeate pumps also deliver faster R.O. water production, higher delivery pressures, superior water quality, and extended filter/membrane capacity.

The ERP-1000 can easily be retrofitted to upgrade existing R.O. systems.
The ERP-1000 is the same as the CUNO 3M Part# 89-1331202 for the SGLP RO System.

Compatible with:

Cuno 3M ScaleGARD LP & FlashGARD HP	89-1331202
Hague®	PAM1000
Nimbus	100688
Watts	61301605453, 152002

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Pump Max Flow Rate (Gpm)	120
Pump Max Pressure (Psi)	30
Push-In Size	1/4" OD
Series	ERP-1000
Origin	U.S.A.
Warranty & Certifications
Warranty	12 Months from Date of Purchase from Date of Purchase
Shipping Dimensions
Shipping Length	6 in.
Shipping Width	6 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Height	4.5
Product Length	4.75
Product Width	4.5
Product Weight (lbs)	1.25

Product Details
Pump Max Flow Rate (Gpm)	120
Pump Max Pressure (Psi)	30
Push-In Size	1/4" OD
Series	ERP-1000
Origin	U.S.A.
Warranty & Certifications
Warranty	12 Months from Date of Purchase from Date of Purchase
Shipping Dimensions
Shipping Length	9 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Weight (lbs)	1.35

Product Details
Pump Max Flow Rate (Gpm)	120
Pump Max Pressure (Psi)	30
Push-In Size	1/4" OD
Series	ERP-1000
Origin	U.S.A.
Warranty & Certifications
Warranty	12 Months from Date of Purchase from Date of Purchase
Shipping Dimensions
Shipping Length	4.5 in.
Shipping Width	4 in.
Shipping Height	4.25 in.
Product Weight & Dimensions
Product Weight (lbs)	0.859

Product Details
Pump Max Flow Rate (Gpm)	120
Pump Max Pressure (Psi)	30
Push-In Size	1/4" OD
Series	ERP-1000
Origin	U.S.A.
Warranty & Certifications
Warranty	12 Months from Date of Purchase from Date of Purchase
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	7 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	1.55

Aquatec ERP-1000 Permeate Pump for up to 120 GPD Manual

optional parts

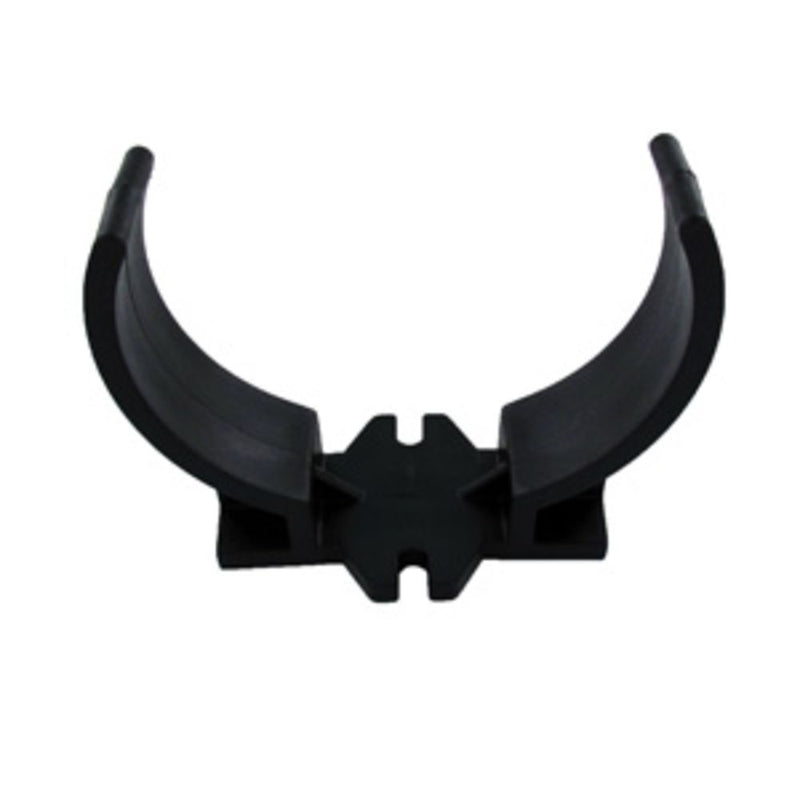

replacement parts
