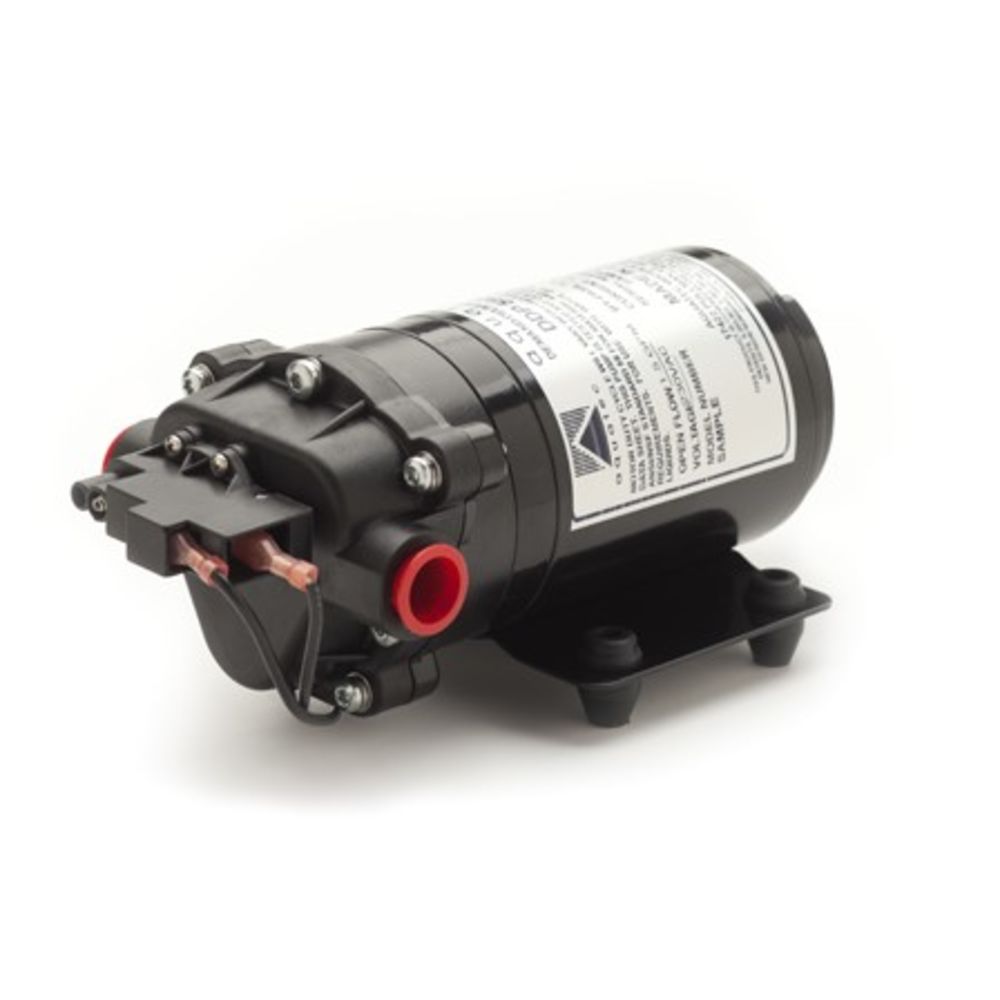

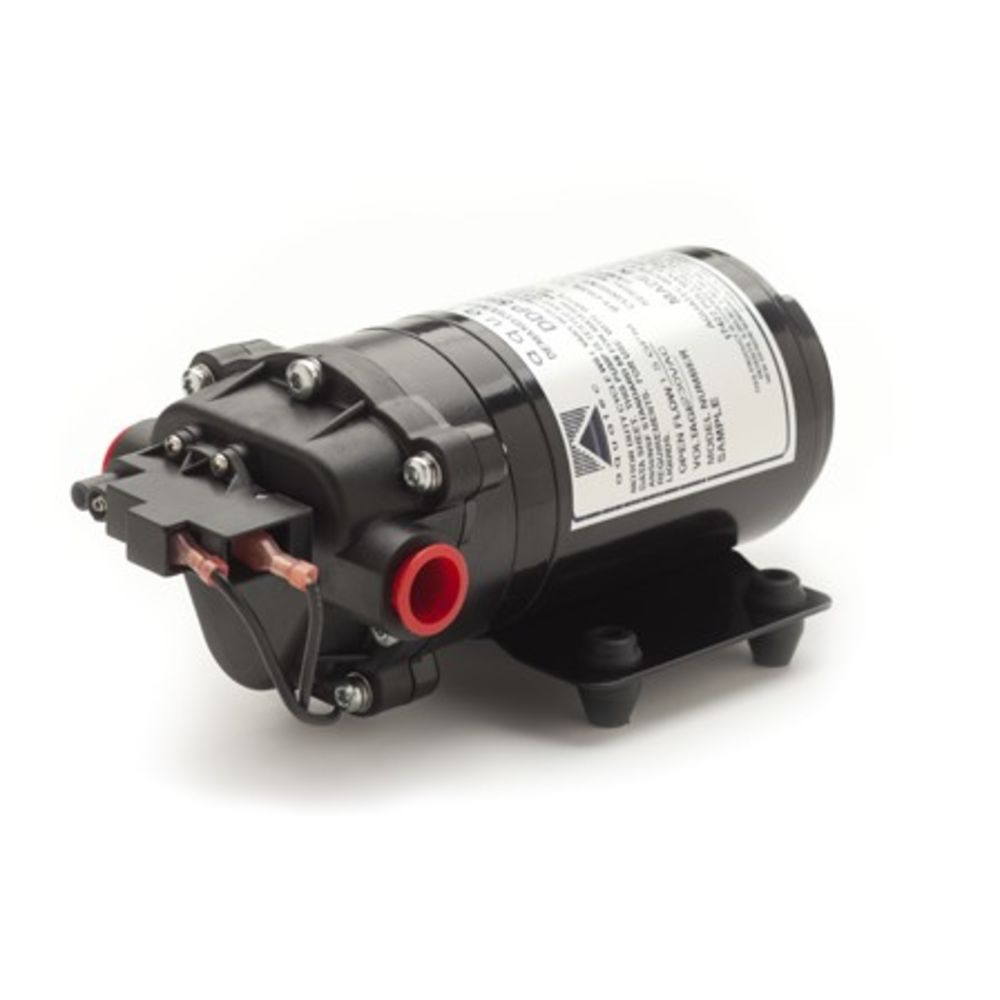

Aquatec 5883-1I77-B984 Demand Pump 12VDC 1.33gpm 3/8" FNPT FKM/Santoprene

The Aquatec 5800 Series Pump is ideal for drawing water from a holding tank and pressurizing it, or boosting pressure from a low-pressure source. These pumps can be operated either in demand mode (pressure switch controlled) or in delivery mode (controlled by an external power switching device). If needed, an integral bypass can be used to limit pressure.

Specifications:

Open flow: 1.8 gpm
Switch: 100 psi
Connections: 3/8" FPT ports
Voltage: 12VDC
Valves/O-rings: Viton for chemical handling
Diaphragm: Santoprene

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Diaphragm Materials	Santoprene
Inlet Connection	3/8" FPT
O-Rings	Viton
Outlet Connection	3/8" FPT
Pressure Switch	100 PSI
Pump Max Flow Rate (Gpm)	1.8
Pump Max Pressure (Psi)	100
Series	5800
Size	3/8"
Valve Type	Viton for chemical handling
Voltage Type	DC
Wire Option	Bare Wire
Connection Type	Female (FPT)
Origin	U.S.A.
Type	Diaphragm Pump
Voltage	12VDC
Warranty & Certifications
Product Certification Standard	NSF/ANSI 58
Shipping Dimensions
Shipping Length	12.5 in.
Shipping Width	6.5 in.
Shipping Height	5 in.
Product Weight & Dimensions
Product Height	3.69"
Product Length	7.3"
Product Width	4"
Product Weight (lbs)	4.75

Product Details
Diaphragm Materials	Santoprene
Inlet Connection	3/8" FPT
O-Rings	Viton
Outlet Connection	3/8" FPT
Pressure Switch	100 PSI
Pump Max Flow Rate (Gpm)	1.8
Pump Max Pressure (Psi)	100
Series	5800
Size	3/8"
Valve Type	Viton for chemical handling
Voltage Type	DC
Wire Option	Bare Wire
Connection Type	Female (FPT)
Origin	U.S.A.
Type	Diaphragm Pump
Voltage	12VDC
Warranty & Certifications
Product Certification Standard	NSF/ANSI 58
Product Weight & Dimensions
Product Weight (lbs)	57
