Aquatec

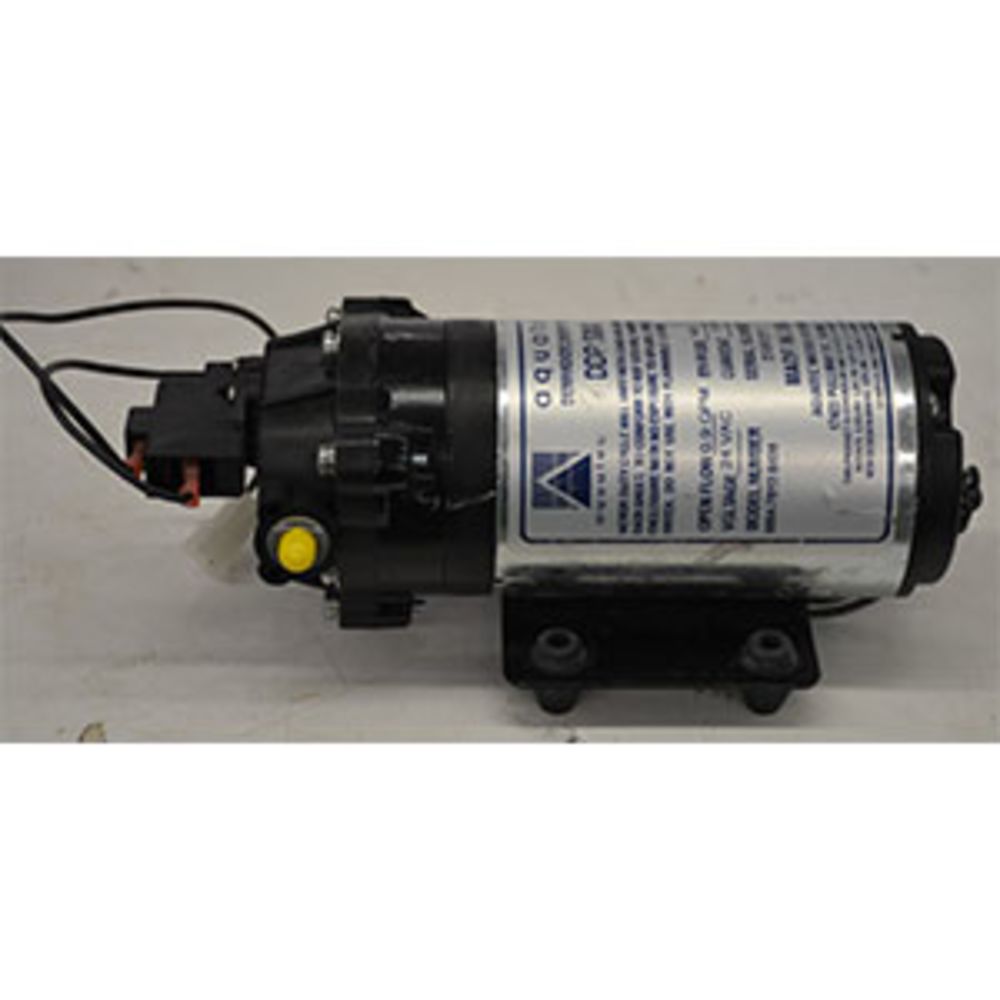

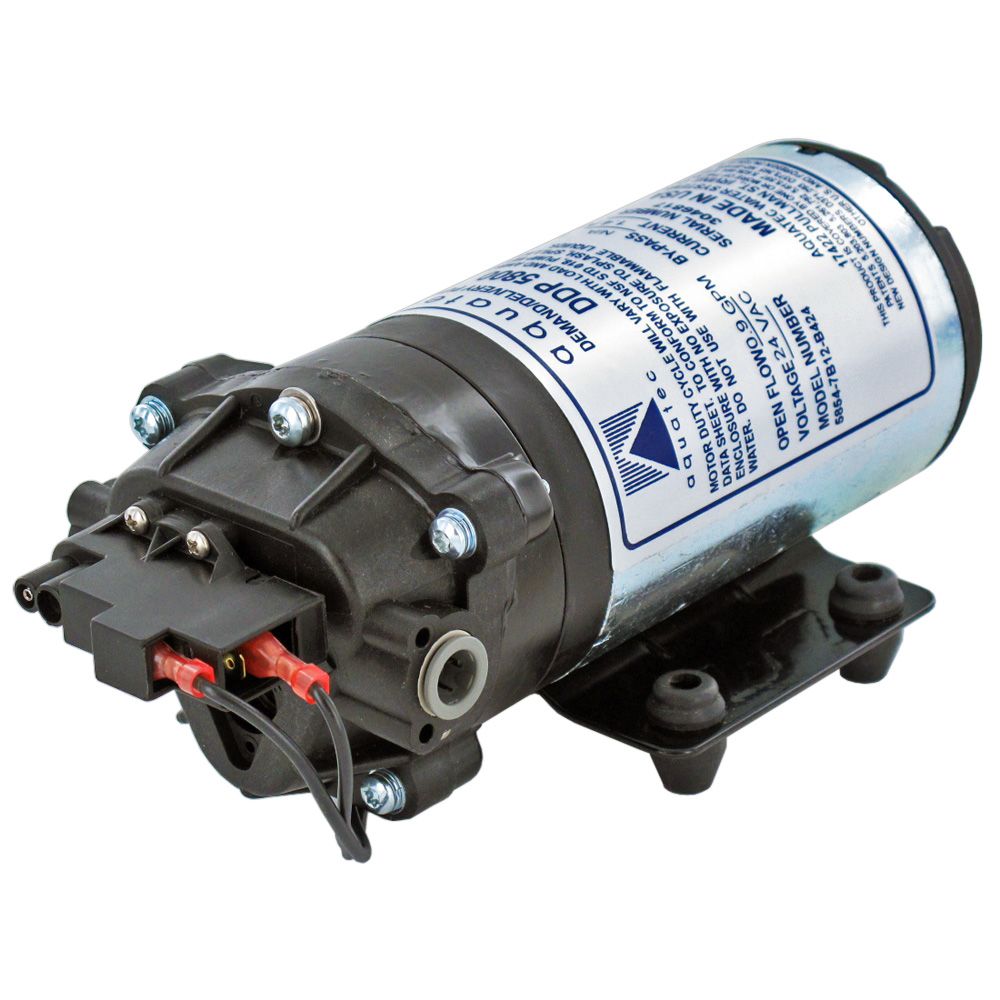

Aquatec 5854-7B12-B424 Pump .9 GPM, 3/8"JG, 24VAC - CLEARANCE

Part Number: 5854-7B12-B424-CLR

In Stock

out of stock

In Stock

This item is discontinued. We recommend the Aquatec 5854-7B12-B424 Pump .9 GPM, 3/8"JG, 24VAC as a substitute.

The Aquatec 5800 Series Pump is ideal for drawing water from a holding tank and pressurize it, or boosting pressure from a low pressure source. These pumps can be operated either in demand mode (pressure switch controlled) or in delivery mode (controlled by external power switching device). If needed, an integral bypass can be used to limit pressure.

Features:
  • 40 psi shut-off pressure
  • 3-chamber construction
  • Closed impervious diaphragm
  • Asymmetrical manifold

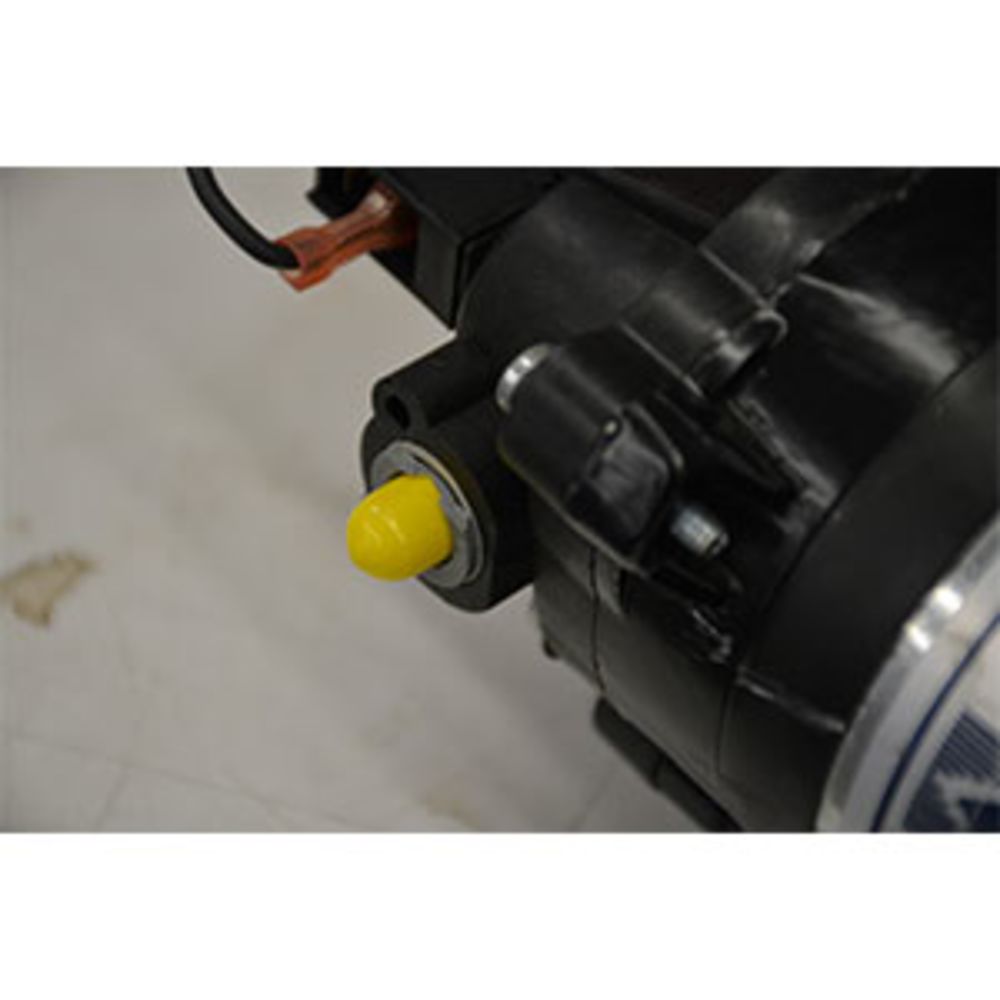

  • Integral switch or bypass
  • Highest structural integrity
  • Seven point clamping
  • Engineered composite plastics
  • Corrosion resistant metal
  • Multiple porting options
 Benefits:
  • Adjustable switch and bypass settings
  • Self-priming, auto-purging
  • Near silent operation at lower flows
  • Highly efficient
  • Minimal pulsations
  • 7 year design life
  • Runs dry without damage




Weight & Dimensions

Weight (lbs)

8

Details

Diaphragm Materials

Santoprene

Housing Material

Polypropylene

Liquid Temperature

Max 140 °F

Max Pressure (Psi)

40

Power

Leads 6" 20 AWG

Warranty & Certifications

Warranty

7 years


Aquatec

Aquatec




The Aquatec 5800 Series Pump is ideal for drawing water from a holding tank and pressurize it, or boosting pressure from a low pressure source. These pumps can be operated either in demand mode (pressure switch controlled) or in delivery mode (controlled by external power switching device). If needed, an integral bypass can be used to limit pressure.

Features:
  • 40 psi shut-off pressure
  • 3-chamber construction
  • Closed impervious diaphragm
  • Asymmetrical manifold
  • Integral switch or bypass
  • Highest structural integrity
  • Seven point clamping
  • Engineered composite plastics
  • Corrosion resistant metal
  • Multiple porting options
 Benefits:
  • Adjustable switch and bypass settings
  • Self-priming, auto-purging
  • Near silent operation at lower flows
  • Highly efficient
  • Minimal pulsations
  • 7 year design life
  • Runs dry without damage



NOTE: This item is discontinued. We recommend the Aquatec 5854-7B12-B424 Pump .9 GPM, 3/8"JG, 24VAC as a substitute.

Weight & Dimensions

Weight (lbs)

8

Details

Diaphragm Materials

Santoprene

Housing Material

Polypropylene

Liquid Temperature

Max 140 °F

Max Pressure (Psi)

40

Power

Leads 6" 20 AWG

Warranty & Certifications

Warranty

7 years
