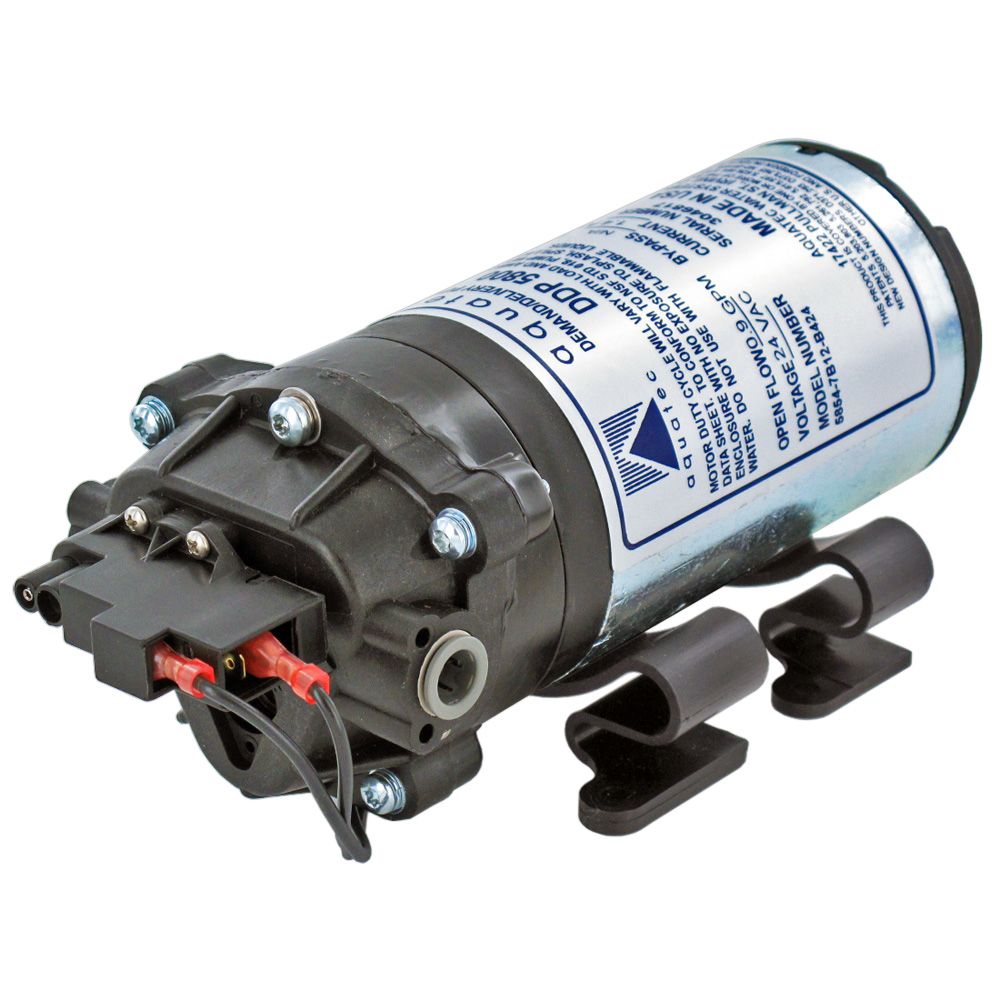

Aquatec 5853-7E12-B421 Pump .9 GPM, 3/8"JG, 24VAC

Part Number: 5853-7E12-B421

In Stock

out of stock

In Stock

This item is discontinued. We recommend the Aquatec 5853-7E12-B424 Pump .85 GPM, 3/8"JG, 24VAC as a substitute.


The Aquatec 5800 Series Pump is ideal for drawing water from a holding tank and pressurize it, or boosting pressure from a low pressure source. These pumps can be operated either in demand mode (pressure switch controlled) or in delivery mode (controlled by external power switching device). If needed, an integral bypass can be used to limit pressure.

Additional specifications:
  • 60 psi shut-off pressure
  • 3-chamber construction
  • Closed impervious diaphragm
  • Asymmetrical manifold
  • Integral switch or bypass
  • Highest structural integrity
  • Seven point clamping
  • Engineered composite plastics
  • Corrosion resistant metal
  • Multiple porting options
Benefits:
  • Adjustable switch and bypass settings
  • Self-priming, auto-purging
  • Near silent operation at lower flows
  • Highly efficient
  • Minimal pulsations
  • 7 year design life
  • Runs dry without damage




Weight & Dimensions

Weight (lbs)

8

Approx Height (Inches)

3.6"

Approx Length (Inches)

8.46"

Approx Width (Inches)

4"

Details

Series

5800

Push-In Size

3/8" OD

Diaphragm Materials

Santoprene

Flow Rate

0.9 GPM

Housing Material

Polypropylene

Liquid Temperature

Max 140 °F

Pressure Switch

60 PSI

Voltage

24VAC

Power Source

Bell Ends w/ Lead Wires

Motor Rpm

870 RPM

Warranty & Certifications

Certifications

NSF 58

Warranty

2 Years


Aquatec

Aquatec





The Aquatec 5800 Series Pump is ideal for drawing water from a holding tank and pressurize it, or boosting pressure from a low pressure source. These pumps can be operated either in demand mode (pressure switch controlled) or in delivery mode (controlled by external power switching device). If needed, an integral bypass can be used to limit pressure.

Additional specifications:
  • 60 psi shut-off pressure
  • 3-chamber construction
  • Closed impervious diaphragm
  • Asymmetrical manifold
  • Integral switch or bypass
  • Highest structural integrity
  • Seven point clamping
  • Engineered composite plastics
  • Corrosion resistant metal
  • Multiple porting options
Benefits:
  • Adjustable switch and bypass settings
  • Self-priming, auto-purging
  • Near silent operation at lower flows
  • Highly efficient
  • Minimal pulsations
  • 7 year design life
  • Runs dry without damage



NOTE: This item is discontinued. We recommend the Aquatec 5853-7E12-B424 Pump .85 GPM, 3/8"JG, 24VAC as a substitute.

Weight & Dimensions

Weight (lbs)

8

Approx Height (Inches)

3.6"

Approx Length (Inches)

8.46"

Approx Width (Inches)

4"

Details

Series

5800

Push-In Size

3/8" OD

Diaphragm Materials

Santoprene

Flow Rate

0.9 GPM

Housing Material

Polypropylene

Liquid Temperature

Max 140 °F

Pressure Switch

60 PSI

Voltage

24VAC

Power Source

Bell Ends w/ Lead Wires

Motor Rpm

870 RPM

Warranty & Certifications

Certifications

NSF 58

Warranty

2 Years
