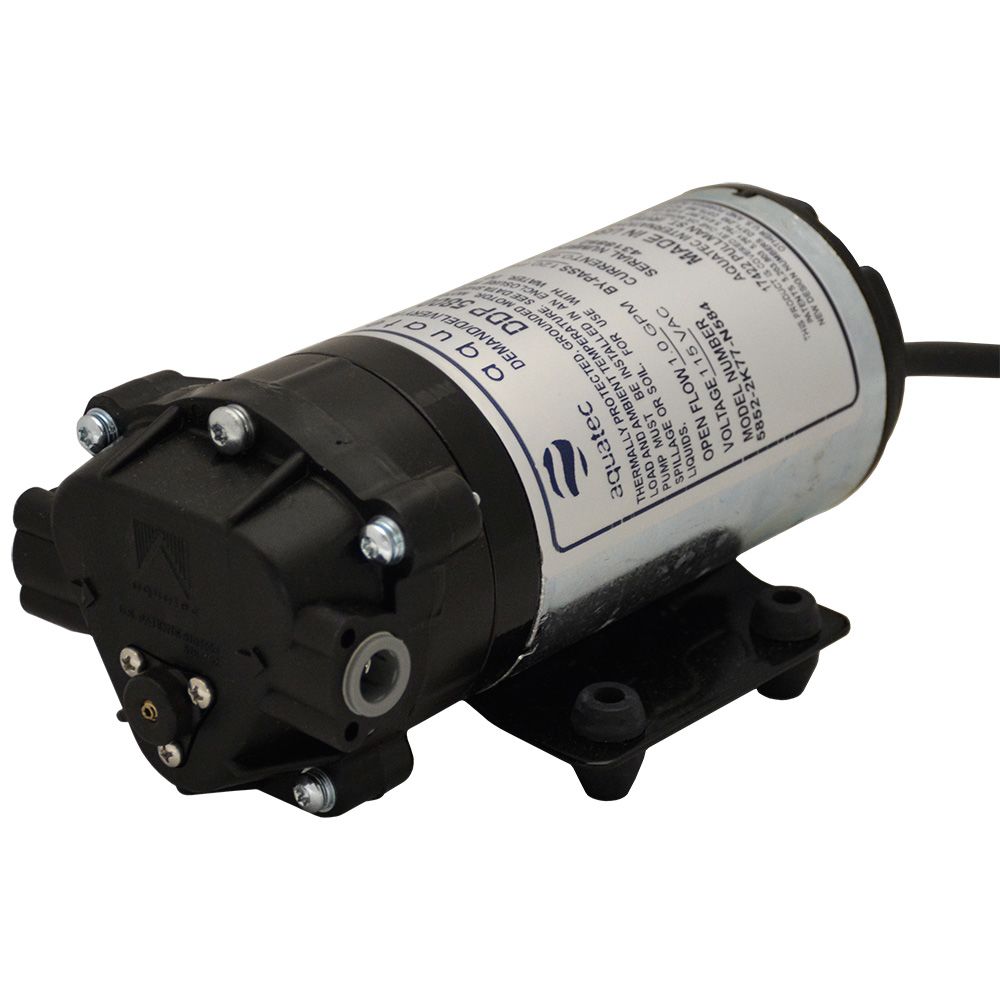

Aquatec 5852-2K77-N584 Pump 1 GPM, 3/8"JG, 115V

Part Number: 5852-2K77-N584

In Stock

out of stock

In Stock

$116.99

The Aquatec 5800 Series Pump is ideal for drawing water from a holding tank and pressurize it, or boosting pressure from a low pressure source. These pumps can be operated either in demand mode (pressure switch controlled) or in delivery mode (controlled by external power switching device). If needed, an integral bypass can be used to limit pressure.

Features:
  • Flow rate: 1gpm @ 120 psi
  • 120 PSI internal bypass switch
  • Amps: 0.85 Amps @ 120 psi
  • Volts: 115 VAC
  • 3-chamber construction
  • Closed impervious diaphragm
  • Asymmetrical manifold
  • Integral switch or bypass
  • Highest structural integrity
  • Seven point clamping
  • Engineered composite plastics
  • Corrosion resistant metal

Benefits:
  • Self-priming, auto-purging
  • Near silent operation at lower flows
  • Highly efficient
  • Minimal pulsations
  • 7 year design life
  • Runs dry without damage



Weight & Dimensions

Approx Height (Inches)

3.6 Inches

Approx Length (Inches)

8.46 Inches

Approx Width (Inches)

4 Inches

Details

Amps

0.85 @ 120 psi Amps

Diaphragm Materials

Santoprene

Flow Rate

1 @ 120 psi Gallons Per Minute

Housing Material

Polypropylene

Inlet Size

3/8" QC

Liquid Temperature

140 max Degrees Fahrenheit

Origin

Made in USA

Outlet Size

3/8" QC

Voltage

115VAC

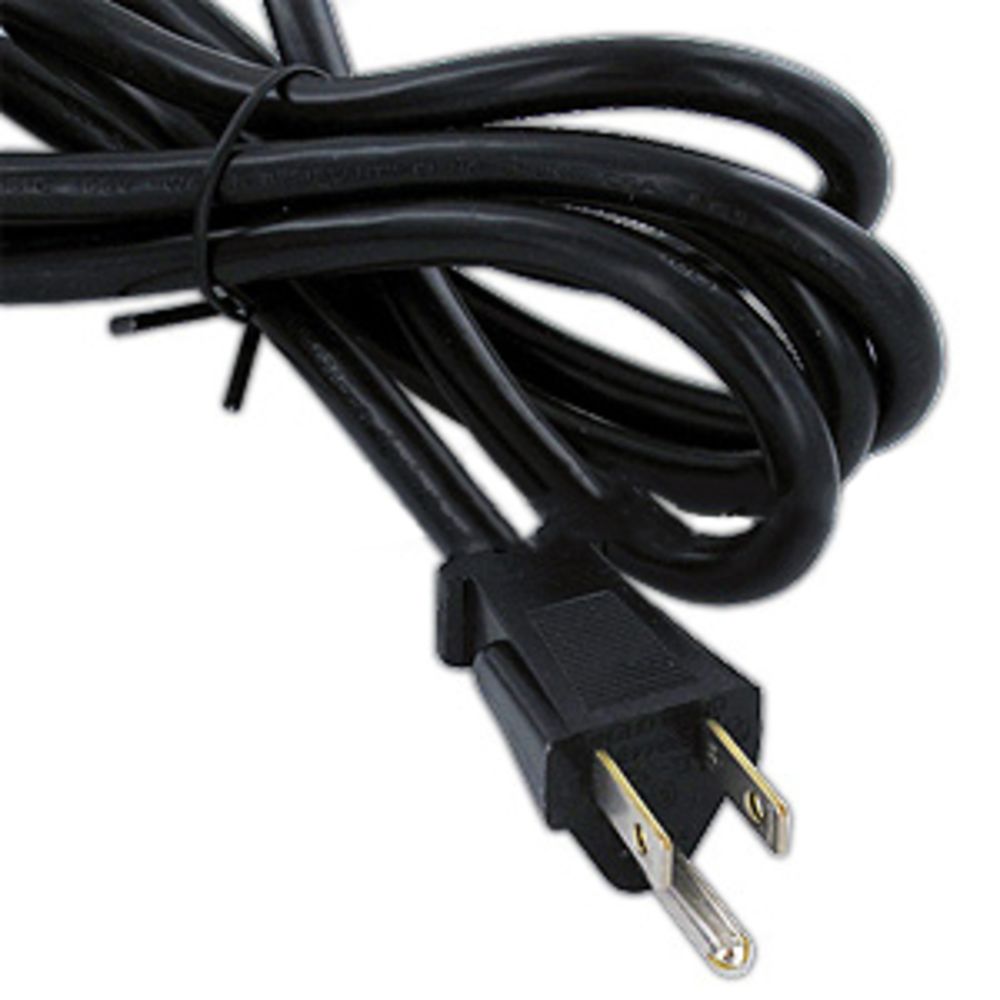

Power Source

Cord/No Switch Wires

Motor Rpm

1600 Rotations Per Minute

Suction Lift

Self prime up to 7 ft

Psi Bypass

120 PSI

Warranty & Certifications

Certifications

NSF 58

Warranty

1 year
