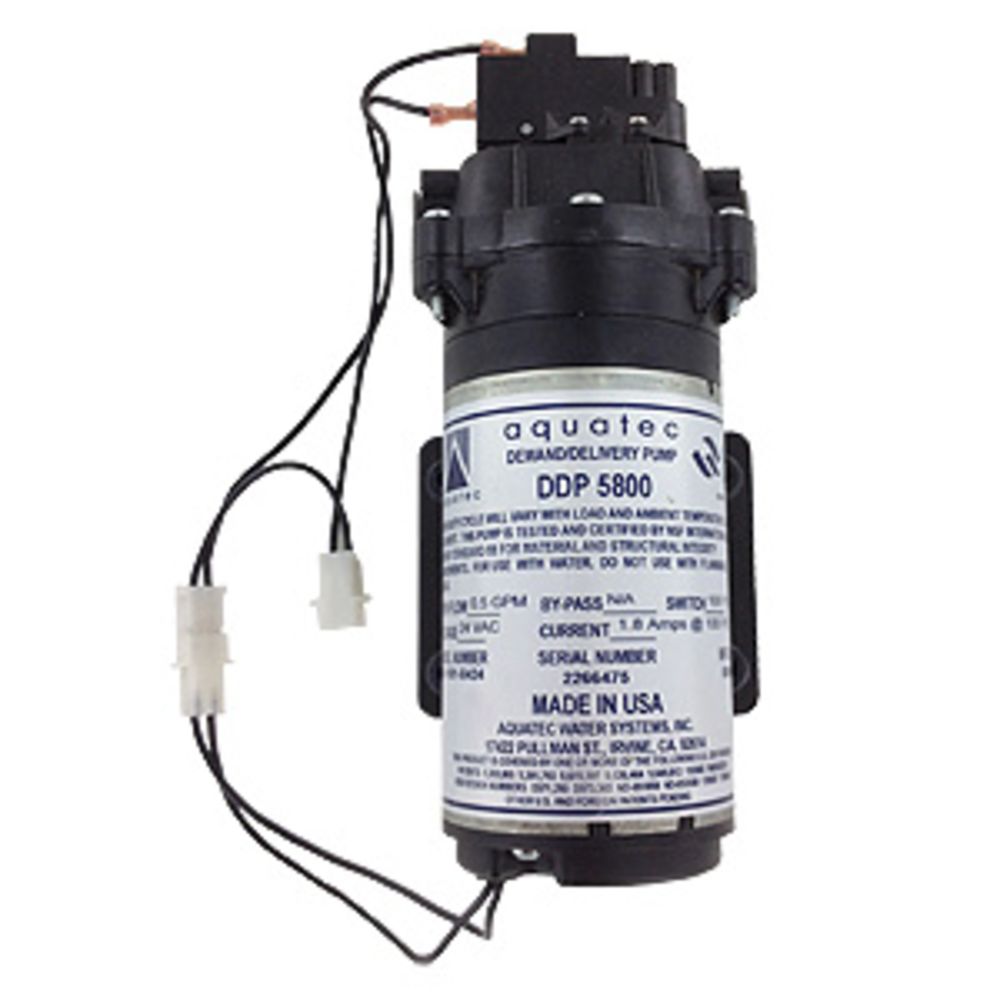

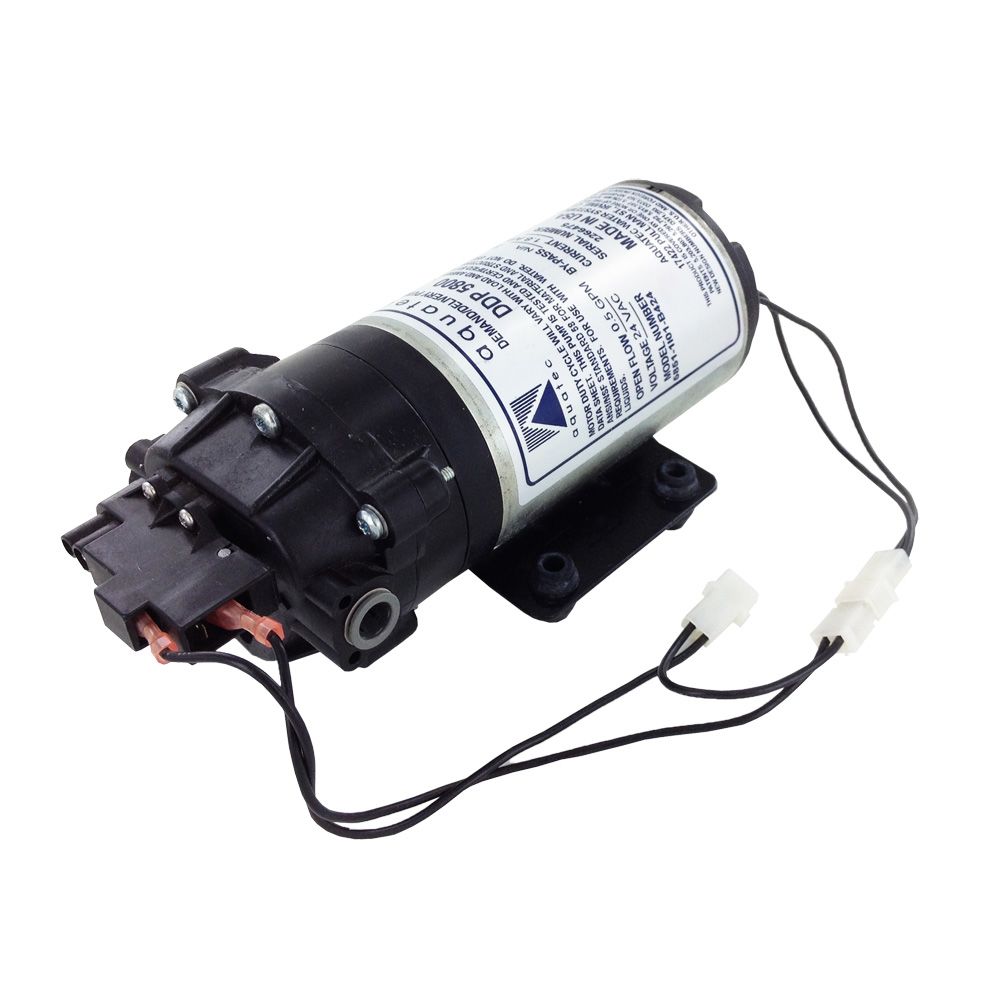

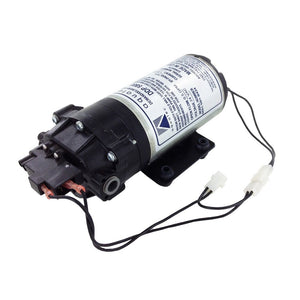

Aquatec 5851-1I01-B421 Pump 0.5 GPM, 3/8"JG, 24 VAC

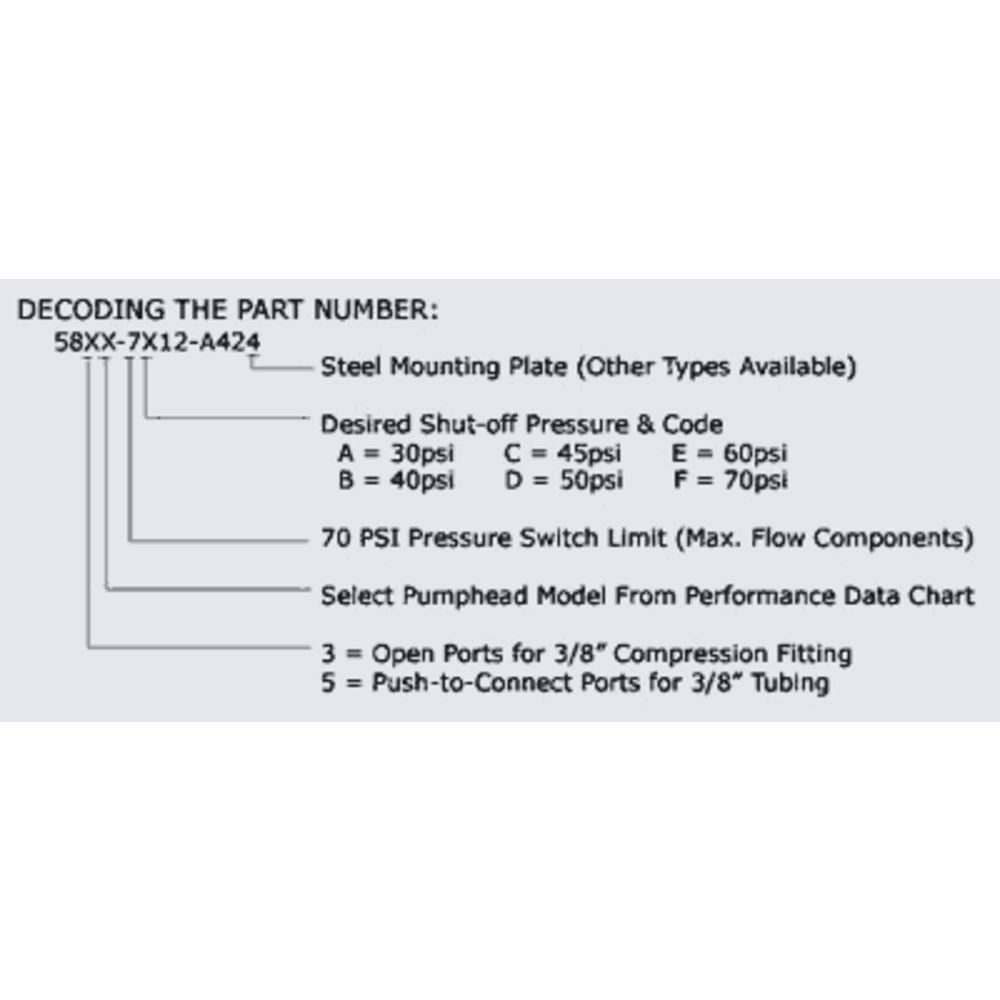

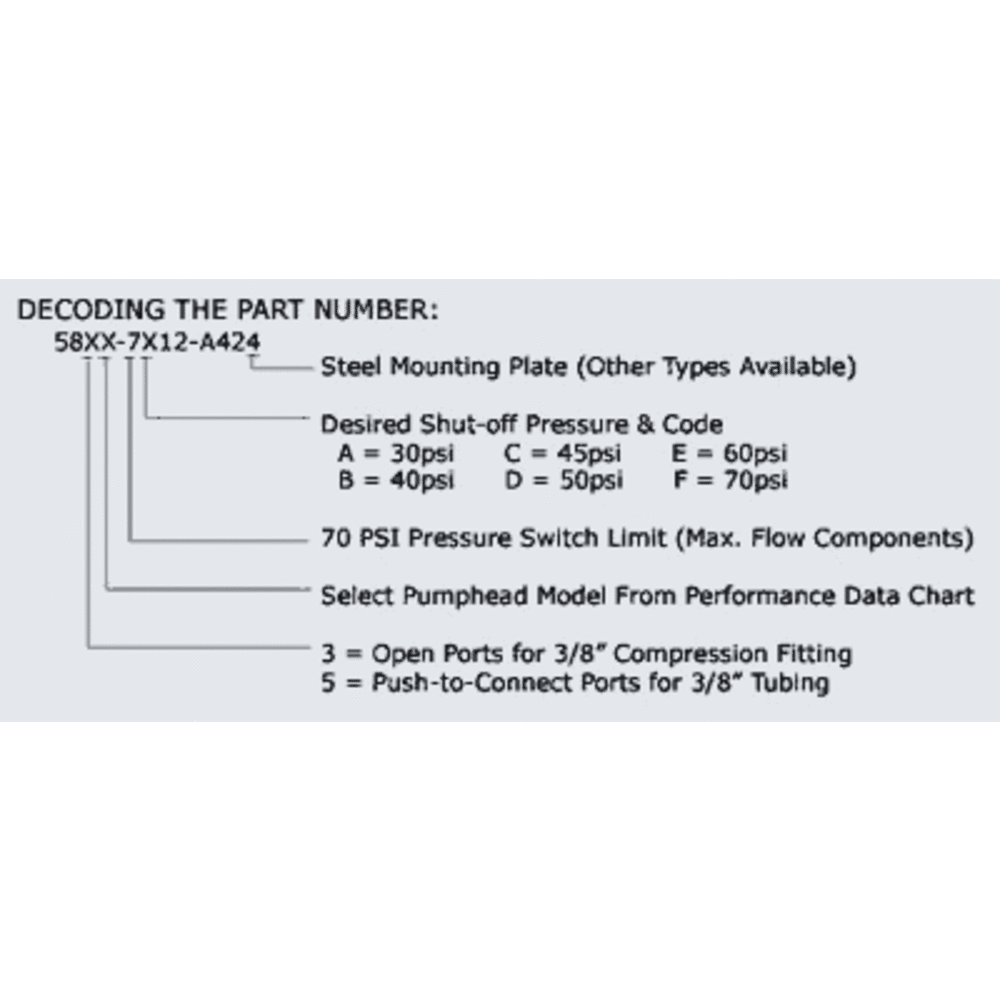

Part Number: 5851-1I01-B421

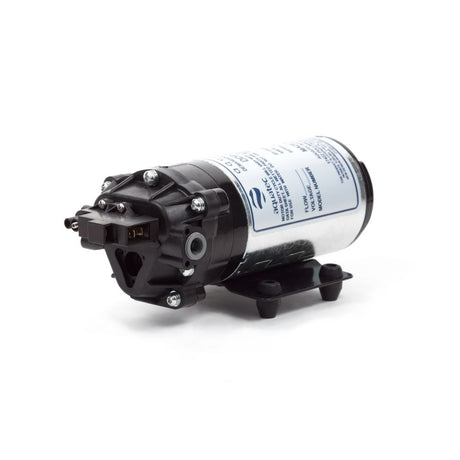

Alt. Part Number: 5851-1I02-B421

In Stock

out of stock

In Stock

$119.99


The Aquatec 5800 Series Pump is ideal for drawing water from a holding tank and pressurize it, or boosting pressure from a low pressure source. These pumps can be operated either in demand mode (pressure switch controlled) or in delivery mode (controlled by external power switching device). If needed, an integral bypass can be used to limit pressure.

Features:
  • 3-chamber construction
  • Closed impervious diaphragm
  • Asymmetrical manifold
  • Integral switch or bypass
  • Highest structural integrity
  • Seven point clamping
  • Engineered composite plastics
  • Corrosion resistant metal
  • Multiple porting options
Benefits:
  • Adjustable switch and bypass settings
  • Self-priming, auto-purging
  • Near silent operation at lower flows
  • Highly efficient
  • Minimal pulsations
  • 7 year design life
  • Runs dry without damage


Weight & Dimensions

Approx Height (Inches)

3.6 Inches

Approx Length (Inches)

8.46 Inches

Approx Width (Inches)

4 Inches

Details

Series

5800

Push In Size

3/8" OD

Amps

1.8 Amps @ 100 PSI

Diaphragm Materials

Santoprene

Flow Rate

0.5 GPM

Housing Material

Polypropylene

Liquid Temperature

Max 140 °F

Voltage

24VAC

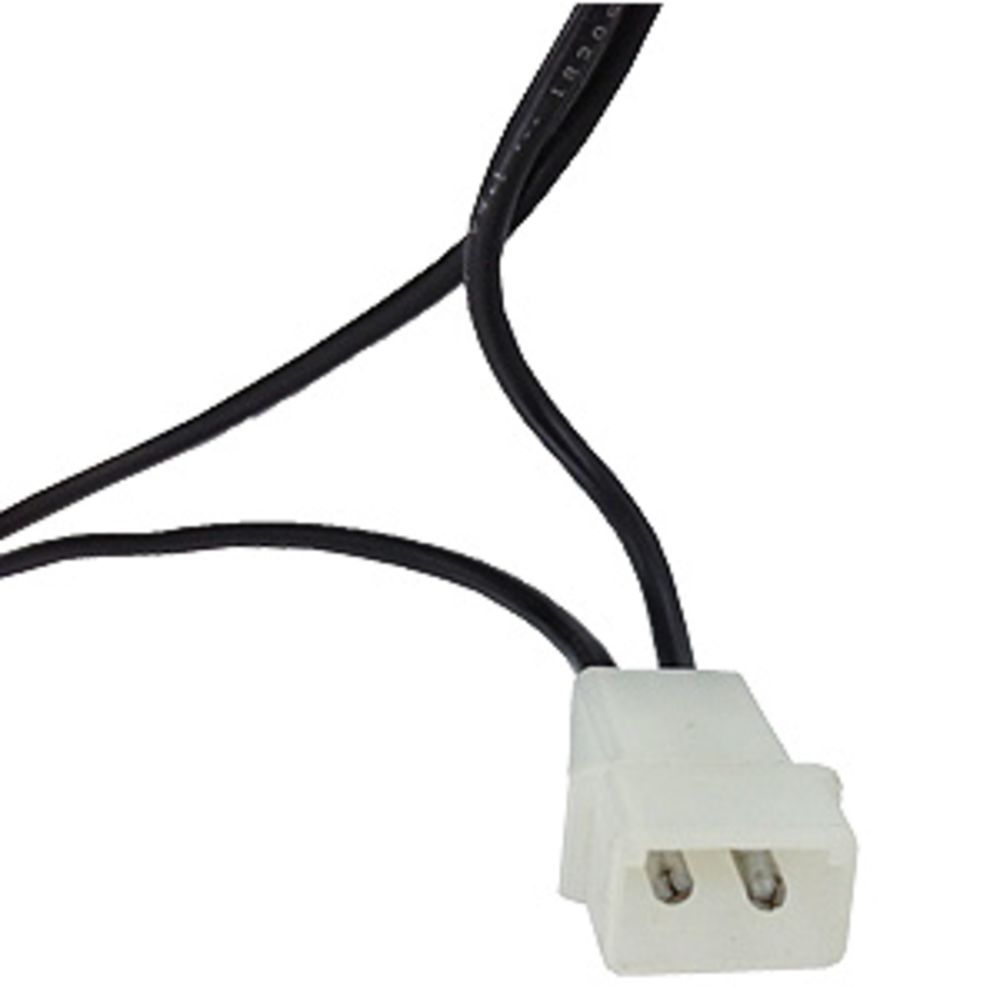

Wire Option

Bare Wire

Warranty & Certifications

Certifications

NSF 58

Warranty

1 Year
