Aquatec

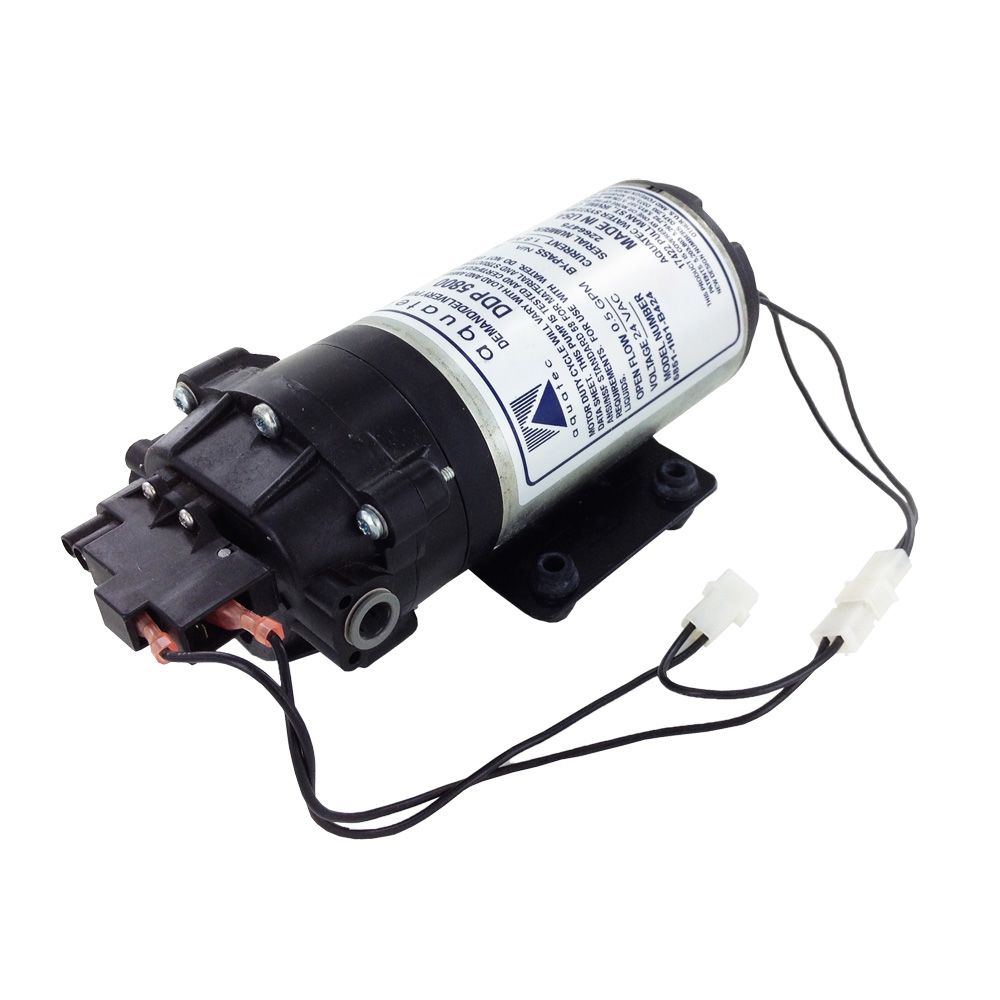

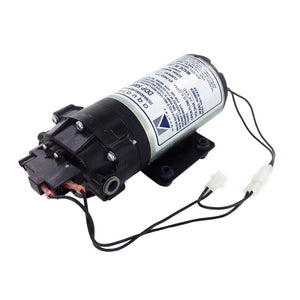

Aquatec 5851-1B03-B543 Pump 0.3 GPM, 3/8"JG, 12 VDC

Part Number: 5851-1B03-B543

In Stock

out of stock

In Stock

$119.99


The Aquatec 5800 Series Pump is ideal for drawing water from a holding tank and pressurize it, or boosting pressure from a low pressure source. These pumps can be operated either in demand mode (pressure switch controlled) or in delivery mode (controlled by external power switching device). If needed, an integral bypass can be used to limit pressure.

Features:
  • 3-chamber construction
  • Closed impervious diaphragm
  • Asymmetrical manifold
  • Integral switch or bypass
  • Highest structural integrity
  • Seven point clamping
  • Engineered composite plastics
  • Corrosion resistant metal
  • Multiple porting options
Benefits:
  • Adjustable switch and bypass settings
  • Self-priming, auto-purging
  • Near silent operation at lower flows
  • Highly efficient
  • Minimal pulsations
  • 7 year design life
  • Runs dry without damage


Weight & Dimensions

Approx Height (Inches)

3.6 Inches

Approx Length (Inches)

8.46 Inches

Approx Width (Inches)

4 Inches

Details

Amps

0.43 @ 160 psi Amps

Diaphragm Materials

Santoprene

Flow Rate

0.3 @160 psi

Housing Material

Polypropylene

Liquid Temperature

140 max Degrees Fahrenheit

Type

Demand

Valve Type

EPDM

Voltage

12VDC

Power Source

Cord/Pressure Switch Wires

Motor Rpm

1200 Rotations Per Minute

Psi Bypass

160 PSI

Warranty & Certifications

Warranty

1 year


Aquatec





The Aquatec 5800 Series Pump is ideal for drawing water from a holding tank and pressurize it, or boosting pressure from a low pressure source. These pumps can be operated either in demand mode (pressure switch controlled) or in delivery mode (controlled by external power switching device). If needed, an integral bypass can be used to limit pressure.

Features:
  • 3-chamber construction
  • Closed impervious diaphragm
  • Asymmetrical manifold
  • Integral switch or bypass
  • Highest structural integrity
  • Seven point clamping
  • Engineered composite plastics
  • Corrosion resistant metal
  • Multiple porting options
Benefits:
  • Adjustable switch and bypass settings
  • Self-priming, auto-purging
  • Near silent operation at lower flows
  • Highly efficient
  • Minimal pulsations
  • 7 year design life
  • Runs dry without damage

Weight & Dimensions

Approx Height (Inches)

3.6 Inches

Approx Length (Inches)

8.46 Inches

Approx Width (Inches)

4 Inches

Details

Amps

0.43 @ 160 psi Amps

Diaphragm Materials

Santoprene

Flow Rate

0.3 @160 psi

Housing Material

Polypropylene

Liquid Temperature

140 max Degrees Fahrenheit

Type

Demand

Valve Type

EPDM

Voltage

12VDC

Power Source

Cord/Pressure Switch Wires

Motor Rpm

1200 Rotations Per Minute

Psi Bypass

160 PSI

Warranty & Certifications

Warranty

1 year
