Aquatec

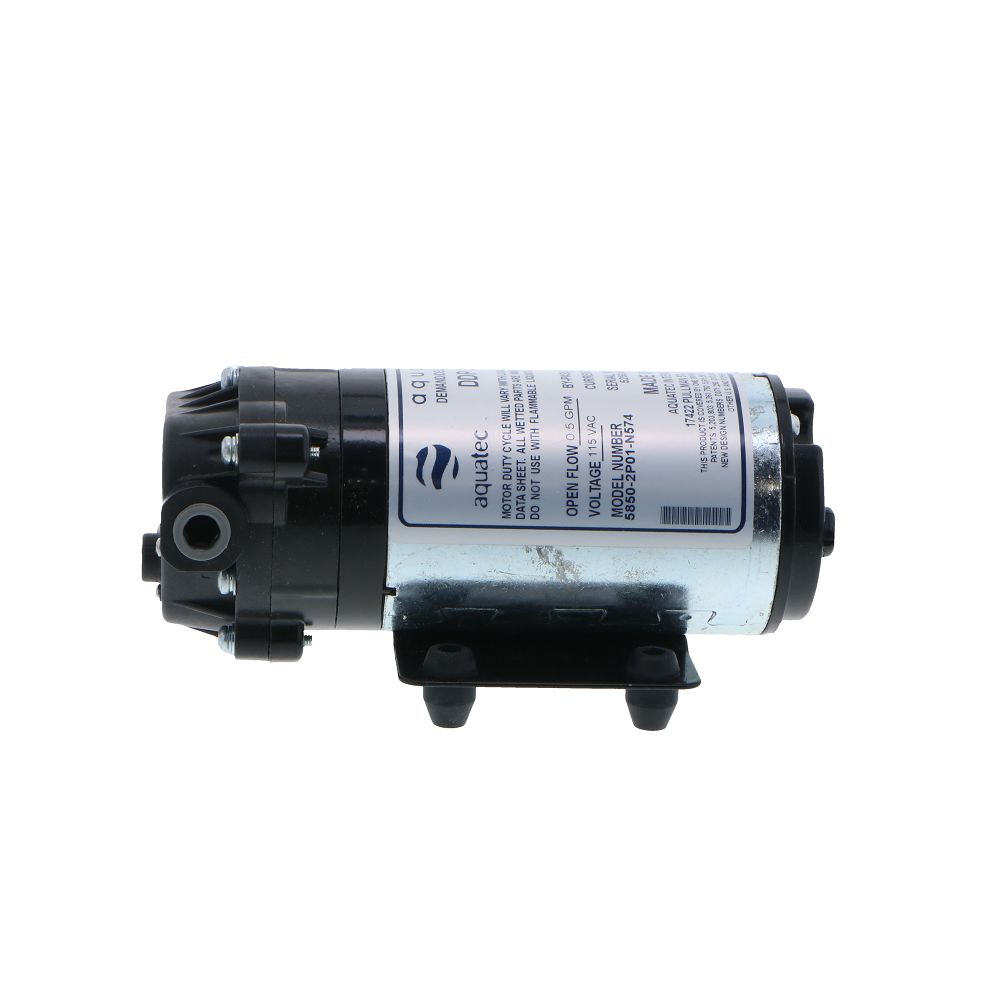

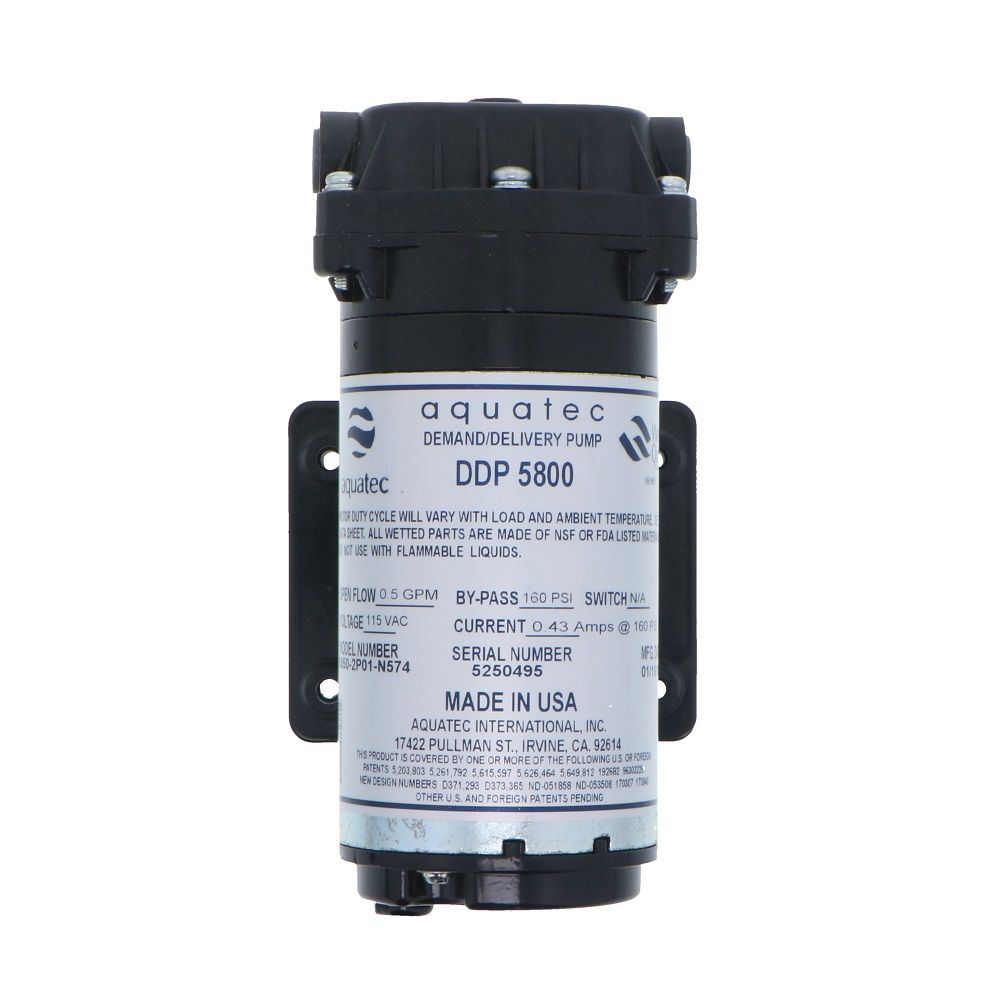

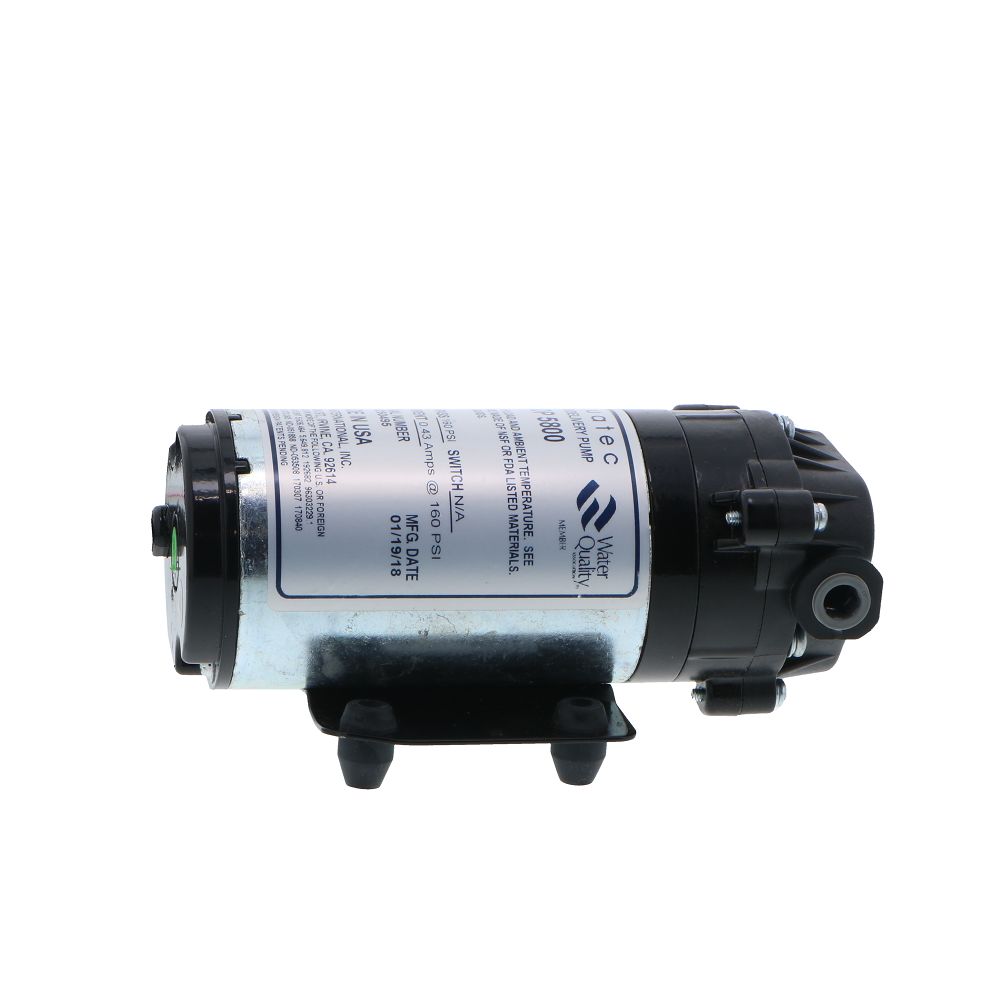

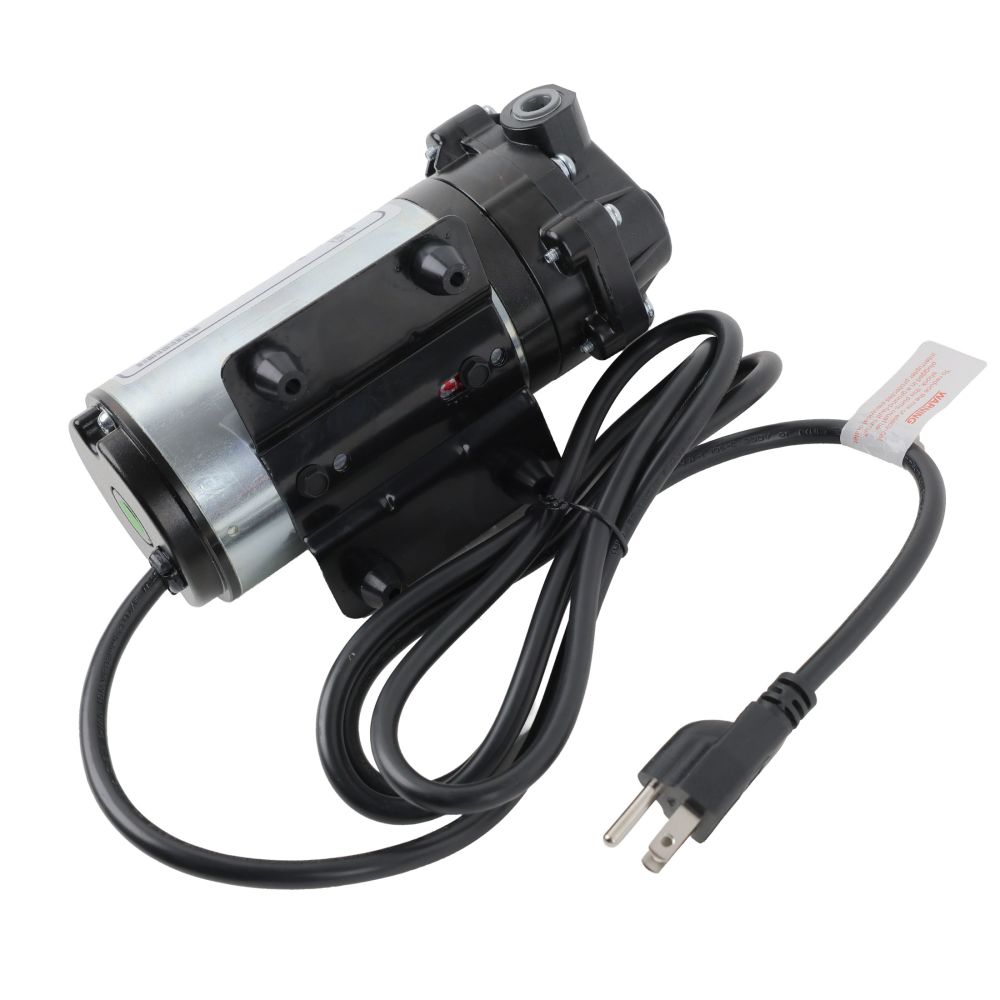

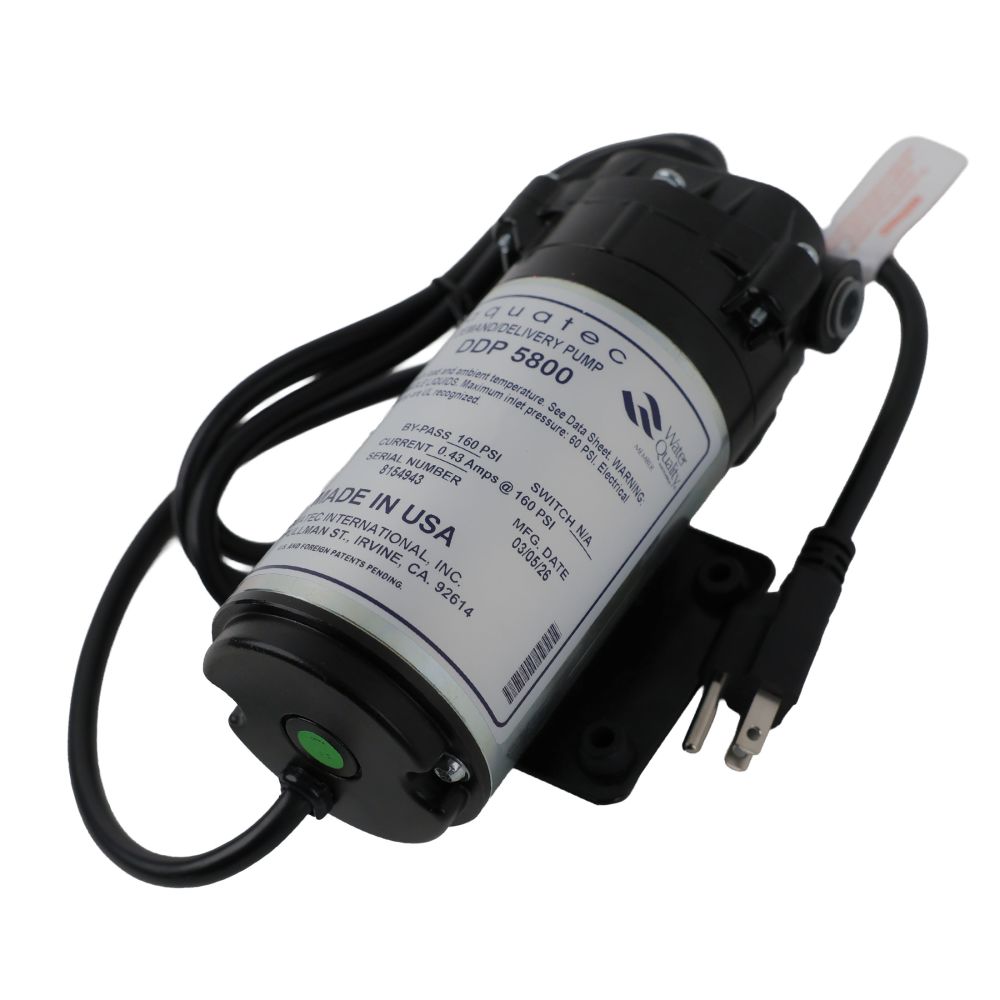

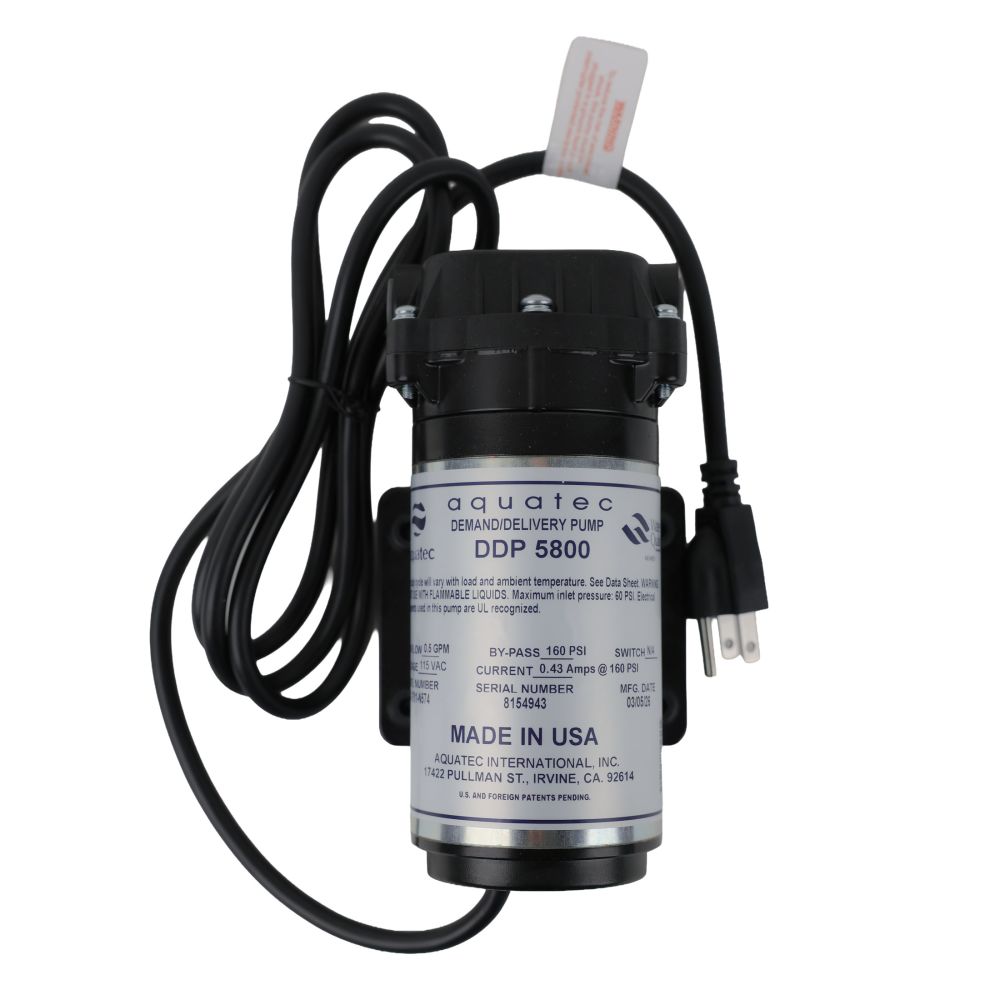

Aquatec 5850-2P01-N574 Pump .5 GPM, 3/8"JG, 115V

Part Number: 5850-2P01-N574

Alt. Part Number: 5850-2P01-J574

In Stock

out of stock

In Stock

$106.84

The Aquatec 5800 Series Pump is ideal for drawing water from a holding tank and pressurize it, or boosting pressure from a low pressure source. These pumps can be operated either in demand mode (pressure switch controlled) or in delivery mode (controlled by external power switching device). If needed, an integral bypass can be used to limit pressure.

Features:
  • 3-chamber construction
  • Closed impervious diaphragm
  • Asymmetrical manifold
  • Integral switch or bypass
  • Highest structural integrity
  • Seven point clamping
  • Engineered composite plastics
  • Corrosion resistant metal
Benefits:
  • Adjustable switch and bypass settings
  • Self-priming, auto-purging
  • Near silent operation at lower flows
  • Highly efficient
  • Minimal pulsations
  • 7 year design life
  • Runs dry without damage




Weight & Dimensions

Approx Height (Inches)

3.6"

Approx Length (Inches)

8.46"

Approx Width (Inches)

4"

Weight (lbs)

5.9

Details

Amps

0.43 Amps @ 160 PSI

Diaphragm Materials

Santoprene

Housing Material

Polypropylene

Liquid Temperature

Max 140 °F

Motor Rpm

1200 RPM

Power Source

Cord/Pressure Switch Wires

Psi Bypass

160 PSI

Push-In Size

3/8" OD

Series

5800

Wire Option

Wall Plug

Flow Rate

0.5 GPM

Origin

Made in USA

Type

Diaphragm Pump

Voltage

115VAC

Warranty & Certifications

Certifications

NSF 58

Warranty

1 Year


Aquatec

Aquatec




The Aquatec 5800 Series Pump is ideal for drawing water from a holding tank and pressurize it, or boosting pressure from a low pressure source. These pumps can be operated either in demand mode (pressure switch controlled) or in delivery mode (controlled by external power switching device). If needed, an integral bypass can be used to limit pressure.

Features:
  • 3-chamber construction
  • Closed impervious diaphragm
  • Asymmetrical manifold
  • Integral switch or bypass
  • Highest structural integrity
  • Seven point clamping
  • Engineered composite plastics
  • Corrosion resistant metal
Benefits:
  • Adjustable switch and bypass settings
  • Self-priming, auto-purging
  • Near silent operation at lower flows
  • Highly efficient
  • Minimal pulsations
  • 7 year design life
  • Runs dry without damage



Weight & Dimensions

Approx Height (Inches)

3.6"

Approx Length (Inches)

8.46"

Approx Width (Inches)

4"

Weight (lbs)

5.9

Details

Amps

0.43 Amps @ 160 PSI

Diaphragm Materials

Santoprene

Housing Material

Polypropylene

Liquid Temperature

Max 140 °F

Motor Rpm

1200 RPM

Power Source

Cord/Pressure Switch Wires

Psi Bypass

160 PSI

Push-In Size

3/8" OD

Series

5800

Wire Option

Wall Plug

Flow Rate

0.5 GPM

Origin

Made in USA

Type

Diaphragm Pump

Voltage

115VAC

Warranty & Certifications

Certifications

NSF 58

Warranty

1 Year

Documentation
Aquatec
Aquatec
