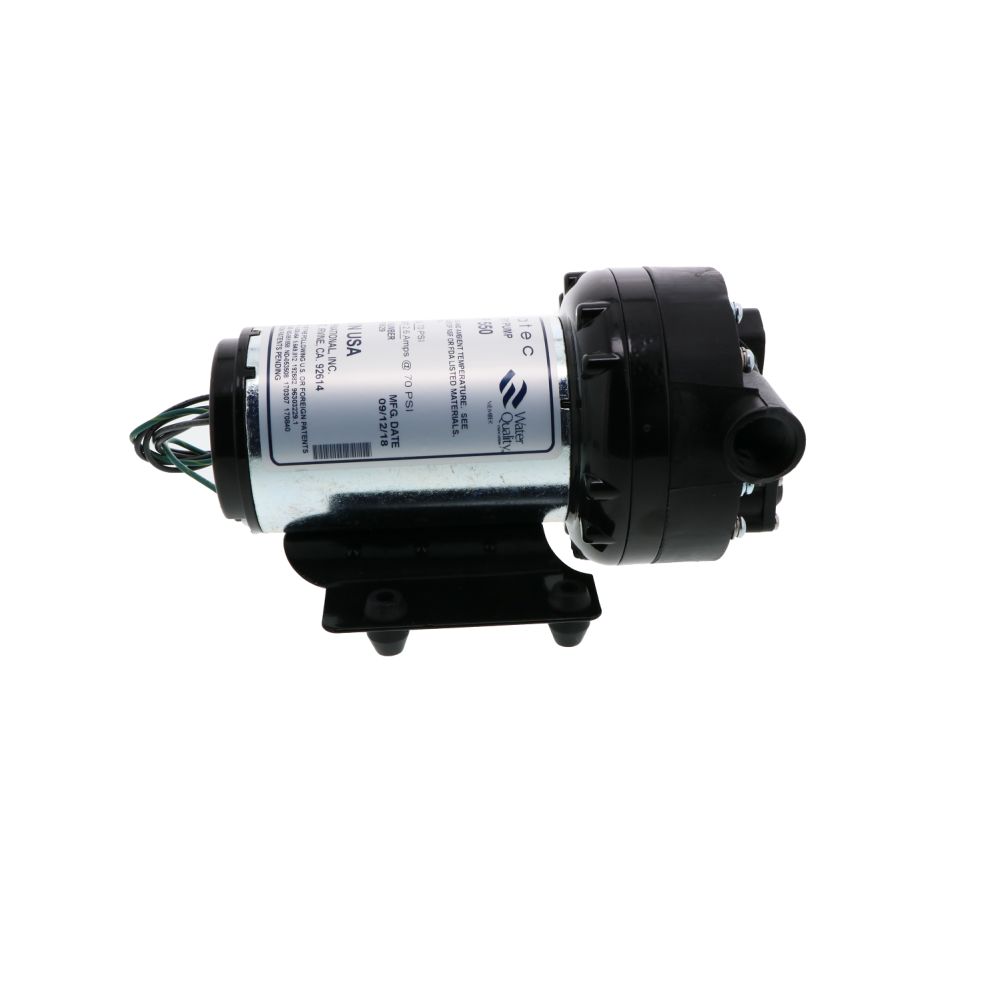

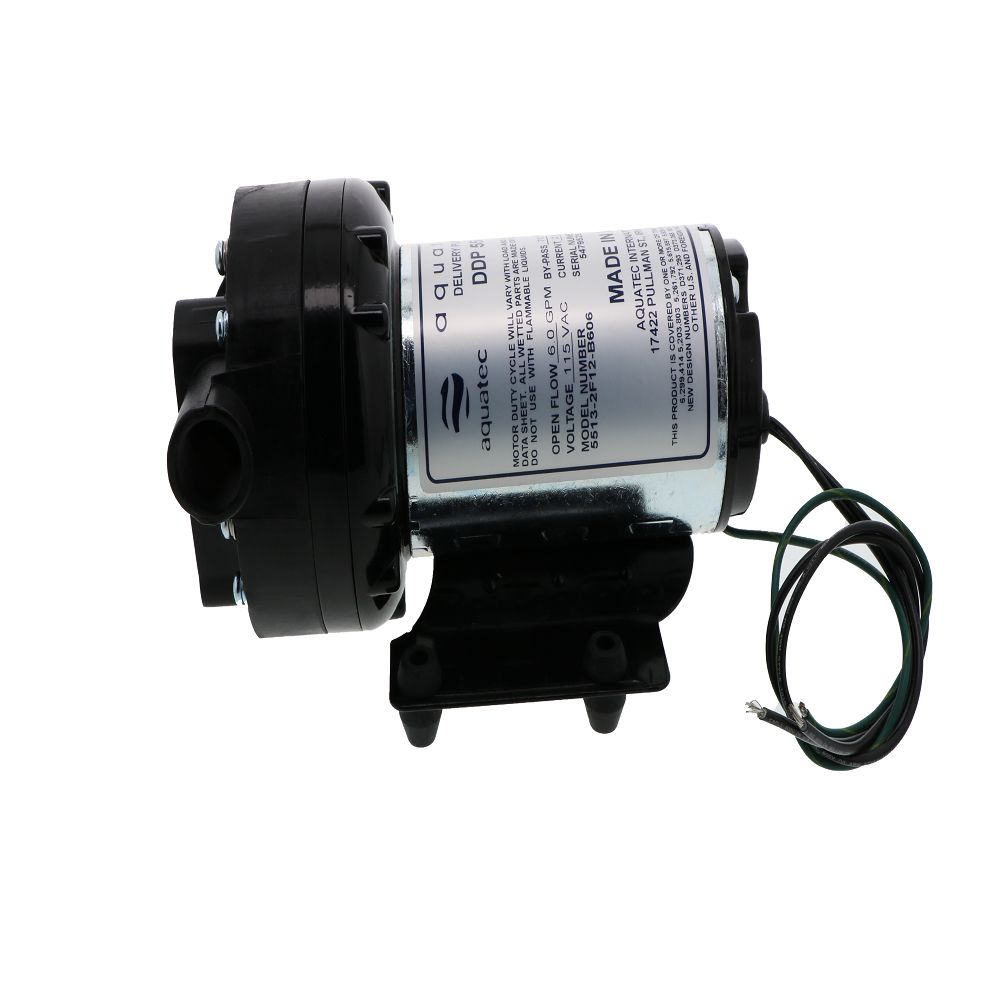

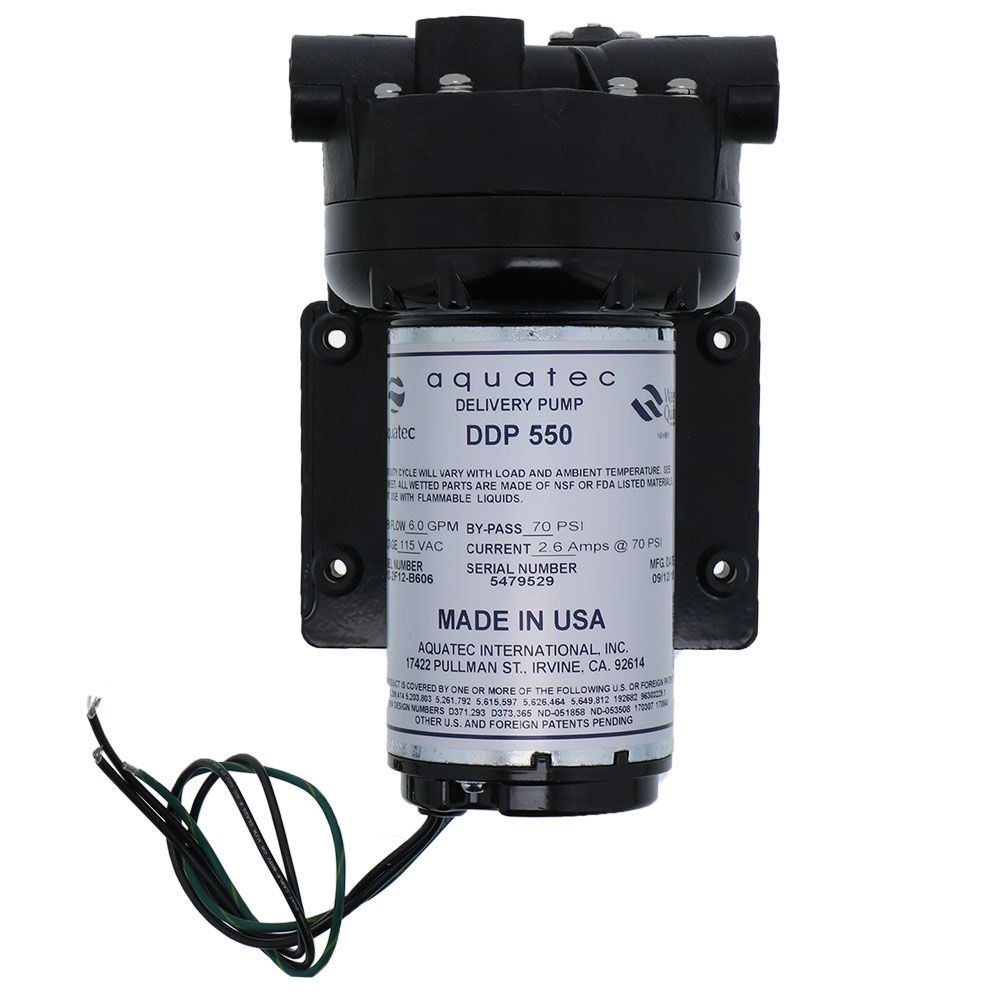

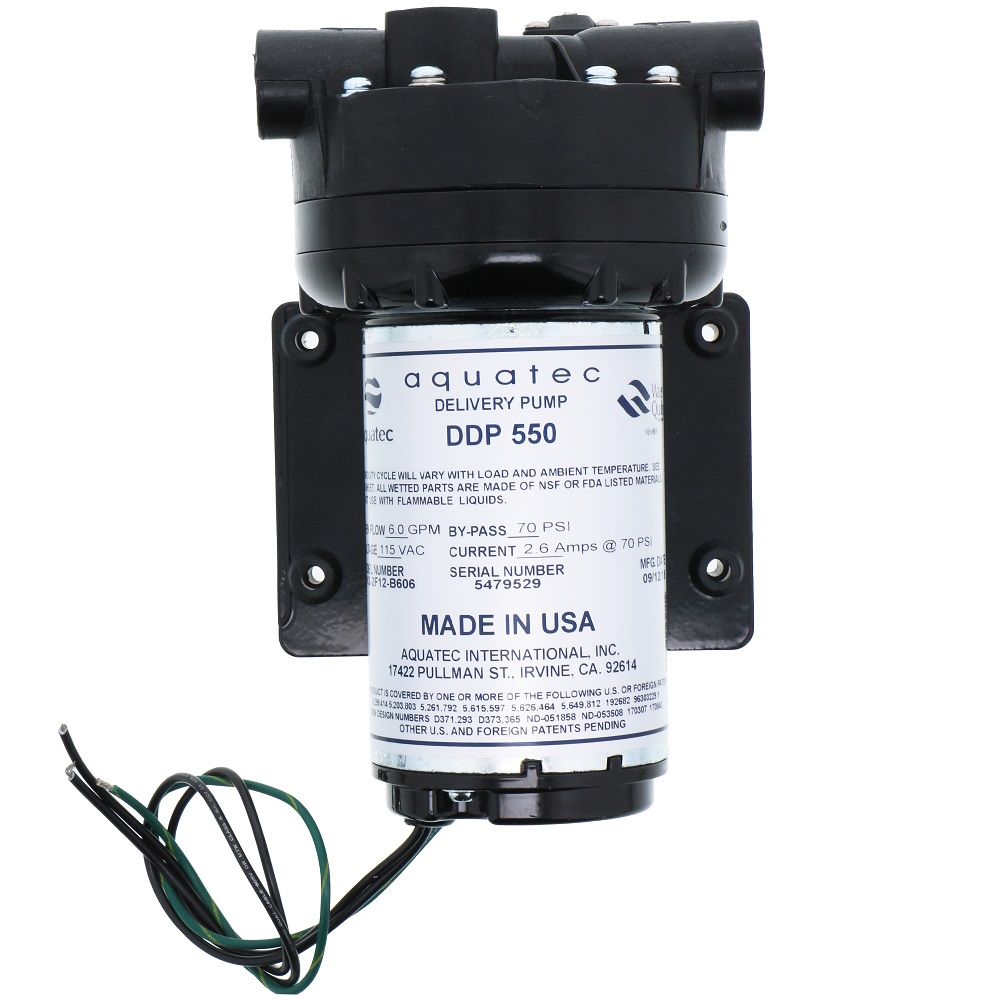

Aquatec 5513-2F12-B606 Pump 6.0 gpm, 1/2 FPT, 115V AC NO Cord

Part Number: 5513-2F12-B606

In Stock

out of stock

In Stock

$142.49

The Aquatec 550 Series Pumps are used to either draw water from a holding tank and pressurize it, or boost pressure from a low pressure source. Although designed to operate intermittently, many 550 versions can run continuously for several hours at a time. These pumps can be operated either in demand mode (pressure switch controlled) or in delivery mode (controlled by external power switching device). If needed, an integral bypass can be used to limit pressure. Typical applications of this pump includes beverage and drinking water delivery.

Features:
  • 5-chamber construction
  • Closed impervious diaphragm
  • Independent symmetrical valves
  • Highest structural integrity
  • Ten point clamping
  • Engineered composite plastics
  • Corrosion resistant metal
  • Pressure switch and transducer options
550 Series Demand Pump Benefits:
  • Self-priming
  • Unparalleled performance, efficiency
  • Whisper quiet at lower flows
  • Minimal pulsations
  • 7 year design life
  • Runs dry without damage
  • Chemically resistant versions
Aquatec 5513-2F12-B736 Specifications:
  • Motor Type: 115 VAC
  • Shutoff Pressure: 70 psi BY-Pass
  • Port: 1/2" FPT
  • Priming Capabilities: 11 ft
  • Liquid Temperature: 140°F
  • Certification: NSF Standard 58






Weight & Dimensions

Height (inches)

4.5

Length (inches)

8

Weight (lbs)

5.875

Width (inches)

5

Details

Diaphragm Materials

Santoprene

Housing Material

Polypropylene

Inlet/Outlet Connection

1/2" FPT

Liquid Temperature

140 °F

Power

1/2 hp

Series

5500

Size

1/2"

Suction Lift

Self priming up to 11 ft

Wire Option

Bare Wire

Connection Type

Female (FPT)

Flow Rate

6 GPM

Type

Diaphragm Pump

Voltage

115VAC

Warranty & Certifications

Certifications

NSF 58


Aquatec




The Aquatec 550 Series Pumps are used to either draw water from a holding tank and pressurize it, or boost pressure from a low pressure source. Although designed to operate intermittently, many 550 versions can run continuously for several hours at a time. These pumps can be operated either in demand mode (pressure switch controlled) or in delivery mode (controlled by external power switching device). If needed, an integral bypass can be used to limit pressure. Typical applications of this pump includes beverage and drinking water delivery.

Features:
  • 5-chamber construction
  • Closed impervious diaphragm
  • Independent symmetrical valves
  • Highest structural integrity
  • Ten point clamping
  • Engineered composite plastics
  • Corrosion resistant metal
  • Pressure switch and transducer options
550 Series Demand Pump Benefits:
  • Self-priming
  • Unparalleled performance, efficiency
  • Whisper quiet at lower flows
  • Minimal pulsations
  • 7 year design life
  • Runs dry without damage
  • Chemically resistant versions
Aquatec 5513-2F12-B736 Specifications:
  • Motor Type: 115 VAC
  • Shutoff Pressure: 70 psi BY-Pass
  • Port: 1/2" FPT
  • Priming Capabilities: 11 ft
  • Liquid Temperature: 140°F
  • Certification: NSF Standard 58





Weight & Dimensions

Height (inches)

4.5

Length (inches)

8

Weight (lbs)

5.875

Width (inches)

5

Details

Diaphragm Materials

Santoprene

Housing Material

Polypropylene

Inlet/Outlet Connection

1/2" FPT

Liquid Temperature

140 °F

Power

1/2 hp

Series

5500

Size

1/2"

Suction Lift

Self priming up to 11 ft

Wire Option

Bare Wire

Connection Type

Female (FPT)

Flow Rate

6 GPM

Type

Diaphragm Pump

Voltage

115VAC

Warranty & Certifications

Certifications

NSF 58
