Aquatec

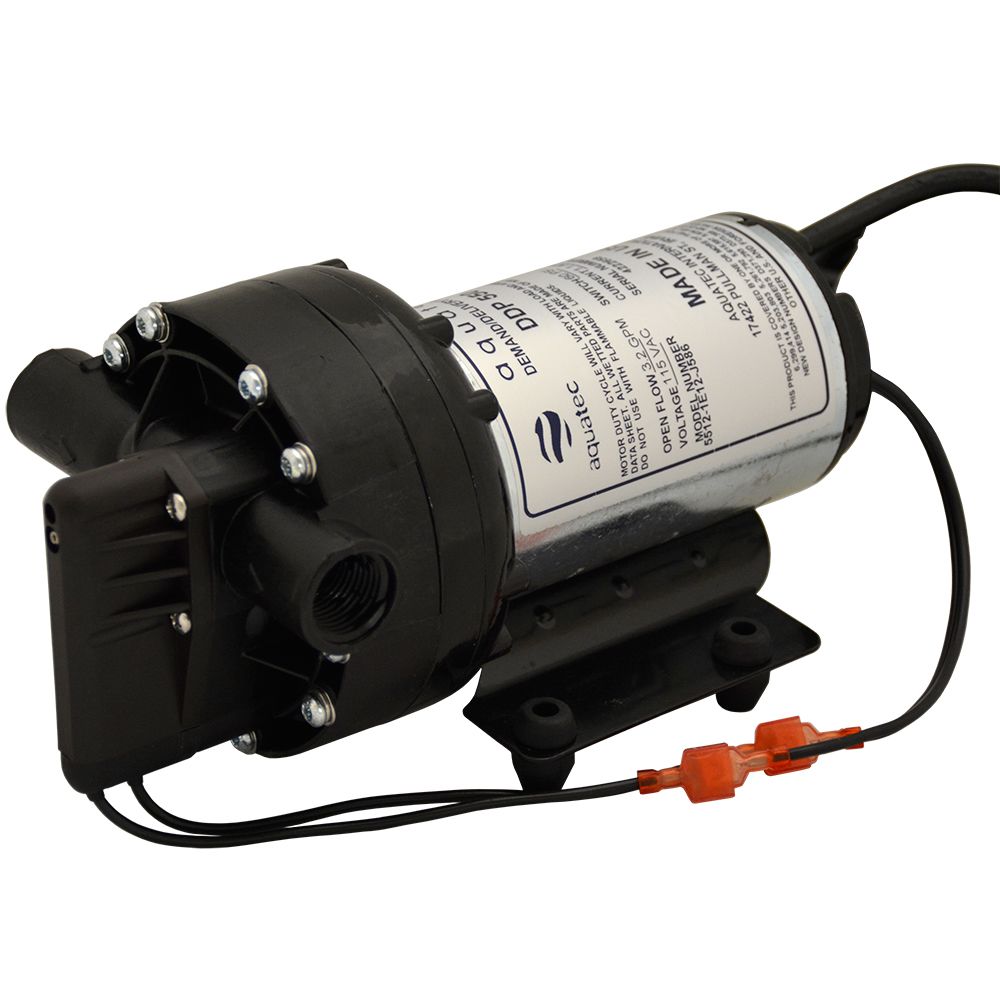

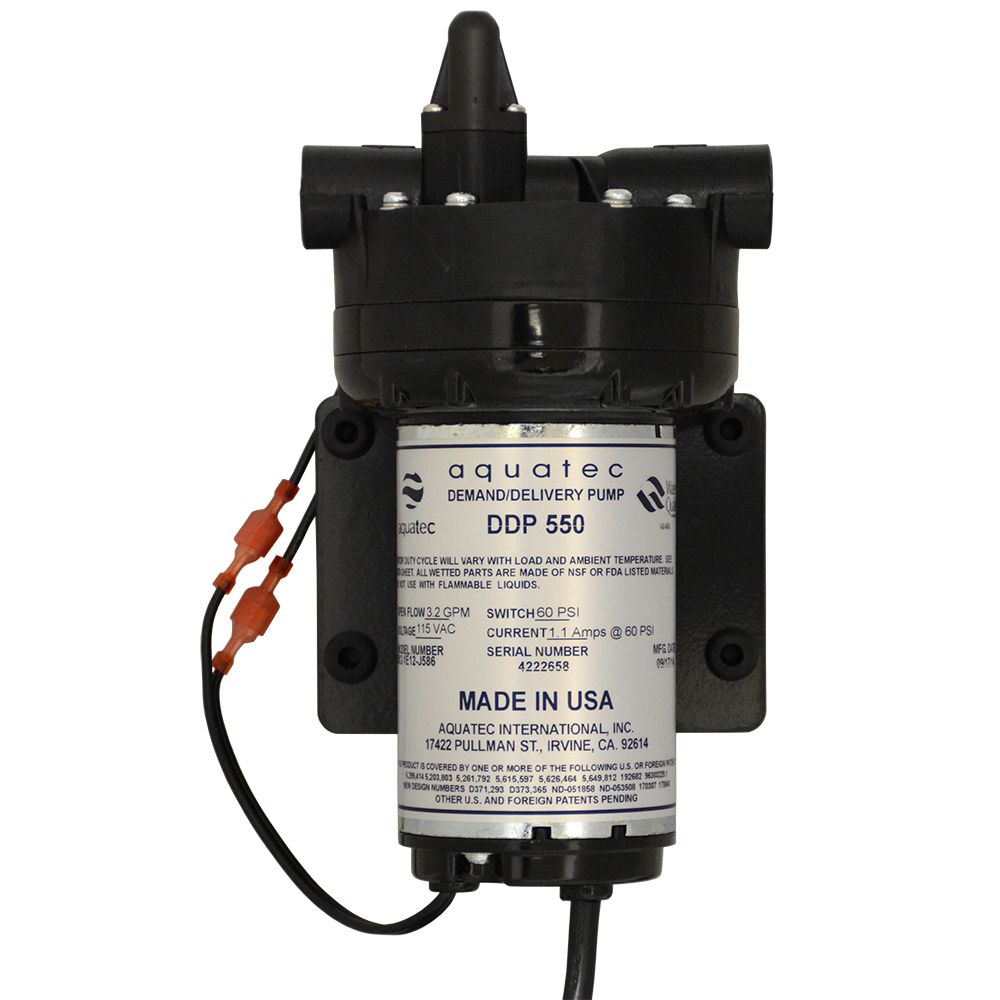

Aquatec 5512-1E12-J586 Pump 3.2 gpm, 1/2 FPT, 115VAC

Part Number: 5512-1E12-J586

In Stock

out of stock

In Stock

$137.48

The Aquatec 550 Series Pumps are used to either draw water from a holding tank and pressurize it, or boost pressure from a low pressure source. Although designed to operate intermittently, many 550 versions can run continuously for several hours at a time. These pumps can be operated either in demand mode (pressure switch controlled) or in delivery mode (controlled by external power switching device). If needed, an integral bypass can be used to limit pressure.

Features:
  • 5-chamber construction
  • Closed impervious diaphragm
  • Independent symmetrical valves
  • Highest structural integrity
  • Ten point clamping
  • Engineered composite plastics
  • Corrosion resistant metal
  • Pressure switch and transducer options
Benefits:
  • Self-priming
  • Unparalleled performance, efficiency
  • Whisper quiet at lower flows
  • Minimal pulsations
  • 7 year design life
  • Runs dry without damage
  • Chemically resistant versions


Weight & Dimensions

Approx Height (Inches)

4.58 Inches

Approx Length (Inches)

9.05 Inches

Approx Width (Inches)

4.84 Inches

Details

Diaphragm Materials

Santoprene

Flow Rate

3.2 Gallons Per Minute

Housing Material

Polypropylene

Inlet Size

1/2" FPT

Liquid Temperature

140 max Degrees Fahrenheit

Origin

Made in USA

Outlet Size

1/2" FPT

Pressure Switch

60 PSI

Type

Demand

Valve Type

EPDM

Voltage

110VAC

Motor Rpm

1600 Rotations Per Minute

Suction Lift

Self prime up to 10 ft

Warranty & Certifications

Certifications

NSF 58


Aquatec

Aquatec

Aquatec

Aquatec




The Aquatec 550 Series Pumps are used to either draw water from a holding tank and pressurize it, or boost pressure from a low pressure source. Although designed to operate intermittently, many 550 versions can run continuously for several hours at a time. These pumps can be operated either in demand mode (pressure switch controlled) or in delivery mode (controlled by external power switching device). If needed, an integral bypass can be used to limit pressure.

Features:
  • 5-chamber construction
  • Closed impervious diaphragm
  • Independent symmetrical valves
  • Highest structural integrity
  • Ten point clamping
  • Engineered composite plastics
  • Corrosion resistant metal
  • Pressure switch and transducer options
Benefits:
  • Self-priming
  • Unparalleled performance, efficiency
  • Whisper quiet at lower flows
  • Minimal pulsations
  • 7 year design life
  • Runs dry without damage
  • Chemically resistant versions

Weight & Dimensions

Approx Height (Inches)

4.58 Inches

Approx Length (Inches)

9.05 Inches

Approx Width (Inches)

4.84 Inches

Details

Diaphragm Materials

Santoprene

Flow Rate

3.2 Gallons Per Minute

Housing Material

Polypropylene

Inlet Size

1/2" FPT

Liquid Temperature

140 max Degrees Fahrenheit

Origin

Made in USA

Outlet Size

1/2" FPT

Pressure Switch

60 PSI

Type

Demand

Valve Type

EPDM

Voltage

110VAC

Motor Rpm

1600 Rotations Per Minute

Suction Lift

Self prime up to 10 ft

Warranty & Certifications

Certifications

NSF 58
