CONSUMER NOTE: The 3/4" Quad Port fittings are not included with this purchase, yet are required for proper function of this pump. The required fittings to operate this pump are listed under the Parts and Accessories Tab of this page.

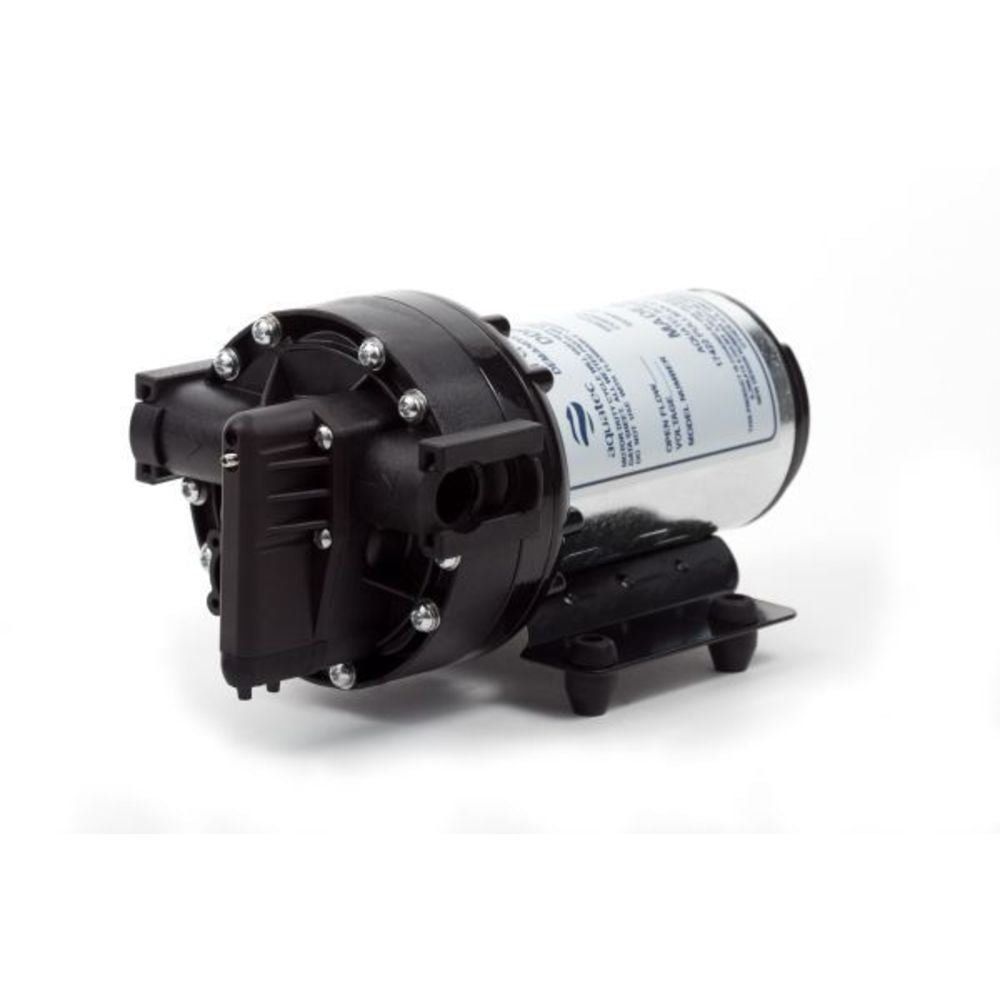

The Aquatec 5503-1E01-B736 Pump provides constant pressure and integrates a state-of-the-art digital controller which maintains a constant pressure (within 2 PSI) for variable flow rates throughout their operating ranges. A pressure transducer monitors any pressure changes and adjusts the operating speed accordingly. Great for applications with long lengths of hose or that require variable flow rates such as multiple fixtures drawing fluid from a single source.
Specifications:
- 30 PSI Standard Setting
- 3/4" Quad Ports
- 5 Chamber Diaphragm
- 24V Bare Wire Connection
Aquatec 5503-1E01-B736 Smart Pump Benefits:
- Constant pressure across multiple outlets
- No accumulator tanks required
- Reduces system bacteria
- Reduces space requirements
- No pressure switches required
- Less system service required
- Plug-and-play performance
California residents
Prop 65 Warning
WARNING!
This product contains materials known to the State of California to cause
cancer and birth defects or other reproductive harm.
www.p65warnings.ca.gov
| Product Details |
|---|
Diaphragm Materials | Santoprene |
Housing Material | Nylon |
Inlet Connection | 3/4" Quad Ports |
Liquid Temperature | Max 140 °F |
Outlet Connection | 3/4" Quad Ports |
Power Source | Lead Wires & 180° Front Bell Rotation |
Pump Max Flow Rate (Gpm) | 4.1 |
Series | 5500 |
Size | 3/4" |
Voltage Type | DC |
Wire Option | Bare Wire |
Connection Type | Quad Port 3/4" |
Type | Diaphragm Pump |
Voltage | 24VDC |
| Warranty & Certifications |
|---|
Warranty | 12 Months from Date of Purchase from Date of Purchase |
| Shipping Dimensions |
|---|
Shipping Length | 14 in. |
Shipping Width | 6 in. |
Shipping Height | 6 in. |
| Product Weight & Dimensions |
|---|
Product Height | 3.93" |
Product Length | 7.28" |
Product Width | 5-1/4" |
Product Weight (lbs) | 8.1 |
| Product Details |
|---|
Diaphragm Materials | Santoprene |
Housing Material | Nylon |
Inlet Connection | 3/4" Quad Ports |
Liquid Temperature | Max 140 °F |
Outlet Connection | 3/4" Quad Ports |
Power Source | Lead Wires & 180° Front Bell Rotation |
Pump Max Flow Rate (Gpm) | 4.1 |
Series | 5500 |
Size | 3/4" |
Voltage Type | DC |
Wire Option | Bare Wire |
Connection Type | Quad Port 3/4" |
Type | Diaphragm Pump |
Voltage | 24VDC |
| Warranty & Certifications |
|---|
Warranty | 12 Months from Date of Purchase from Date of Purchase |
| Product Weight & Dimensions |
|---|
Product Weight (lbs) | 60 |
