Aquatec

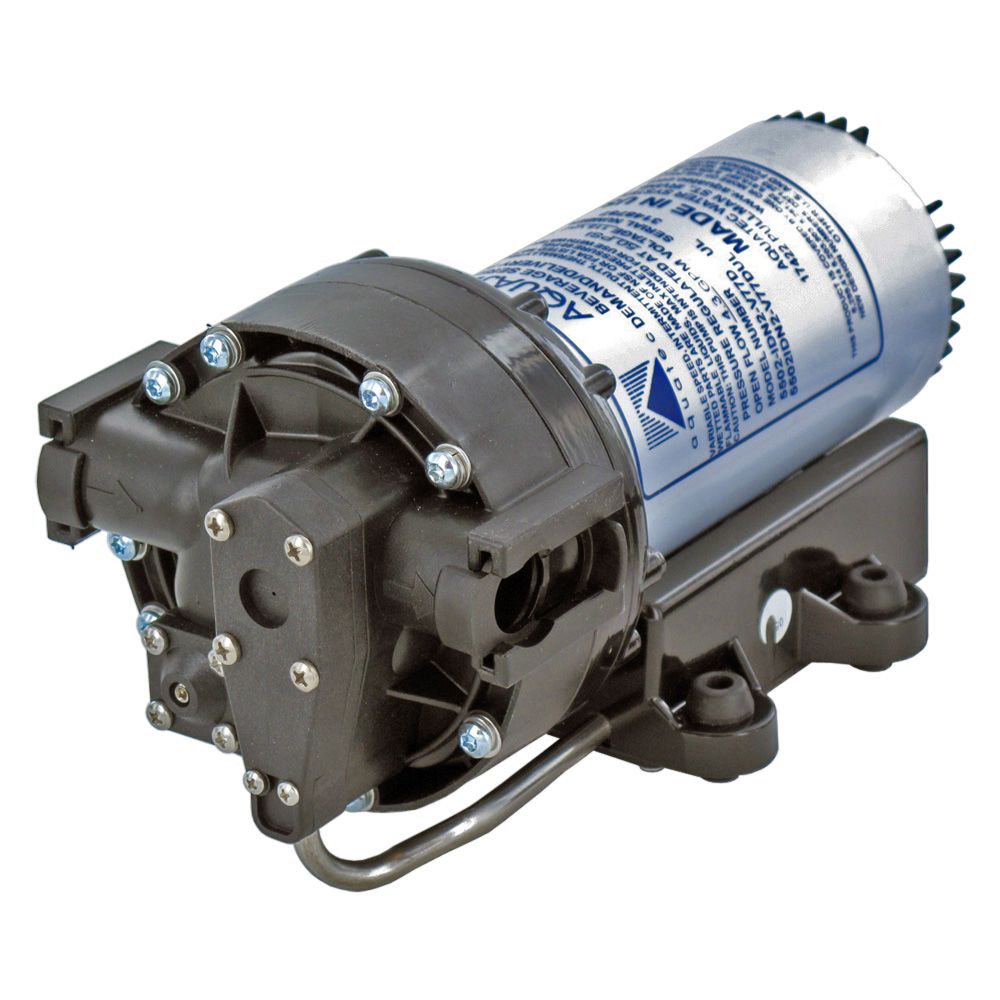

Aquatec 5502-1E12-B726 Pump 3.25 gpm, 24 VDC

Part Number: 5502-1E12-B726

In Stock

out of stock

In Stock

$153.30

The Aquatec 550 Series Pumps are used to either draw water from a holding tank and pressurize it, or boost pressure from a low pressure source. Although designed to operate intermittently, many 550 versions can run continuously for several hours at a time. These pumps can be operated either in demand mode (pressure switch controlled) or in delivery mode (controlled by external power switching device). If needed, an integral bypass can be used to limit pressure.

Features:
  • 5-chamber construction
  • Closed impervious diaphragm
  • Independent symmetrical valves
  • Highest structural integrity
  • Ten point clamping
  • Engineered composite plastics
  • Corrosion resistant metal
  • Pressure switch and transducer options

CONSUMER NOTE: The 3/4" Quad Port fittings are not included with this purchase, yet are required for proper function of this pump. Shop our collection of Quad Port fittings for your specific plumbing needs here.


Details

Flow Rate

3.25 Gallons Per Minute

Liquid Temperature

140 max Degrees Fahrenheit

Max Operating Pressure

45 PSI

Voltage

24VDC

Warranty & Certifications

Certifications

NSF 58


Aquatec




The Aquatec 550 Series Pumps are used to either draw water from a holding tank and pressurize it, or boost pressure from a low pressure source. Although designed to operate intermittently, many 550 versions can run continuously for several hours at a time. These pumps can be operated either in demand mode (pressure switch controlled) or in delivery mode (controlled by external power switching device). If needed, an integral bypass can be used to limit pressure.

Features:
  • 5-chamber construction
  • Closed impervious diaphragm
  • Independent symmetrical valves
  • Highest structural integrity
  • Ten point clamping
  • Engineered composite plastics
  • Corrosion resistant metal
  • Pressure switch and transducer options

CONSUMER NOTE: The 3/4" Quad Port fittings are not included with this purchase, yet are required for proper function of this pump. Shop our collection of Quad Port fittings for your specific plumbing needs here.

Details

Flow Rate

3.25 Gallons Per Minute

Liquid Temperature

140 max Degrees Fahrenheit

Max Operating Pressure

45 PSI

Voltage

24VDC

Warranty & Certifications

Certifications

NSF 58
