Aqua-Pure - 3M Purification

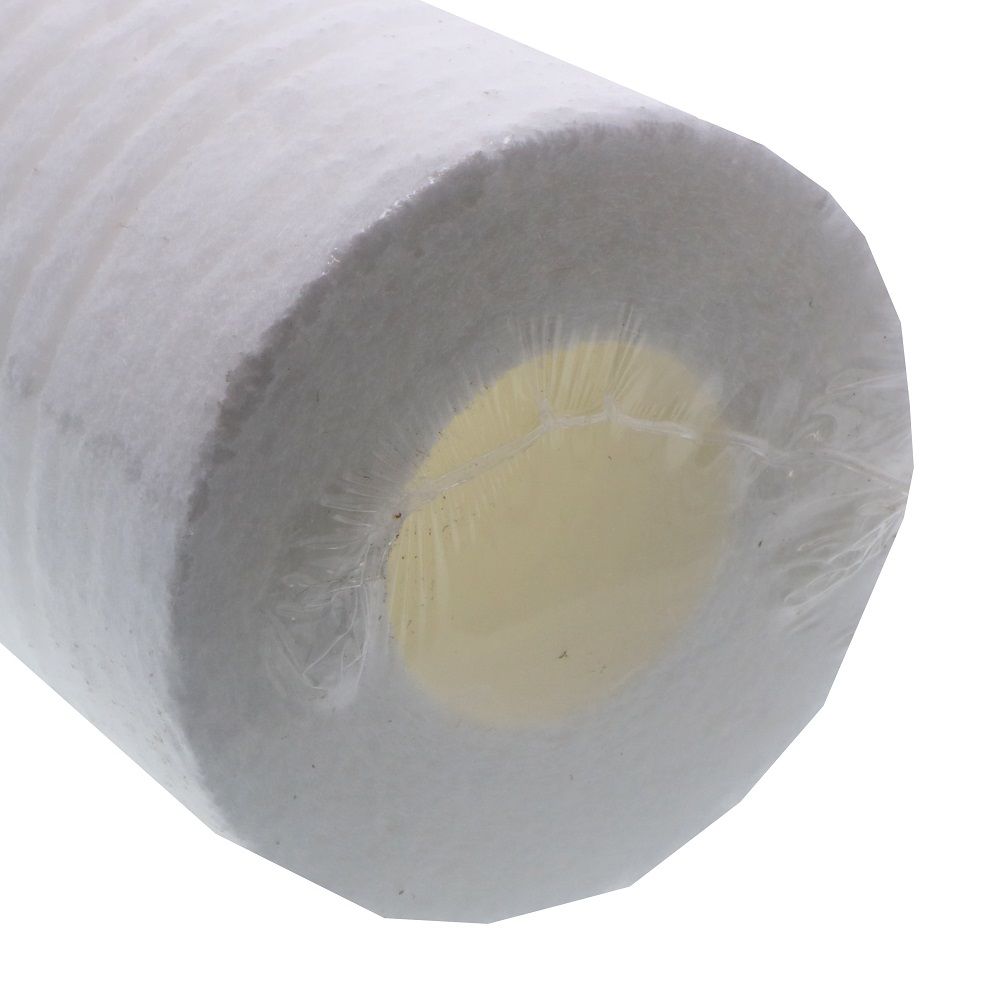

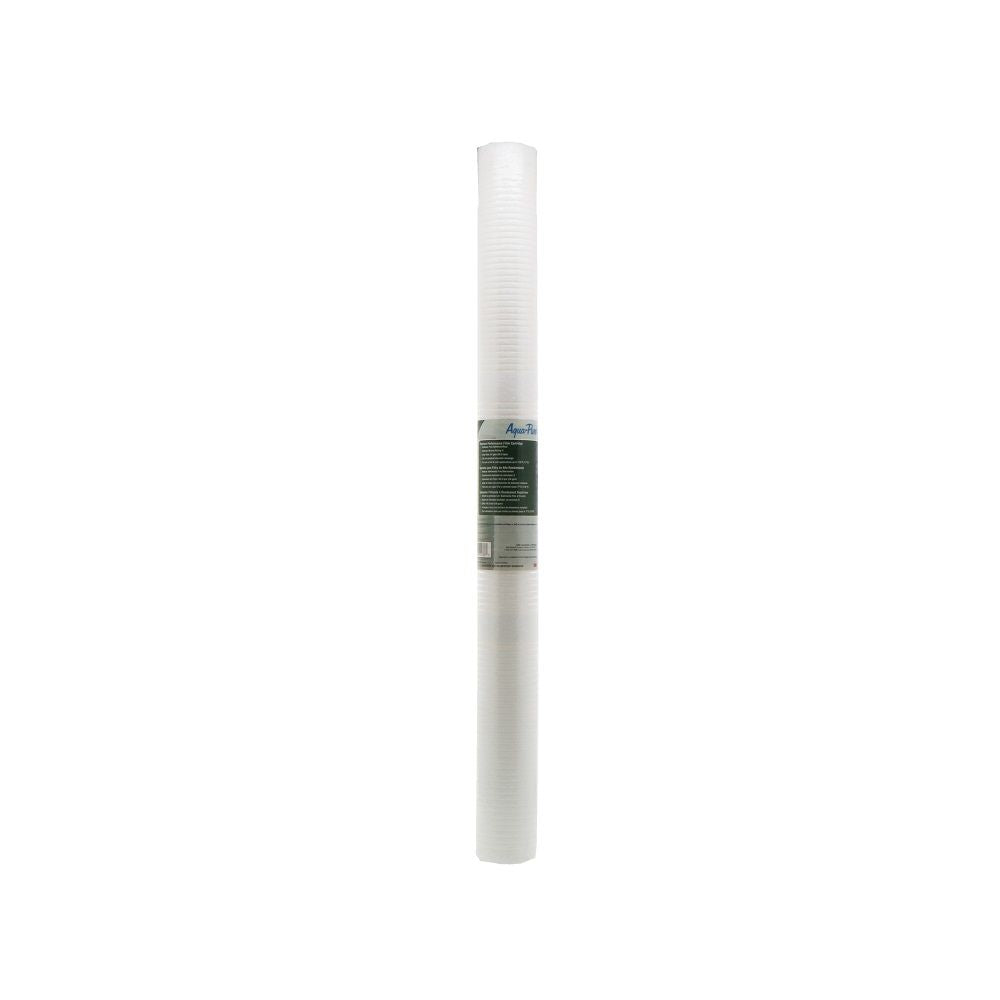

Aqua-Pure AP110-3 Filter 56204-09

Part Number: 56204-09

Alt. Part Number: AP110-3

In Stock

out of stock

In Stock

$23.99


The Aqua Pure AP110-3 provides three times the life of comparable cartridges. This high quality commercial duty cartridge is a progressive porosity polypropylene melt blown construction preventing unloading or passing. The graded density design and grooved surface increases dirt holding efficiency and capacity, providing up to three times the life of comparable cartridges. The AP110-3 reduces turbidity, algae, sediment, dirt, rust, and particulate contaminants down to 5 microns in size.

Features:
  • Grooved cartridge increases surface area for longer filter life
  • Extended cartridge life
  • Rigid construction help to eliminate sediment "unloading" due to variances in water pressure
  • Cartridge is manufactured from FDA CFR-21 compliant materials
  • Maximum operating temperature of 170° F (76.7°C)
Specifications:
  • 100% Polypropylene FDA (CFR 21) Compliant Materials
  • Temperature: 170°F maximum
  • Micron Rating: 5 µm nominal
  • Dimensions: 2-1/2" OD x 1-1/16" ID x 29-1/4
  • Flow Rate: 24 gpm
3M Aqua-Pure AP110-3 Filter, Alternate Part Numbers:
  • AP1103
  • AP110-3
  • 5620409
  • 56204-09
  • 3M Part Number: 70020162791
  • Alternate UPC # 016145157387


Weight & Dimensions

Approx Length (Inches)

29 1/4" (74.3 cm)

Details

Capacity

As Needed

Cartridge Style

Drop-In

End Cap Type

DOE

Filter Application

Sediment/Dirt/Rust

Flow Rate

24 Gallons Per Minute

Media Type

Polypropylene

Micron Rating (Nominal)

5 Micron

Operating Temperature Range

Max 170 Degrees Fahrenheit

Outer Diameter

2.5"


Aqua-Pure





The Aqua Pure AP110-3 provides three times the life of comparable cartridges. This high quality commercial duty cartridge is a progressive porosity polypropylene melt blown construction preventing unloading or passing. The graded density design and grooved surface increases dirt holding efficiency and capacity, providing up to three times the life of comparable cartridges. The AP110-3 reduces turbidity, algae, sediment, dirt, rust, and particulate contaminants down to 5 microns in size.

Features:
  • Grooved cartridge increases surface area for longer filter life
  • Extended cartridge life
  • Rigid construction help to eliminate sediment "unloading" due to variances in water pressure
  • Cartridge is manufactured from FDA CFR-21 compliant materials
  • Maximum operating temperature of 170° F (76.7°C)
Specifications:
  • 100% Polypropylene FDA (CFR 21) Compliant Materials
  • Temperature: 170°F maximum
  • Micron Rating: 5 µm nominal
  • Dimensions: 2-1/2" OD x 1-1/16" ID x 29-1/4
  • Flow Rate: 24 gpm
3M Aqua-Pure AP110-3 Filter, Alternate Part Numbers:
  • AP1103
  • AP110-3
  • 5620409
  • 56204-09
  • 3M Part Number: 70020162791
  • Alternate UPC # 016145157387

Weight & Dimensions

Approx Length (Inches)

29 1/4" (74.3 cm)

Details

Capacity

As Needed

Cartridge Style

Drop-In

End Cap Type

DOE

Filter Application

Sediment/Dirt/Rust

Flow Rate

24 Gallons Per Minute

Media Type

Polypropylene

Micron Rating (Nominal)

5 Micron

Operating Temperature Range

Max 170 Degrees Fahrenheit

Outer Diameter

2.5"
