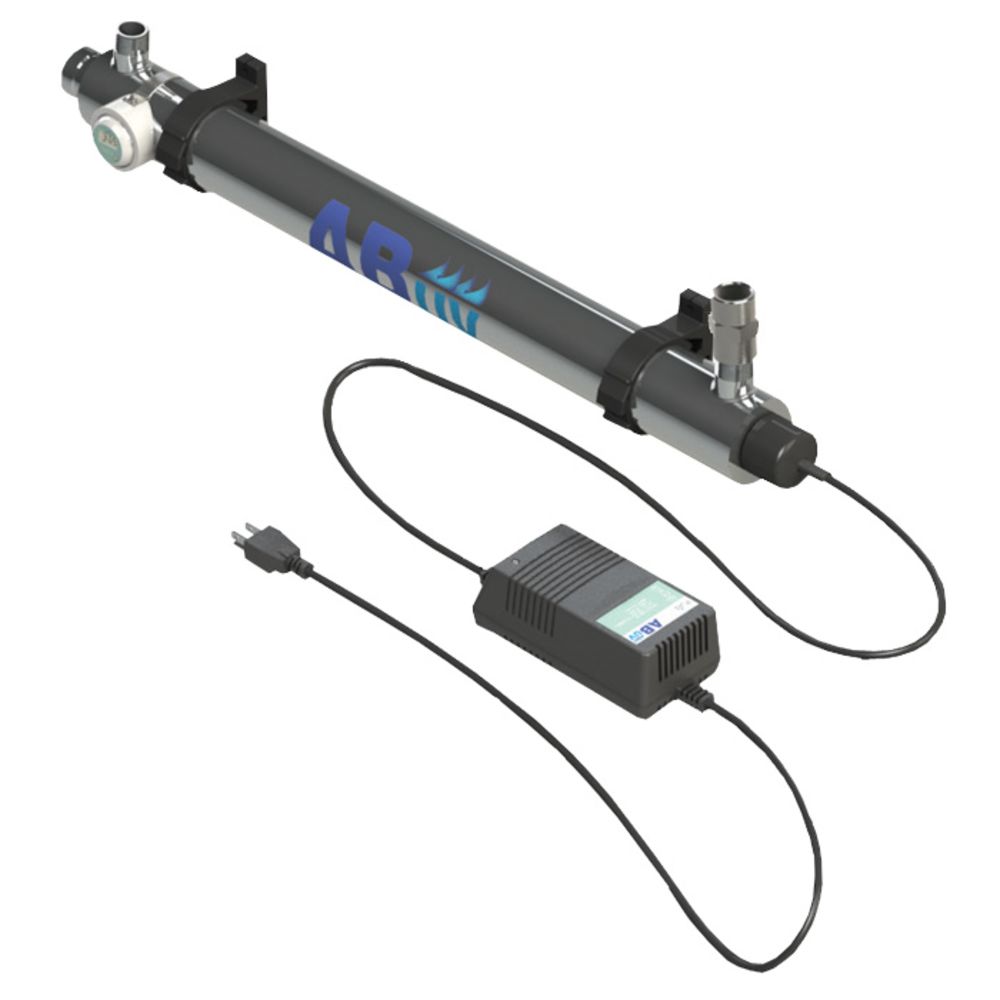

Aqua Flo ABUV-12 UV Disinfection System NSF Class B
Part Number: ABUV-12
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Specifications:
- Stainless steel reactor
- Lamp failure visual and audible alarm
- Lamp change reminder
- Countdown lamp timer
- Axial flow design
- 115V/60Hz North American 3-prong grounded plug
- Flow restrictors included
- Clean the quartz sleeve every 6-12 months, replace every 24 months
- Replace UV lamp every 12 months
- Tested and certified by NSF International against NSF/ANSI Standard 55 for Disinfection Performance, Class B
This standard establishes requirements for point-of-use (POU) and point-of-entry (POE) non-public water supply (non-PWS) ultraviolet systems and includes two optional classifications.Class A systems (40,000 uwsec/cm²) are designed to disinfect and/or remove microorganisms from contaminated water, including bacteria and viruses, to a safe level.Class B systems (16,000 uw-sec/cm²) are designed for supplemental bactericidal treatment of public drinking water or other drinking water, which has been deemed acceptable by a local health agency.
Product Details | |
---|---|
Ambient Temperature Range | 36-104 °F |
Features | Audible Lamp Failure |
Frequency Rate | 60 Hz |
Inlet Connection | 1" MPT |
Max Pressure (Psi) | 100 |
Min Pressure (Psi) | 10 |
Outlet Connection | 1" MPT |
Power | 40 Watts |
Size | 1" |
System Class | Residential Systems |
Connection Type | Male (MPT) |
Contaminants Reduced | Bacteria Chlorine/Taste/Odor |
Flow Rate | 26 (12 NSF) GPM (16mJ/cm2 Dose) 13.9 GPM (30mJ/cm2 Dose) 10.4 GPM (40mJ/cm2 Dose) |
Type | Single UV System |
Voltage | 115 V |
Warranty & Certifications | |
Certifications | NSF/ANSI Standard 55, Class B |
Product Weight & Dimensions | |
Product Weight (lbs) | 6 |
Specifications:
- Stainless steel reactor
- Lamp failure visual and audible alarm
- Lamp change reminder
- Countdown lamp timer
- Axial flow design
- 115V/60Hz North American 3-prong grounded plug
- Flow restrictors included
- Clean the quartz sleeve every 6-12 months, replace every 24 months
- Replace UV lamp every 12 months
- Tested and certified by NSF International against NSF/ANSI Standard 55 for Disinfection Performance, Class B
This standard establishes requirements for point-of-use (POU) and point-of-entry (POE) non-public water supply (non-PWS) ultraviolet systems and includes two optional classifications.Class A systems (40,000 uwsec/cm²) are designed to disinfect and/or remove microorganisms from contaminated water, including bacteria and viruses, to a safe level.Class B systems (16,000 uw-sec/cm²) are designed for supplemental bactericidal treatment of public drinking water or other drinking water, which has been deemed acceptable by a local health agency.
Product Details | |
---|---|
Ambient Temperature Range | 36-104 °F |
Features | Audible Lamp Failure |
Frequency Rate | 60 Hz |
Inlet Connection | 1" MPT |
Max Pressure (Psi) | 100 |
Min Pressure (Psi) | 10 |
Outlet Connection | 1" MPT |
Power | 40 Watts |
Size | 1" |
System Class | Residential Systems |
Connection Type | Male (MPT) |
Contaminants Reduced | Bacteria Chlorine/Taste/Odor |
Flow Rate | 26 (12 NSF) GPM (16mJ/cm2 Dose) 13.9 GPM (30mJ/cm2 Dose) 10.4 GPM (40mJ/cm2 Dose) |
Type | Single UV System |
Voltage | 115 V |
Warranty & Certifications | |
Certifications | NSF/ANSI Standard 55, Class B |
Product Weight & Dimensions | |
Product Weight (lbs) | 6 |
