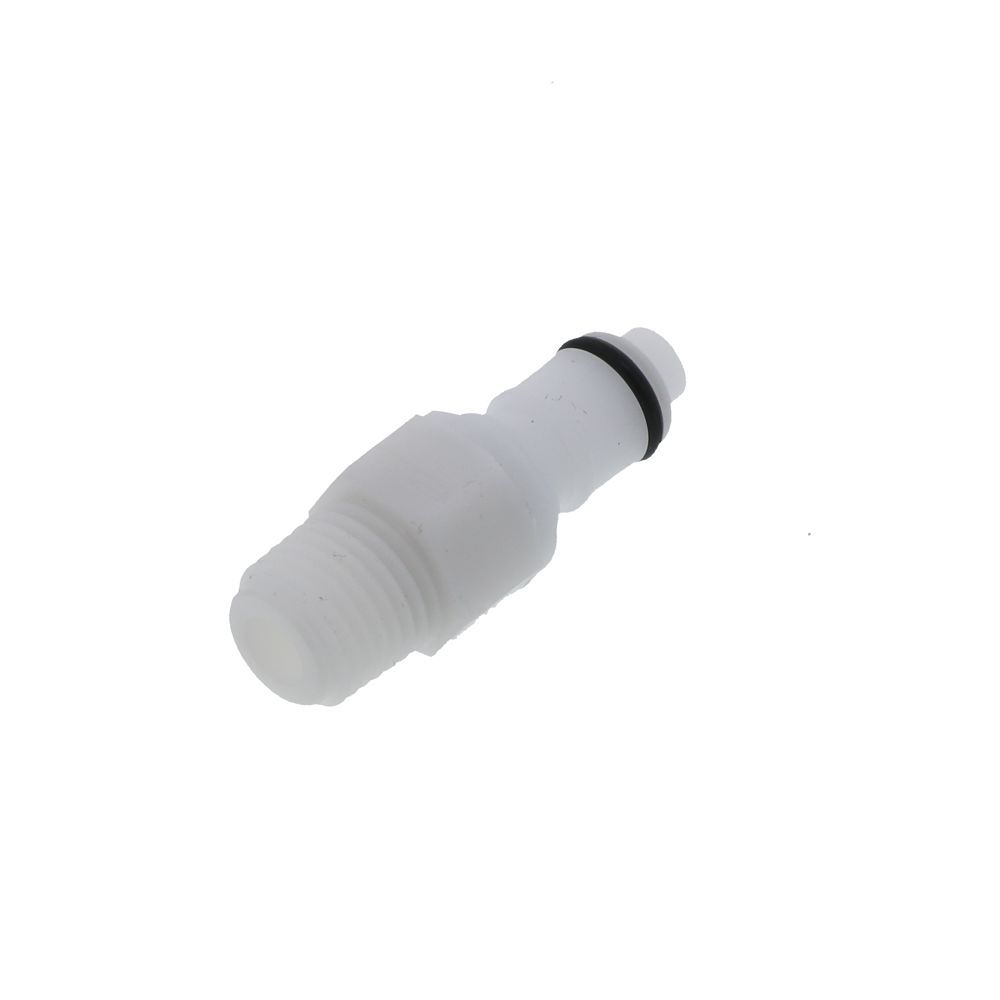

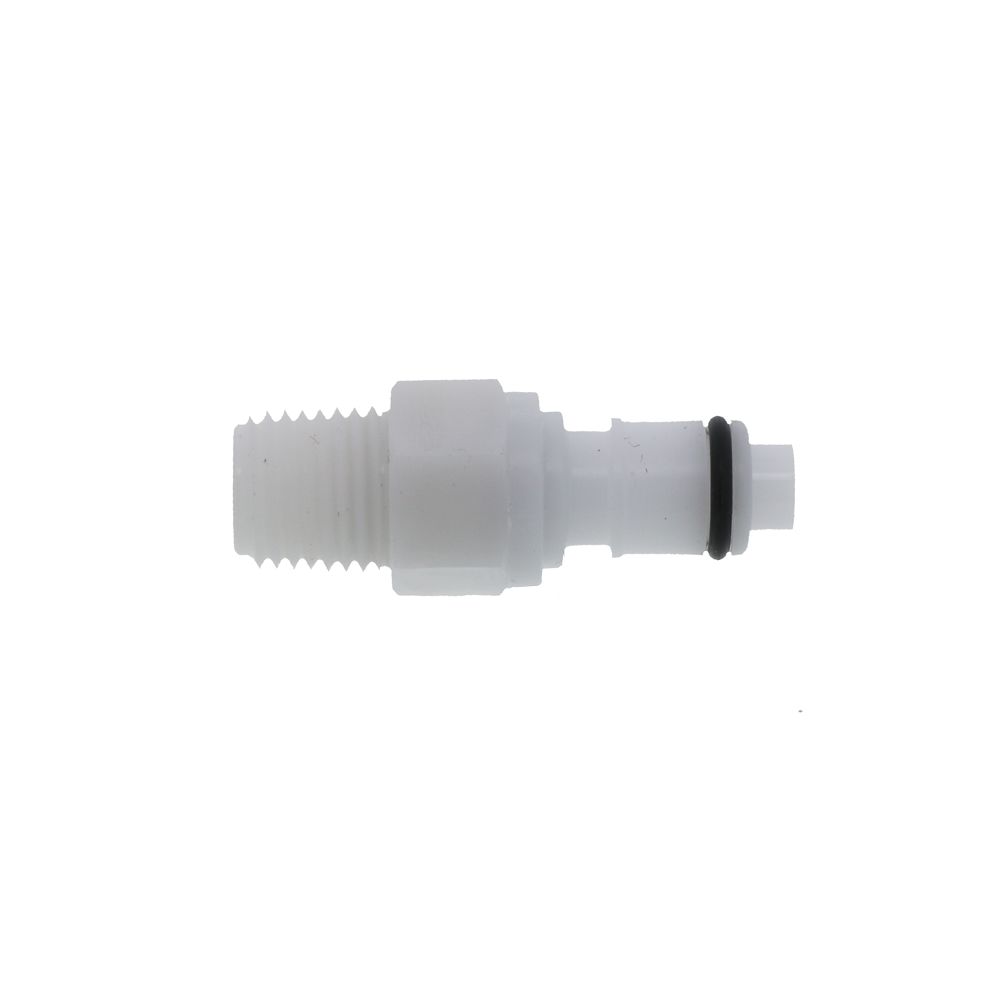

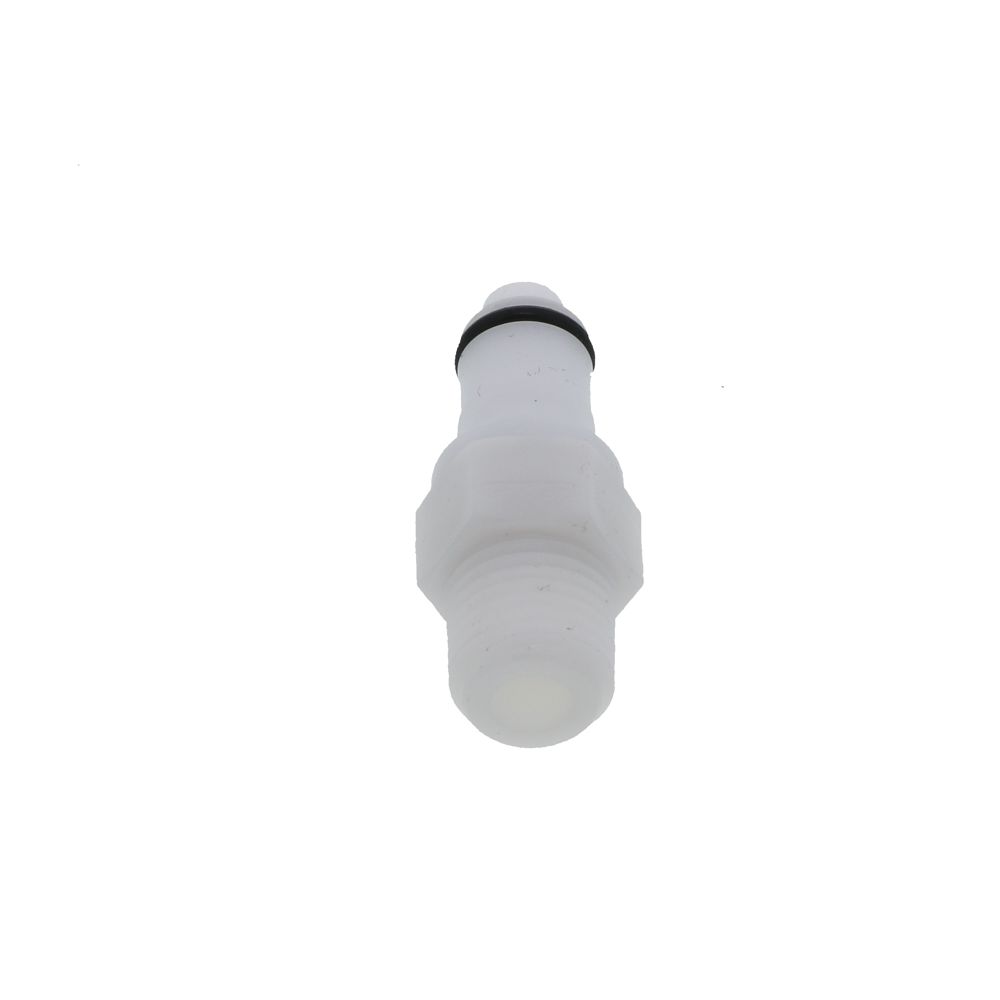

APCD24004 Valved Male Thread Coupling Insert 1/4 NPT

Part Number: APCD24004

In Stock

out of stock

In Stock

$5.06


1/4" flow APC Series couplings feature a plastic thumb latch, fewer moving parts and a smooth contoured design to deliver ease-of-use and excellent flow in a compact size. The patented APC Series has been expanded to include couplings with valves and thumb latch shrouds. A more rugged design on some models adds durability to increase the APC’s application range.

 Specifications:
  • Material: Acetal
  • Color: White
  • Mounting Option: Thread
  • Valve Option: Valved
  • Valve Spring: 316 Stainless Steel
  • Seal Option: Buna-N
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Temperature Range: -40ºF to 180ºF
  • NSF Listed Version (part # 42400) Available Upon Request


Weight & Dimensions

Approx Length (Inches)

1.45"

Details

Series

APC

Thread Connection

1/4" | NPT

Bag Quantity

25

Body Material

Acetal

Color / Finish

White

Mounting Options

Thread

O Rings

Buna-N

Operating Pressure Range

Vacuum to 120 psi, 8.3 bar

Operating Temperature Range

-40ºF to 180ºF

Origin

USA

Seal Material

Buna-N

Spring

316 Stainless Steel

Valve Type

Valved

External Springs And Pin

Stainless stee


APCD24004





1/4" flow APC Series couplings feature a plastic thumb latch, fewer moving parts and a smooth contoured design to deliver ease-of-use and excellent flow in a compact size. The patented APC Series has been expanded to include couplings with valves and thumb latch shrouds. A more rugged design on some models adds durability to increase the APC’s application range.

 Specifications:
  • Material: Acetal
  • Color: White
  • Mounting Option: Thread
  • Valve Option: Valved
  • Valve Spring: 316 Stainless Steel
  • Seal Option: Buna-N
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Temperature Range: -40ºF to 180ºF
  • NSF Listed Version (part # 42400) Available Upon Request

Weight & Dimensions

Approx Length (Inches)

1.45"

Details

Series

APC

Thread Connection

1/4" | NPT

Bag Quantity

25

Body Material

Acetal

Color / Finish

White

Mounting Options

Thread

O Rings

Buna-N

Operating Pressure Range

Vacuum to 120 psi, 8.3 bar

Operating Temperature Range

-40ºF to 180ºF

Origin

USA

Seal Material

Buna-N

Spring

316 Stainless Steel

Valve Type

Valved

External Springs And Pin

Stainless stee
