Colder Products

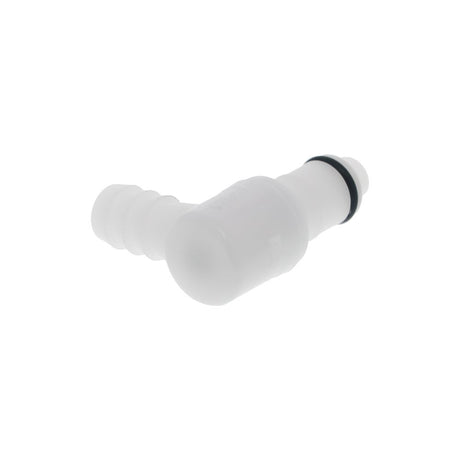

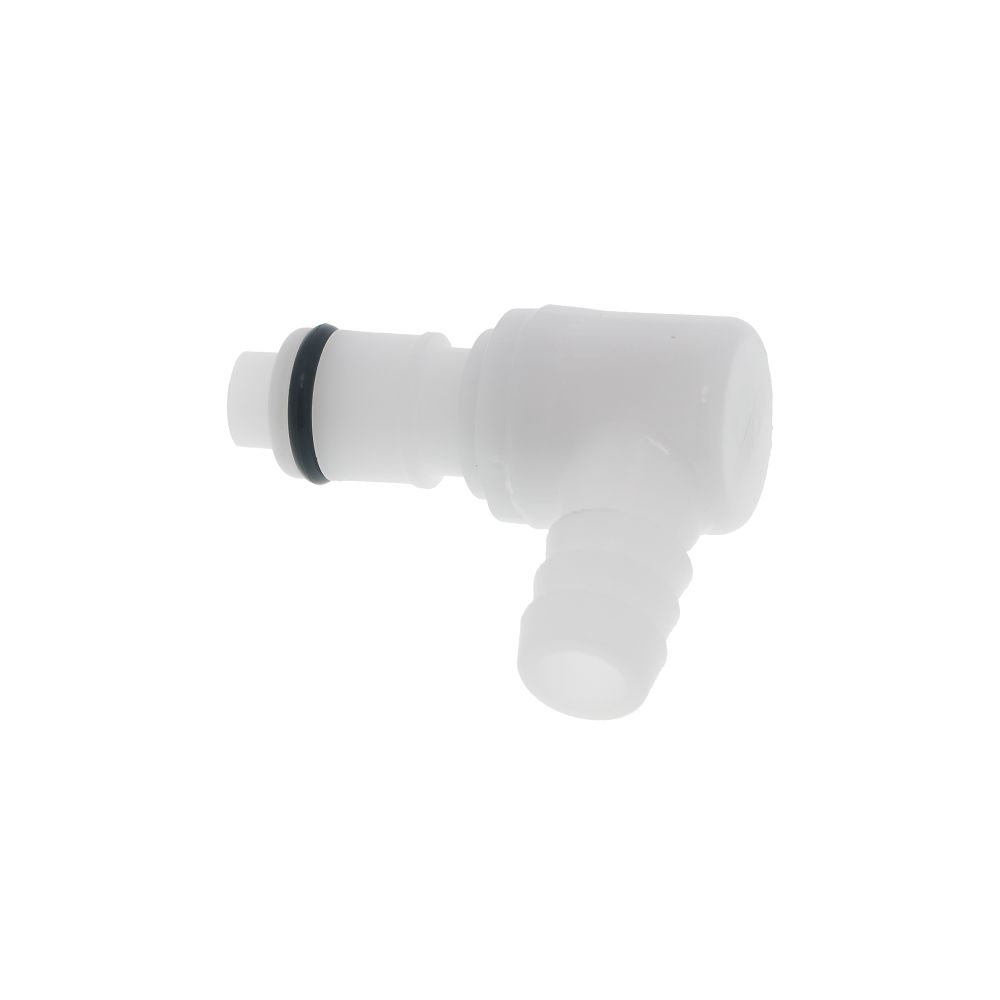

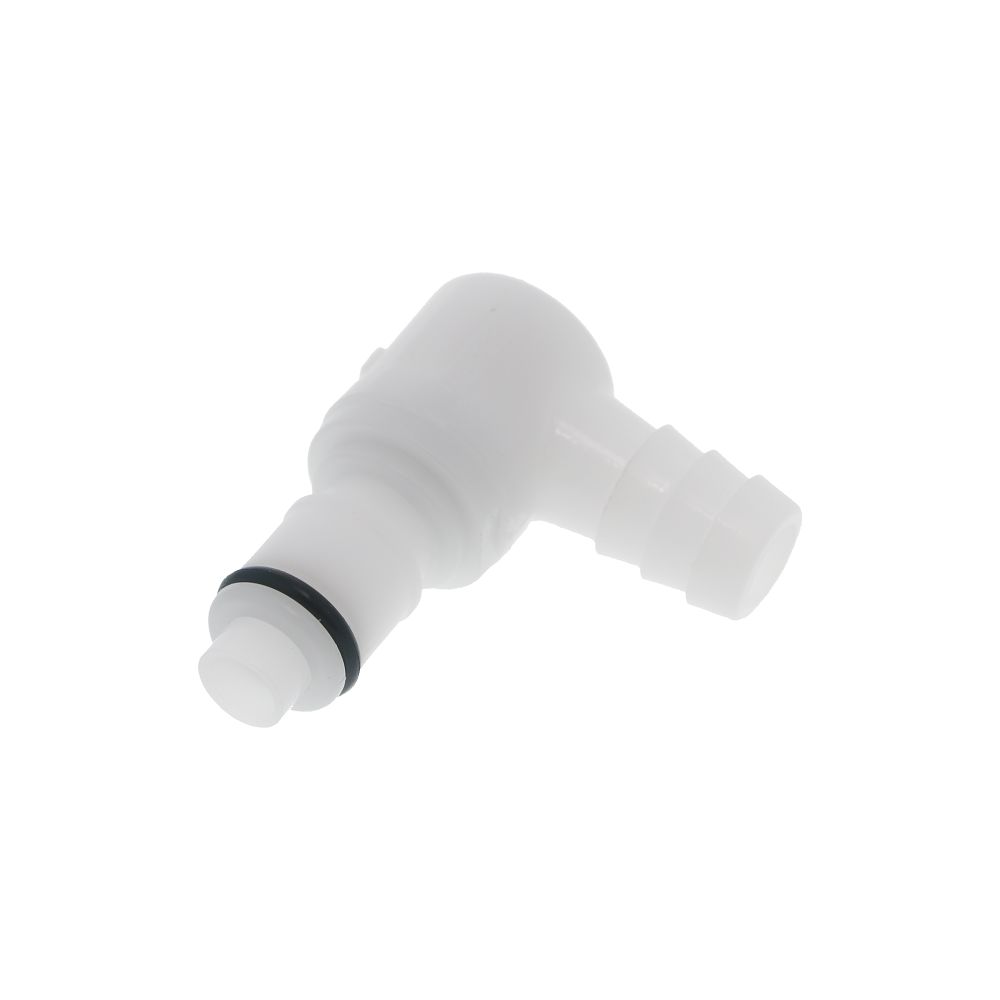

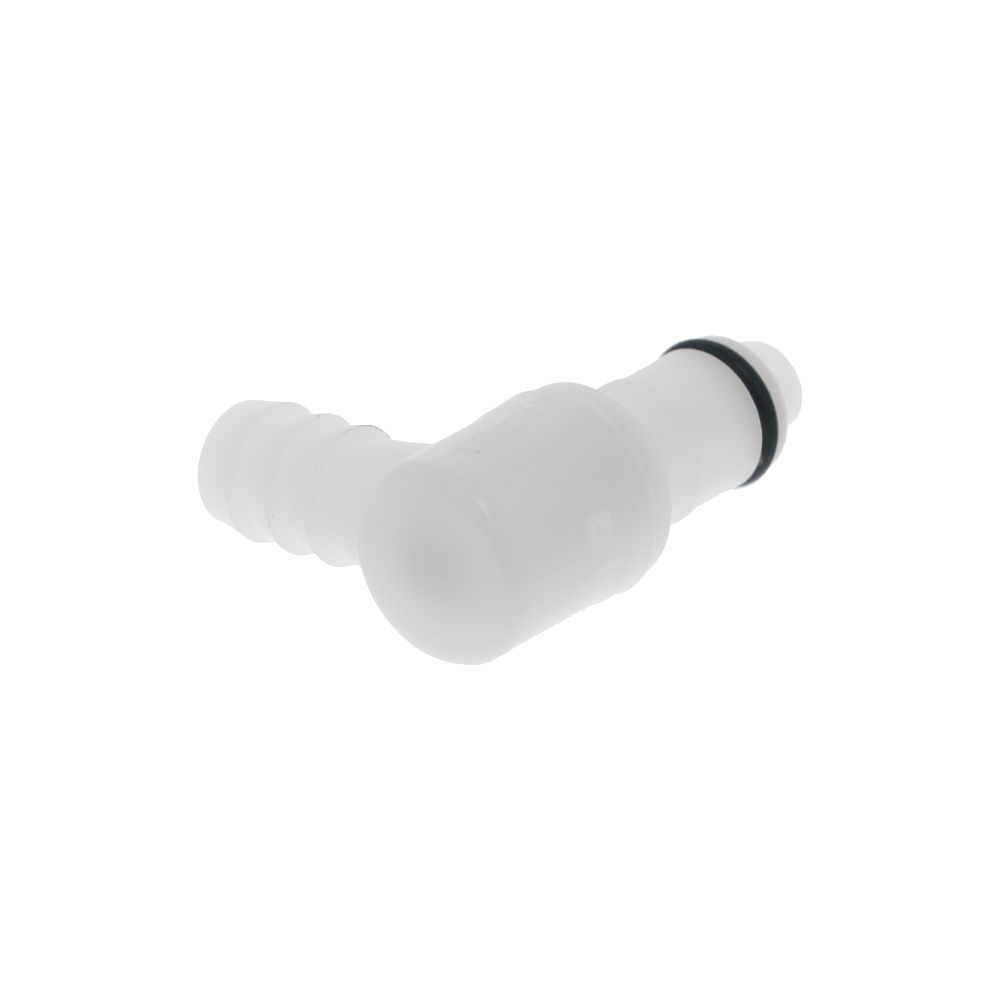

APCD23006 Valved Elbow Hose Barb Coupling Insert 3/8 ID Barb

Part Number: APCD23006

In Stock

out of stock

In Stock

$7.47

3/8" flow APC Series couplings feature a plastic thumb latch, fewer moving parts and a smooth contoured design to deliver ease-of-use and excellent flow in a compact size. The patented APC Series has been expanded to include couplings with valves and thumb latch shrouds. A more rugged design on some models adds durability to increase the APC’s application range.

Specifications:
  • Material: Acetal
  • Color: White
  • Mounting Option: Free Floating
  • Seal Option: Buna-N
  • Valve Option: Valved
  • Valve Spring: 316 Stainless Steel
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Temperature Range: -40ºF to 180ºF

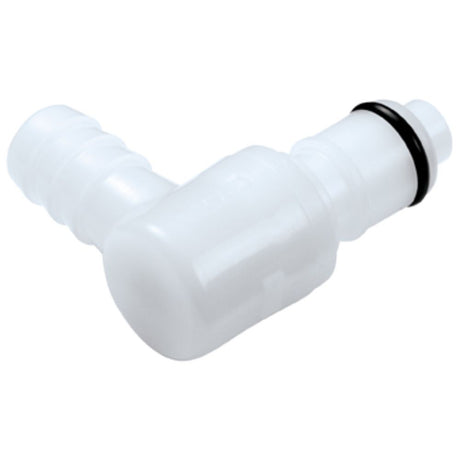

  • NSF Listed Version (part # 42800) Available Upon Request




Weight & Dimensions

Weight (lbs)

0.05

Details

Application

Water, Food, Beverage

Barb Size

3/8" ID

Body Material

Acetal Copolymer

External Springs And Pin

Stainless Steel

Max Pressure (Psi)

120

Max Temp (°F)

180

Min Pressure (Psi)

vacuum

Min Temp (°F)

-40

Mounting Options

Free Floating

Seal Material

Buna-N

Series

APC

Spring

316 Stainless Steel

Thumb Latch

Acetal

Valve Type

Valved

Color / Finish

White, Natural

Type

Coupling Insert


APCD23006




3/8" flow APC Series couplings feature a plastic thumb latch, fewer moving parts and a smooth contoured design to deliver ease-of-use and excellent flow in a compact size. The patented APC Series has been expanded to include couplings with valves and thumb latch shrouds. A more rugged design on some models adds durability to increase the APC’s application range.

Specifications:
  • Material: Acetal
  • Color: White
  • Mounting Option: Free Floating
  • Seal Option: Buna-N
  • Valve Option: Valved
  • Valve Spring: 316 Stainless Steel
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Temperature Range: -40ºF to 180ºF
  • NSF Listed Version (part # 42800) Available Upon Request



Weight & Dimensions

Weight (lbs)

0.05

Details

Application

Water, Food, Beverage

Barb Size

3/8" ID

Body Material

Acetal Copolymer

External Springs And Pin

Stainless Steel

Max Pressure (Psi)

120

Max Temp (°F)

180

Min Pressure (Psi)

vacuum

Min Temp (°F)

-40

Mounting Options

Free Floating

Seal Material

Buna-N

Series

APC

Spring

316 Stainless Steel

Thumb Latch

Acetal

Valve Type

Valved

Color / Finish

White, Natural

Type

Coupling Insert

Documentation
APCD23006
