Colder Products

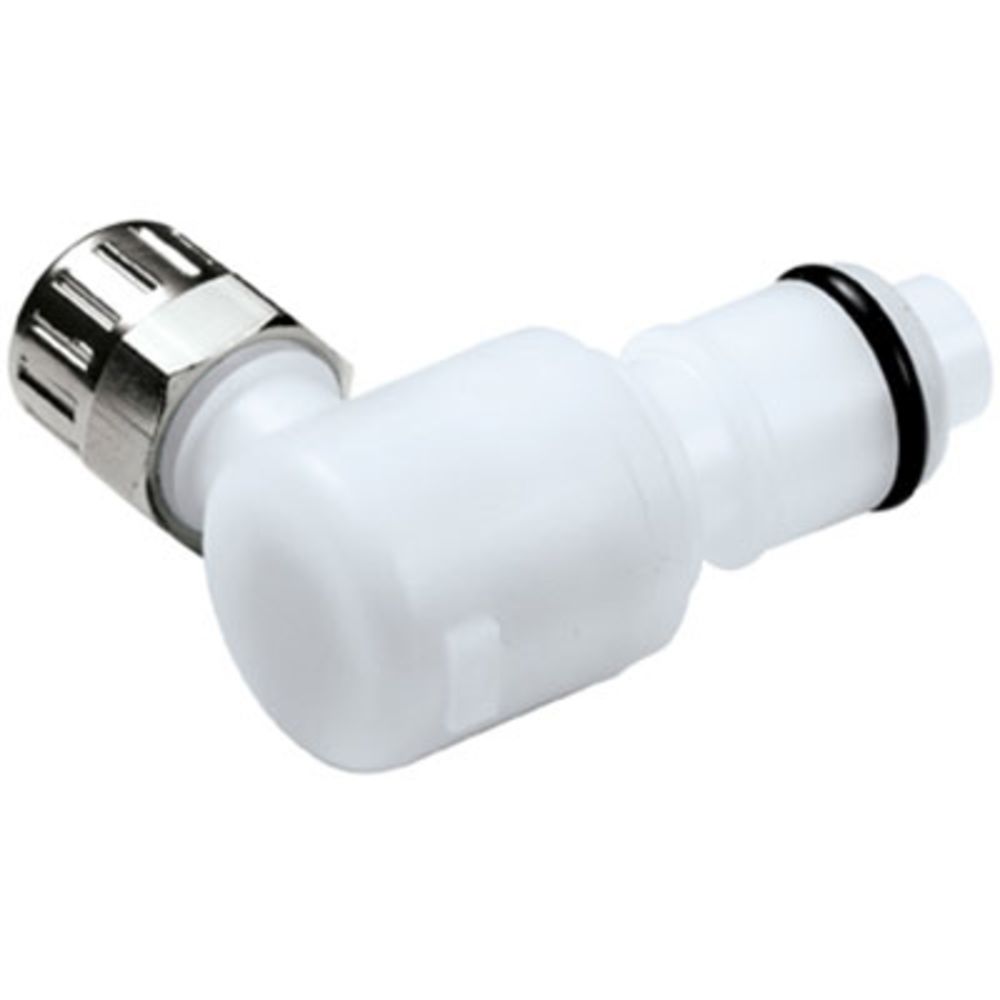

APCD21004 Valved Elbow In-Line Coupling Insert 1/4 PTF

Part Number: APCD21004

In Stock

out of stock

In Stock

$6.41

1/4" flow APC Series couplings feature a plastic thumb latch, fewer moving parts and a smooth contoured design to deliver ease-of-use and excellent flow in a compact size. The patented APC Series has been expanded to include couplings with valves and thumb latch shrouds. A more rugged design on some models adds durability to increase the APC’s application range.

Specifications:
  • Material: Acetal
  • Material Finish: Natural
  • Pressure Range:Vacuum to 120 psi, 8.3 bar
  • Color: White
  • Temp. Range: -40°F to 180°F (-40°C to 82°C)
  • Mounting Option: Free Floating
  • Seal Options: BUNA-N
  • Valve Spring: 316 Stainless Steel
  • Valve Option: Valved
  • NSF Listed version is also available (part # 43000)


Details

Series

APC

Thread Connection

1/4" | NPT

Bag Quantity

25

Body Material

Acetal

Color / Finish

White, Natural

O Rings

Buna-N

Operating Pressure Range

Vacuum to 120 psi, 8.3 bar

Operating Temperature Range

-40 -180 (-40°C to 82°C) Degrees Fahrenheit

Seal Material

BUNA-N

Spring

316 Stainless Steel

Valve Type

Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Acetal


APCD21004
