Colder Products

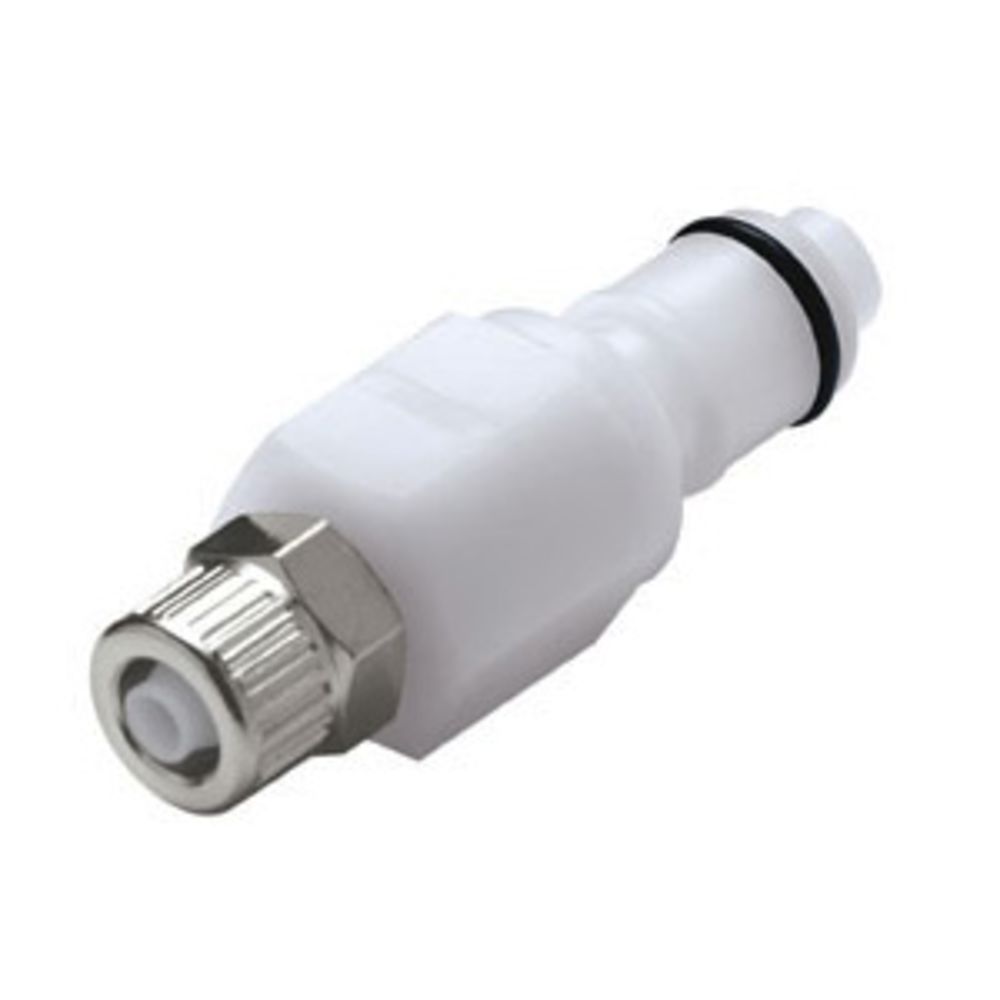

APCD20006 Valved In-Line PTF Coupling Insert 3/8 PTF

Part Number: APCD20006

In Stock

out of stock

In Stock

$6.26

3/8" flow APC Series couplings feature a plastic thumb latch, fewer moving parts and a smooth contoured design to deliver ease-of-use and excellent flow in a compact size. The patented APC Series has been expanded to include couplings with valves and thumb latch shrouds. A more rugged design on some models adds durability to increase the APC’s application range.

Specifications:
  • Material: Acetal
  • Color: White
  • Mounting Option: Free Floating
  • Seal Option: Buna-N
  • Valve Option: Valved
  • Valve Spring: 316 Stainless Steel
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Temperature Range: -40ºF to 180ºF
  • Tubing Size: 0.17 ID, 0.25 OD
  • NSF Listed Version (part #43500)




Weight & Dimensions

Weight (lbs)

0.05

Details

Series

APC

Max Temp (°F)

180

Max Pressure (Psi)

120

Min Temp (°F)

-40

Min Pressure (Psi)

vacuum

Push-In Size

3/8" OD

Application

Water, Food, Beverage

Bag Quantity

25

Body Material

Acetal Copolymer

Color / Finish

White, Natural

Mounting Options

Free Floating

Seal Material

Buna-N

Size

3/8"

Spring

316 Stainless Steel

Valve Type

Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Acetal

Inlet/Outlet Connection

3/8" FPT


APCD20006




3/8" flow APC Series couplings feature a plastic thumb latch, fewer moving parts and a smooth contoured design to deliver ease-of-use and excellent flow in a compact size. The patented APC Series has been expanded to include couplings with valves and thumb latch shrouds. A more rugged design on some models adds durability to increase the APC’s application range.

Specifications:
  • Material: Acetal
  • Color: White
  • Mounting Option: Free Floating
  • Seal Option: Buna-N
  • Valve Option: Valved
  • Valve Spring: 316 Stainless Steel
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Temperature Range: -40ºF to 180ºF
  • Tubing Size: 0.17 ID, 0.25 OD
  • NSF Listed Version (part #43500)



Weight & Dimensions

Weight (lbs)

0.05

Details

Series

APC

Max Temp (°F)

180

Max Pressure (Psi)

120

Min Temp (°F)

-40

Min Pressure (Psi)

vacuum

Push-In Size

3/8" OD

Application

Water, Food, Beverage

Bag Quantity

25

Body Material

Acetal Copolymer

Color / Finish

White, Natural

Mounting Options

Free Floating

Seal Material

Buna-N

Size

3/8"

Spring

316 Stainless Steel

Valve Type

Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Acetal

Inlet/Outlet Connection

3/8" FPT

Documentation
APCD20006
Reviews
