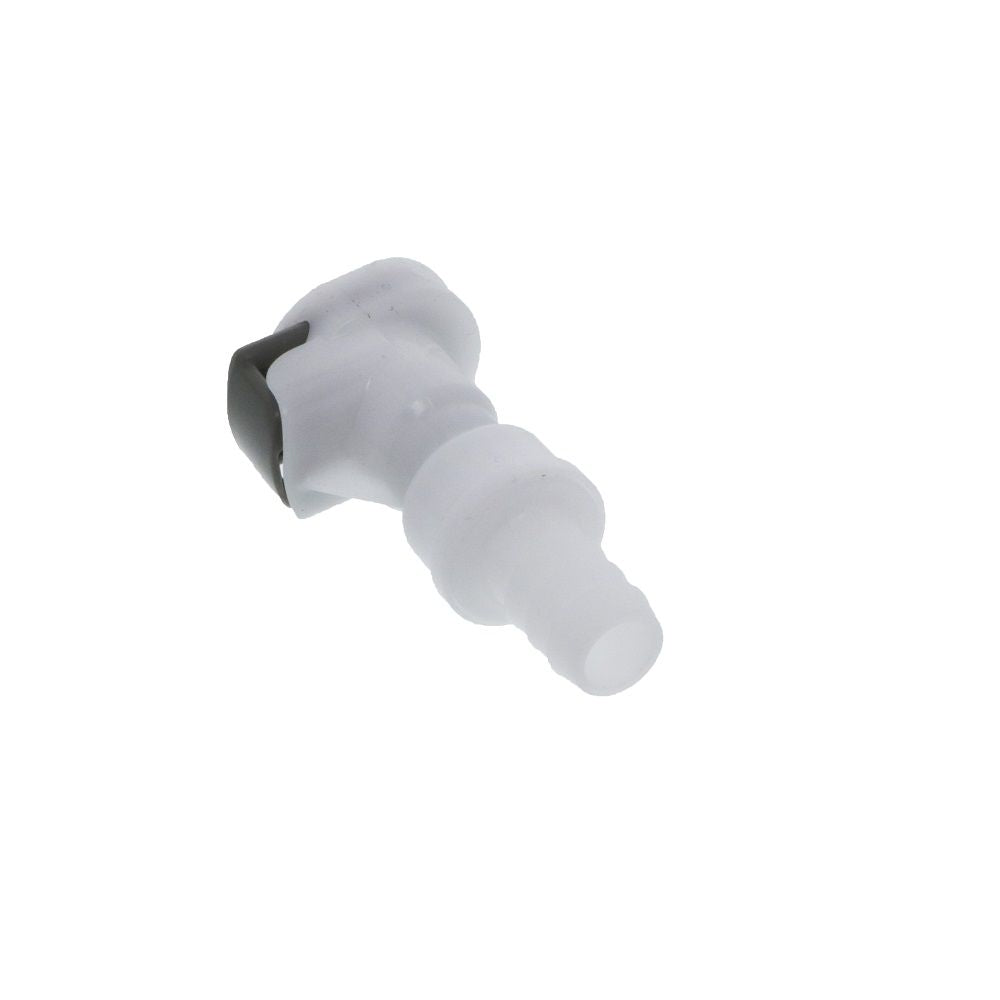

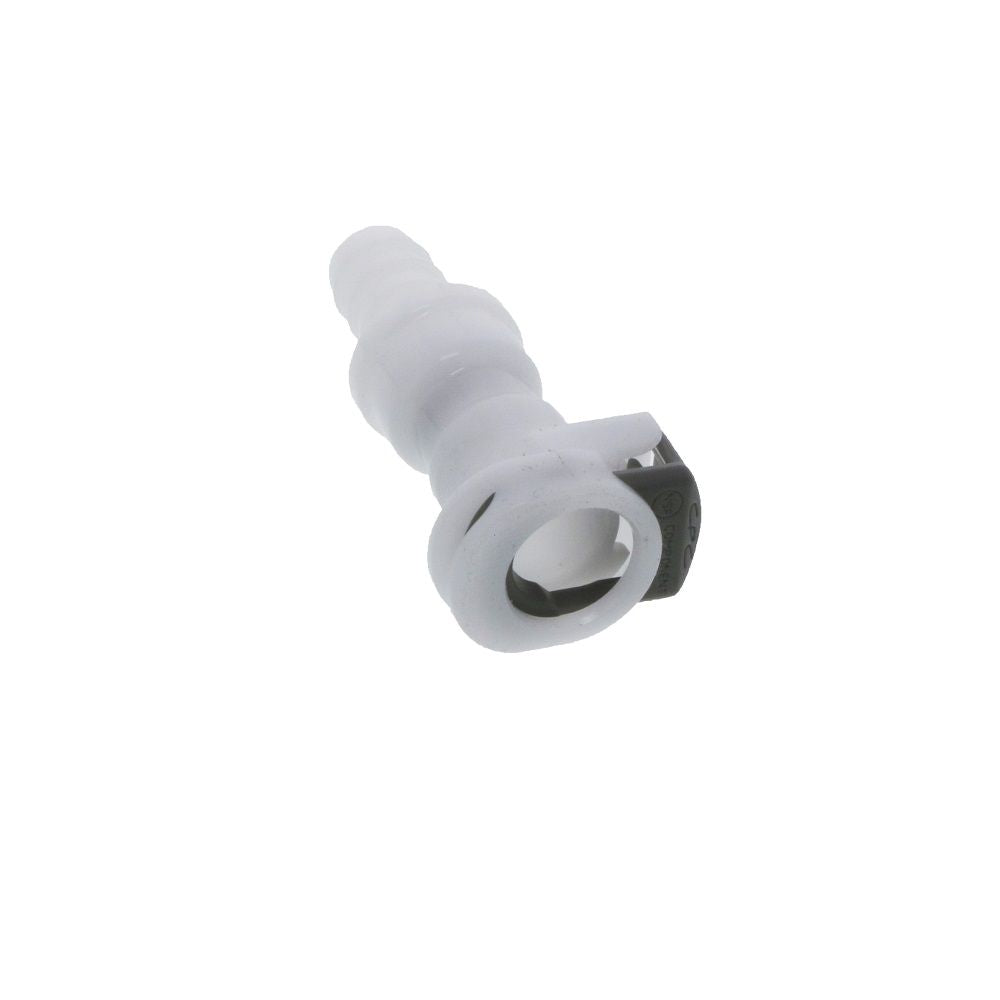

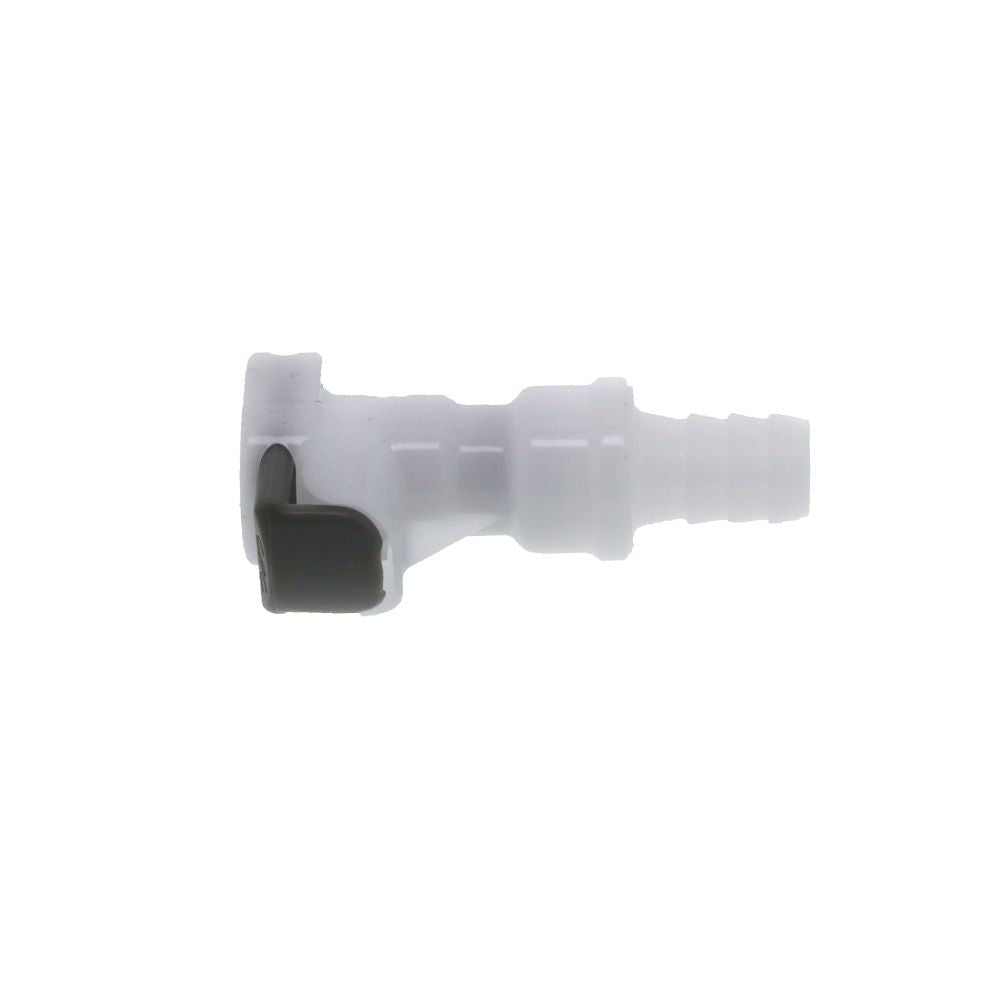

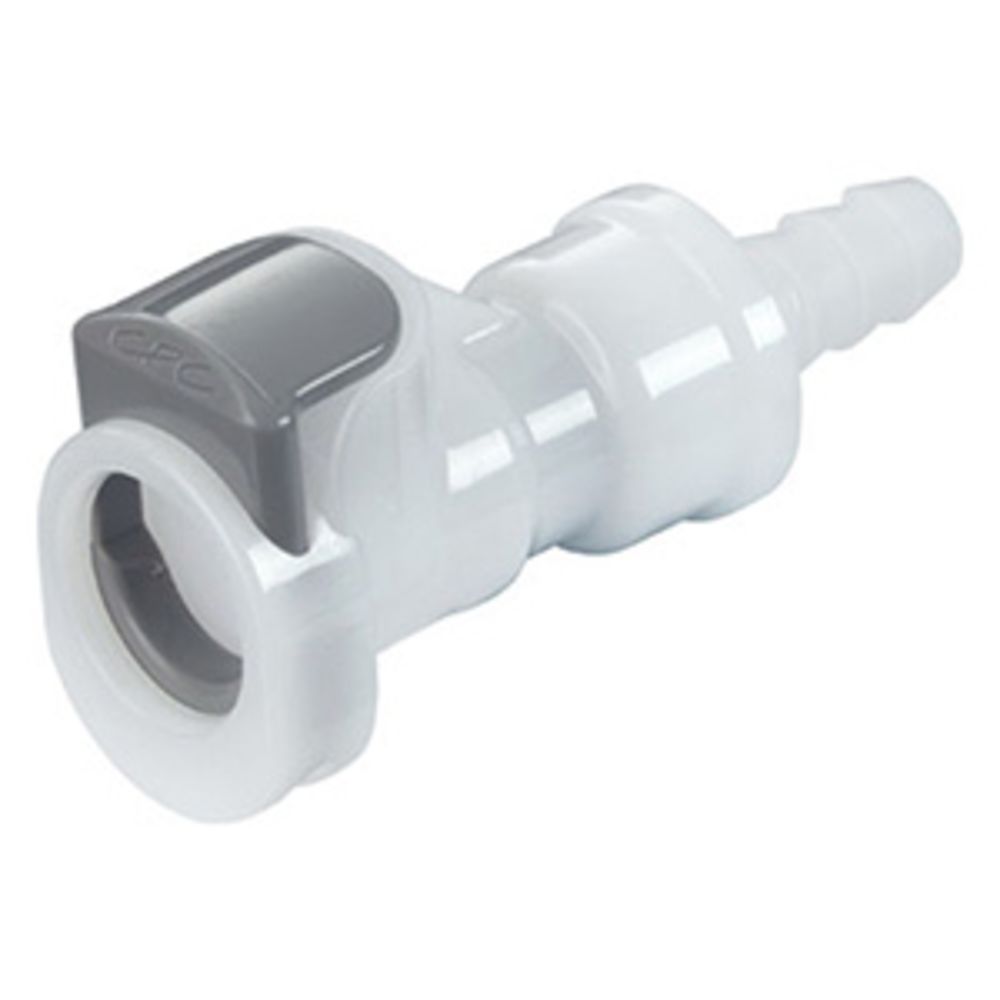

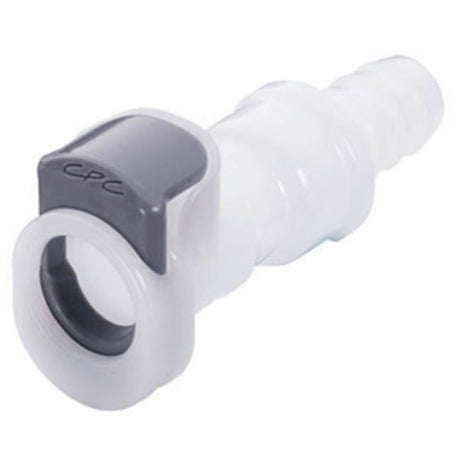

1/4" flow APC Series couplings feature a plastic thumb latch, fewer moving parts and a smooth contoured design to deliver ease-of-use and excellent flow in a compact size. The patented APC Series has been expanded to include couplings with valves and thumb latch shrouds.
Specifications:
Specifications:
- Material: Acetal
- Color: White
- Mounting Option: Free Floating
- Seal Option: Buna-N
- Valve Spring: 316 Stainless Steel
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Temperature Range: -40ºF to 180ºF
- NSF Listed version also available
Weight & Dimensions
Weight (lbs) | 0.05 |
Details
Application | Water, Food, Beverage |
Barb Size | 3/8" ID |
Body Material | Acetal Copolymer |
Max Pressure (Psi) | 120 |
Max Temp (°F) | 180 |
Min Pressure (Psi) | vacuum |
Min Temp (°F) | -40 |
Mounting Options | Free Floating |
Seal Material | Buna-N |
Series | APC |
Spring | 316 Stainless Steel |
Valve Type | Valved |
Color / Finish | White |
Type | Coupling Body |
Warranty & Certifications
Warranty | 25 |
1/4" flow APC Series couplings feature a plastic thumb latch, fewer moving parts and a smooth contoured design to deliver ease-of-use and excellent flow in a compact size. The patented APC Series has been expanded to include couplings with valves and thumb latch shrouds.
Specifications:
- Material: Acetal
- Color: White
- Mounting Option: Free Floating
- Seal Option: Buna-N
- Valve Spring: 316 Stainless Steel
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Temperature Range: -40ºF to 180ºF
- NSF Listed version also available
Weight & Dimensions
Weight (lbs) | 0.05 |
Details
Application | Water, Food, Beverage |
Barb Size | 3/8" ID |
Body Material | Acetal Copolymer |
Max Pressure (Psi) | 120 |
Max Temp (°F) | 180 |
Min Pressure (Psi) | vacuum |
Min Temp (°F) | -40 |
Mounting Options | Free Floating |
Seal Material | Buna-N |
Series | APC |
Spring | 316 Stainless Steel |
Valve Type | Valved |
Color / Finish | White |
Type | Coupling Body |
Warranty & Certifications
Warranty | 25 |
