Colder Products

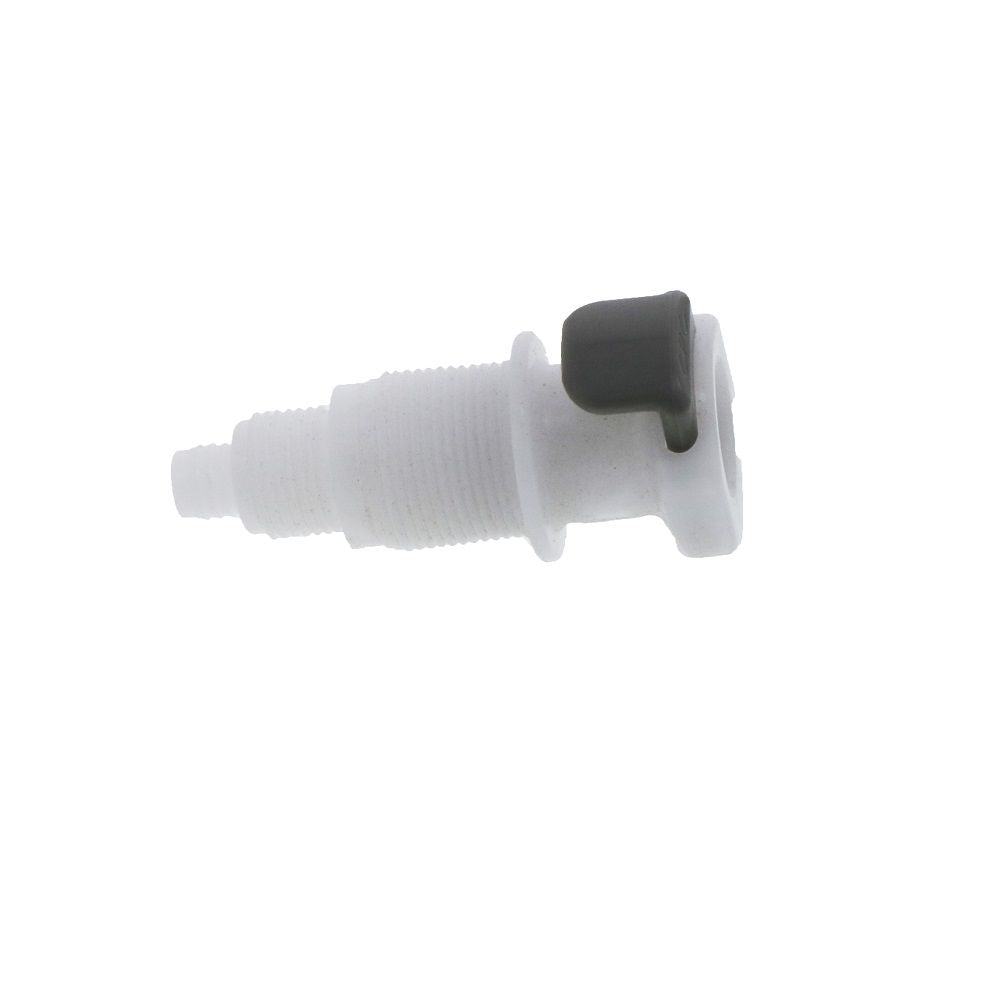

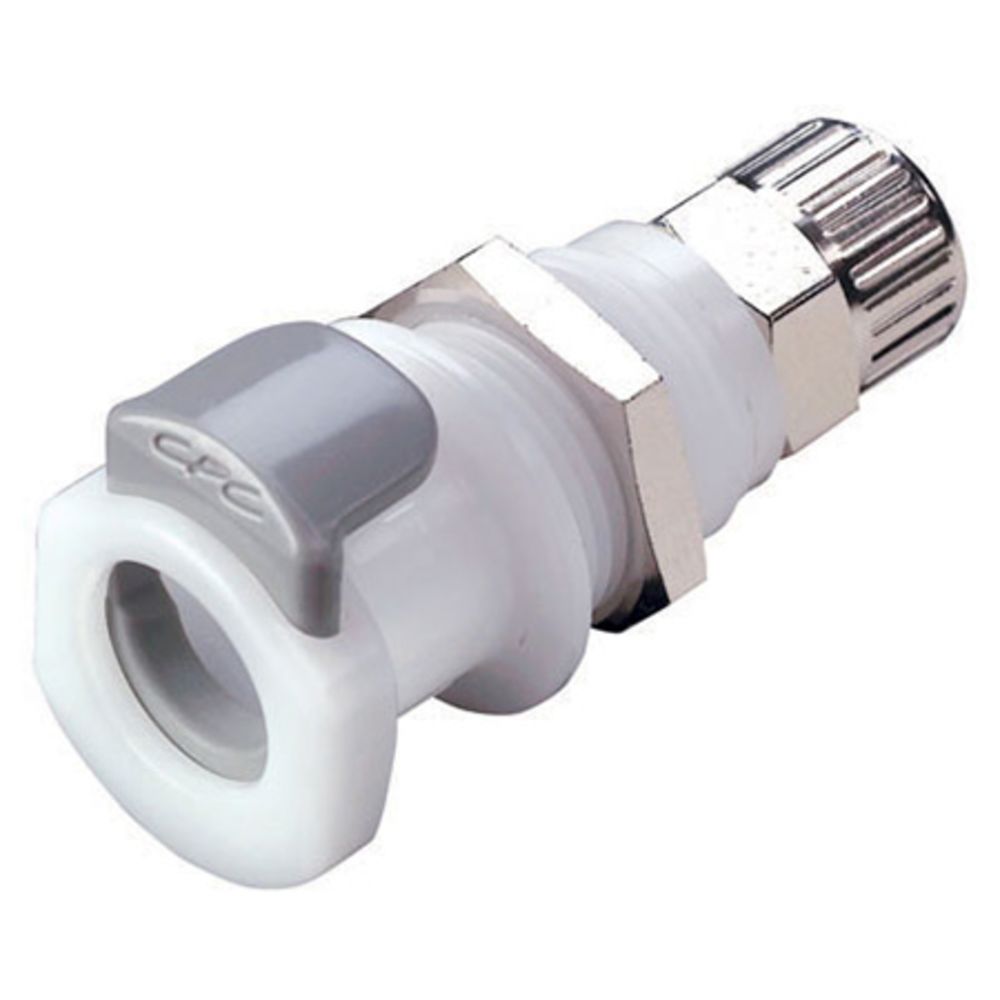

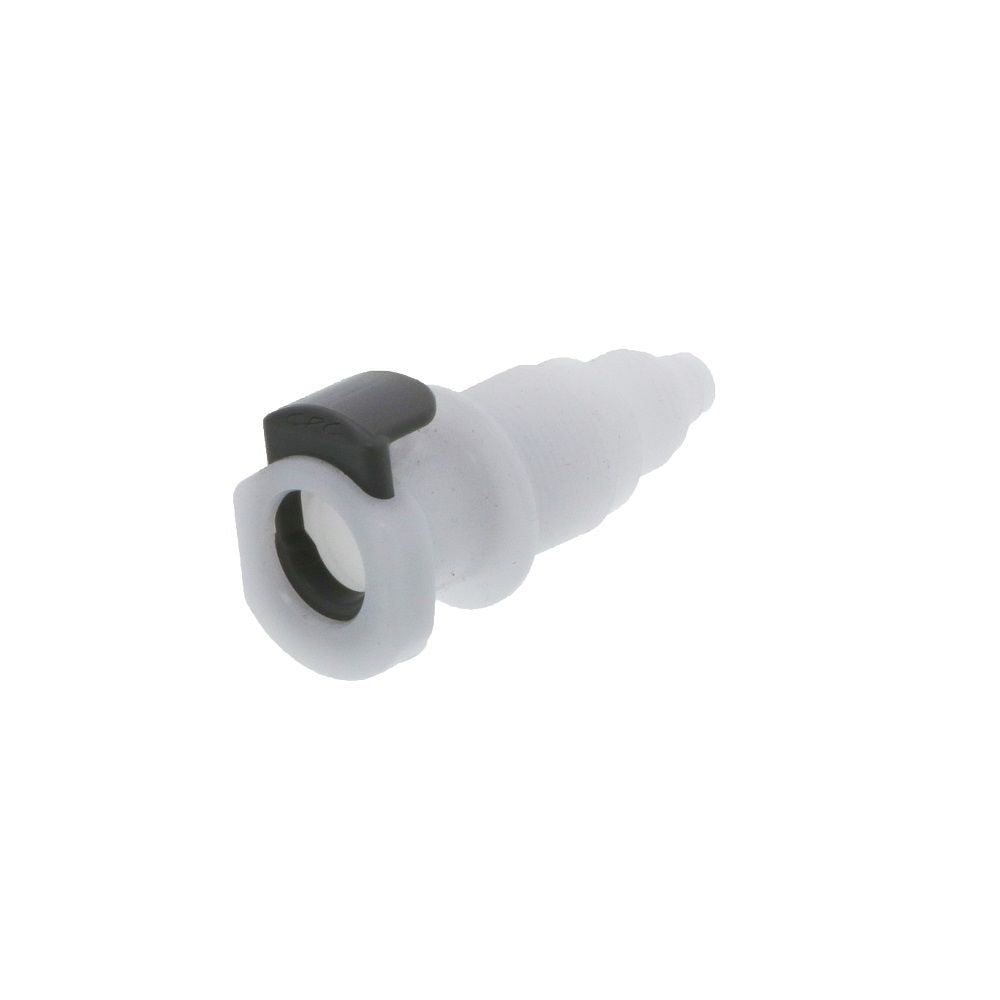

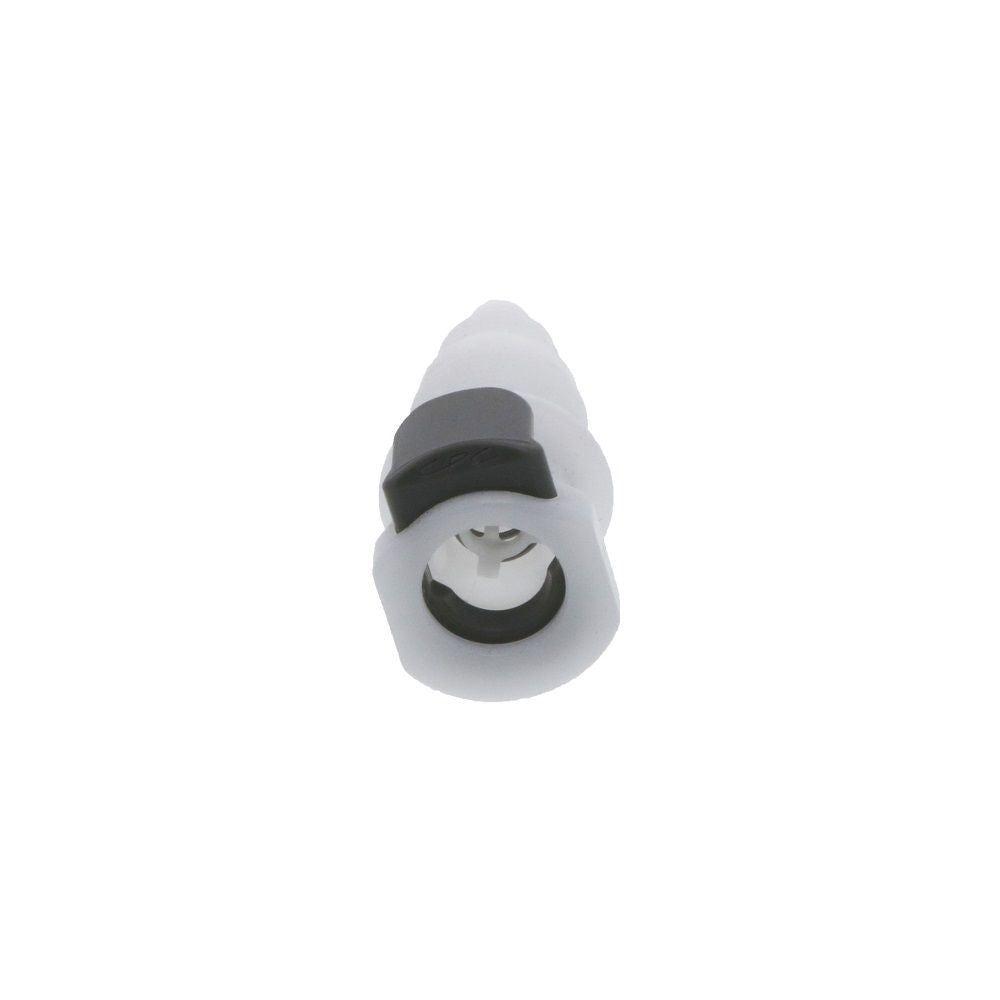

APCD12006 Valved Panel Mount PTF Coupling Body 3/8 PTF

Part Number: APCD12006

In Stock

out of stock

In Stock

$11.68

1/4" flow APC Series couplings feature a plastic thumb latch, fewer moving parts and a smooth contoured design to deliver ease-of-use and excellent flow in a compact size. The patented APC Series has been expanded to include couplings with valves and thumb latch shrouds.

Specifications:
  • Material: Acetal
  • Color: White
  • Mounting Option: Panel Mount
  • Seal Option: Buna-N
  • Valve Spring: 316 Stainless Steel
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Temperature Range: -40ºF to 180ºF
  • Tubing Size: .25" ID, 3/8" OD




Weight & Dimensions

Weight (lbs)

0.05

Details

Application

Water, Food, Beverage

Body Material

Acetal Copolymer

External Springs And Pin

Stainless Steel

Inlet/Outlet Connection

3/8" FPT

Max Pressure (Psi)

120

Max Temp (°F)

180

Min Pressure (Psi)

vacuum

Min Temp (°F)

-40

Mounting Options

Panel Mount

Push-In Size

3/8" OD

Seal Material

Buna-N

Series

APC

Size

3/8"

Spring

316 Stainless Steel

Thumb Latch

Acetal

Valve Type

Valved

Color / Finish

White, Natural

Connection Type

Female (FPT)

Type

Coupling Body


APCD12006




1/4" flow APC Series couplings feature a plastic thumb latch, fewer moving parts and a smooth contoured design to deliver ease-of-use and excellent flow in a compact size. The patented APC Series has been expanded to include couplings with valves and thumb latch shrouds.

Specifications:
  • Material: Acetal
  • Color: White
  • Mounting Option: Panel Mount
  • Seal Option: Buna-N
  • Valve Spring: 316 Stainless Steel
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Temperature Range: -40ºF to 180ºF
  • Tubing Size: .25" ID, 3/8" OD



Weight & Dimensions

Weight (lbs)

0.05

Details

Application

Water, Food, Beverage

Body Material

Acetal Copolymer

External Springs And Pin

Stainless Steel

Inlet/Outlet Connection

3/8" FPT

Max Pressure (Psi)

120

Max Temp (°F)

180

Min Pressure (Psi)

vacuum

Min Temp (°F)

-40

Mounting Options

Panel Mount

Push-In Size

3/8" OD

Seal Material

Buna-N

Series

APC

Size

3/8"

Spring

316 Stainless Steel

Thumb Latch

Acetal

Valve Type

Valved

Color / Finish

White, Natural

Connection Type

Female (FPT)

Type

Coupling Body
