Colder Products

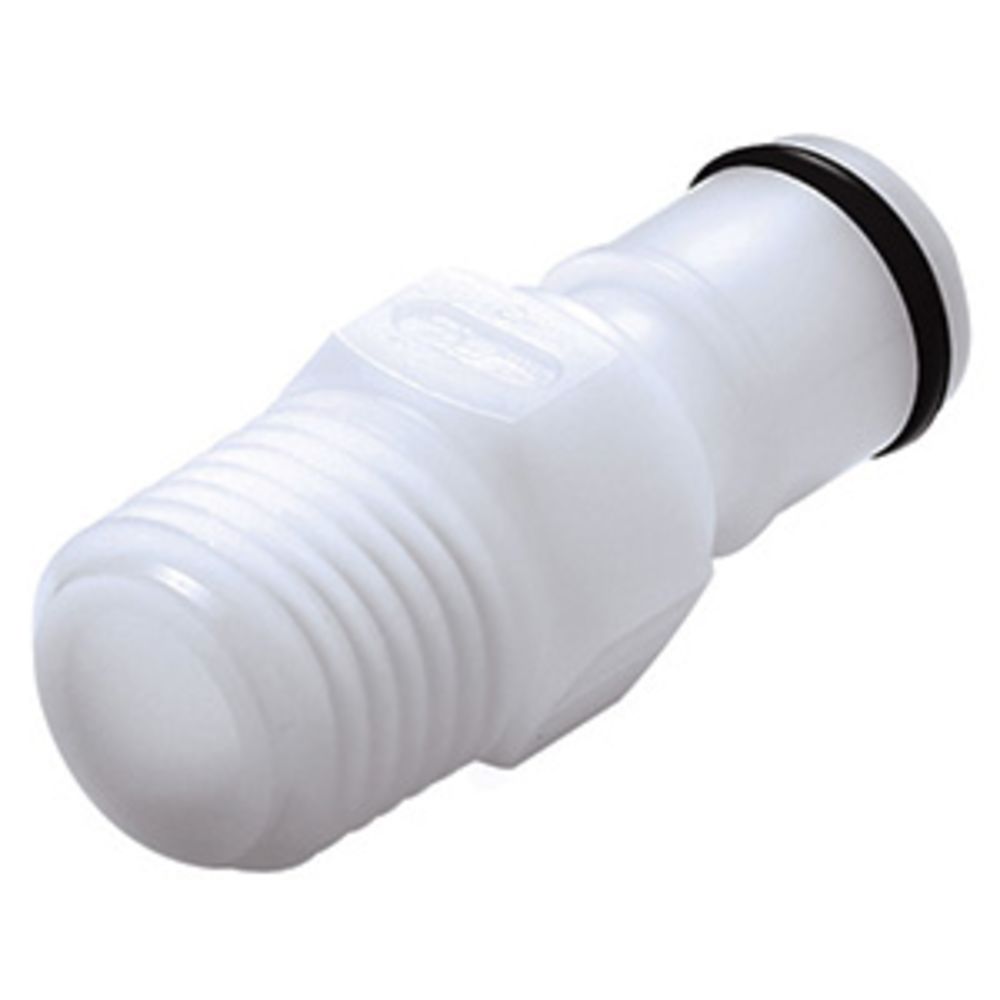

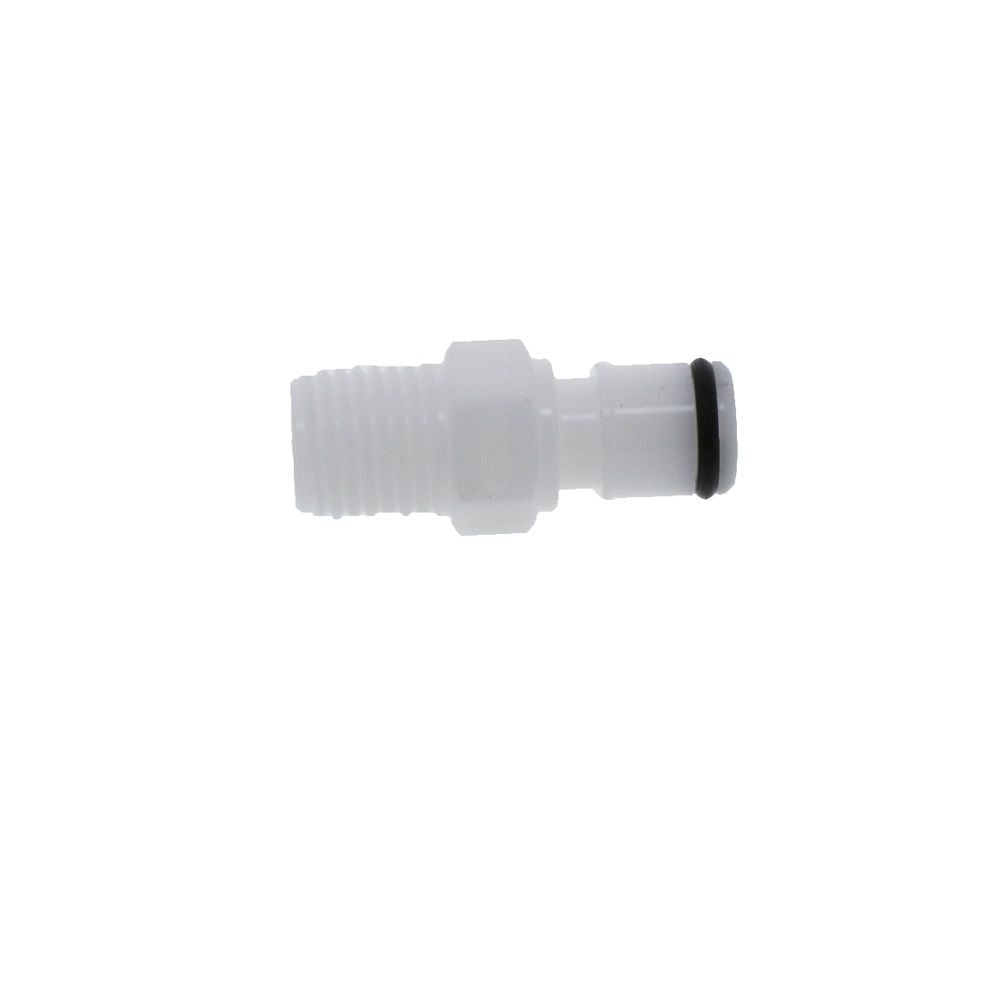

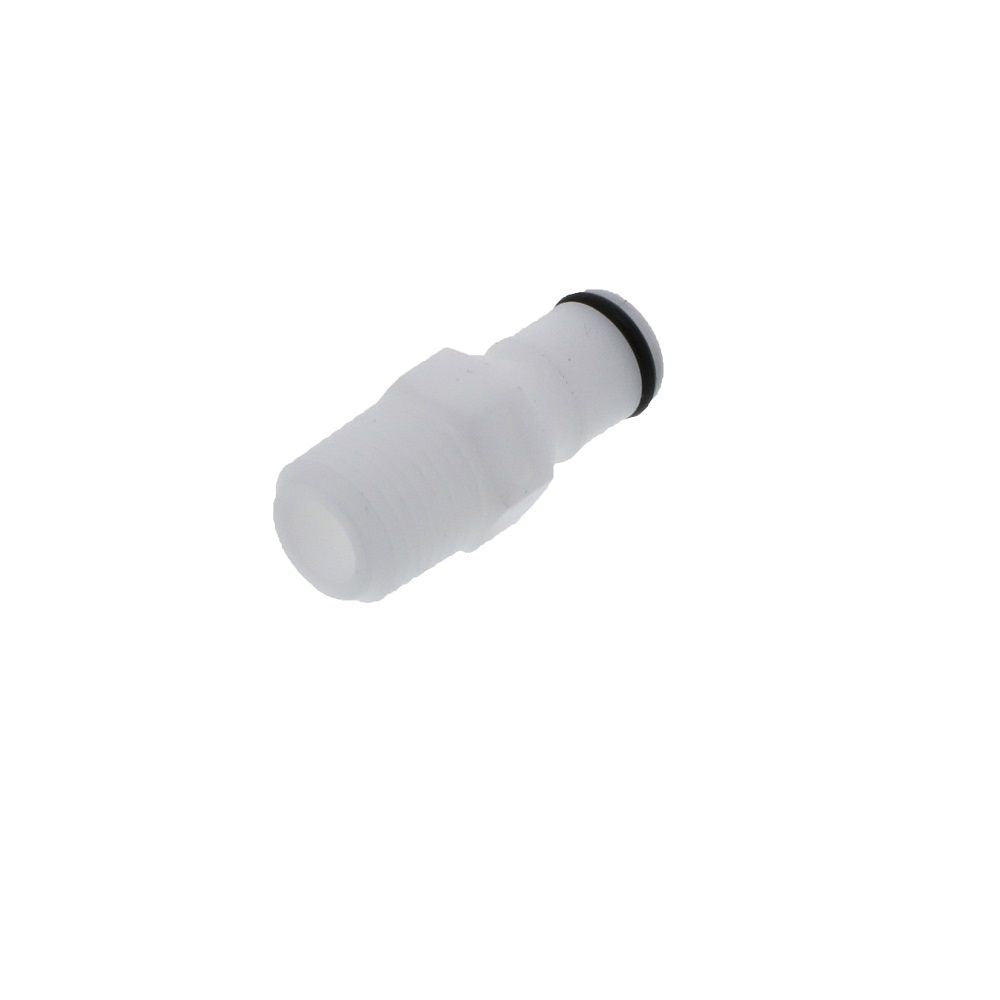

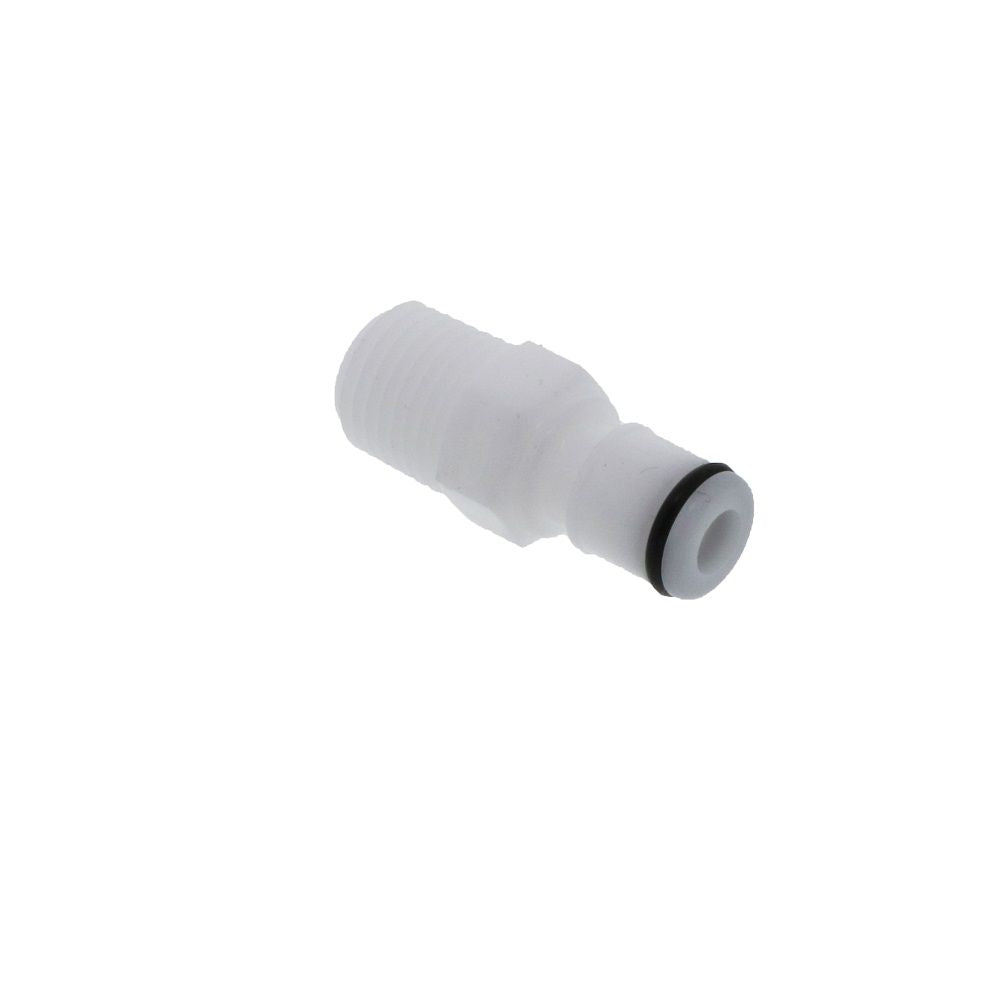

APC24004 Male Thread Coupling Insert 1/4 NPT

Part Number: APC24004

In Stock

out of stock

In Stock

$0.88

1/4" flow APC Series couplings feature a plastic thumb latch, fewer moving parts and a smooth contoured design to deliver ease-of-use and excellent flow in a compact size. The patented APC Series has been expanded to include couplings with valves and thumb latch shrouds. A more rugged design on some models adds durability to increase the APC’s application range.

Specifications:
  • Material: Acetal
  • Color: White
  • Mounting Option: Thread
  • Seal Option: Buna-N
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Temperature Range: -40ºF to 180ºF
  • NSF Listed version also available




Weight & Dimensions

Height (inches)

0.5

Length (inches)

1.38

Weight (lbs)

0.000625

Width (inches)

0.56

Details

Application

Water; Food; Beverage

Body Material

Acetal Copolymer

Color / Finish

White; Natural

Inlet/Outlet Connection

1/4" MPT

Max Pressure (Psi)

120

Max Temp (°F)

180

Min Pressure (Psi)

vacuum

Min Temp (°F)

-40

Mounting Options

Thread

Origin

USA

Seal Material

Buna-N

Series

APC

Size

1/4"

Valve Type

Non-Valved


APC24004




1/4" flow APC Series couplings feature a plastic thumb latch, fewer moving parts and a smooth contoured design to deliver ease-of-use and excellent flow in a compact size. The patented APC Series has been expanded to include couplings with valves and thumb latch shrouds. A more rugged design on some models adds durability to increase the APC’s application range.

Specifications:
  • Material: Acetal
  • Color: White
  • Mounting Option: Thread
  • Seal Option: Buna-N
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Temperature Range: -40ºF to 180ºF
  • NSF Listed version also available



Weight & Dimensions

Height (inches)

0.5

Length (inches)

1.38

Weight (lbs)

0.000625

Width (inches)

0.56

Details

Application

Water; Food; Beverage

Body Material

Acetal Copolymer

Color / Finish

White; Natural

Inlet/Outlet Connection

1/4" MPT

Max Pressure (Psi)

120

Max Temp (°F)

180

Min Pressure (Psi)

vacuum

Min Temp (°F)

-40

Mounting Options

Thread

Origin

USA

Seal Material

Buna-N

Series

APC

Size

1/4"

Valve Type

Non-Valved

Documentation
APC24004
