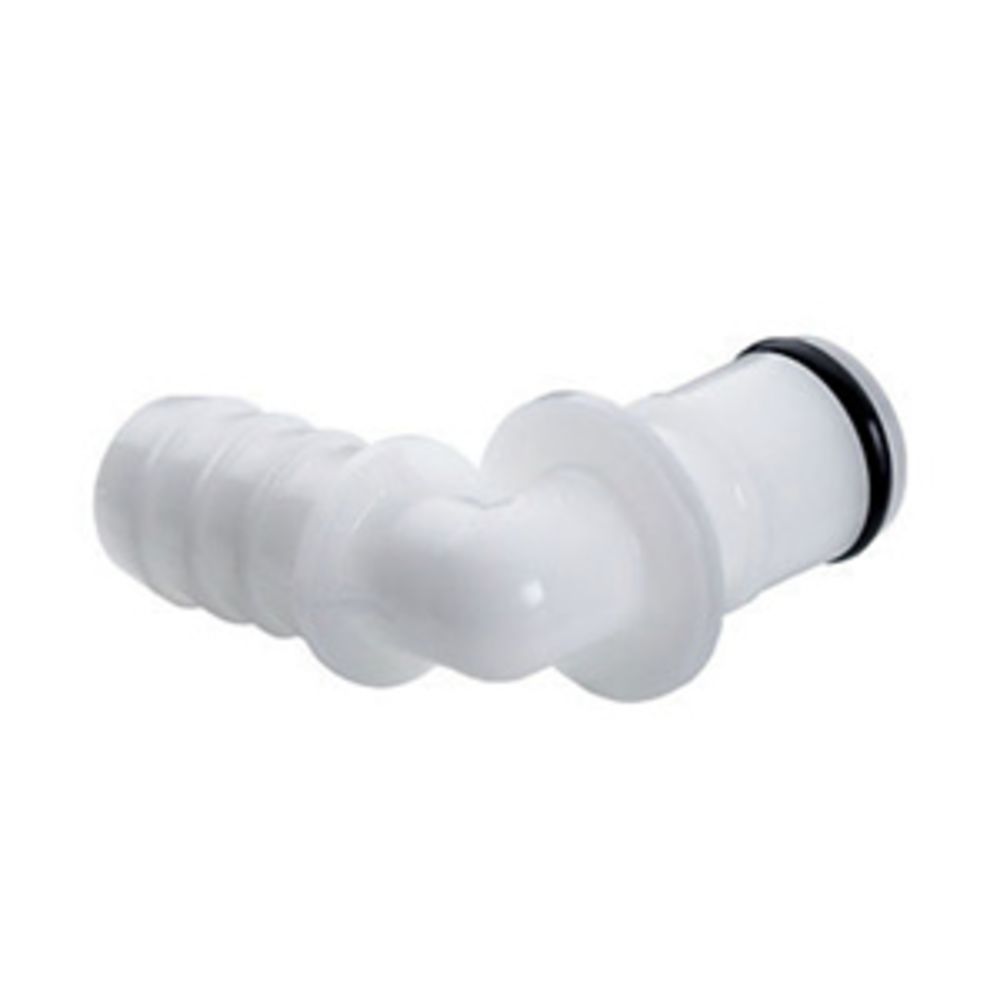

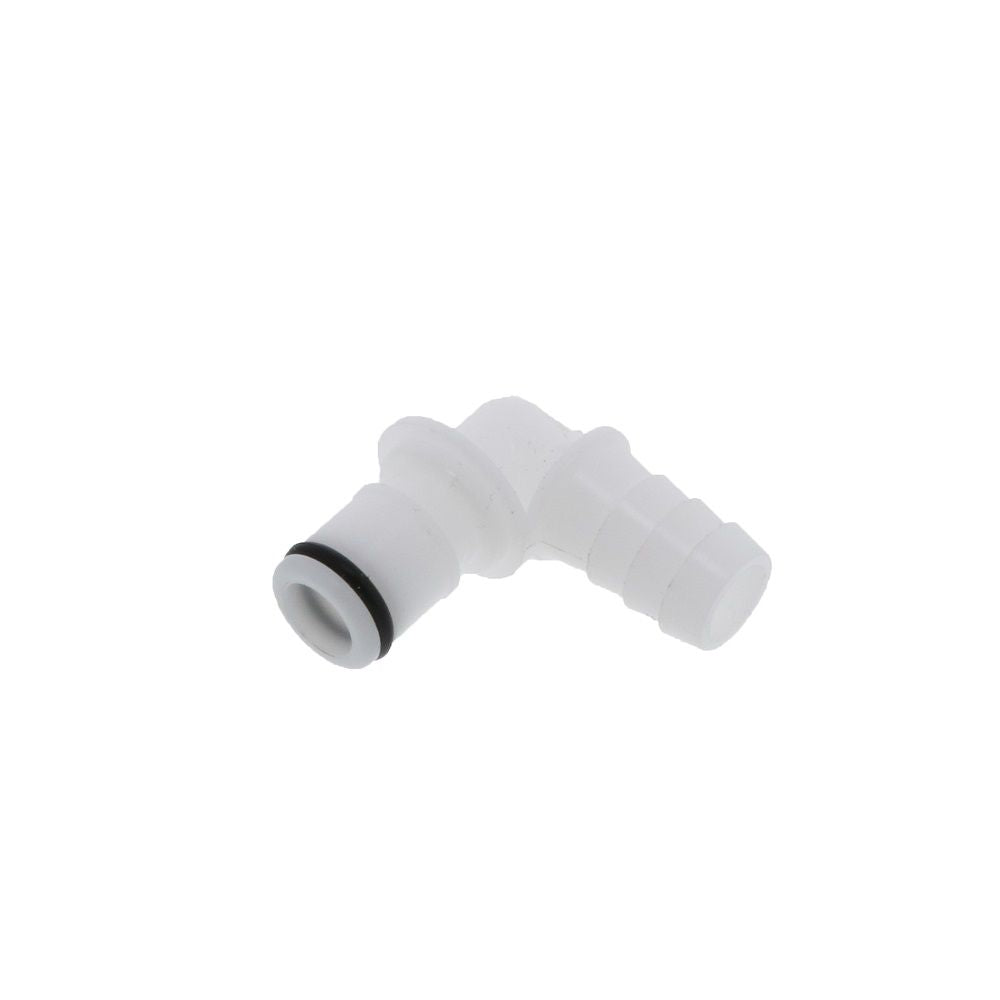

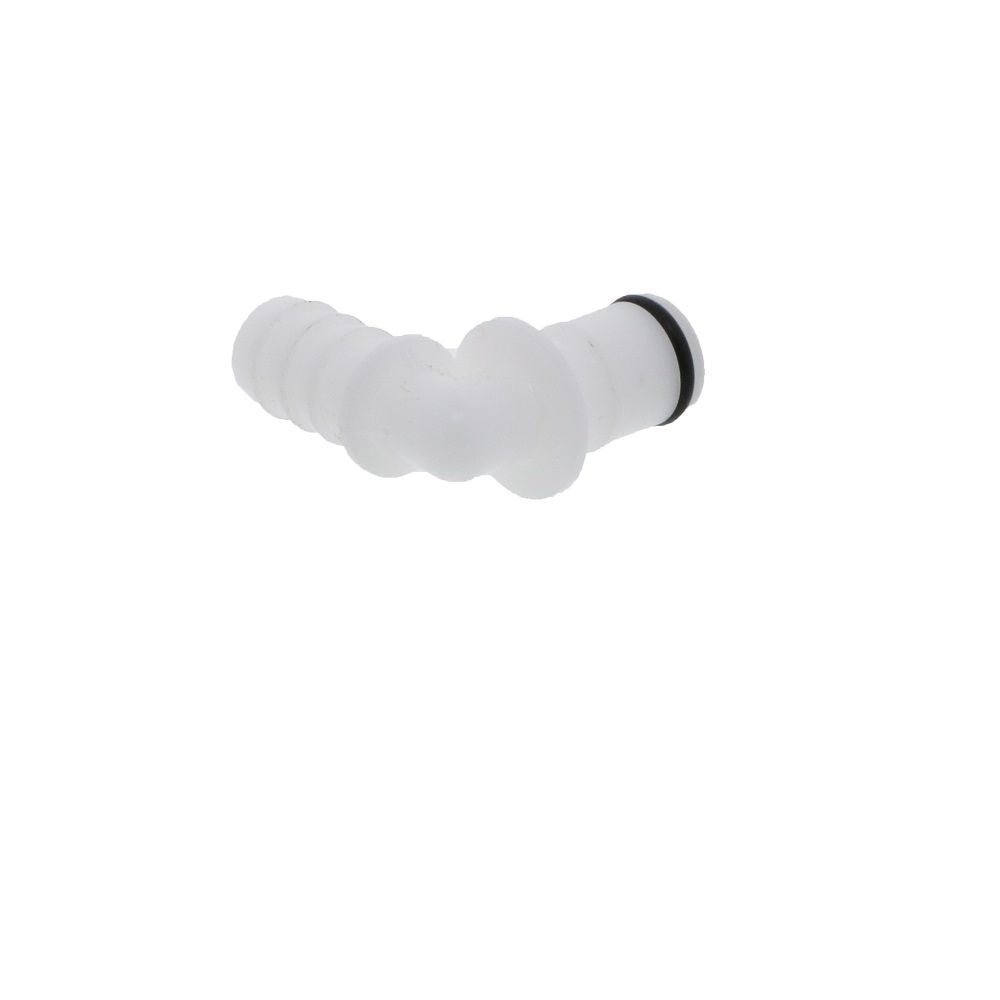

APC23006 In-Line Elbow Hose Barb Coupling Insert 3/8 ID Barb

1/4" flow APC Series couplings feature a plastic thumb latch, fewer moving parts and a smooth contoured design to deliver ease-of-use and excellent flow in a compact size. The patented APC Series has been expanded to include couplings with valves and thumb latch shrouds.

Specifications:

Material: Acetal
Color: White
Mounting Option: Free Floating
Seal Option: Buna-N
Pressure Range: Vacuum to 120 psi, 8.3 bar
Temperature Range: -40ºF to 180ºF
NSF Listed Version (part #44700)

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water Food Beverage
Barb Size	3/8" ID
Body Material	Acetal Copolymer
Max Pressure (Psi)	120
Max Temp (°F)	180
Min Pressure (Psi)	vacuum
Min Temp (°F)	-40
Mounting Options	Free Floating
Nsf Version	No
Seal Material	Buna-N
Series	APC
Shape	90
Spring	316 stainless steel
Valve Type	Non-Valved
Color / Finish	White
Origin	U.S.A.
Type	Coupling Insert
