Colder Products

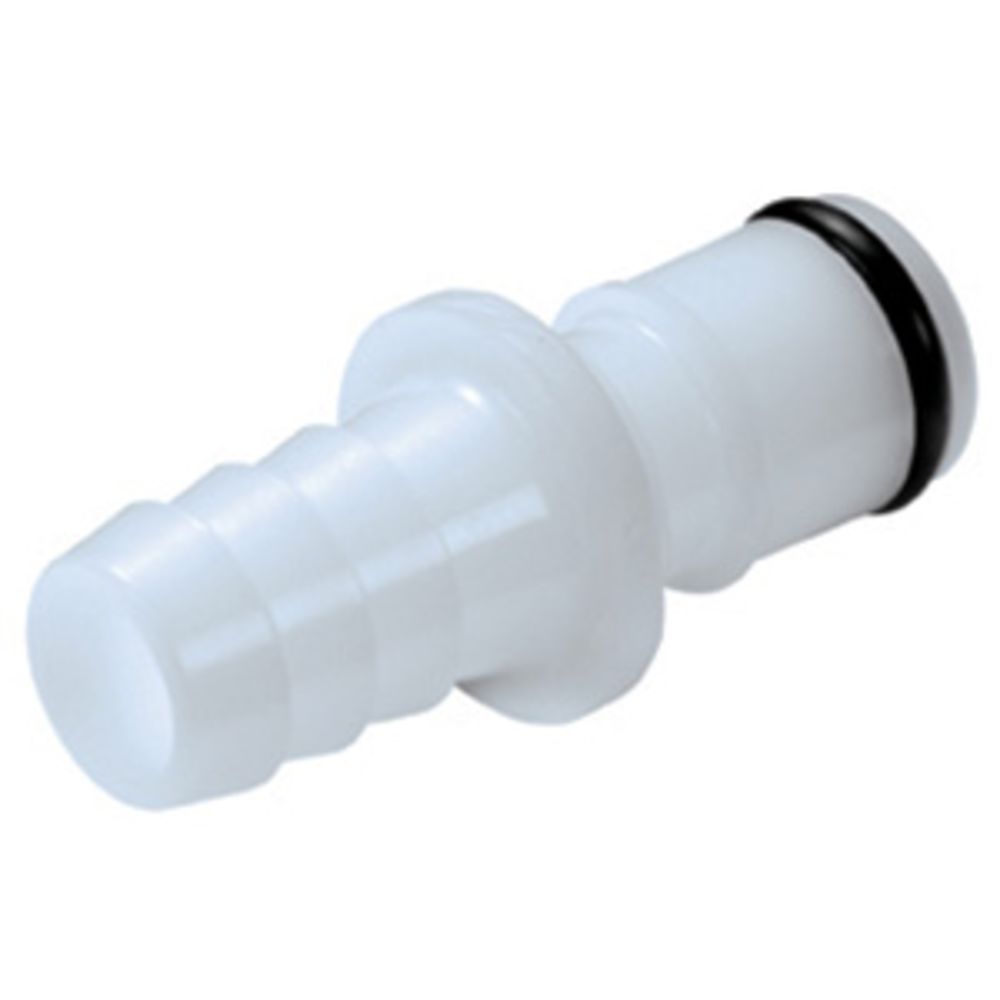

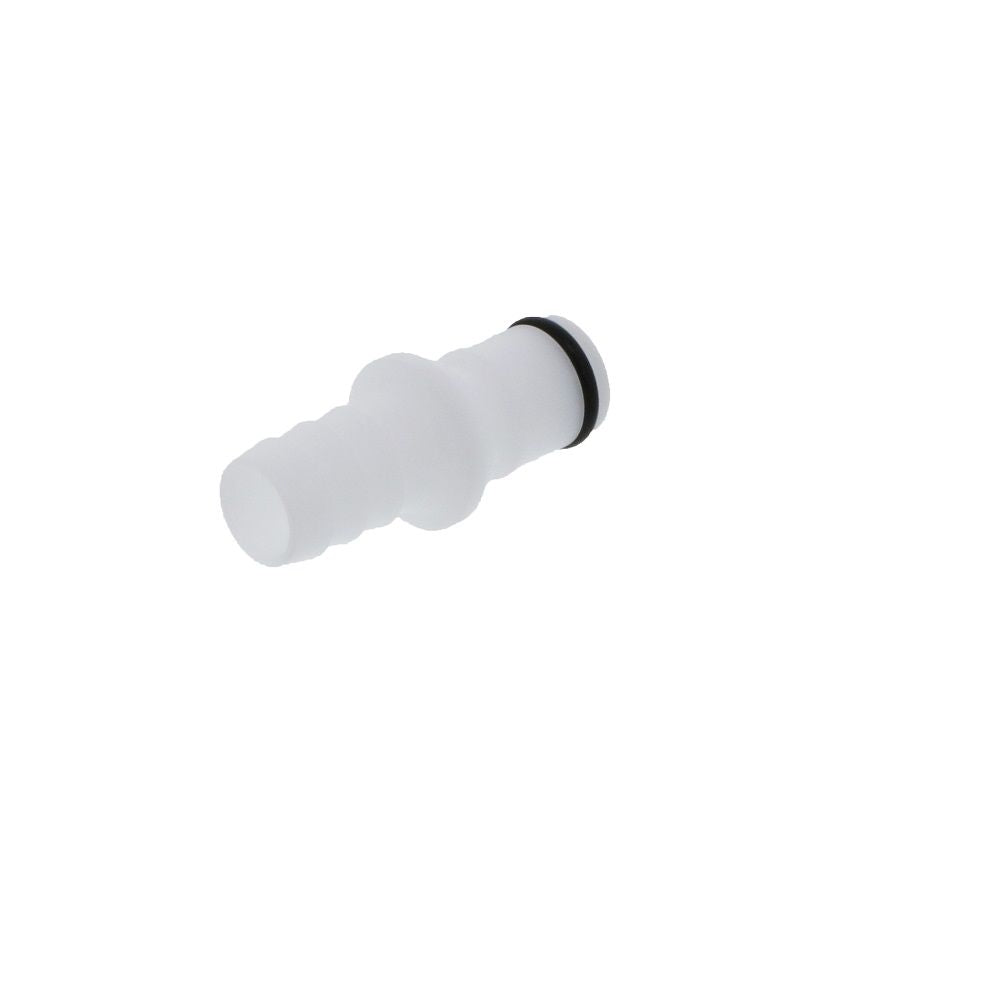

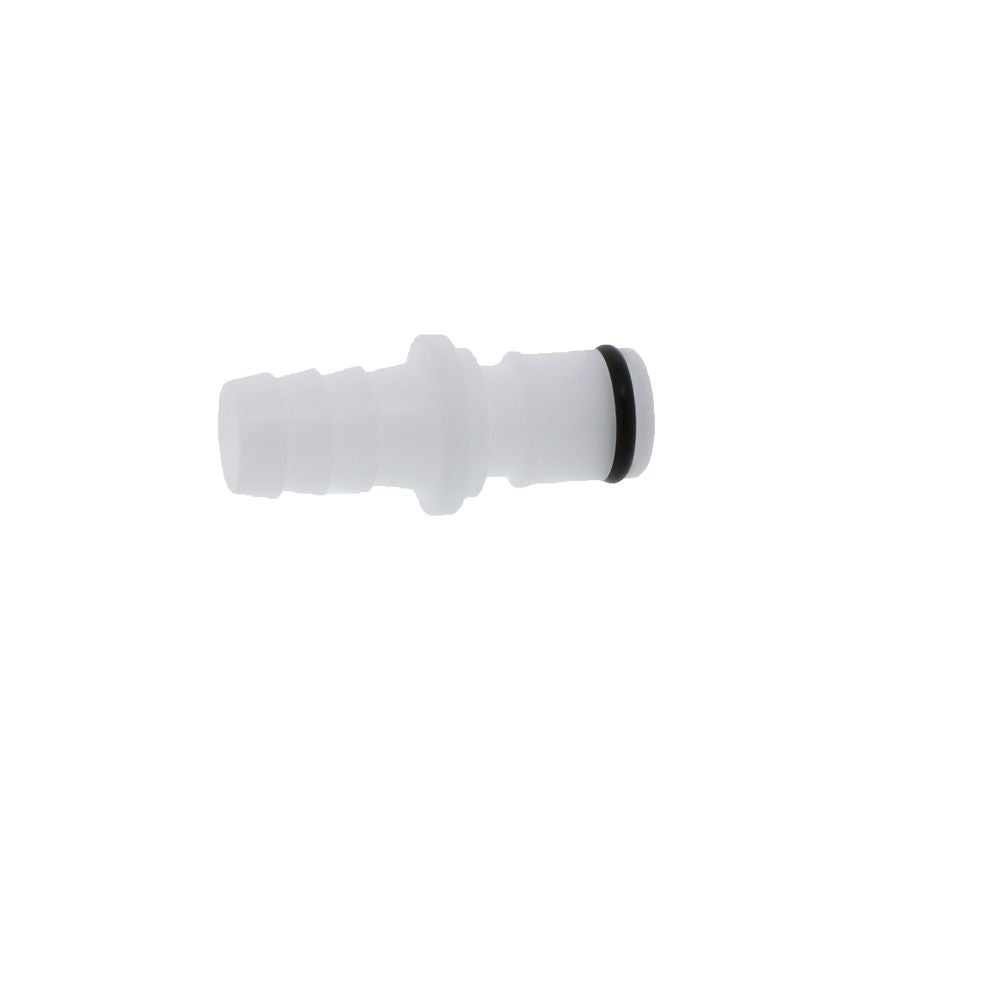

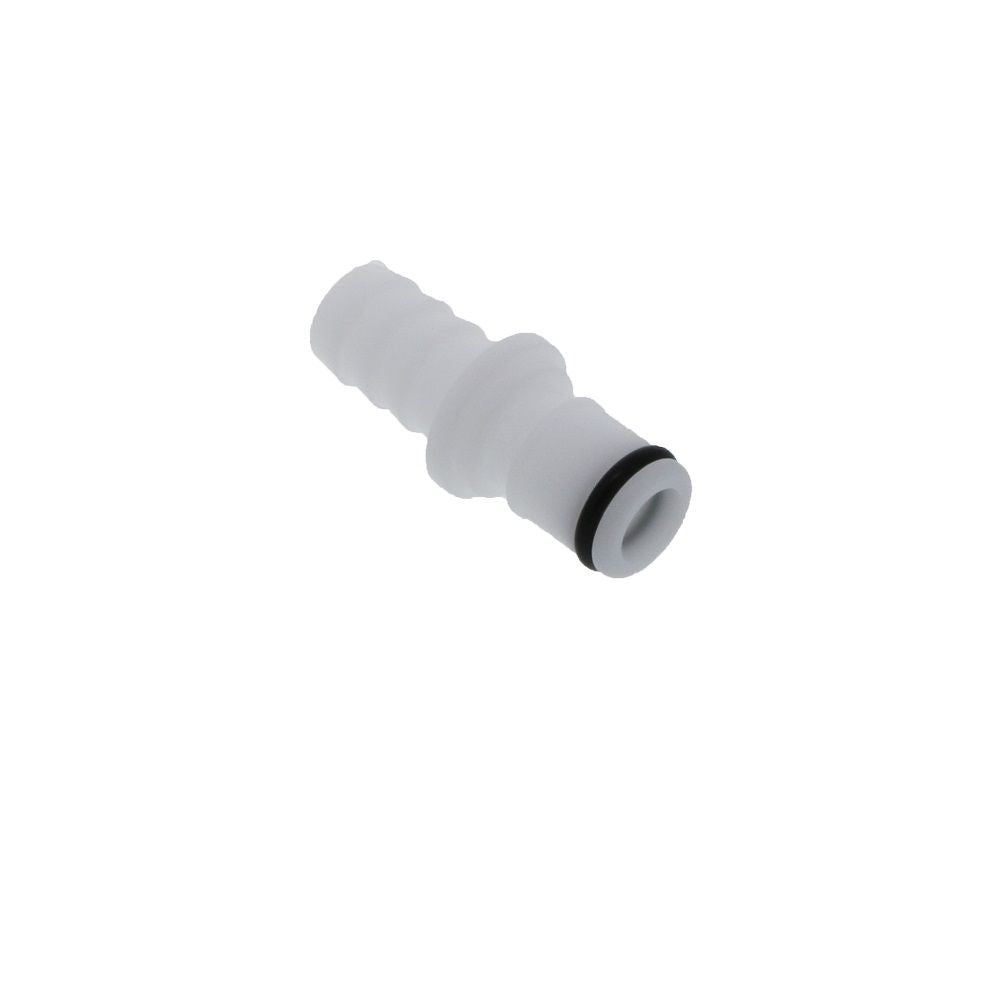

APC22006 NSF In-Line Hose Barb Coupling Insert 3/8 ID Barb

Part Number: 41000

Alt. Part Number: APC22006

In Stock

out of stock

In Stock

$1.74

1/4" flow APC Series couplings feature a plastic thumb latch, fewer moving parts and a smooth contoured design to deliver ease-of-use and excellent flow in a compact size. The patented APC Series has been expanded to include couplings with valves and thumb latch shrouds. A more rugged design on some models adds durability to increase the APC’s application range.

Specifications
  • NSF Listed
  • Material: Acetal
  • Color: White
  • Mounting Option: Free Floating
  • Seal Option: FDA EPDM
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Temperature Range: -40ºF to 180ºF




Weight & Dimensions

Weight (lbs)

0.05

Details

Series

APC

Max Temp (°F)

180

Max Pressure (Psi)

120

Min Temp (°F)

-40

Min Pressure (Psi)

vacuum

Barb Size

3/8" ID

Application

Water, Food, Beverage

Bag Quantity

25

Body Material

Acetal Copolymer

Color / Finish

White, Natural

Mounting Options

Free Floating

Origin

USA

Seal Material

FDA EPDM

Valve Type

Non-Valved

Warranty & Certifications

Certifications

NSF 169


APC22006




1/4" flow APC Series couplings feature a plastic thumb latch, fewer moving parts and a smooth contoured design to deliver ease-of-use and excellent flow in a compact size. The patented APC Series has been expanded to include couplings with valves and thumb latch shrouds. A more rugged design on some models adds durability to increase the APC’s application range.

Specifications
  • NSF Listed
  • Material: Acetal
  • Color: White
  • Mounting Option: Free Floating
  • Seal Option: FDA EPDM
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Temperature Range: -40ºF to 180ºF



Weight & Dimensions

Weight (lbs)

0.05

Details

Series

APC

Max Temp (°F)

180

Max Pressure (Psi)

120

Min Temp (°F)

-40

Min Pressure (Psi)

vacuum

Barb Size

3/8" ID

Application

Water, Food, Beverage

Bag Quantity

25

Body Material

Acetal Copolymer

Color / Finish

White, Natural

Mounting Options

Free Floating

Origin

USA

Seal Material

FDA EPDM

Valve Type

Non-Valved

Warranty & Certifications

Certifications

NSF 169

Documentation
APC22006
