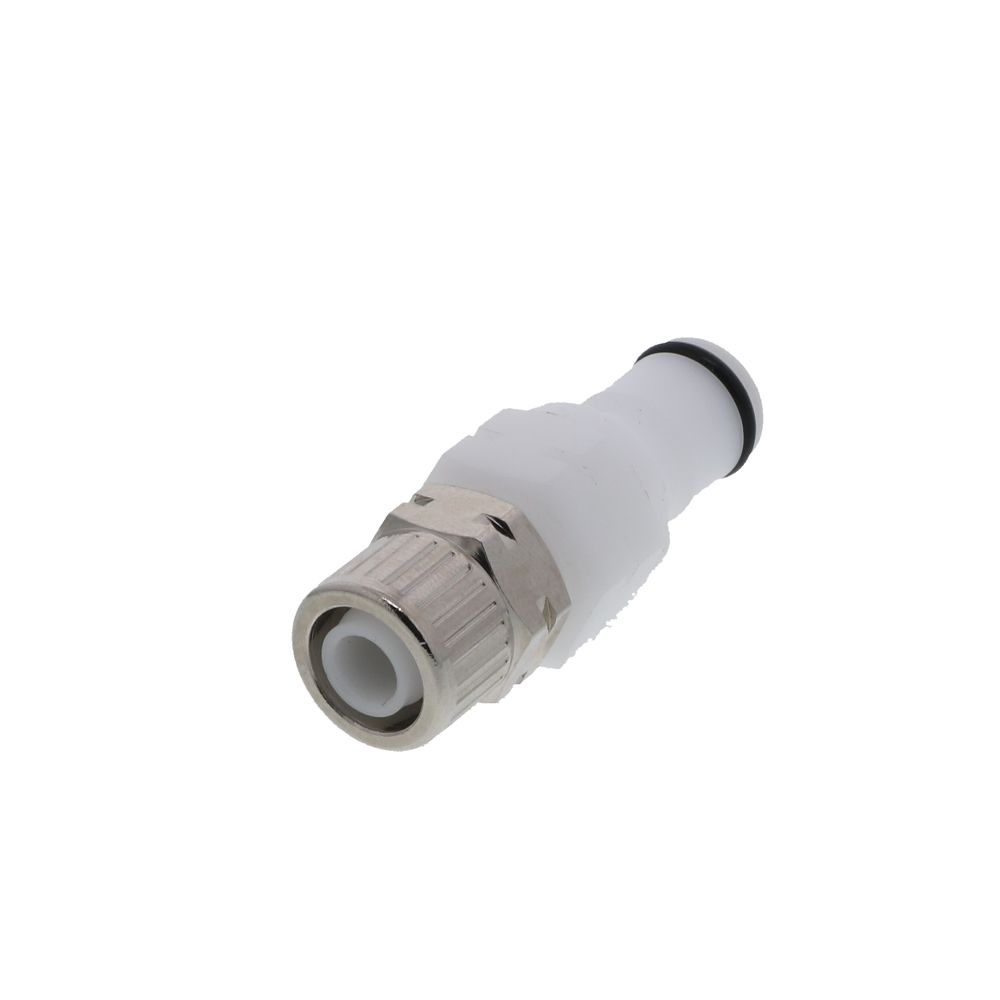

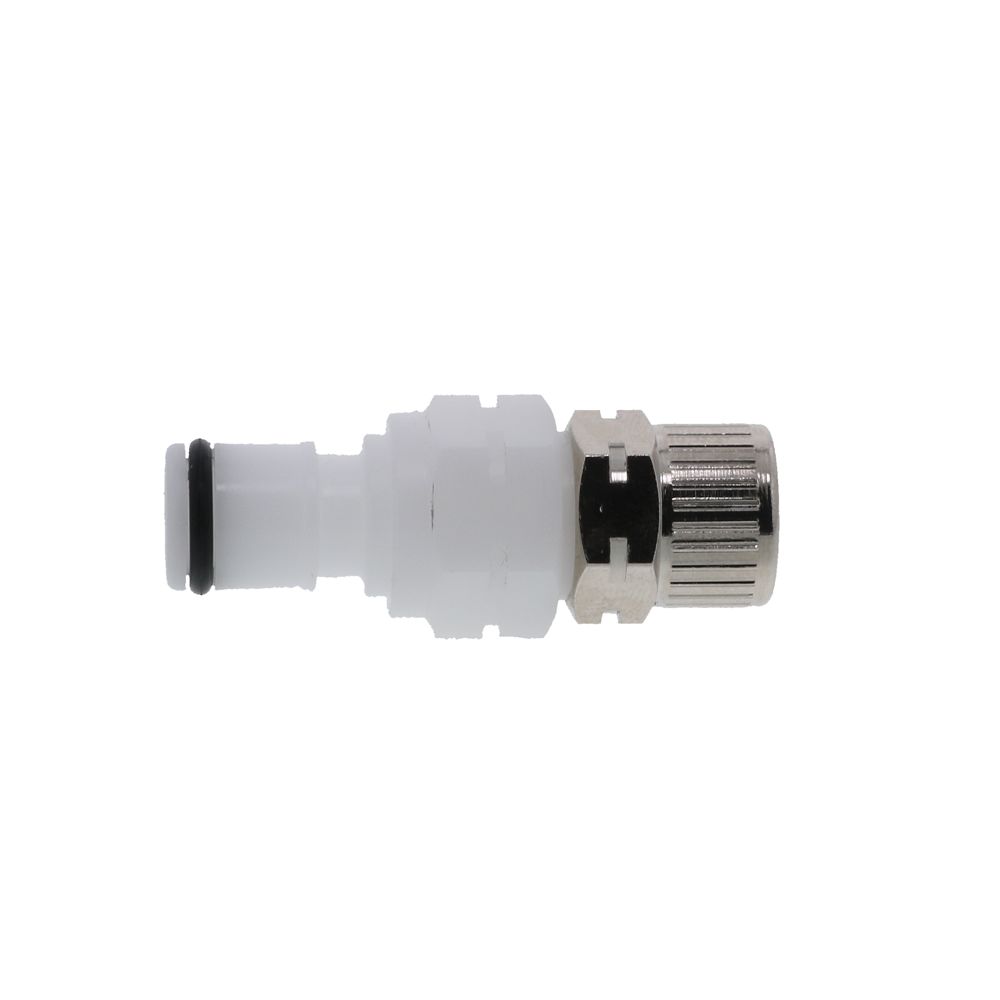

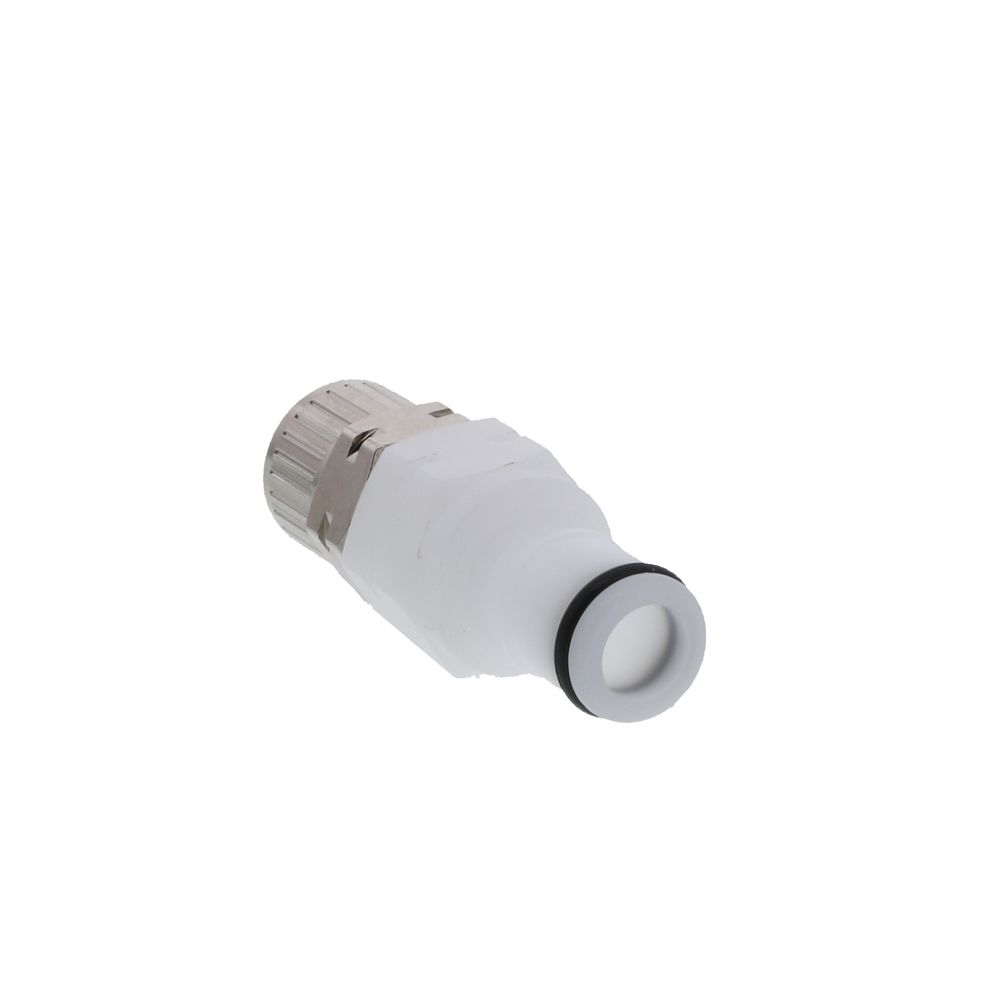

APC200M10 In-Line 10mm PTF Coupling Insert

APC Series couplings feature a plastic thumb latch, fewer moving parts and a smooth contoured design to deliver ease-of-use and excellent flow in a compact size. The patented APC Series has been expanded to include couplings with valves and thumb latch shrouds. A more rugged design on some models adds durability to increase the APC’s application range.

Specifications:

Material: Acetal
Color: White
Mounting Option: Free Floating
Seal Option: Buna-N
Pressure Range: Vacuum to 120 psi, 8.3 bar
Temperature Range: -40ºF to 180ºF

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water Food Beverage
Body Material	Acetal Copolymer
External Springs And Pin	Stainless Steel
Inlet Connection	10mm PTF
Max Pressure (Psi)	120
Max Temp (°F)	180
Min Pressure (Psi)	vacuum
Min Temp (°F)	-40
Mounting Options	Free Floating
Nsf Version	No
Outlet Connection	10mm PTF
Push-In Size	10mm OD
Seal Material	Buna-N
Series	APC
Shape	Straight
Size	10mm
Spring	316 Stainless steel
Thumb Latch	Acetal
Valve Type	Non-Valved
Color / Finish	White Natural
Connection Type	PTF
Type	Coupling
Shipping Dimensions
Shipping Length	0.2125 in.
Shipping Width	0.25 in.
Shipping Height	0.25 in.
Product Weight & Dimensions
Product Height	0.25
Product Length	0.2125
Product Width	0.25
Product Weight (lbs)	0.03

Product Details
Application	Water Food Beverage
Body Material	Acetal Copolymer
External Springs And Pin	Stainless Steel
Inlet Connection	10mm PTF
Max Pressure (Psi)	120
Max Temp (°F)	180
Min Pressure (Psi)	vacuum
Min Temp (°F)	-40
Mounting Options	Free Floating
Nsf Version	No
Outlet Connection	10mm PTF
Push-In Size	10mm OD
Seal Material	Buna-N
Series	APC
Shape	Straight
Size	10mm
Spring	316 Stainless steel
Thumb Latch	Acetal
Valve Type	Non-Valved
Color / Finish	White Natural
Connection Type	PTF
Type	Coupling
Product Weight & Dimensions
Product Weight (lbs)	0.05

Product Details
Application	Water Food Beverage
Body Material	Acetal Copolymer
External Springs And Pin	Stainless Steel
Inlet Connection	10mm PTF
Max Pressure (Psi)	120
Max Temp (°F)	180
Min Pressure (Psi)	vacuum
Min Temp (°F)	-40
Mounting Options	Free Floating
Nsf Version	No
Outlet Connection	10mm PTF
Push-In Size	10mm OD
Seal Material	Buna-N
Series	APC
Shape	Straight
Size	10mm
Spring	316 Stainless steel
Thumb Latch	Acetal
Valve Type	Non-Valved
Color / Finish	White Natural
Connection Type	PTF
Type	Coupling
Product Weight & Dimensions
Product Weight (lbs)	15

APC200M10 In-Line 10mm PTF Coupling Insert Manual
