Colder Products

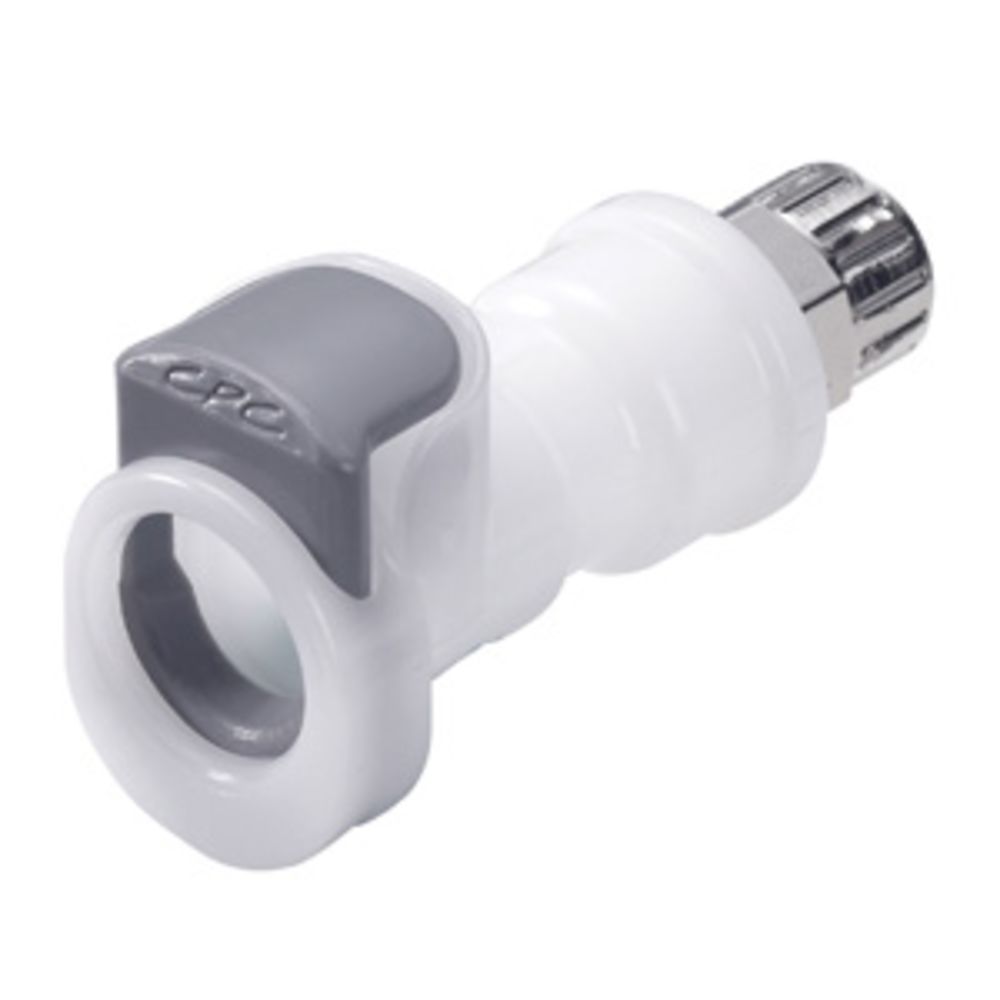

APC130M8SH 8 MM PTF Coupling Body with Shroud 1/4 PTF - Bag of 50

Part Number: APC130M8SH:50PK

In Stock

out of stock

In Stock

$352.68

APC Series Coupling Body with 1/4" OD Compression Termination with shut off valve features an acetal shrouded thumb latch, fewer moving parts and a smooth contoured design to deliver and easy to use and excellent flow in a compact size.

Specifications:
  • Material: Acetal
  • Color: White
  • Valve Option: Non-Valved
  • Mounting Option: Free Floating
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Temperature Range: -40ºF to 180ºF
  • NSF Listed Version (part # 49300) Available Upon Request




Weight & Dimensions

Weight (lbs)

1.25

Details

Series

APC

Max Temp (°F)

180

Max Pressure (Psi)

120

Min Temp (°F)

-40

Min Pressure (Psi)

vacuum

Push-In Size

8mm OD

Application

Water, Food, Beverage

Bag Quantity

25

Body Material

Acetal Copolymer

Color / Finish

White, Natural

Mounting Options

Free Floating

Size

1/4"

Spring

316 Stainless steel

Valve Type

Non-Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Acetal

Inlet/Outlet Connection

1/4" FPT


APC130M8SH




APC Series Coupling Body with 1/4" OD Compression Termination with shut off valve features an acetal shrouded thumb latch, fewer moving parts and a smooth contoured design to deliver and easy to use and excellent flow in a compact size.

Specifications:
  • Material: Acetal
  • Color: White
  • Valve Option: Non-Valved
  • Mounting Option: Free Floating
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Temperature Range: -40ºF to 180ºF
  • NSF Listed Version (part # 49300) Available Upon Request



Weight & Dimensions

Weight (lbs)

1.25

Details

Series

APC

Max Temp (°F)

180

Max Pressure (Psi)

120

Min Temp (°F)

-40

Min Pressure (Psi)

vacuum

Push-In Size

8mm OD

Application

Water, Food, Beverage

Bag Quantity

25

Body Material

Acetal Copolymer

Color / Finish

White, Natural

Mounting Options

Free Floating

Size

1/4"

Spring

316 Stainless steel

Valve Type

Non-Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Acetal

Inlet/Outlet Connection

1/4" FPT
