Colder Products

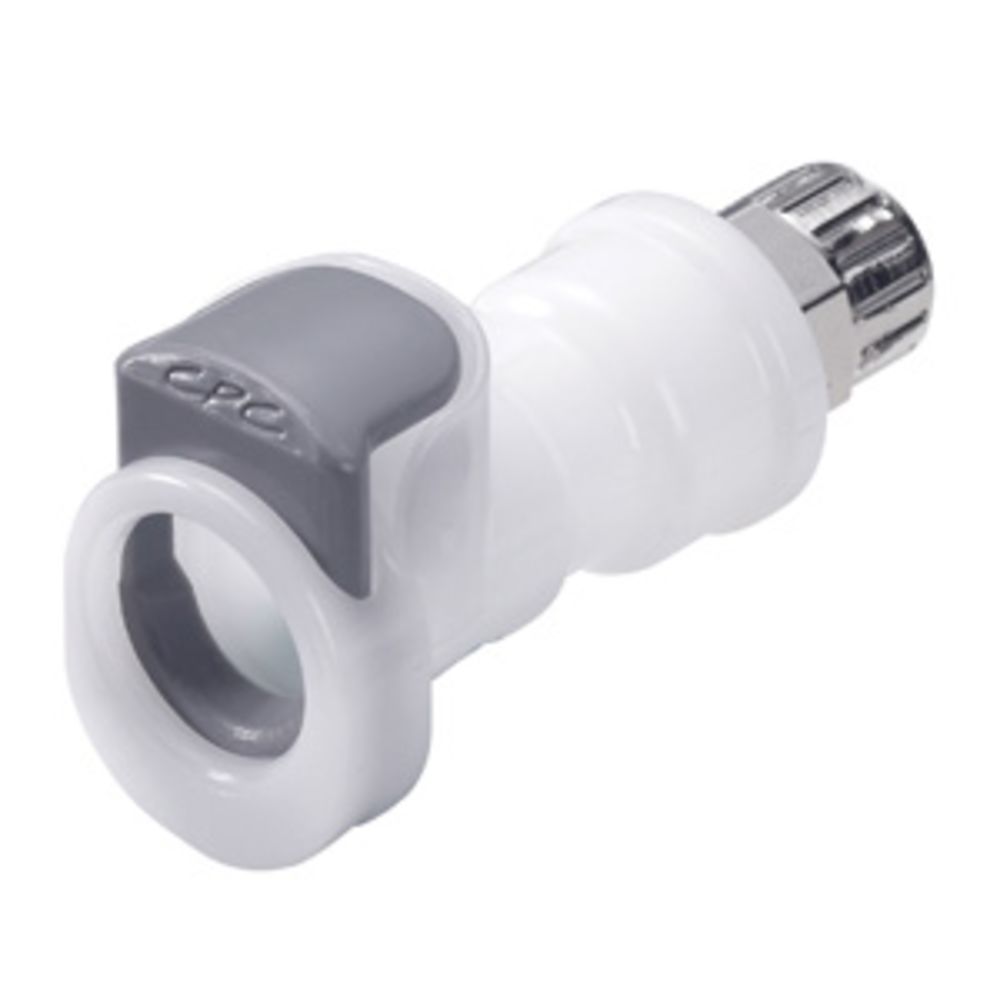

APC13006SH In-Line PTF Coupling Body with Shroud 3/8 PTF

Part Number: APC13006SH

In Stock

out of stock

In Stock

$7.12

APC Series Coupling Body with 3/8" OD Compression Termination with shut off valve features an acetal shrouded thumb latch, fewer moving parts and a smooth contoured design to deliver and easy to use and excellent flow in a compact size.

Specifications:
  • Material: Acetal
  • Color: White
  • Valve Option: Non-Valved
  • Mounting Option: Free Floating
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Temperature Range: -40ºF to 180ºF
  • NSF Listed Version (part # 49300) Available Upon Request




Weight & Dimensions

Weight (lbs)

0.05

Details

Application

Water, Food, Beverage

Body Material

Acetal Copolymer

External Springs And Pin

Stainless Steel

Inlet/Outlet Connection

3/8" FPT

Max Pressure (Psi)

120

Max Temp (°F)

180

Min Pressure (Psi)

vacuum

Min Temp (°F)

-40

Mounting Options

Free Floating

Push-In Size

3/8" OD

Series

APC

Size

3/8"

Spring

316 Stainless steel

Thumb Latch

Acetal

Valve Type

Non-Valved

Color / Finish

White, Natural

Connection Type

Female (FPT)

Type

Coupling Body


APC13006SH




APC Series Coupling Body with 3/8" OD Compression Termination with shut off valve features an acetal shrouded thumb latch, fewer moving parts and a smooth contoured design to deliver and easy to use and excellent flow in a compact size.

Specifications:
  • Material: Acetal
  • Color: White
  • Valve Option: Non-Valved
  • Mounting Option: Free Floating
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Temperature Range: -40ºF to 180ºF
  • NSF Listed Version (part # 49300) Available Upon Request



Weight & Dimensions

Weight (lbs)

0.05

Details

Application

Water, Food, Beverage

Body Material

Acetal Copolymer

External Springs And Pin

Stainless Steel

Inlet/Outlet Connection

3/8" FPT

Max Pressure (Psi)

120

Max Temp (°F)

180

Min Pressure (Psi)

vacuum

Min Temp (°F)

-40

Mounting Options

Free Floating

Push-In Size

3/8" OD

Series

APC

Size

3/8"

Spring

316 Stainless steel

Thumb Latch

Acetal

Valve Type

Non-Valved

Color / Finish

White, Natural

Connection Type

Female (FPT)

Type

Coupling Body

Documentation
APC13006SH
