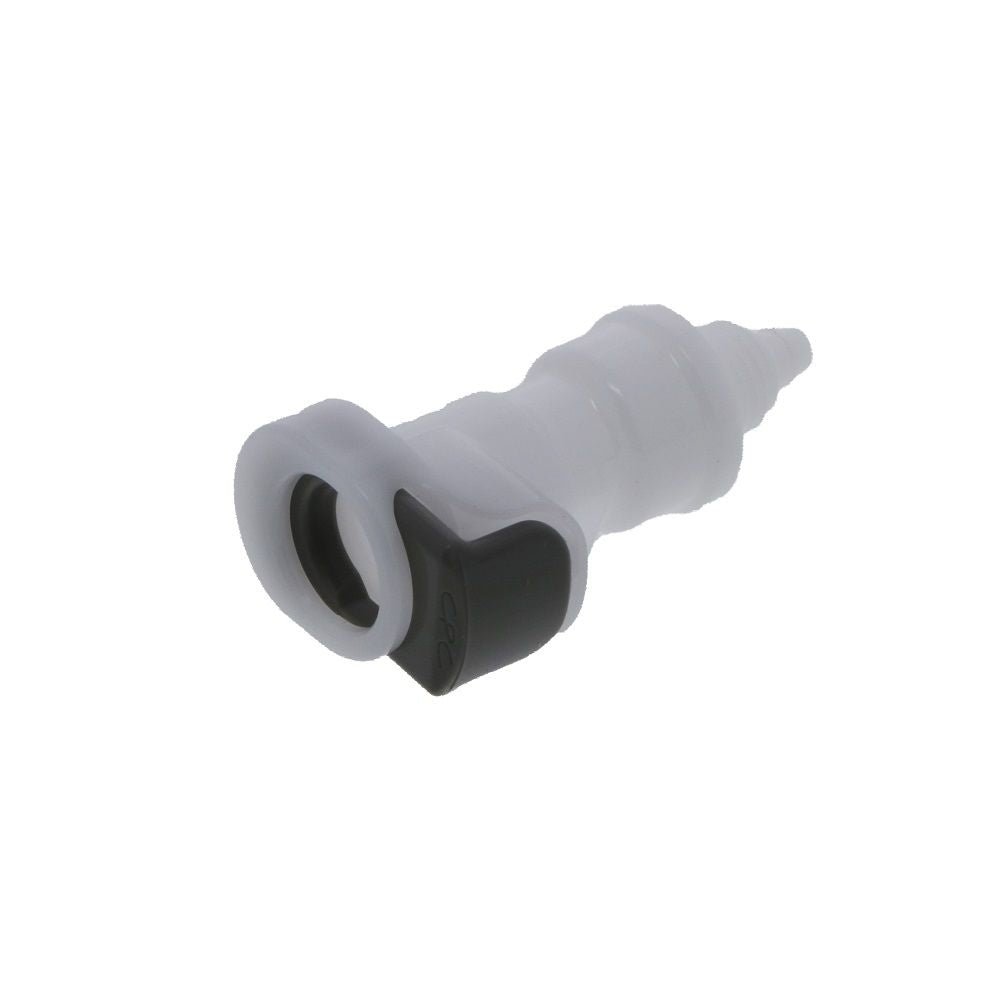

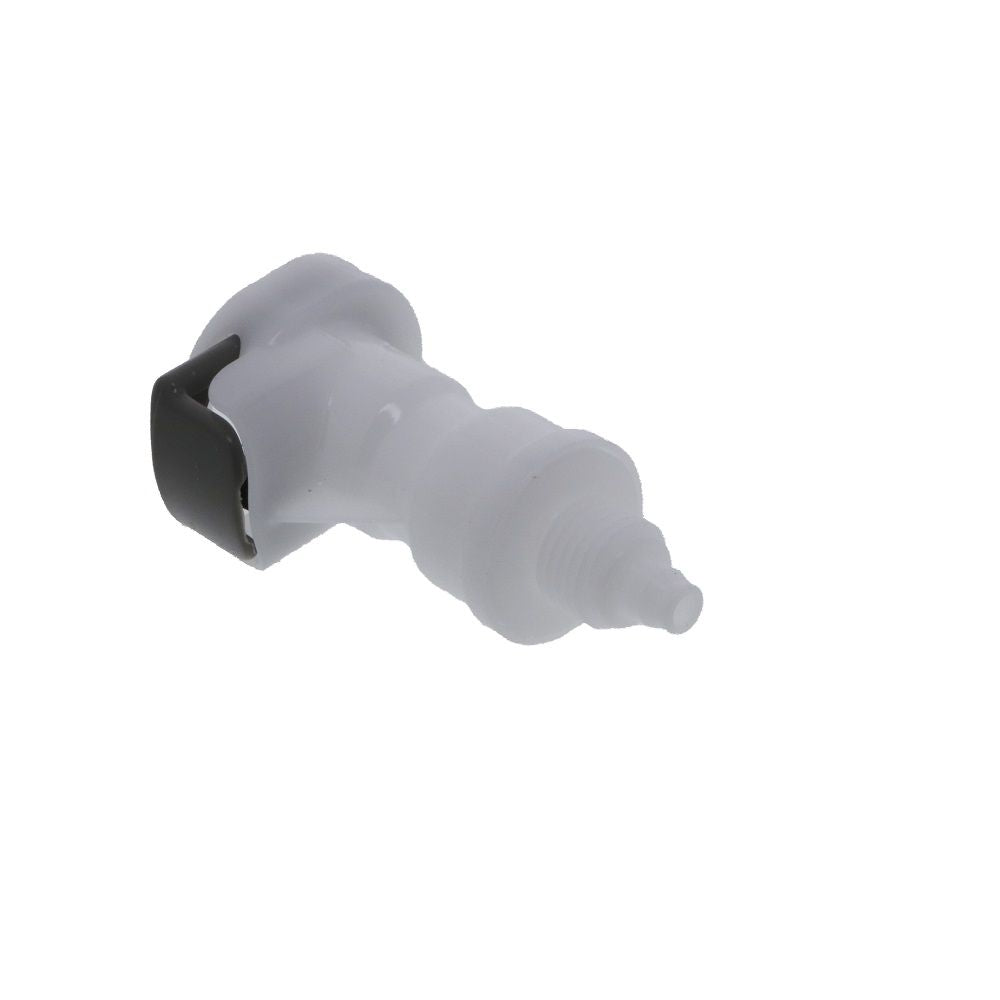

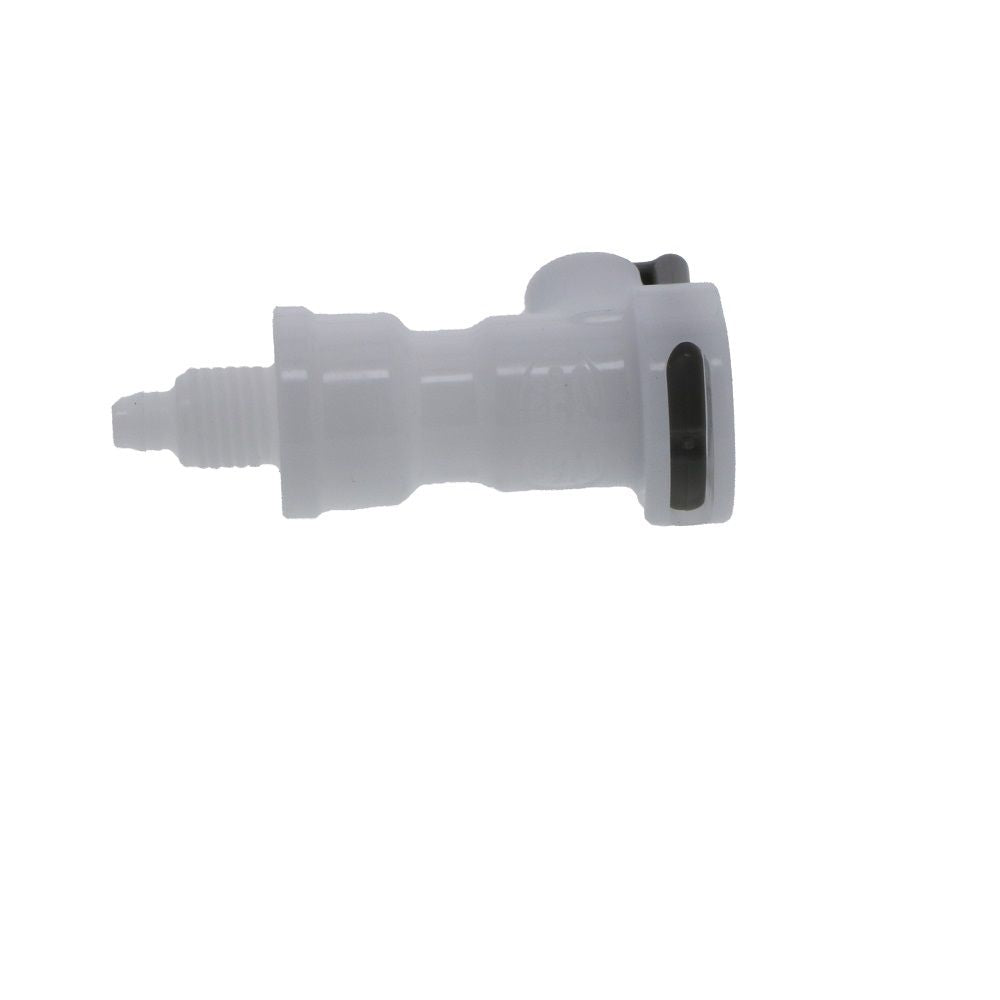

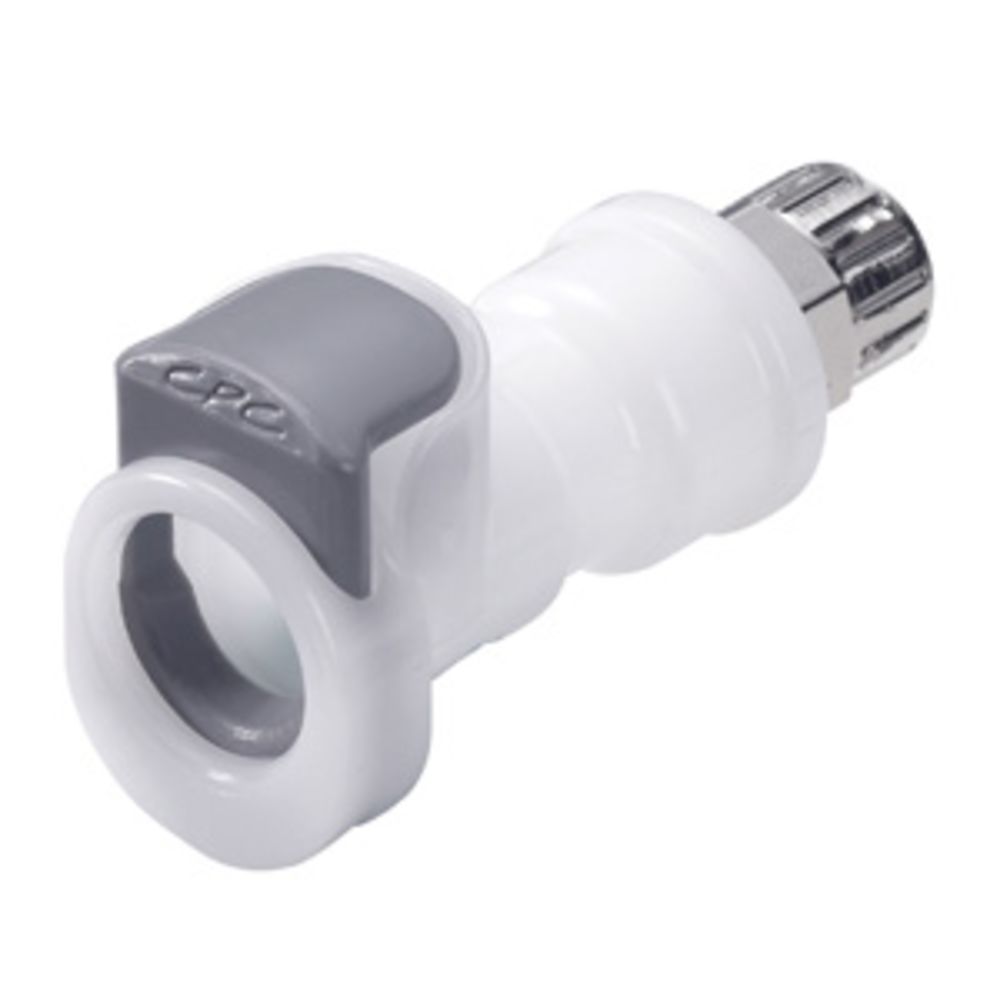

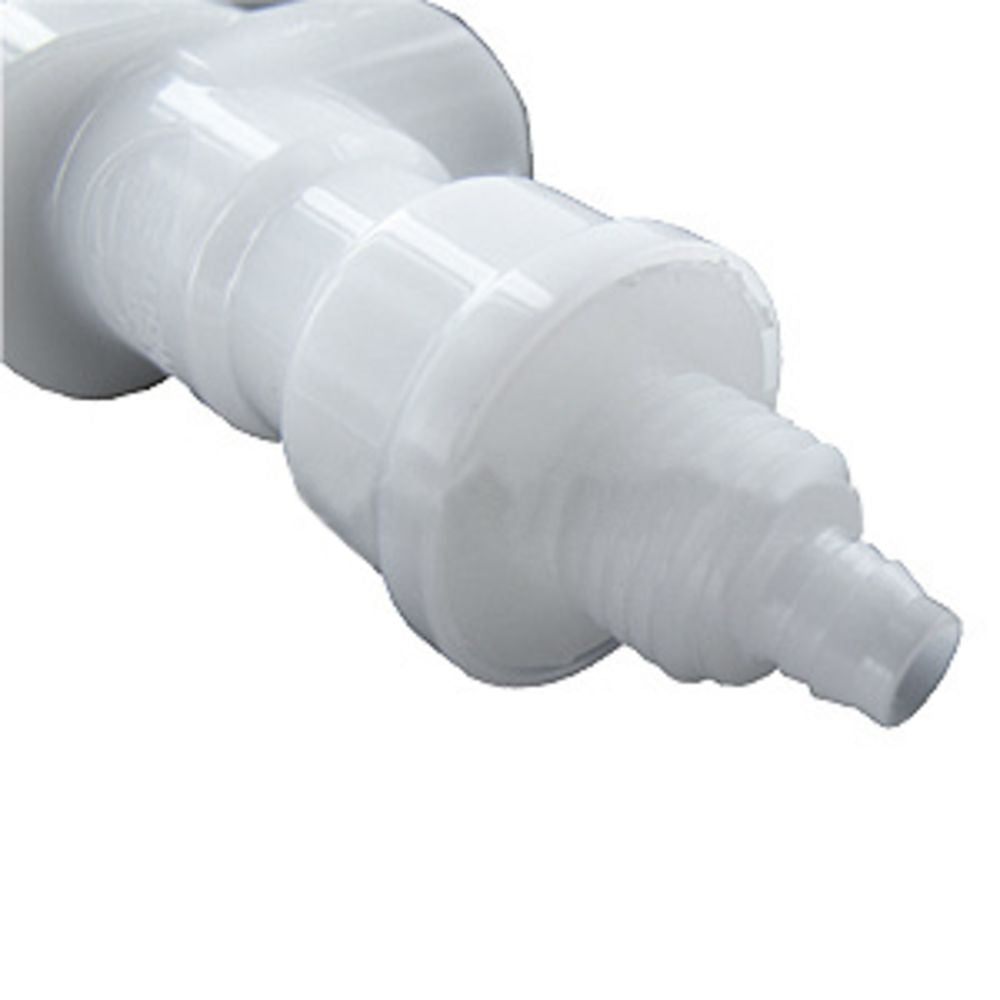

APC13004SH In-Line PTF Coupling Body with Shroud 1/4 PTF

APC Series Coupling Body with 1/4" OD Compression Termination with shut off valve features an acetal shrouded thumb latch, fewer moving parts and a smooth contoured design to deliver and easy to use and excellent flow in a compact size.

Specifications:

Material: Acetal
Color: White
Valve Option: Non-Valved
Mounting Option: Free Floating
Pressure Range: Vacuum to 120 psi, 8.3 bar
Temperature Range: -40ºF to 180ºF
NSF Listed Version (part # 49300) Available Upon Request

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water Food Beverage
Body Material	Acetal Copolymer
External Springs And Pin	316 Stainless Steel
Inlet Connection	1/4" FPT
Max Pressure (Psi)	120
Max Temp (°F)	180
Min Pressure (Psi)	vacuum
Min Temp (°F)	-40
Mounting Options	Free Floating
Nsf Version	No
Outlet Connection	1/4" FPT
Push-In Size	1/4" OD
Series	APC
Shape	Straight
Size	1/4"
Spring	316 Stainless Steel
Thumb Latch	Acetal
Valve Type	Non-Valved
Color / Finish	White Natural
Connection Type	Female (FPT)
Origin	U.S.A.
Type	Coupling Body
