Colder Products

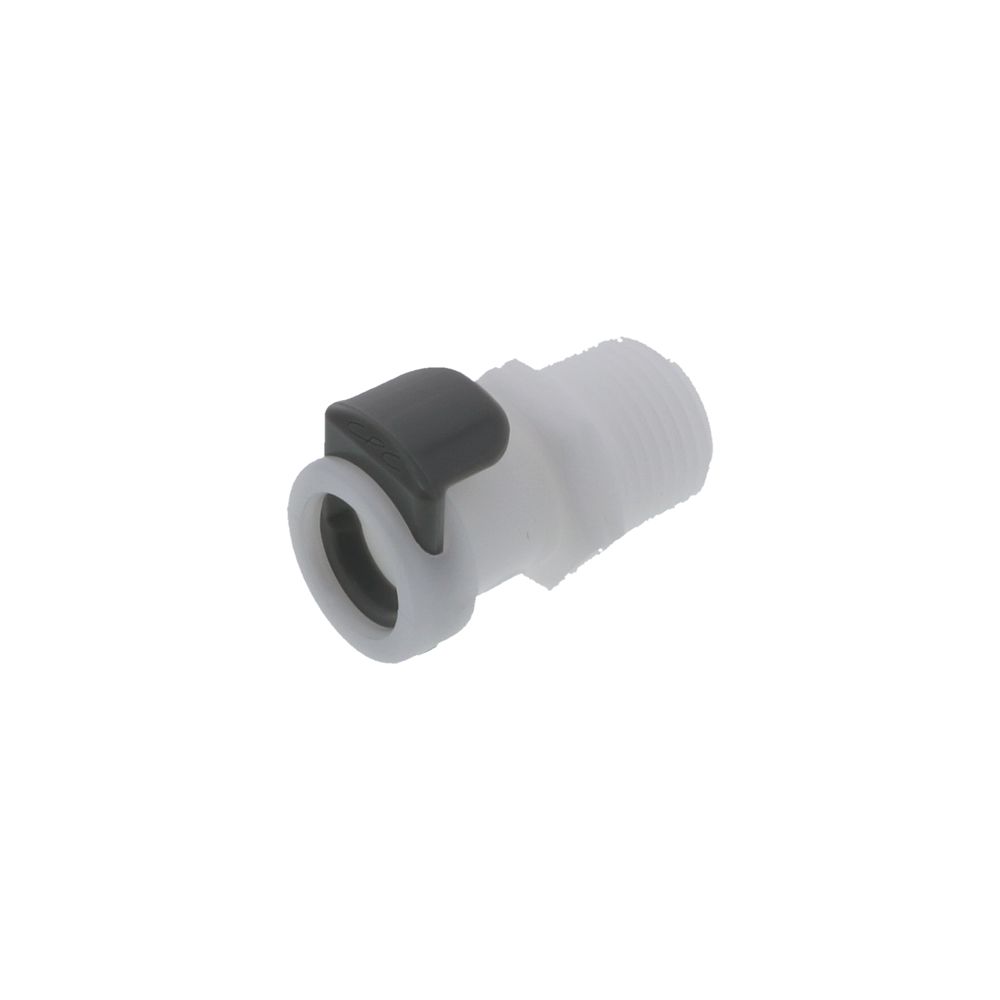

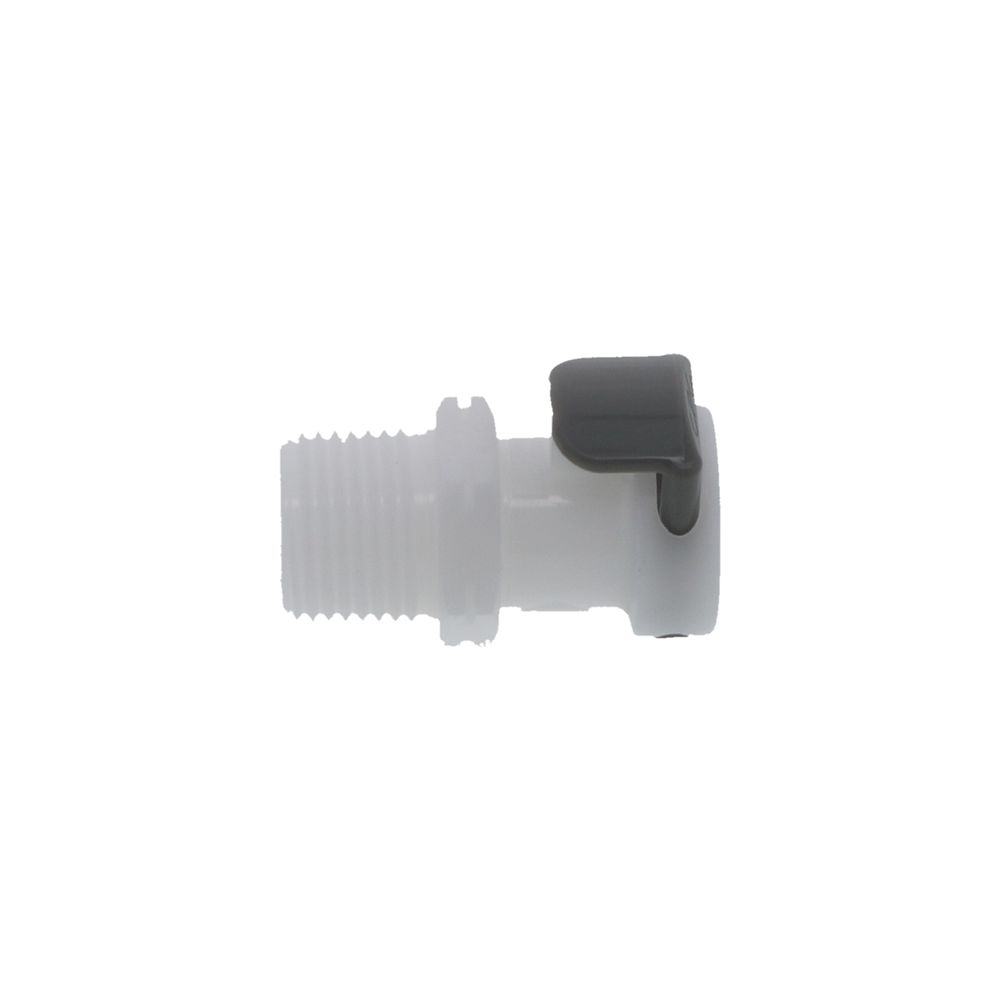

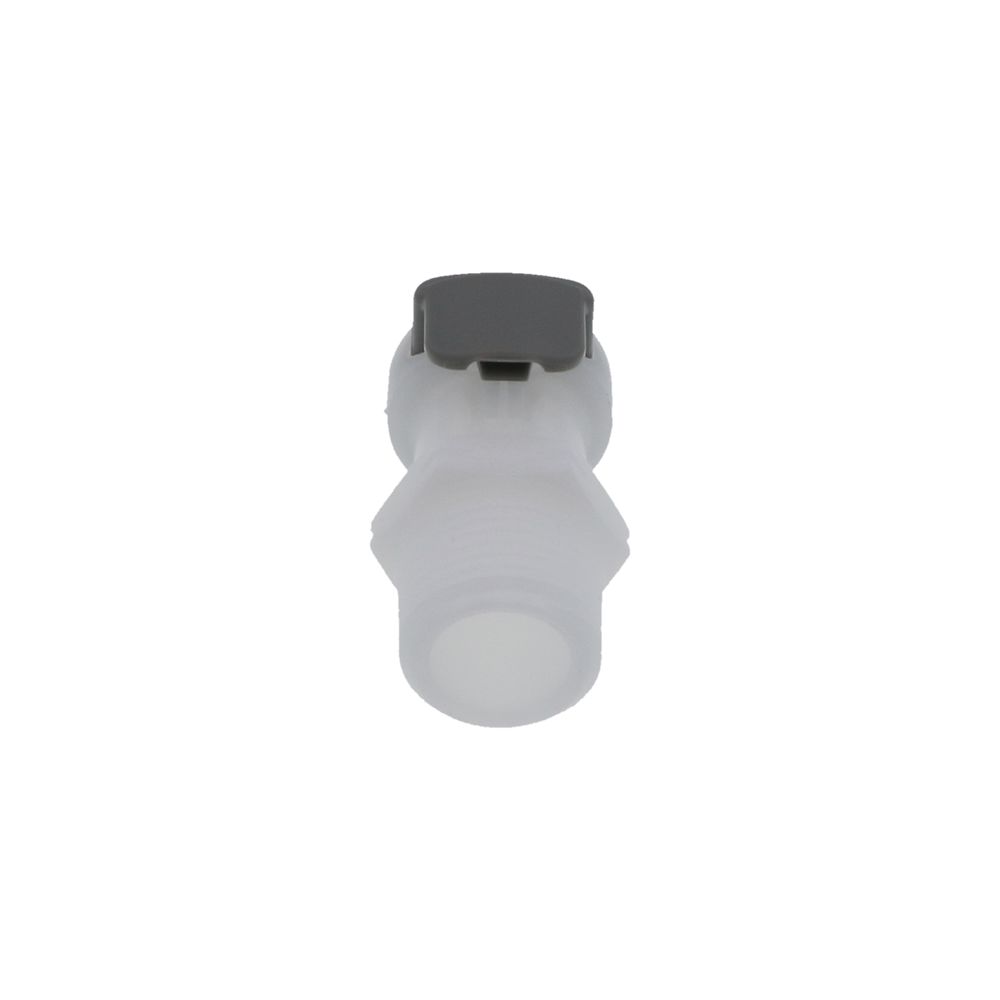

APC10006BSPT 3/8 BSPT Non-Valved Coupling Body

Part Number: APC10006BSPT

In Stock

out of stock

In Stock

$2.85

Specifications:
  • Material: Acetal
  • Color: White
  • Valve Option: Non-Valved
  • Mounting Option: Thread
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Temperature Range: -40°F to 180°F




Weight & Dimensions

Length (inches)

1.25

Height (inches)

0.88

Width (inches)

0.88

Weight (lbs)

0.000625

Details

Series

APC

Max Temp (°F)

180

Max Pressure (Psi)

120

Min Temp (°F)

-40

Min Pressure (Psi)

vacuum

Application

Water, Food, Beverage

Bag Quantity

25

Body Material

Acetal Copolymer

Color / Finish

White

Mounting Options

Thread

Size

3/8"

Spring

316 Stainless steel

Valve Type

Non-Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Acetal

Inlet/Outlet Connection

3/8" BSP


APC10006BSPT




Specifications:
  • Material: Acetal
  • Color: White
  • Valve Option: Non-Valved
  • Mounting Option: Thread
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Temperature Range: -40°F to 180°F



Weight & Dimensions

Length (inches)

1.25

Height (inches)

0.88

Width (inches)

0.88

Weight (lbs)

0.000625

Details

Series

APC

Max Temp (°F)

180

Max Pressure (Psi)

120

Min Temp (°F)

-40

Min Pressure (Psi)

vacuum

Application

Water, Food, Beverage

Bag Quantity

25

Body Material

Acetal Copolymer

Color / Finish

White

Mounting Options

Thread

Size

3/8"

Spring

316 Stainless steel

Valve Type

Non-Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Acetal

Inlet/Outlet Connection

3/8" BSP

Documentation
APC10006BSPT
