Specifications:
- Material: Acetal
- Color: White
- Valve Option: Non-Valved
- Mounting Option: 3/8" NPT Thread
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Temperature Range: -40ºF to 180ºF
- NSF Listed Version (part # 49200) Available Upon Request
Weight & Dimensions
Height (inches) | 0.88 |
Length (inches) | 1.31 |
Weight (lbs) | 0.000625 |
Width (inches) | 0.88 |
Details
Application | Water, Food, Beverage |
Body Material | Acetal Copolymer |
External Springs And Pin | Stainless Steel |
Inlet/Outlet Connection | 3/8" MPT |
Max Pressure (Psi) | 120 |
Max Temp (°F) | 180 |
Min Pressure (Psi) | vacuum |
Min Temp (°F) | -40 |
Mounting Options | Thread |
Series | APC |
Size | 3/8" |
Spring | 316 Stainless steel |
Thumb Latch | Acetal |
Valve Type | Non-Valved |
Color / Finish | White |
Connection Type | Male (MPT) |
Origin | USA |
Type | Coupling Body |

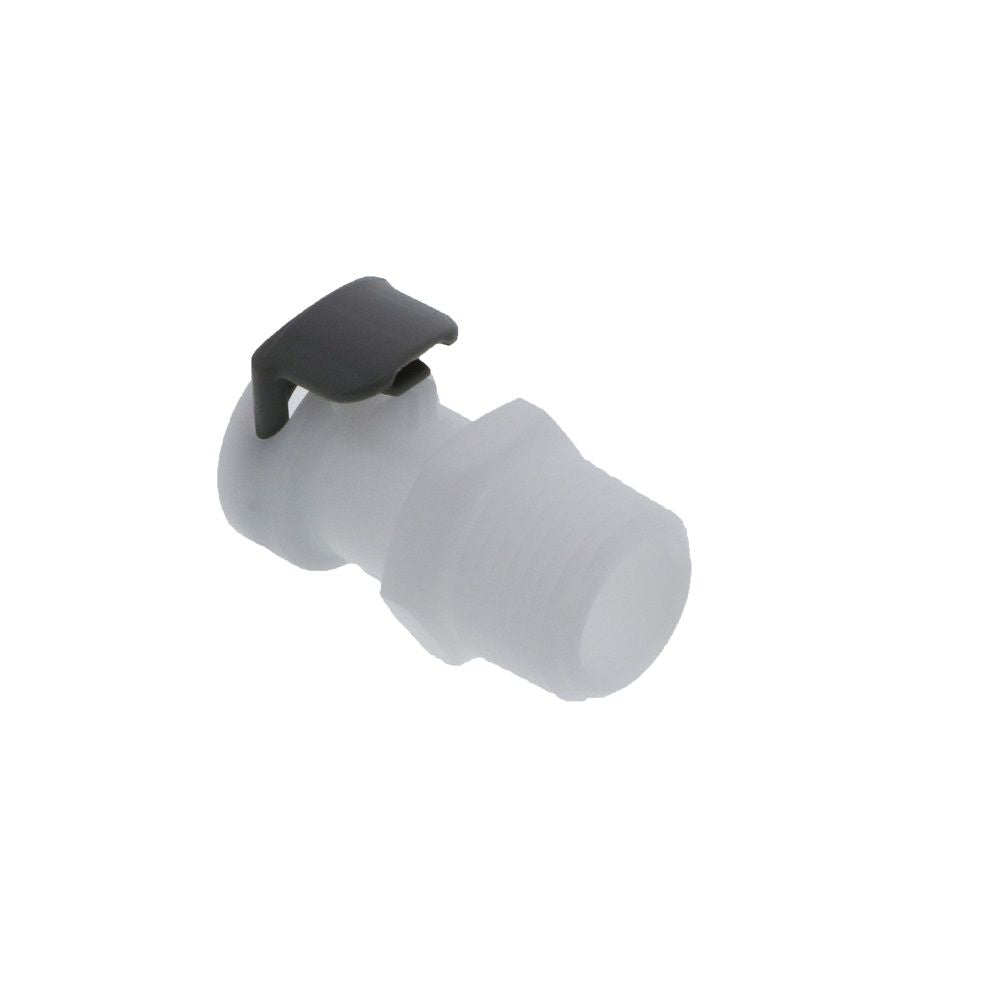

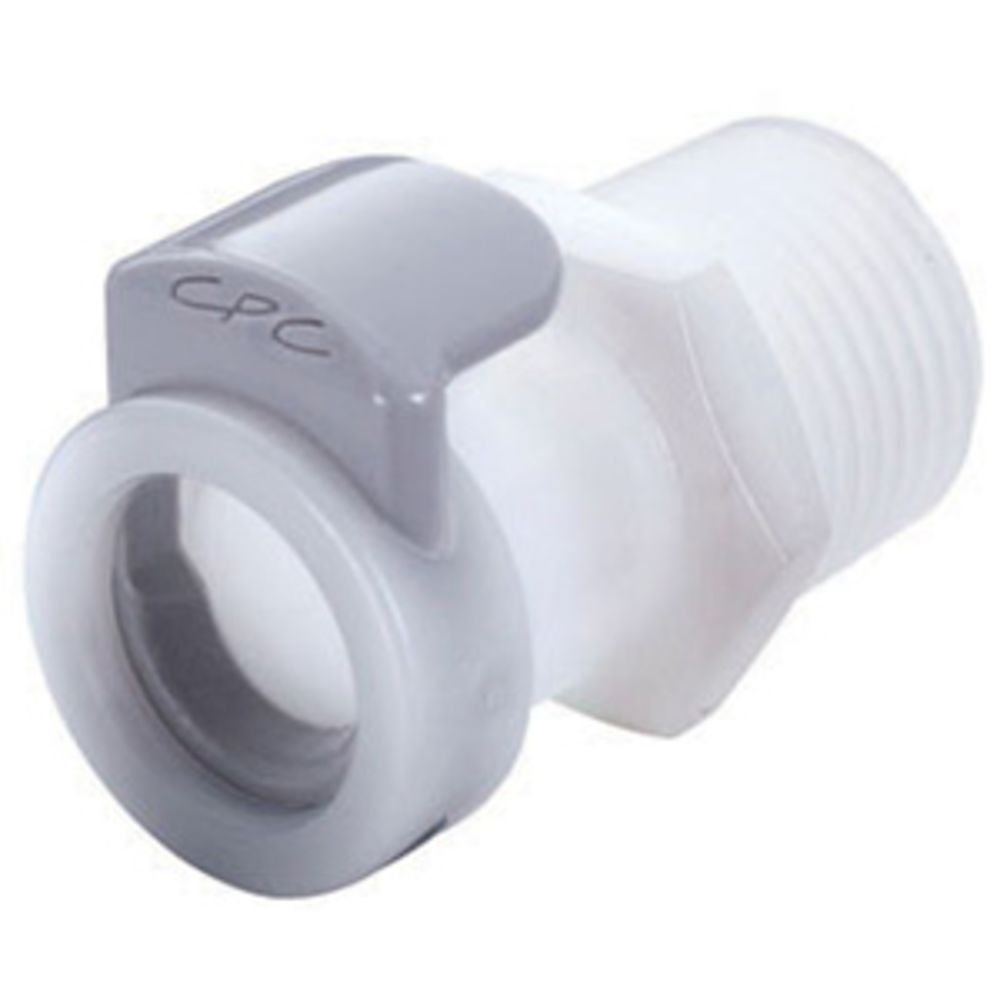

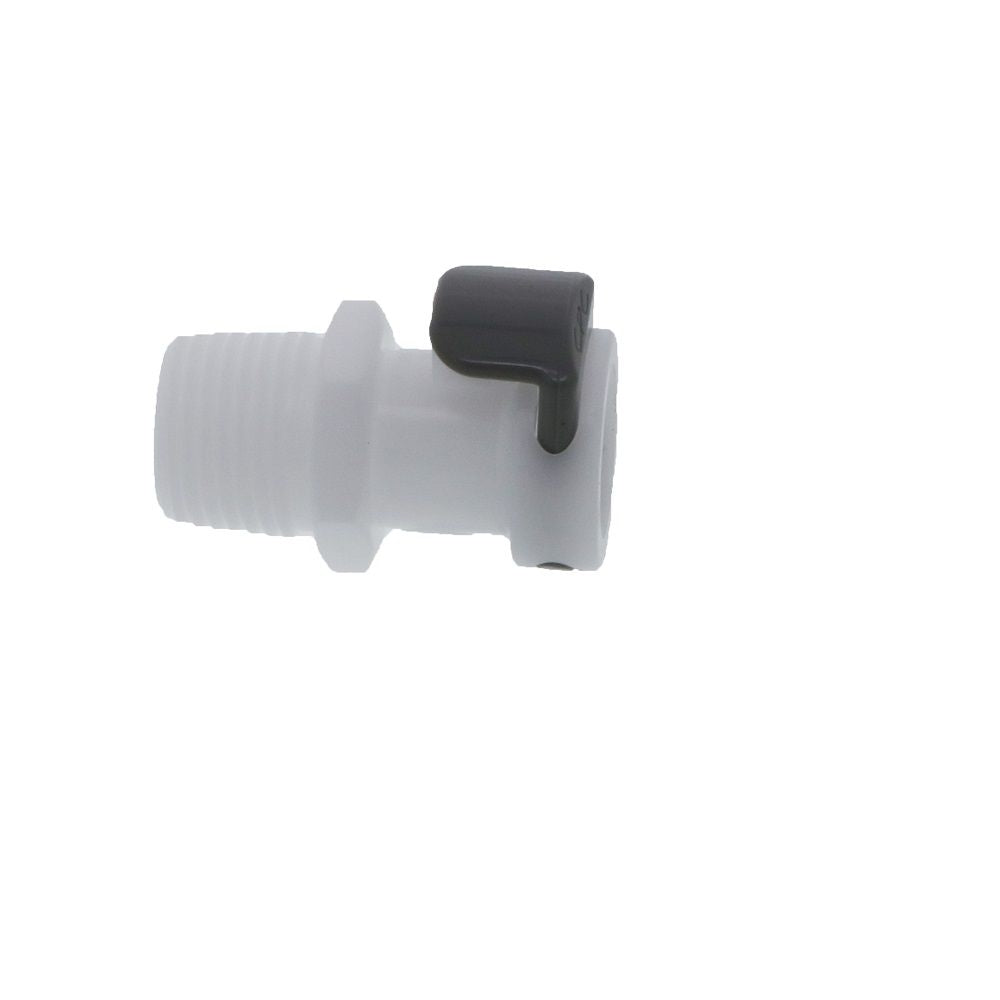

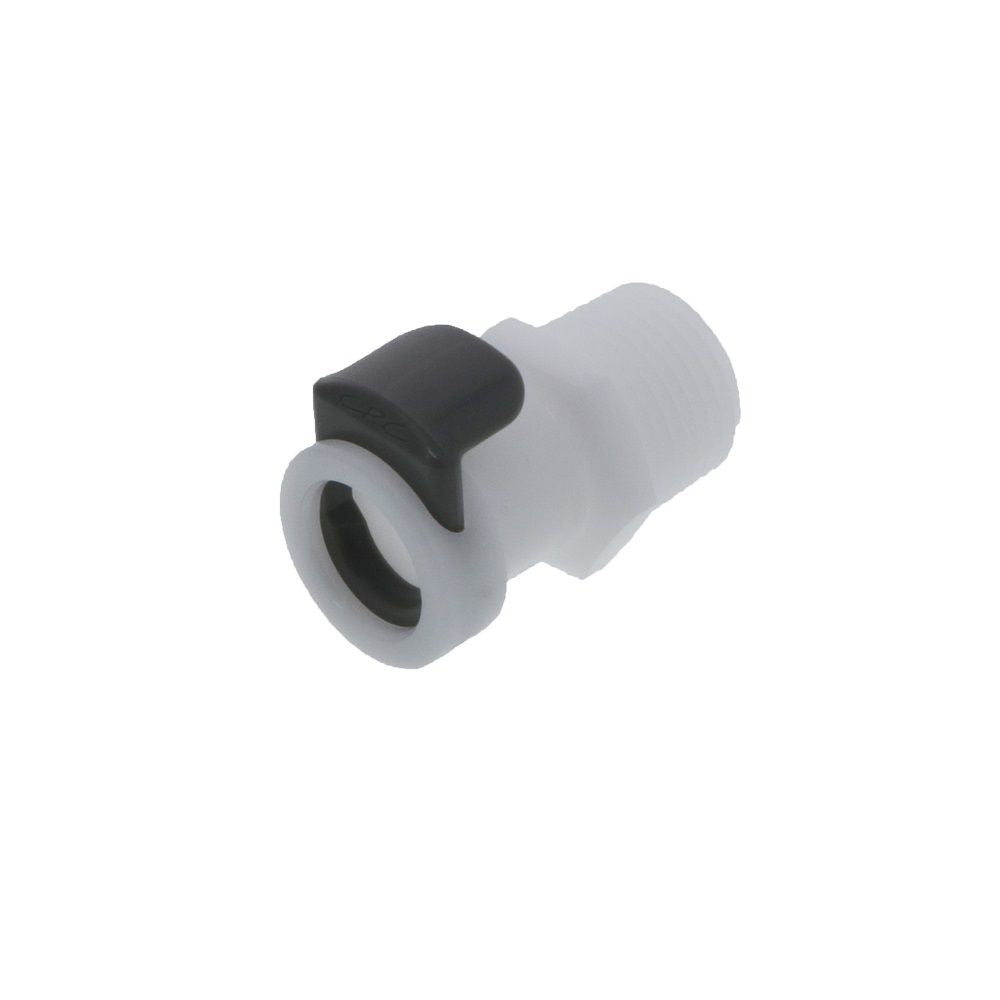

APC Series Coupling Body with 3/8" NPT male thread features an acetal shrouded thumb latch, fewer moving parts and a smooth contoured design to deliver and easy to use and excellent flow in a compact size.
Specifications:
- Material: Acetal
- Color: White
- Valve Option: Non-Valved
- Mounting Option: 3/8" NPT Thread
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Temperature Range: -40ºF to 180ºF
- NSF Listed Version (part # 49200) Available Upon Request
Weight & Dimensions
Height (inches) | 0.88 |
Length (inches) | 1.31 |
Weight (lbs) | 0.000625 |
Width (inches) | 0.88 |
Details
Application | Water, Food, Beverage |
Body Material | Acetal Copolymer |
External Springs And Pin | Stainless Steel |
Inlet/Outlet Connection | 3/8" MPT |
Max Pressure (Psi) | 120 |
Max Temp (°F) | 180 |
Min Pressure (Psi) | vacuum |
Min Temp (°F) | -40 |
Mounting Options | Thread |
Series | APC |
Size | 3/8" |
Spring | 316 Stainless steel |
Thumb Latch | Acetal |
Valve Type | Non-Valved |
Color / Finish | White |
Connection Type | Male (MPT) |
Origin | USA |
Type | Coupling Body |
