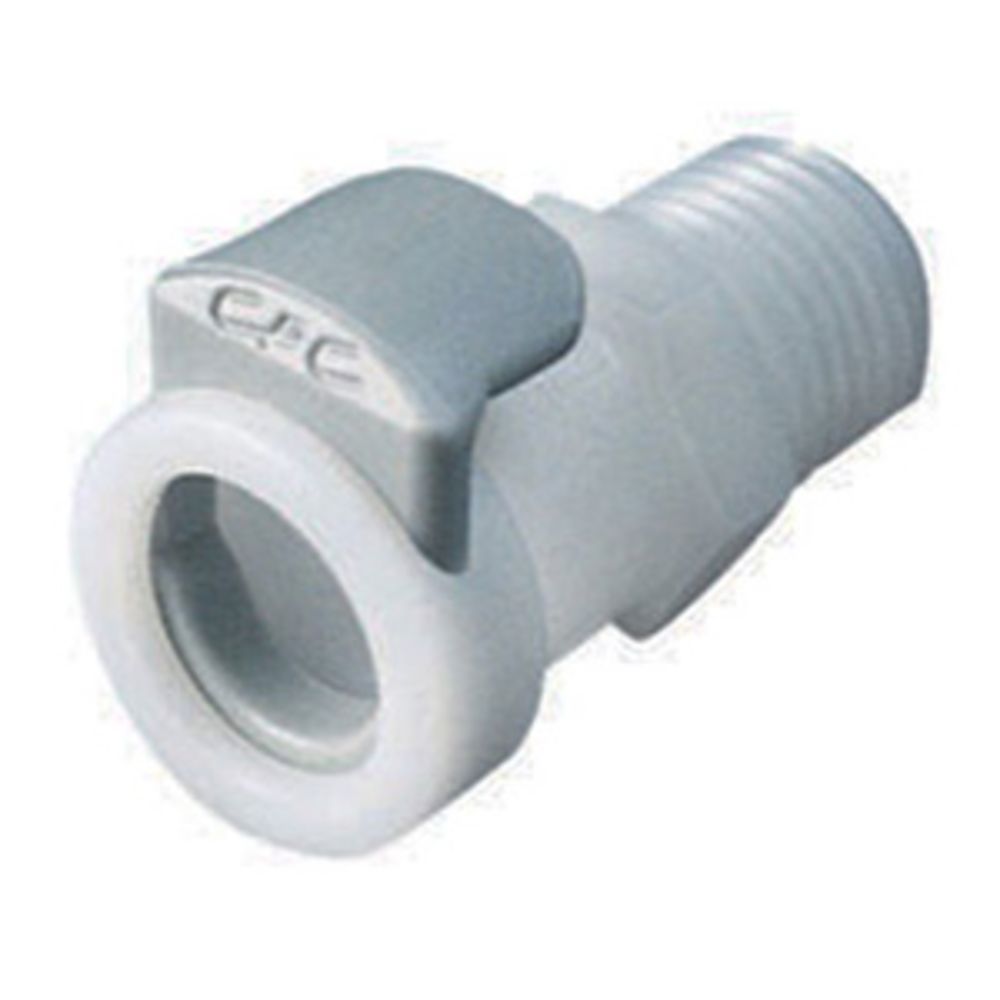

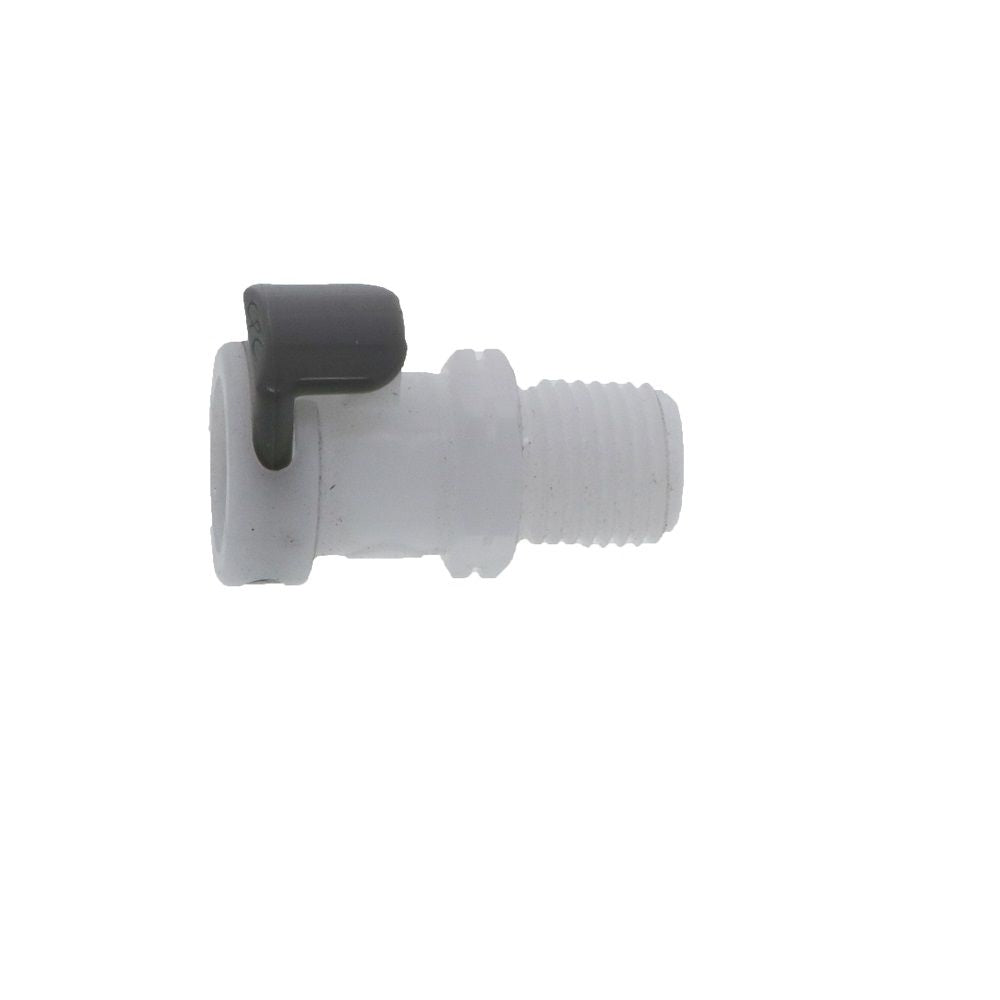

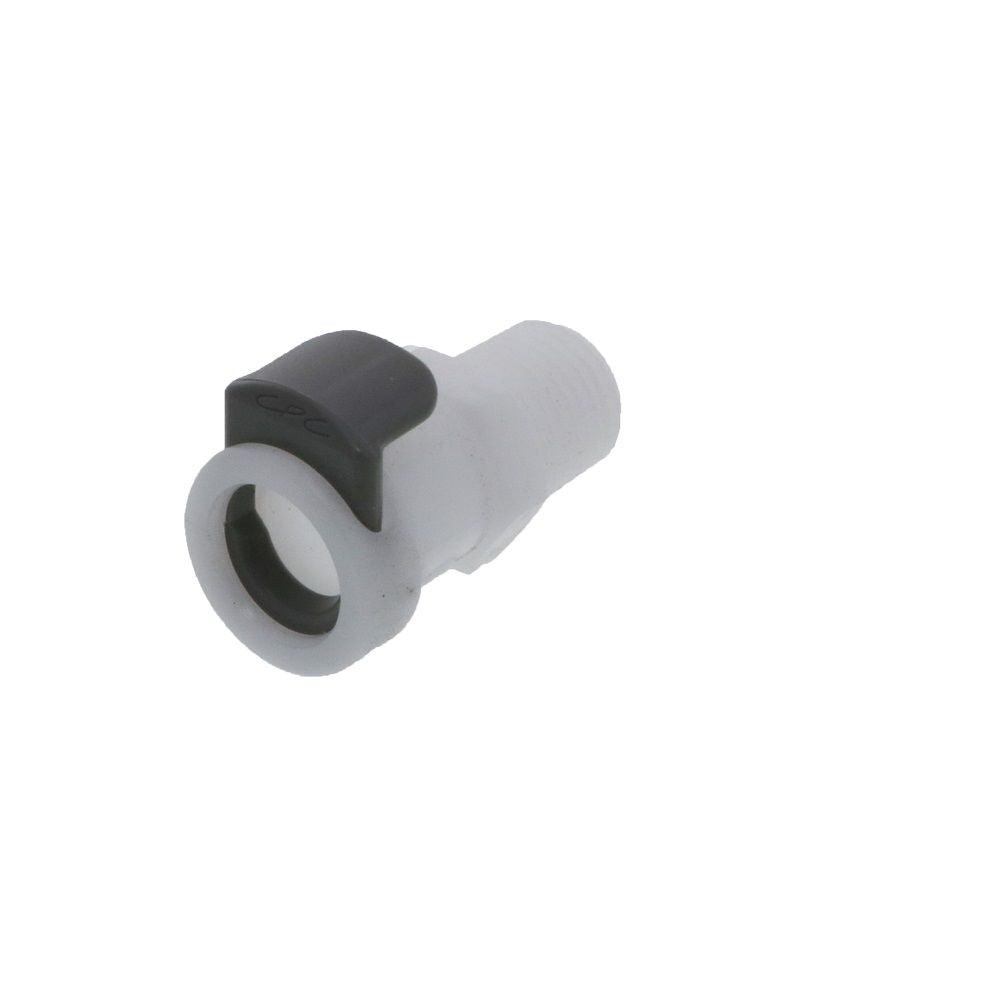

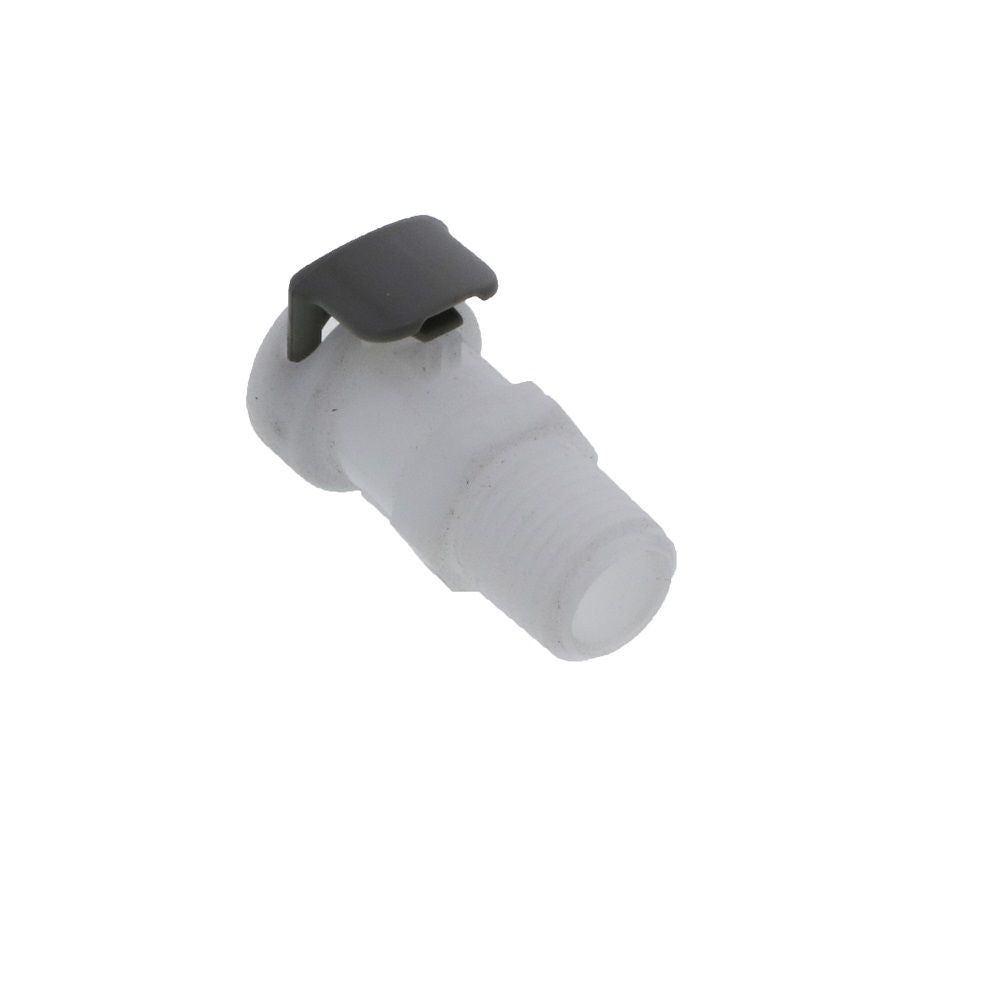

APC10004BSPT Male Thread Coupling Body 1/4 BSPT

APC Series Coupling Body with 1/4" NPT male thread features an acetal shrouded thumb latch, fewer moving parts and a smooth contoured design to deliver and easy to use and excellent flow in a compact size.

Specifications:

Material: Acetal
Color: White
Valve Option: Non-Valved
Mounting Option: 1/4" BSPT Thread
Pressure Range: Vacuum to 120 psi, 8.3 bar
Temperature Range: -40ºF to 180ºF

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water Food Beverage
Body Material	Acetal Copolymer
Inlet Connection	1/4" BSP
Max Pressure (Psi)	120
Max Temp (°F)	180
Min Pressure (Psi)	vacuum
Min Temp (°F)	-40
Mounting Options	Thread
Nsf Version	No
Outlet Connection	1/4" BSP
Series	APC
Shape	Straight
Size	1/4"
Valve Type	Non-Valved
Color / Finish	White
Connection Type	BSP
Type	Coupling Body
