Colder Products

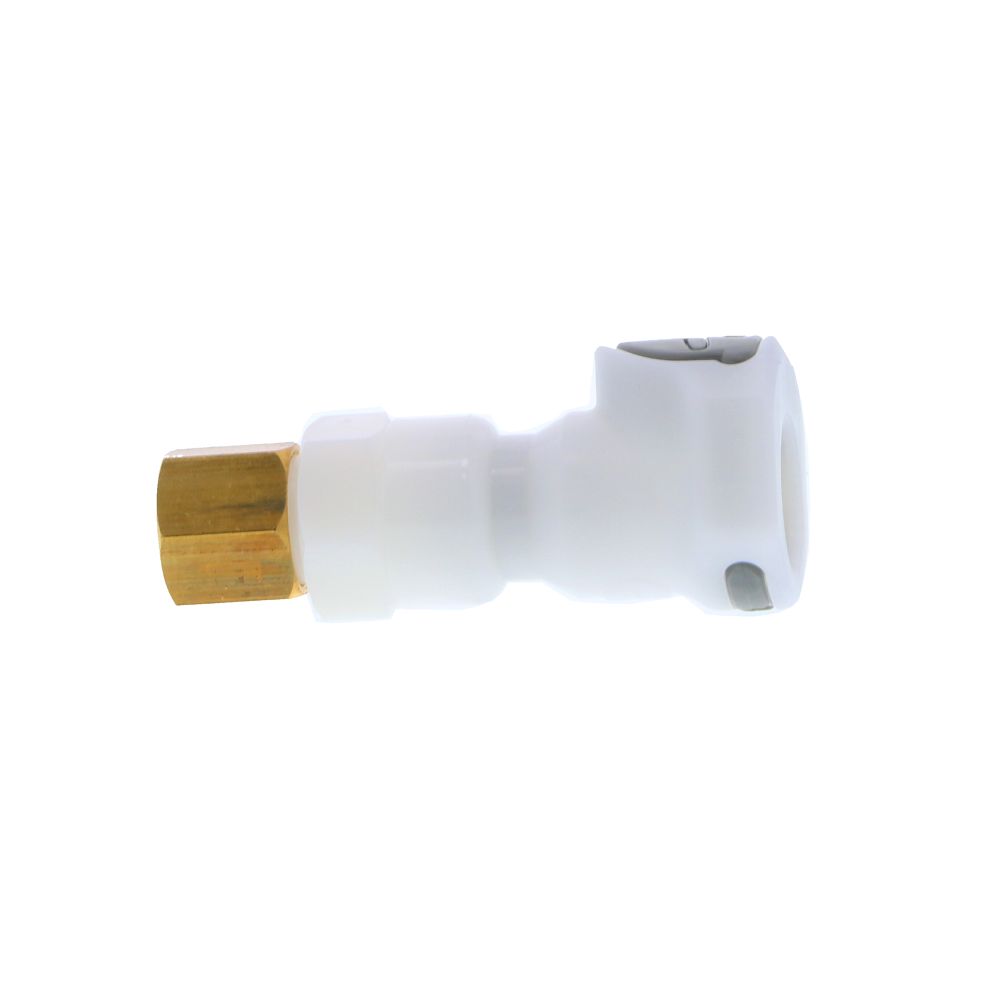

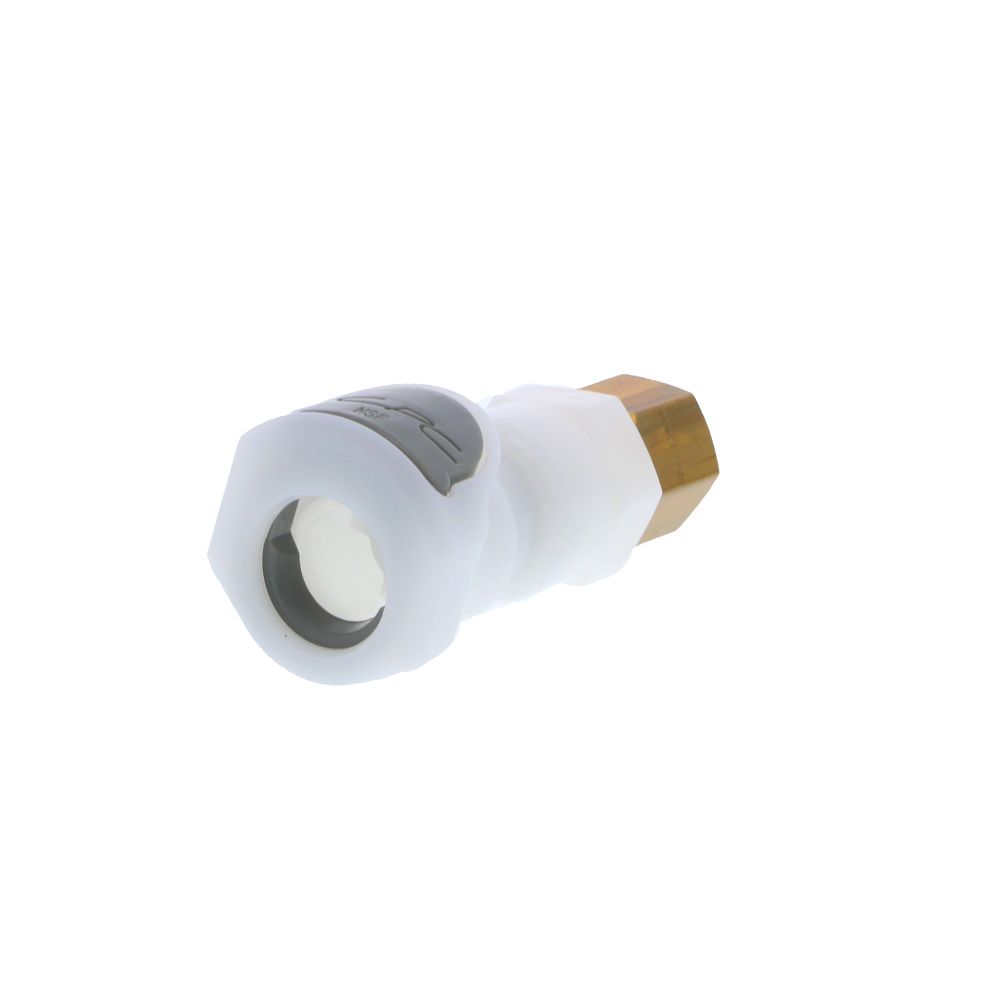

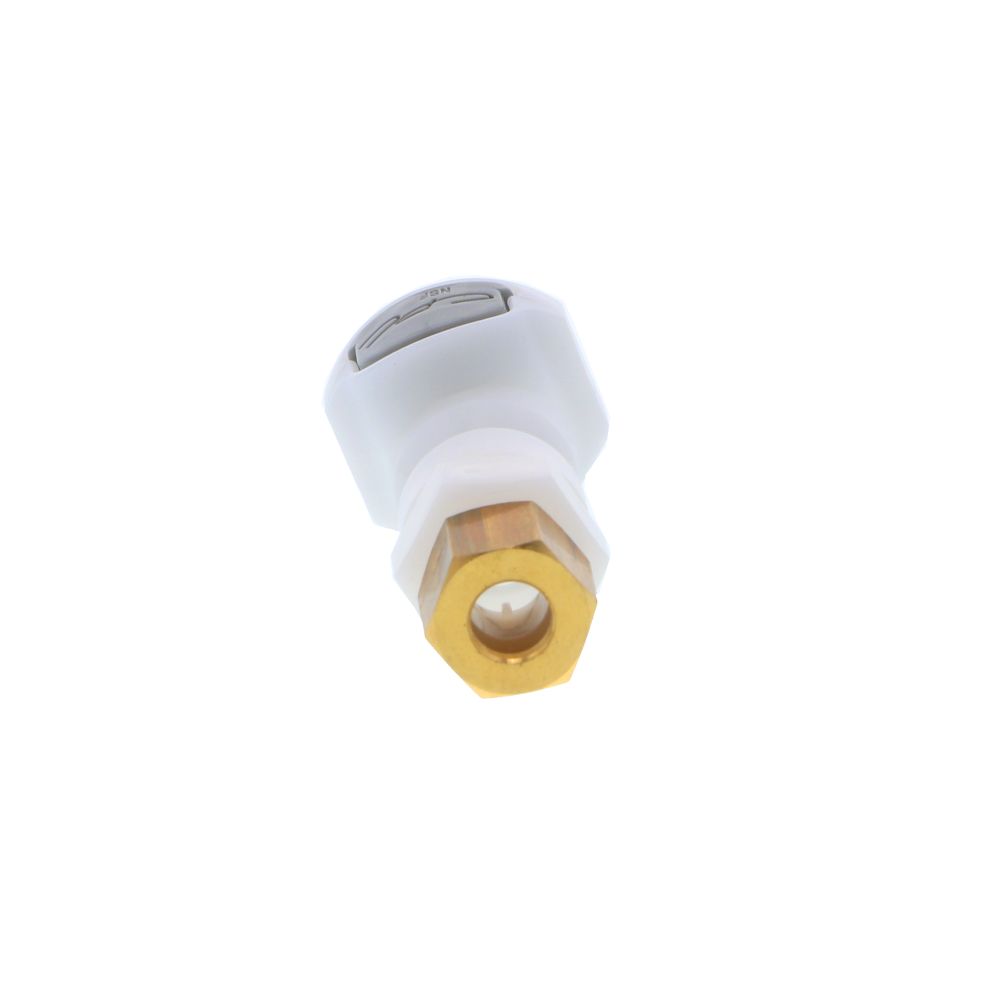

APC NSF Valved In-Line Compression Coupling Body with Shroud - 1/4"

Part Number: 46000

In Stock

out of stock

In Stock

$8.71

1/4" flow APC Series couplings feature a plastic thumb latch, fewer moving parts and a smooth contoured design to deliver ease-of-use and excellent flow in a compact size. The patented APC Series has been expanded to include couplings with valves and thumb latch shrouds. A more rugged design on some models adds durability to increase the APC’s application range.

Specifications:
  • NSF Listed
  • Material: Acetal
  • Color: White
  • Mounting Option: Free Floating
  • Seal Option: Buna-N
  • Valve Spring: 316 Stainless Steel
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Temperature Range: -40ºF to 180ºF




Weight & Dimensions

Height (inches)

0.75

Length (inches)

1.88

Weight (lbs)

0.000625

Width (inches)

0.88

Details

Application

Water; Food; Beverage

Body Material

Acetal Copolymer

Color / Finish

White

External Springs And Pin

Stainless Steel

Max Pressure (Psi)

120

Max Temp (°F)

180

Min Pressure (Psi)

vacuum

Min Temp (°F)

-40

Mounting Options

Free Floating

Origin

USA

Push-In Size

1/4" OD

Seal Material

FDA EPDM

Series

APC

Spring

316 Stainless Steel

Thumb Latch

Acetal

Valve Type

Valved

Warranty & Certifications

Certifications

NSF 169


APC




1/4" flow APC Series couplings feature a plastic thumb latch, fewer moving parts and a smooth contoured design to deliver ease-of-use and excellent flow in a compact size. The patented APC Series has been expanded to include couplings with valves and thumb latch shrouds. A more rugged design on some models adds durability to increase the APC’s application range.

Specifications:
  • NSF Listed
  • Material: Acetal
  • Color: White
  • Mounting Option: Free Floating
  • Seal Option: Buna-N
  • Valve Spring: 316 Stainless Steel
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Temperature Range: -40ºF to 180ºF



Weight & Dimensions

Height (inches)

0.75

Length (inches)

1.88

Weight (lbs)

0.000625

Width (inches)

0.88

Details

Application

Water; Food; Beverage

Body Material

Acetal Copolymer

Color / Finish

White

External Springs And Pin

Stainless Steel

Max Pressure (Psi)

120

Max Temp (°F)

180

Min Pressure (Psi)

vacuum

Min Temp (°F)

-40

Mounting Options

Free Floating

Origin

USA

Push-In Size

1/4" OD

Seal Material

FDA EPDM

Series

APC

Spring

316 Stainless Steel

Thumb Latch

Acetal

Valve Type

Valved

Warranty & Certifications

Certifications

NSF 169
